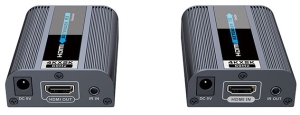

Lenkeng LKV672 4K Ultra HD HDMI Extender w.
IR
Features
- Plug and play
- Metal casing, stable and durable
- Transmission over single CAT6/6A/7
- Highest resolution support 4Kx2K@60Hz
- Support HDMI2.0, compatible with HDCP2.2
- Support IR passback function (IR range support 20~60KHz )
- Support distance up to 60m when 4K@30Hz, and 30m when 4K@60Hz

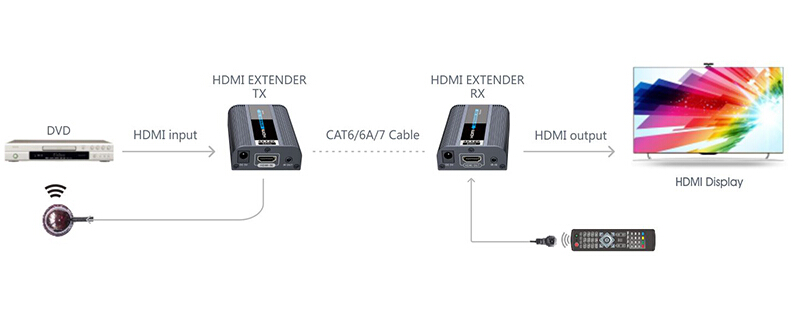

This HDMI Extender includes a transmitter unit and a receiver unit, allows
HDMI signal to be transmitted up to 60 meters at 4K×2K@30Hz, and up to 30 meters
at 4K×2K@60Hz long away via a single CAT6/6A/7 cable in a point-to-point
configuration. It supports IR passback with a wide IR frequency 20-60KHz. It is
perfect for application of outdoor advertising, video clips, monitor system,
home entertainment and conference, etc.
Specifications
|
Voltage/Current |
DC5V/1A |
|
Power consumption |
TX: 2.5W RX:3W |
|
HDMI compliance |
HDMI2.0 |
|
HDCP compliance |
HDCP2.2 |
|
HDMI resolution |
480i@60Hz480p@60Hz576i@50Hz |
|
|
576p@50Hz720p@50/60Hz |
|
|
1080i@50/60Hz1080p@50/60Hz |
|
|
4Kx2K 24/25/30/60/Hz |
|
Supports audio formats |
PCM |
|
Maximum transfer rate |
10.2Gbps |
|
Input and output TMDS signal |
0.51.5Vp-p(TMDS) |
|
Input and output DDC signal |
5Vp-p(TTL) |
|
Input cable length |
≤8m(AWG24) |
|
Output cable length |
≤8m(AWG24) |
|
Electrostatic protection of the whole
machine |
1a Contact discharge level 3 |
|
|
1b Air discharge level 3 Implementation |
|
|
of the standard: IEC61000-4-2 |
|
Working temperature |
050℃ |
|
Storage temperature |
-1070℃ |
|
Humidity (no condensation) |
090% |
|
Dimension |
77.49(L) x 56.15(W) x 22.66(H)mm |
|
Material |
Aluminium alloy material + crystal panel |
|
Treatment process |
Grit blast |
|
Color |
Black |
|
Weight |
TX:80g, RX:80g |
|
Mean time between failures (MTBF) |
>30000 Hours |
