All stock codes associated to this product
SUV500/1920G

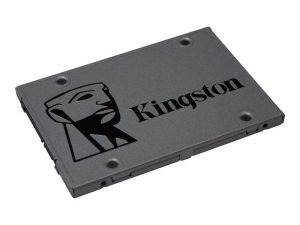

Kingston 1920GB (1.9TB) 2.5" SATA SSD - 3D TLC NAND, SATA-III 6Gbps -
UV500 Series
Features
- 10X faster than a 7200RPM hard drive2
- AES 256-bit Hardware Encryption Self-Encrypting Drive (SED) and TCG Opal
2.0
- Available in multiple form factors (2.5/M.2/mSATA)
- Multiple capacities - Available in a range of capacities up to 1.92TB1 to
meet your data storage requirements.
- 3D TLC NAND - Increased density is the key to supporting broader
workloads, ultra-responsive multi-tasking, and an overall faster system.
- Encrypted protection - Protect sensitive data with support for 256-bit AES
Hardware-based Encryption and TCG Opal 2.0 making it GDPR ready.
- Ideal for desktops, small form factor PCs, and notebooks - Comes in
multiple form factors (2.5"/M.2/mSATA) to fit in a wider array of systems. It
is ideal for slimmer notebooks and systems with limited space
UV500 SSD
Kingstons UV500 SSD dramatically improves your systems responsiveness with
incredible boot, loading, and transfer times compared to mechanical hard drives.
It uses a Marvell 88SS1074 controller and 3D NAND Flash to power through daily
tasks and improve productivity. UV500 also provides end-to-end data protection
using 256-bit AES Hardware-based encryption and support for TCG Opal 2.0
security management solutions. The UV500s available in multiple capacities from
120GB1.92TB1giving you options to meet your systems needs.
Hard drive replacement
Solid-state drives are the next evolution of PC storage and run faster,
quieter and cooler than the aging technology inside hard drives. With no moving
parts, SSDs are also more durable and more reliable than hard drives.
For desktops and notebooks
Kingston solid-state drives will make your system more responsive so it boots
quicker, loads applications faster and shuts down faster. Theyre available in
upgrade kits that include software to clone your files and OS in minutes.
Revive older systems
Solid-state drives will not only increase performance but can also be used to
breathe new life into older systems. Choosing an SSD can save you the cost of
buying a new PC by reviving the system you already own.
An encrypted solution for every user
Kingstons UV500 SSD dramatically improves your systems responsiveness with
incredible boot, loading, and transfer times compared to mechanical hard drives.
It uses a Marvell 88SS1074 controller and 3D NAND Flash to power through daily
tasks and improve productivity. Perfect for your desktops, small form factor pc
and laptops.
Available in multiple form factors and capacities from 120GB1.92TB1 giving
you options to meet your systems needs. End-to-end data protection using 256-bit
AES Hardware-based encryption and support for TCG Opal 2.0 security management
solutions allows the usage of independent software vendors such as Symantec,
McAfee, WinMagic and others.
Kingstons UV500 family of encrypted solid-state drives dramatically improves
the responsiveness of your existing system or client upgrades with incredible
boot, loading, and transfer times compared to mechanical hard drives.
Powerful
Powered by a Marvell 88SS1074 controller combined with Next Gen 64-layer 3D
TLC NAND Flash for read and write speeds up to 520MB/s and 500MB/s2 , this SSD
is 10X faster than a traditional hard drive for better performance,
ultra-responsive multi-tasking, and an overall faster system. It is also cooler,
quieter, and its shock and vibration resistance makes it ideal for notebooks,
small form factor PCs, and other mobile computing devices.
Encrypted SSD
UV500 provides end-to-end data protection using the advanced 256-bit AES
Hardware-based encryption and support for Trusted Computing Group (TCG) Opal 2.0
as required by security platforms. Enables the advantage of drive encryption and
Data Loss Prevention (DLP) software programs to activate and manage TCG Opal,
such as Symantec, McAfee, WinMagic and others. Serves as an important element to
security policies when complying with industry standards and global regulations,
such as the General Data Protection Regulation (GDPR).
System Solution
Available in multiple capacities from 120GB1.92TB1 provides efficient client
upgrades, Windows 10 migrations, and advantages for system builders to extend
the life of systems. Accelerate as a boot drive, multitasking workloads, or
hosting your most frequently used applications.
Specifications
Form factor |
2.5"/M.2 2280/mSATA |
Interface |
SATA Rev. 3.0 (6Gb/s) - with backwards compatibility to SATA Rev. 2.0
(3Gb/s) |
Capacities1 |
1.92TB |
Controller |
Marvell 88SS1074 Controller |
NAND |
3D TLC |
Encryption |
Encryption Support (AES 256-bit) |
Sequential Read/Write2 |
1.92TB - up to 520/500MB/s |
Maximum 4K Read/Write2: |
1.92TB - up to 79,000/50,000 IOPS |
Power Consumption |
0.195W Idle / 0.5W Avg / 1.17W (MAX) Read / 2.32 W (MAX)
Write |
Dimensions |
100.1mm x 69.85mm x 7mm (2.5") |
|
80mm x 22mm x 3.5mm (M.2) |
|
50.8mm x 29.85mm x 4.85mm (mSATA) |
Operating temperature |
0°C~70°C |
Storage temperature |
-40°C~85°C |
Weight |
1.92TB - 52g (2.5") |
Vibration operating |
2.17G Peak (7-800Hz) |
Vibration non-operating |
20G Peak (10-2000Hz) |
Life expectancy |
1 million hours MTBF |
Warranty/support |
Limited 5-year warranty with free technical
support |
Total Bytes Written (TBW) |
1.92TB - 800TB |
