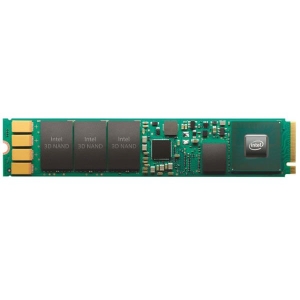

SSDPELKX010T801 | Intel 1000GB (1TB) M.2 NVMe Solid State Drive - M.2 110mm, 3D2, TLC, PCIe 3.1x4 - DC P4511 Series

Essentials

Product Collection

Intel SSD DC P4511 Series (1.0TB, M.2 110mm PCIe 3.1 x4, 3D2, TLC)

Code Name

Cliffdale Refresh

Capacity

1 TB

Status

Launched

Launch Date

Q2'18

Lithography Type

64-Layer 3D TLC NAND

Recommended Customer Price

N/A

Use Conditions

Server/Enterprise

Performance

Sequential Read (up to)

1950 MB/s

Sequential Write (up to)

1000 MB/s

Random Read (100% Span)

295000 IOPS

Random Write (100% Span)

31000 IOPS

Latency - Read

85 µs

Latency - Write

40 µs

Power - Active

7.6W

Power - Idle

3.5W

Reliability

Vibration - Operating

2.17 GRMS (5-700 Hz)

Vibration - Non-Operating

3.13 GRMS (5-800 Hz)

Shock (Operating and Non-Operating)

1000G (0.5ms)

Operating Temperature Range

0°C to 55°C

Endurance Rating (Lifetime Writes)

Up to 1.95PBW

Mean Time Between Failures (MTBF)

2 million hours

Uncorrectable Bit Error Rate (UBER)

1 sector per 10^-17 bit reads

Warranty Period

5 yrs

Package Specifications

Weight

14g

Form Factor

M.2 22 x 110mm

Interface

PCIe NVMe 3.1 x4

Advanced Technologies

Enhanced Power Loss Data Protection

Yes

Hardware Encryption

AES 256 bit

High Endurance Technology (HET)

No

Temperature Monitoring and Logging

Yes

End-to-End Data Protection

Yes

Intel Smart Response Technology

No

Intel Rapid Start Technology

No

Intel Remote Secure Erase

No
