All stock codes associated to this product
CMCORRT418PKR1, CM-CO-RRT4-18PKR1
CoolerMaster RR-T4-18PK-R1 Hyper T4 CPU
Cooler
Overview
TheHyper T4 is an affordable mainstream heatsink delivering great cooling
performance on all modern platforms thanks to its 4 specially shaped direct
touch heatpipes. The T4s 120mm PWM fan features a wide fan speed range and can
be fine tuned for maximum airflow and cooling performance or silent operation.
Thanks to this flexibility, a quick and easy snap-on fan bracket and a universal
mounting system the Hyper T4 is a great match for any system.
-
4 Direct Contact heatpipes for seamless contact between cooler and
CPU.
-
120mm wide range PWM fan, RPM can be fine tuned for maximum airflow or
whisper quiet operation.
-
Snap-On fan brackets to quickly and easily install, remove, clean or
replace the fan or heatsink.
-
Versatile all-in-one mounting solution supporting the Intel LGA
2011/1366/1150/1155/1156/775 and AMD
FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2.

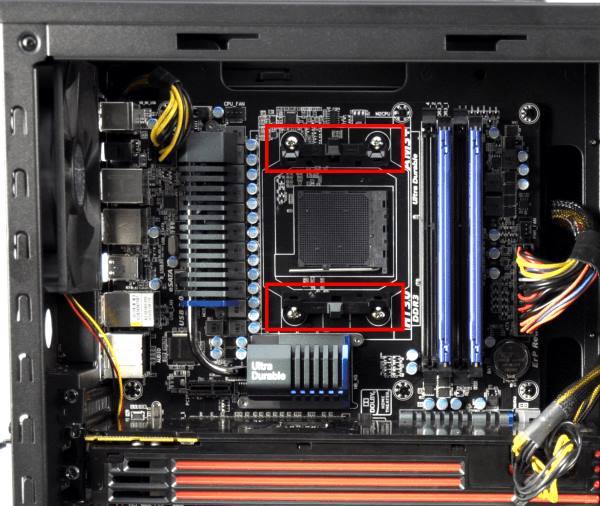

Note about AMD motherboard compatibility
Hyper T4's compatibility with AMD motherboards is dependent on the
orientation of the motherboard's stock AMD cooler brackets
Most modern AMD motherboards have stock brackets that would orient Hyper T4
in a vertical airflow configuration. We recommend fan placement that would blow
air out the top of a standard case.
Specifications
Model
Number |
RR-T4-18PK-R1 |
CPU
Socket |
Intel: LGA 2011, 1366,
1151, 1150, 1155, 1156, 775 |
AMD: FM2+, FM2, FM1,
AM3+, AM3, AM2+, AM2, AM1 |
Max
TDP |
180W |
Dimensions |
131.6 x 72.5 x 152.3 mm
(5.2 x 2.9 x 6.0 in) |
Weight |
588g
(1.2lb) |
Heatsink
Dimensions |
128 x 44 x 152.3 mm (5
x 1.7 x 6.0 in) |
Heatsink
Weight |
488g
(1.0lb) |
Cooling
Technology |
4 Direct Contact
Heatpipes / Aluminum Fins |
Fan
Dimensions |
120 x 120 x 25 mm (4.7
x 4.7 x 1 in) |
Fan
Color |
Smoked |
Fan
Speed |
600~1800 RPM (PWM)
10% |
Fan
Airflow |
24~70 CFM
10% |
Fan Noise
Level |
15.1~31.6
dBA |
Fan
Pressure |
0.3~2.14 mm H2O
10% |
Fan Bearing
Type |
Rifle
Bearing |
Fan Life
Expectancy |
40,000
hours |
Fan Rated
Voltage |
12V
DC |
Fan Rated
Amperage |
0.2A |
Fan Power
Consumption |
2.64W |
Fan Power
Connector |
4-pin |
RAM
Clearance |
37 mm (1.4
in) |
Packaged
Dimensions |
163 x 115 x 185 mm (6.4
x 4.5 x 7.3 in) |
Packaged
Weight |
892g
(2.0lb) |
Warranty |
2
years |
Accessories |
All-in-one Mounting
Solution, Thermal Grease, 120mm PWM Fan and 2 Fan
Brackets |
