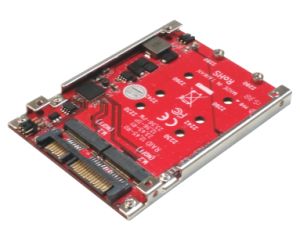

This Addonics Dual M2 SSD adapter enable connecting two M2 SSDs to a single SATA port inside a computer. Once the
M2 (NGFF) SSDs are mounted inside this
adapter, it can be used just like a standard 7 mm or 9 mm 2.5" SATA hard drive to
direct replace the 2.5" hard drive in Notebook or any computing equipment.The two M2 SSDs installed in this adapter can be set up as a RAID 0, 1 or as a single large drive. When connecting to a PM compatible SATA port, the two SSDs can be used as two independent drive without RAID.
For more detail of the M2 (NGFF) SSD. please visit the following link https://en.wikipedia.org/wiki/NGFF
The adapter can accommodate M2 (NGFF) SSD in length of 30, 42, 60 and 80 mm. |
 Hover to Zoom
|
Features:
- Connect two M2 SATA SSDs¹ to a system via one SATA port
- Used as a direct replacement of the Notebook SATA hard drive (7 mm or 9 mm height) with the low power, high performance and shock resistant M2 (NGFF) SSD
- Support M2 (NGFF) SATA SSD in length of 30, 42, 60 and 80 mm
- The two M2 SATA SSD can be set as RAID 0, 1, LARGE or as two individual drives*
- Supports dual-sided SSD module with 1.5mm component height on the top and bottom side
- M2 (NGFF) flash Card can be the primary bootable device containing the OS and applications
- High current power regulator onboard to ensure reliable operation of large capacity high performance NGFF media
- OS independent. No software driver required
Note
* For individual drive configuration, the SATA port must be Port Multiplier compatible. SATA port on most laptop systems are not PM compatible. Please check with your equipment manufacturer if you plan to use this adapter for two individual drives set up.
1 There are three types of M2 SSD: M2 SATA SSD, M2 PCIe SSD and M2 NVMe SSD. M2 SATA SSD uses SATA interface, the same interface on SATA hard drive, and is the only type of M2 media supported by this adapter.
