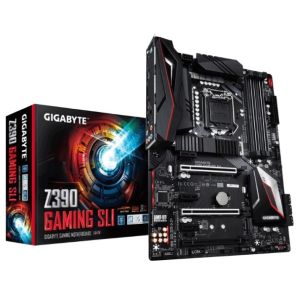

Gigabyte GA-Z390-GAMING-SLI Gaming Motherboard
LGA1151, Intel Z390, DDR4-2666(4), PCI-E 3.0x16, M.2, SATA-III(6), RAID, USB3.1 Gen 2(2), USB3.1 Gen 1(8), GigLAN, HDMI, ATX

No Longer Available More info

(?) Brand:

Gigabyte Web Site

Manuf No:

GA-Z390-GAMING-SLI
GAZ390GAMINGSLI

Shipping Weight:

3 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

CPU
1. Support for Intel 9000 Processors and 8th Generation IntelCore i7 processors/IntelCore i5 processors/IntelCore i3 processors/IntelPentiumprocessors/IntelCeleronprocessors in the LGA1151 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. IntelZ390 Express Chipset
Memory
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-IntelHD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of [email protected] Hz
  * Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Audio
1. RealtekALC1220-VB codec
  * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. IntelGbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
  * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
3. 1 x PCI Express x16 slot, running at x2 (PCIEX2)
4. 3 x PCI Express x1 slots
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support, prepared for IntelHybrid SSD) (M2P)
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
IntelOptane Memory Ready
Multi-Graphics Technology
1. Support for NVIDIAQuad-GPU SLI and 2-Way NVIDIASLI technologies
2. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
USB
Chipset:
1. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
2. 8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)
3. 2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 2 x system fan headers
7. 1 x system fan/water cooling pump header
8. 1 x RGB LED strip header
9. 6 x SATA 6Gb/s connectors
10. 2 x M.2 Socket 3 connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x S/PDIF Out header
14. 1 x USB 3.1 Gen 1 header
15. 1 x USB 2.0/1.1 header
16. 1 x Thunderbolt add-in card connector
17. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
18. 1 x serial port header
19. 1 x Clear CMOS jumper
Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x HDMI port
3. 2 x USB 3.1 Gen 2 Type-A ports (red)
4. 6 x USB 3.1 Gen 1 ports
5. 1 x RJ-45 port
6. 6 x audio jacks
I/O Controller
1. iTEI/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  Ambient LED
  AutoGreen
  Cloud Station
  EasyTune
  Easy RAID
  Fast Boot
  Game Boost
  ON/OFF Charge
  Platform Power Management
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  Smart HUD
  Smart Survey
  System Information Viewer
  USB Blocker
  V-Tuner
2. Support for Q-Flash
3. Support for Xpress Install
Bundle Software
1. NortonInternet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 22.5cm
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
