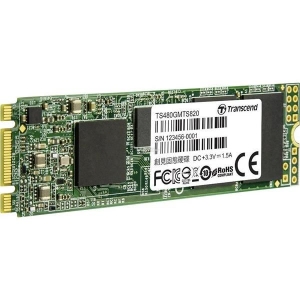

Transcend TS480GMTS820S SATA III M.2 SSDs



Features

  • Space-saving M.2 SATA form factor (80mm) for ultra-compact computing devices
  • 3D NAND flash chips
  • SATA III 6Gb/s interface and SLC caching technology for exceptional transfer speeds
  • Engineered with a RAID engine and LDPC (Low-Density Parity Check) coding to ensure data integrity
  • Supports Device Sleep Mode (DevSleep) to prolong notebook battery life by intelligently shutting down SATA interface when not in use
  • Supports S.M.A.R.T., TRIM and NCQ commands

Overview

SATA III M.2 SSDs

M.2 SSD 820S

Utilizing the SATA III 6Gb/s interface, Transcend's ultracompact M.2 SSD 820S is well-suited to address the high-performance needs and strict size limitations of small form factor devices. By using only high-quality flash chips and enhanced firmware algorithms, Transcend's M.2 SSD 820S delivers peerless reliability.

Specifications

Appearance

Dimensions (Max.)

80.0 mm x 22.0 mm x 3.58 mm (3.15" x 0.87" x 0.14")

Weight (Max.)

8 g (0.28 oz)

Interface

Bus Interface

SATA III 6Gb/s

Storage

Flash Type

3D NAND flash

Capacity

480 GB

Operating Environment

Operating Temperature

0C (32F) ~ 70C (158F)

Operating Voltage

3.3V5%

Performance

Read Speed (Max.)

560 MB/s

Write Speed (Max.)

510 MB/s

Note

Speed may vary due to host hardware, software, usage, and storage capacity.

Warranty

Certificate

CE/

FCC/

BSMI

Warranty

Three-year Limited Warranty

Warranty Policy

Please click here for more information about the Transcend Warranty Policy.

Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage.

System Requirement

Operating System

Microsoft Windows 7

Microsoft Windows 8

Microsoft Windows 10

Linux Kernel 2.6.31 or later

Note

Please make sure that your computer has a M.2 slot.
