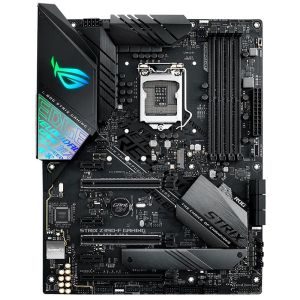

Intel Z390 LGA 1151 ATX gaming motherboard with Aura Sync, DDR4 4266 MHz+, dual M.2, SATA 6Gbps, HDMI and USB 3.1 Gen 2
  • LGA1151 socket for 9th/ 8th Gen Intel Core desktop processors
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
  • Comprehensive cooling: Onboard M.2 heatsink, water-pump header and a fan-extension header
  • 5-Way Optimization: Automated system-wide tuning, providing AI overclocking and cooling profiles tailor-made for your rig
  • Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C connectors
  • Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst
  • Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action
  • Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance
ROG Strix Z390-F Gaming amps the power delivery and stacks a comprehensive set of cooling options to tame Intel's latest CPUs. Together with a wealth of enhancements, including one-click optimization, the latest connectivity and futuristic styling with onboard illumination, ROG Strix Z390-F Gaming makes a formidable foundation for ATX gaming builds that go above and beyond.

SOLID HARDWARE SPECS FOR GAMING AND MORE

With comprehensive cooling options and upgraded power delivery to fuel CPUs with more cores, plus support for faster memory and storage, ROG Strix Z390-F Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.

DESIGN, CUSTOMIZATION, AND SETUP

A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix Z390-F Gaming wonderfully easy.

TUNE YOUR RIG THE WAY YOU WANTThe ROG Strix Z390-F Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.

THE POWER OF INTEL

Intel Z390 chipsetThe Intel Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel Core, Pentium Gold and Celeron processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.

Ready for Socket 1151 for 9th / 8th Gen Intel Core, Pentium Gold and Celeron processors

This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel Core, Pentium Gold and Celeron processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance

Specifications:

Basic
Brand Name:ROG
Chipset Manufacturer:Intel
Controller Type:Serial ATA/600
Form Factor:ATX
Gigabit Ethernet:Yes
Intel Optane Memory Ready:Yes
Maximum Memory:64 GB
Memory Form Factor:DIMM
Memory Technology:DDR4 SDRAM
Number of M.2 Interfaces:2
Number of Memory Slots:4
Number of Onboard USB 3.0 Ports:2
Number of Onboard USB 3.1 Ports:1
Number of PCI Express x1 Slots:3
Number of PCI Express x16 Slots:3
Number of SATA Interfaces:6
Number of Total Expansion Slots:6
Number of USB 3.1 Ports:6
Onboard Video:CPU Dependent Video
Processor Socket:Socket H4 LGA-1151
Processor Supported:Core i5
Product Type:Desktop Motherboard
RAID Supported:Yes
Total Number of Onboard USB Ports:7
Total Number of PCI Express Slots:6
Total Number of USB Ports:8
Total Processor Supported:1
General Information
Brand Name:ROG
Manufacturer Part Number:ROG STRIX Z390-F GAMING
Manufacturer Website Address:https://www.asus.com/au
Manufacturer:ASUS Computer International
Product Line:Strix
Product Model:Z390-F GAMING
Product Name:Strix Z390-F GAMING Desktop Motherboard
Product Type:Desktop Motherboard
I/O Controller
Controller Type:Serial ATA/600
RAID Levels:10
RAID Supported:Yes
I/O Expansions
Number of PCI Express x1 Slots:3
Number of PCI Express x16 Slots:3
Number of Total Expansion Slots:6
Total Number of PCI Express Slots:6
Interfaces/Ports
DisplayPort:Yes
HDMI:Yes
Number of USB 3.1 Ports:6
S/PDIF:Yes
Total Number of USB Ports:8
Memory
Intel Optane Memory Ready:Yes
Maximum Memory:64 GB
Memory Form Factor:DIMM
Memory Speed Supported:3 GHz (O.C.)
3.30 GHz (O.C.)
4 GHz (O.C.)
Memory Technology:DDR4 SDRAM
Number of Memory Slots:4
Miscellaneous
Country of Origin:China
Environmental Certification:RoHS
Environmentally Friendly:Yes
Package Contents:
  • Strix Z390-F GAMING Desktop Motherboard
  • User Manual
  • 4 x SATA 6Gb/s cable(s)
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x MOS fan bracket kit
  • 1 x CABLE TIE BLACK
  • 1 x SLI HB BRIDGE(2-WAY-M)
  • 1 x ROG Strix stickers
  • 1 x ROG Door Hanger(s)
  • 1 x Extension Cable for RGB strips (80 cm)
  • 1 x Extension cable for Addressable LED
  • 1 x Thermistor cable(s)
Network &Communication
Gigabit Ethernet:Yes
Onboard Interfaces
Number of M.2 Interfaces:2
Number of Onboard USB 3.0 Ports:2
Number of Onboard USB 3.1 Ports:1
Number of SATA Interfaces:6
Total Number of Onboard USB Ports:7
Physical Characteristics
Depth:243.8 mm
Form Factor:ATX
Width:304.8 mm
Processor &Chipset
Chipset Manufacturer:Intel
Processor Socket:Socket H4 LGA-1151
Processor Supported:Core i5
Total Processor Supported:1
Video
Onboard Video:CPU Dependent Video
Warranty
Limited Warranty:3 Year
