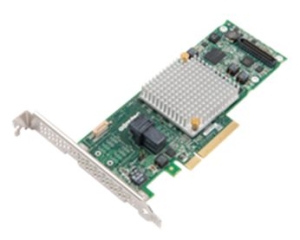

Adaptec 2277600-R RAID 8405



Overview

12 Gbps PCIe Gen3 SAS/SATA RAID Adapter with 4 internal native ports and LP/MD2 form factor.

Specifications

Operating System

Microsoft Windows

Red Hat Linux

SUSE Linux

Fedora

Debian Linux

Ubuntu Linux

Sun Solaris

FreeBSD

VMware ESXi

Benefits

Ideal for 12Gb/s performance-hungry server and workstations platforms, without compromising proven Adaptec reliability

Customer Needs

High I/O transaction and high bandwidth processing; solutions that reduce energy consumption and maintenance costs.

Key Differentiators

Third generation ZMCP; AFM-700

LP MD2 form factor for up to 16 native SAS/SATA ports

Key RAID Features

Flexible Configuration: HBA Mode & Auto Volume Mode for automatic deployment

Optimized Disk Utilization (Multiple Arrays per disk)

Supports up to 256 SAS or SATA devices using SAS expanders

Supported RAID levels: 0, 1, 1E, 5, 6, 10, 50, 60

Support for native 4K sector SAS and SATA devices in addition to 512byte sector devices

Hybrid RAID 1 & 10

Quick initialization

Online Capacity Expansion

Performance modes: Dynamic, OLTP & Big Block ByPass

Copyback Hot Spare

Dynamic caching algorithm

Native Command Queuing (NCQ)

Background initialization

Hot-plug drive support

RAID Level Migration

Hot spares - global, dedicated, and pooled

Automatic/manual rebuild of hot spares

SES and SAF-TE enclosure management

Configurable stripe size

S.M.A.R.T. support

Multiple arrays per disk drive

Dynamic sector repair

Staggered drive spin-up

Bootable array support

Support for Tape Devices, Autoloaders

MSI-X support for all device driver for all supported Operating Systems

Secure boot support for the uEFI host bios

USB image available, after shipping, on start.adaptec.com to boot maxView GUI from any USB device for enhanced GUI based setup and offline maintenance

Management Utilities

Software

Adaptec maxView Storage Manager

Web based GUI Management Utility

OS Support: Windows, Linux, Solaris VMware

Remote configuration, monitoring & notification

Remote firmware updates

SMI-S Support

SNMP, SMTP

ARCCONF

Command Line Interface

SMI-S support for VMware

Adaptec BIOS Configuration Utility (CTRL+A)

BIOS level configuration utility

Flashable BIOS support

Adaptec uEFI BIOS Configuration Utility

 HII based confi guration utility

Flashable BIOS support

Data Transfer Rate

12Gb/s per port

Bus System Interface

8-lane PCIe Gen3

Form Factor

MD2 Low Profile

Cache Memory

1024MB

Connector Configuration

One internal mini SAS HD (SFF-8643)

Package Contents

Adaptec RAID 8405 adapter

Additional low profile vented bracket

Physical Size

2.535"H x 6.6"L (64mm x 167mm)

Operating Temperature

0C to 55C* (with 200 LFM airflow without AFM-700)

0C to 50C* (with 200 LFM airflow with AFM-700)

Note: This Adaptec card contains a powerful RAID processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with recommended airflow (200 LFM).

 Ambient temperature measured 1" away from the RAID processor

Operating Voltage

0.1A @ 3.3VDC

1.2A @ 12VDC

Regulatory Certification

CE, FCC, UL, C-tick, VCCI, KCC, CNS

Environmental Compliance

RoHS

Mean Time Before Failure (MTBF)

775,000 hours at 40C

Warranty

3 years
