Cabac Forensic UltraDock FUDv5.5



  • Professional drive write blocking
  • Reliable evidence protection
  • Variety of connection options
  • Aluminum case for rugged durability

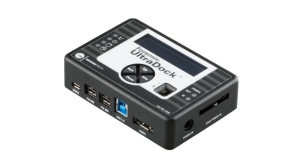

The Forensic UltraDockā„¢ is a professional drive write blocker that provides fast forensically-sound access to bare hard drives. Digital investigators, IT managers, and technicians rely on its simple and easy to use interface to study or inspect a drive.


Product name

Forensic UltraDock FUDv5.5

Host (I/O) Ports

(1) pair of FireWire 800: up to 800 Mbps

(1) USB 2.0 Micro-B

(1) USB 3.0: up to 5 Gbps

(1) eSATA: up to 3 Gbps

Drive Types Supported

PATA/IDE 2.5" drives (with PATA Adapter 25)


SATA 2.5" drives

SATA 3.5" drives

SATA SSD (solid state drives)

Hitachi 1.8" drives (with PATA Adapter 25)

Toshiba 1.8" drives (with PATA Adapter 18-TOSH)

MacBook Air 2010 (with SATA Adapter MBA2010)

MSATA (with SATA Adapter mSATA)

Mini PCIe PATA (with PATA Adapter mPCIe)

Mini PCIe SATA (with PATA Adapter mPCIe)

Mini PCIe USB (with PATA Adapter mPCIe)

SATA Speed


Supports S.M.A.R.T. disk info


Number of LEDs


Description of LEDs

Drive access, HPA/DCO detected, error, power input status, power output status, write-block status

LCD Screen

Two-line backlit LCD controlled with four soft-touch menu navigation buttons

LCD Info

2 lines x 16 characters width

LCD Backlight


Navigation menu

LCD/button driven menu system

Operating system compatibility

Windows XP or later

Windows Server 2003 or later

Mac OS X

Linux distributions that support the desired connection

Detects/reports HPA/DCO


Allows HPA/DCO override

Yes, user-configurable options

Construction material(s)

Rugged aluminum construction

Power switch

2 position: On / Off

SATA Power Input



2.95" x 4.33" x 1.06" (75mm x 110mm x 27mm)


0.40 lbs. (0.18 kg)

Write Blocking



FCC, CE, RoHS, C-Tick, RCM


CRU provides a 3-year limited warranty for this product.

Technical Support

Your investment in CRU products is backed up by our free technical support for the lifetime of the product. If you need to contact us for any reason, visit or call us at 1-800-260-9800 or +1-360-816-1800.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 36 Month Manufacturers Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
