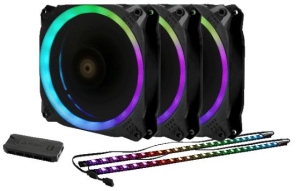

Antec Prizm 120 ARGB 3+2+C 3 in 1 Pack With Fan
Controller & ARGB LED Strips
Overview
Prizm 120 ARGB 3+2+C 3 in 1 pack with fan controller & ARGB LED
Strips
Dual-Ring Design
The Prizm ARGB series case fans come in two sizes -120 and 140 mm, and
feature a dual-ring aperture design, which allows you to display RGB effects on
both sides of the assembly.
FRONT
Back
18 Independent RGB LED Beads
Each LED bead can emit a variety of lighting colors to enrich your vision.
Motherboard Sync Addressable RGB LED Lighting
Enjoy nearly 16.8 million customized RGB colors and effects through
compatibility with top-end motherboard manufacturers.
To sync with Gigabyte Motherboard, please connect the additional
cable (included in the package).
ARGB LED Lighting Mode
up to 16.8 million colors and coordinate your own custom schemes for endless
variety.
Fan Controller (Included)
Multi-function fan controller for up to 5 fans. Easily switch between light
modes to create a unique custom color.
- A. FAN: PWM Port (4pin)
- B. LED: ARGB port (3pin)
- C. DC_IN: Connect the power cable to the SATA connector
- D. LED CTRL: LED CTRL port (can connect with the Reset cable and convert
the Reset button of the chassis into the LED contro; button)
- E. LED SPEED: Adjust the speed of the lighting effects, with three options
to choose: FAST, SLOW and MEDIUM speed
- F. PWM LED: PWM LED port, can be connected to the motherboard to
synchronize unlimited ARGB colors and PWM functions (Signal cable is included)
- G. MODE: Customize a variety of LED light mode buttons
PWM Intelligent Case Fan
Fan speed automatically adjusts according to temperature, effectively
reducing system noise while achieving excellent heat dissipation
Hydraulic Bearing / Shock-Absorbing Pads on All Four Corners
Prizm fans use hydraulic bearings to reduce noise and friction and last up to
40,000 hours
Shock absorbing rubber pads at all corners protect the fan and reduce
vibration noise between the fan and reduce vibration noise between the fan and
the chassis
ARGB LED Strip Light Included
The light strip also uses Single RGB LED, which is compatible with the
motherboard ARGB control system.
Specifications
|
Model
Name |
Prizm
120 ARGB 3+2+C |
|
Fan
Type |
PWM
Fan |
|
Dimensions
(mm) |
120*120*25
mm |
|
Bearing
Type |
Hydraulic |
|
LED
Type |
Addressable
RGB |
|
Fan
Speed (RPM) |
2000
max. |
|
Airflow
(CFM) |
45.03
max. |
|
Air
Pressure (mmH2O) |
2.56
max. |
|
Fan
Noise Level (dBA) |
32.6
max. |
|
Lifespan |
40000
hours |
|
|
|
|
Connector |
|
|
Fan |
4
pin |
|
ARGB |
3
pin |
|
|
|
|
Rated
Voltage |
|
|
FAN |
DC12V
|
|
LED |
DC5V |
|
|
|
|
Operating
Voltage |
|
|
FAN |
DC6.0-13.8V |
|
LED |
DC4.5-5.3V |
|
|
|
|
Rated
Current (A) |
|
|
FAN |
0.18A±20% |
|
LED |
0.80A±20% |
|
|
|
|
Warranty
|
2
years |
|
Fan
Control Box |
ARGB
port x 5, PWM fan port x 5, |
|
|
SATA,
Mode, External LED CTRL, |
|
|
M/B
Sync, LED Speed |
|
LED
strips Length |
40cm |
