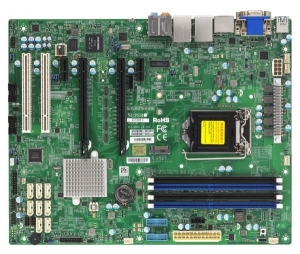

Supermicro X11SAE-F Server Motherboard



  • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5/v6, Intel® 6th/7th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®
  • Intel® C236 chipset
  • Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
  • 2 PCI-E 3.0 x16 (run at 16/NA or 8/8), 2 PCI-E 3.0 x1, and 2 5V PCI 32-bit slots
  • Single GbE LAN with Intel® i210-AT (Share with IPMI); single GbE LAN with Intel® i219LM
  • 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280)
  • I/O: 1 VGA, 2 COM, TPM header
  • 6 USB 3.0 (2 rear + 4 via header(s)) 6 USB 2.0 (2 rear + 4 via header(s)) 2 USB 3.1 (10Gbps, rear)


Product SKUs



Physical Stats

Form Factor



12" x 9.6" (30.48cm x 24.38cm)



Intel® 6th/7th Generation Core™ i3 series, Intel® 6th/7th Generation Core™ i5 series, Intel® 6th/7th Generation Core™ i7 series, Intel® Xeon® processor E3-1200 v6/v5.

Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP

A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3


BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ i3 Processors and Intel® Xeon® Processor E3-1200 v6 series

System Memory

Memory Capacity

Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots

4x 288-pin DDR4 DIMM slots, Up to 64GB DDR4 ECC UDIMM

Memory Type

2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes

4GB, 8GB, 16GB

Memory Voltage


Error Detection

Corrects single-bit errors

Detects double-bit errors (using ECC memory)

On-Board Devices


Intel® C236


Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

+ 1 PCI-E M.2(PCI-E x4, 2242/2260/2280)(No Raid support)


OOB Bios refresh function is not supported

Network Controllers

Single LAN with Intel® Ethernet Controller I210-AT

(Share with IPMI)

Single LAN with Intel® PHY I219LM LAN controller


ALC 888S HD Audio


Aspeed AST2400 BMC

***VGA is for IPMI only***

Input / Output


6 USB 2.0 ports (2 rear + 4 headers)

6 USB 3.1 Gen1 ports (2 Rears Type A, 4 headers)

2 USB 3.1 Gen2 ports , 2 Type A)

Video Output

1 DVI - D port, 1 DP (DisplayPort) port, 1 HDMI port, 1 VGA port,

***VGA is for IPMI only***

Serial Port / Header

2 COM Ports (2 headers)


1 TPM Header

Expansion Slots


2 PCI-E 3.0 x16,

2 PCI-E 3.0 x12 - 5V PCI 32bit

***2 PCI-E x16 slots are running at x16/NA or x8/x8 ***


M.2 Interface: 1 PCI-E 3.0 x4

Form Factor: 2242/2260/2280

Key: M-Key

System BIOS



BIOS Features

Plug and Play (PnP)

DMI 2.3

PCI 3.0

ACPI 5.0

USB Keyboard support

Hardware BIOS Virus protection


UEFI 2.3.1

RTC (Real Time Clock) Wakeup



IPMI2.0, SPM, SuperDoctor® 5, Watchdog

Power Configurations

ACPI Power Management

Keyboard Wakeup from Soft-Off

CPU Fan auto-off in sleep mode

Power-on mode for AC power recovery

PC Health Monitoring


+12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, VBAT


5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication


CPU thermal trip support, I2C temperature sensing logic, PECI, Thermal Monitor 2 (TM2) support


CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID

Other Features

8-pin 12v DC power connector, ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss,

CPU thermal trip support for processor protection, Intel Smart Response Technology, WOL

Operating Environment

Operating Temperature Range

0°C ~ 50°C (32°F ~ 122°F)
