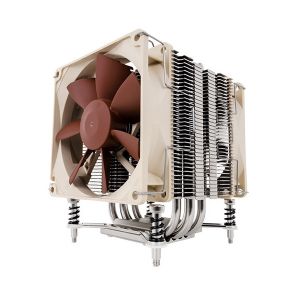

Noctua NH-U9DXi4 125mm CPU Cooler
Overview
Noctua's DX line of coolers has become a default choice in high performance
quiet cooling solutions for Intel Xeon CPUs. The latest i4 revision supports
LGA2011 (both Square ILM and Narrow ILM), LGA1356 and LGA1366 based Xeon
platforms and the 9cm model NH-U9DX i4 comes equipped with two of Noctua’s
award-winning NF-B9 premium fans with PWM for automatic speed control. Standing
125mm tall, the NH-U9DX i4 combines outstanding quiet cooling efficiency with
full 4U compatibility. Fitted with the professional SecuFirm2â„¢ mounting system
and bundled with Noctua's industrial-grade NT-H1 thermal compound, the NH-U9DX
i4 forms a complete premium quality package for quietly cooling Xeon based
workstations and servers.
Details
Award-winning NH-U
series
The NH-U9DX i4 is based on
the latest version of Noctua's award-winning NH-U9 coolers. First introduced in
2005, the NH-U series has become a standard choice for premium quality quiet CPU
coolers and won more than 400 awards and recommendations from leading
international hardware websites and
magazines.
4U
Compatibility
Sporting four heatpipes, a
surface area of more than 3800cm and two premium grade 92mm fans, the NH-U9DX i4
provides a significant upgrade in quiet cooling performance compared to common
2U solutions. At the same time, its 125mm height makes it fully compatible with
standard 4U cases.
2x NF-B9 92mm Premium
Fan
The
award-winningNF-B992mm premium fan features
Noctua's renowned SSO bearing as well as advanced aerodynamic optimisations such
as Bevelled Blade Tips and Vortex-Control Notches. In order to achieve its
superb quiet cooling capability, theNH-U9DX i4comes
equipped with two NF-B9 fans in a push/pull
setup.
PWM
support and Low-Noise Adaptor
TheNF-B992mm
fans supplied with theNH-U9DX i4support PWM for
convenient automatic speed control through the mainboard. In addition, the
maximum fan speed can be reduced from 1600 to 1300rpm using the supplied
Low-Noise Adaptors for even quieter
operation.
SecuFirm2â„¢
mounting
system
Noctua's
SecuFirm2 mounting systems have become synonymous with quality, safety and ease
of use. Supporting Intel's LGA2011 (both Square and Narrow ILM), LGA2066,
LGA1356 and LGA1366 Xeon platforms, the SecuFirm2 mounting included with the
NH-U9DX i4 guarantees perfect contact pressure and maximum convenience on all
sockets.
NT-H1
thermal
compound
Having
received more than 100 awards and recommendations from hardware journalists
around the world, Noctua's NT-H1 is a proven professional grade TIM solution
that provides minimum thermal resistance, excellent ease of use and outstanding
reliability.
6-year
manufacturer’s
warranty
Noctua
products are renowned for their impeccable quality and outstanding longevity.
Like all Noctua fans, the suppliedNF-B9models
feature an MTTF rating of more than 150.000 hours and the
entireNH-U9DX i4package comes with a full 6-year
manufacturer's
warranty.
Specifications
|
Cooler
Specification |
|
|
Socket
compatibility |
Intel LGA2066,
LGA2011-0 & LGA2011-3 (Square ILM & Narrow ILM), LGA1356, LGA1366
(with Xeon backplate) |
|
Height (without
fan) |
125
mm |
|
Width (without
fan) |
95
mm |
|
Depth (without
fan) |
71
mm |
|
Height (with
fan) |
125
mm |
|
Width (with
fan) |
95
mm |
|
Depth (with
fan) |
95/120*
mm |
|
Weight (without
fan) |
460
g |
|
Weight (with
fan/s) |
550/640*
g |
|
Material |
Copper (base and
heat-pipes), aluminium (cooling fins), soldered joints & nickel
plating |
|
Fan
compatibility |
92x92x25 |
|
Scope of
Delivery |
2x NF-B9 PWM premium
fan |
|
Low-Noise Adaptor
(L.N.A.) |
|
NT-H1 high-grade
thermal compound |
|
SecuFirm2 Mounting
Kit |
|
Warranty |
6
Years |
|
|
|
FAN
Specification |
|
|
Model |
Noctua NF-B9
PWM |
|
Bearing |
SSO2 |
|
Max. Rotational Speed
(+/- 10%) |
1600
RPM |
|
Max. Rotational Speed
with L.N.A. (+/- 10%) |
1300
RPM |
|
Min. Rotational Speed
(PWM, +/-20%) |
300
RPM |
|
Max.
Airflow |
64,3
m/h |
|
Max. Airflow with
L.N.A. |
52,6
m/h |
|
Max. Acoustical
Noise |
17,6
dB(A) |
|
Max. Acoustical Noise
with L.N.A. |
13,1
dB(A) |
|
Input
Power |
0,96
W |
|
Voltage
Range |
12
V |
|
MTTF |
> 150.000
h |
