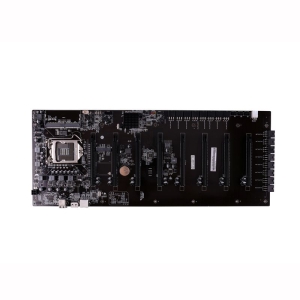

Colorful C.B250A-BTC Plus V20 Motherboard
  • Intel LGA1151, Intel B250, DDR4-2400MHz, PCI-E x167, SATA3.0, USB2.0(2)

IMG 1 of 1
No Longer Available
Part Number:
435499
(?) Brand:
Colorful
Manuf No:
CF-110003187701Y
CF110003187701Y
Shipping Weight:
2.8 KG (Includes product packaging)
Estimate Shipping
Date Added:
19/2/2019
Details Files Images & Video
All stock codes associated to this product
CF110003187701Y, CF-110003187701Y

Colorful CF-110003187701Y C.B250A-BTC Plus V20 Motherboard



Features

  • Supports 7th and 6th Generation Intel® Coreâ„¢ i7/i5/i3/ Pentium® / Celeron® Processors (Socket 1151)
    • *8th Gen Intel® Coreâ„¢ desktop processors are supported with Intel® 300 Series chipset motherboards only
  • Professional mining motherboard
  • no need riser card
  • can directly connect to 8pcs vga cards for mining
  • HDMI port
  • SO-DIMM slot
  • support DDR4 2400/2133MHZ memory
  • PCIE3.0/USB2.0/SATA3.0/MSATA
  • onboard 1000M LAN chipset
  • 1*PCI Express 3.0x16 slot
  • 7*PCI Express x1 slots
  • diversity extension pattern

Specifications

Motherboard_Model

C.B250A-BTC PLUS V20

Chipset

Intel B250

Processor

support Intel LGA 1151 processors

Memory

1*SO-DIMM slotSupport DDR4 2400/2133MHz memory

Graphics

1*PCI-E x167*PCI-E x1

Board_IO

2*USB2.0 ports,1*RJ45 lan, 1*HDMI port; onboard 1*9-pin USB2.0 header

Expansion_Slots

1*MSATA slot

SATA_Ports

1*SATA3.0 6Gb/s port

BIOS

128M UEFI

Power_Management

support 95W processors

Hardware_Monitor

CPU Fan speed ControlledSYSTEM Fan speed Monitoring,CPU Temperature MonitoringSystem Temperature Monitoringand Voltage monitoring

LAN

Onboard 1000M LANProvides 10/100/1000Mb Ethernet

Audio

ALC662 6-channel audio chipset

Configuration

485*195mm

Warranty

1 year

Other_Features

Support S4, S5;Support phone call startup, timing boot, network S5 wake-up

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
