Fujitsu S26361-F3842-L501 PRAID CP400i SAS/SATA Controller Card
  • 12Gb/s SAS Ports, Up To 8 SAS/SATA Devices (SSD, HDD), PCI-E 3.0(8), RAID 0, 1, 10, 5, 50

IMG 1 of 2
No Longer Available
Part Number:
438298
(?) Brand:
Fujitsu Web Site
Manuf No:
S26361-F3842-L501
S26361F3842L501
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
10/3/2019
Details Files Images & Video
All stock codes associated to this product
S26361F3842L501, S26361-F3842-L501, 32S26361F3842L501, 4549210086399

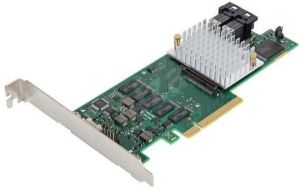

Fujitsu S26361-F3842-L501 PRAID CP400i SAS/SATA Controller Card



Overview

The Fujitsu PRAID CP400i SAS/SATA controller card based on the LSI SAS3008 allows latest RAID technology at affordable prices with low power consumption. The PRAID CP400i MegaRAID entry controller card offer users a straight-forward solution that includes essential RAID levels and uncomplicated configuration options.

Features & Benefits

Features Benefits
  • 12Gb/s SAS ports
  • Connect up to 8 SAS / SATA devices (SSD, HDD)
  • PCIe 3.0 x8 (backward compatible to PCIe 2.0)
  • Extends the PCIe data rates up to 8.0 GT/s per lane
  • LSISAS3008 12Gb/s
  • RAID levels 0, 1, 10, 5, 50 for more data security
  • User RAID Management
  • Fully supported by PRIMERGY ServerView RAID Manager

Technical details

Controller Silicon LSI SAS3008
Connector type 2x SFF8643 (Mini-SAS HD)
Key RAID Data Protection Feature RAID levels 0, 1, 10, 5, 50
RAID Level Migration (RLM)
Auto resume after loss of system power during array rebuild or reconstruction
Fixed stripe size of 64kB
Fast initialization for quick array setup
Check Consistency for background data integrity - Make Data Consistent (MDC)
Patrol read for media scanning and repairing
16 logical drive support
Configuration on Disk (COD)
S.M.A.R.T support

Specifications

Controller Silicon LSI SAS3008
Connector type 2x SFF8643 (Mini-SAS HD)
Key RAID Data Protection Feature RAID levels 0, 1, 10, 5, 50
RAID Level Migration (RLM)
Auto resume after loss of system power during array rebuild or reconstruction
Fixed stripe size of 64kB
Fast initialization for quick array setup
Check Consistency for background data integrity - Make Data Consistent (MDC)
Patrol read for media scanning and repairing
16 logical drive support
Configuration on Disk (COD)
S.M.A.R.T support
