Essentials |
|
|
Product
Collection |
Intel

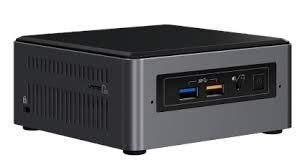

NUC Kit with 7th Generation Intel Core Processors |
|
Code
Name |
Products
formerly Baby Canyon |
|
Status |
Launched |
|
Launch
Date |
Q1'17 |
|
Board
Form Factor |
UCFF
(4" x 4") |
|
Socket |
Soldered-down
BGA |
|
Internal
Drive Form Factor |
M.2
and 2.5" Drive |
|
#
of Internal Drives Supported |
2 |
|
Lithography |
14
nm |
|
TDP |
28
W |
|
DC
Input Voltage Supported |
12-19
VDC |
|
Recommended
Customer Price |
$475.00
|
|
Processor
Included |
Intel
Core i7-7567U Processor (4M Cache, up to 4.00 GHz) |
|
Warranty
Period |
3
yrs |
|
Supplemental
Information |
|
|
Embedded
Options Available |
No |
|
Datasheet |
View
now |
|
Description |
Other
features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP
1.2 via USB-C; also includes microSDXC card slot, dual
microphones |
|
Product
Brief |
View
now |
|
Additional
Information URL |
View
now |
|
Memory
& Storage |
|
|
Max
Memory Size (dependent on memory type) |
32
GB |
|
Memory
Types |
DDR4-2133
1.2V SO-DIMM |
|
Max
# of Memory Channels |
2 |
|
Max
Memory Bandwidth |
34.1
GB/s |
|
Max
# of DIMMs |
2 |
|
ECC
Memory Supported |
No |
|
Processor
Graphics |
|
|
Integrated
Graphics |
Yes |
|
Graphics
Output |
HDMI
2.0a; USB-C (DP1.2) |
|
#
of Displays Supported |
3 |
|
Expansion
Options |
|
|
PCI
Express Revision |
Gen3 |
|
PCI
Express Configurations |
M.2
slot with PCIe x4 lanes |
|
Removable
Memory Card Slot |
microSDXC
with UHS-I support |
|
M.2
Card Slot (storage) |
22x42/80 |
|
I/O
Specifications |
|
|
#
of USB Ports |
6 |
|
USB
Configuration |
2x
front and 2x rear USB 3.0; 2x USB 2.0 via internal
headers |
|
USB
Revision |
2.0,
3.0 |
|
USB
2.0 Configuration (External + Internal) |
0
+ 2 |
|
USB
3.0 Configuration (External + Internal) |
2B
2F + 0 |
|
Total
# of SATA Ports |
2 |
|
Max
# of SATA 6.0 Gb/s Portsx |
2 |
|
RAID
Configuration |
2.5"
HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1) |
|
Audio
(back channel + front channel) |
7.1
digital (HDMI mDP); L+R+mic (F) |
|
Integrated
LAN |
10/100/1000 |
|
Integrated
Wireless |
Intel
Wireless-AC 8265 + Bluetooth 4.2 |
|
Integrated
Bluetooth |
Yes |
|
Consumer
Infrared Rx Sensor |
Yes |
|
Additional
Headers |
CEC,
2x USB2.0, FRONT_PANEL |
|
#
of Thunderbolt 3 Ports |
1 |
|
Advanced
Technologies |
|
|
Intel
Optane Memory Supported |
Yes |
|
Intel
Virtualization Technology for Directed I/O
(VT-d)x |
No |
|
Intel
vPro Platform Eligibility |
No |
|
TPM |
No |
|
Intel
HD Audio Technology |
Yes |
|
Intel
Rapid Storage Technology |
Yes |
|
Intel
Virtualization Technology (VT-x) |
Yes |
|
Intel
Platform Trust Technology (Intel PTT) |
Yes |
|
Security
& Reliability |
|
|
Intel
AES New Instructions |
Yes |
