All stock codes associated to this product
452BDGC, 452-BDGC, 4438993, 884116292746

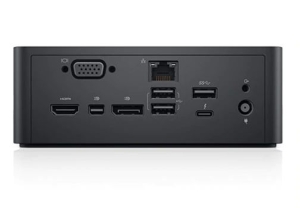

Dell 452-BDGC Precision Dual USB-C Thunderbolt
Dock
Overview
Incredibly powerful Thunderbolt Dock delivers up to 210W
Introducing Dell’s most powerful dock to date, the Dell Precision Dual USB-C
Thunderbolt Dock - TB18DC for Precision 7530 and 7730 workstations, offering
incredibly high power delivery of up to 210W. Charge up to 80% of your Precision
7530 or 7730 within an hour, and be fully charged in under two hours with Dell
ExpressCharge. You’ll be ready to move at a moment’s notice with plenty of
battery backing you up.
Lightning fast data transfer speeds
Transfer large files at lightning fast speeds of up to 40Gbps when you
connect Thunderbolt storage devices.
One cable for both docking and power
Leave your power brick at home and conveniently plug in one cable to dock and
power your laptop. Boost productivity with the ability to connect up to three
Full HD displays, or two 4K displays, and Thunderbolt/USB peripherals with a
single cable.
Flexible placement with 0.8m cable length
With the flexibility of a long, 0.8m cable length you can place your dock
just about anywhere in your workspace.
Most manageable with Dell Business Class features
The dock supports Dell Business Class features which allows for easy
manageability. ITDMs will be able to remotely troubleshoot, manage systems, and
secure dock ports.
Specifications
|
Product
Type |
Docking
station |
|
Docking
Interface |
USB-C
/ Thunderbolt 3 |
|
Video
Interfaces |
VGA,
HDMI, DP, Mini DP, Thunderbolt |
|
Dimensions
(WxDxH) |
14.5
cm x 14.5 cm x 5.2 cm |
|
Weight |
720
g |
|
Networking |
Gigabit
Ethernet |
|
Power |
Power
adapter 210 Watt AC 120/230 V (50/60 Hz) |
|
Manufacturer
Warranty |
1
year warranty |
|
Designed
For |
Precision
Mobile Workstation 7530, 7730 |
|
General |
|
|
Product
Type |
Docking
station |
|
Width |
14.5
cm |
|
Depth |
14.5
cm |
|
Height |
5.2
cm |
|
Weight |
720
g |
|
Networking |
|
|
Data
Link Protocol |
Ethernet,
Fast Ethernet, Gigabit Ethernet |
|
Expansion
/ Connectivity |
|
|
Interfaces |
2
x USB 2.0 - 4 pin USB Type A |
|
|
2
x SuperSpeed USB 3.0 - 9 pin USB Type A |
|
|
1
x SuperSpeed USB 3.0 with PowerShare - 9 pin USB Type
A |
|
|
1
x display / video - HDMI - 19 pin HDMI Type A |
|
|
1
x display / video - DisplayPort - 20 pin DisplayPort |
|
|
1
x display / video - DisplayPort - Mini DisplayPort |
|
|
1
x video - VGA - 15 pin D-Sub (DB-15) |
|
|
1
x network - RJ-45 |
|
|
1
x speakers - output - mini-phone 3.5 mm |
|
|
1
x Thunderbolt 3 - Thunderbolt - 24 pin USB-C |
|
|
1
x headset - output - mini-phone 3.5 mm |
|
Compatible
Slots |
2
x USB 3.1 / Thunderbolt 3 |
|
Miscellaneous |
|
|
Cables
Included |
1
x Thunderbolt 3 / USB-C cable |
|
Features |
Up
to 3 monitors support |
|
Power |
|
|
Power
Device |
Power
adapter |
|
Voltage
Required |
AC
120/230 V (50/60 Hz) |
|
Power
Provided |
210
Watt |
|
System
Requirements |
|
|
OS
Required |
Microsoft
Windows 7 / 8 / 8.1 / 10, Red Hat Enterprise Linux 7.2, Ubuntu Linux
16.04 |
|
Manufacturer
Warranty |
|
|
Service
& Support |
Limited
warranty - 1 year |
|
Compatibility
Information |
|
|
Designed
For |
Dell
Precision Mobile Workstation 7530,
7730 |
