All stock codes associated to this product
A3L98015BLUS, A3L980-15-BLU-S, A3L98015BLU, A3L980-15-BLU

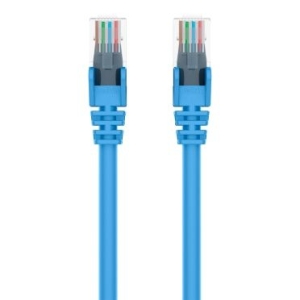

Belkin A3L980-15-BLU-S CAT6 Ethernet Patch Cable
Snagless, RJ45, M/M
Overview
At a Glance:
- CAT6 Ethernet patch cable for connecting to LANs or the Internet
- Ideal for use with 100-1000BASE-T networks
- RJ45 plugs with 50-micron gold-plated connectors for clear signal
- 4 twisted pairs of stranded copper wires prevent crosstalk
- Snagless design prevents cracking and breaking
KEY FEATURES
- UTP stranded copper wires
- Durable PVC jacket
- RJ45 plugs with 50-micron gold-plated connectors
- Molded strain relief
CONNECT EASILY TO A COMPUTER NETWORK
Upgrade your network and enjoy clean and clear transmissions with the Belkin
CAT6 Ethernet Patch Cable. This patch cable lets you connect a laptop or desktop
computer to a wall outlet, modem, router or another networking device. It meets
the CAT6 standard and is suitable for use with 100/1000BASE-T networks. Patch
cables are also handy in home offices and hotel rooms to establish a wired
Internet connection.
RJ45 PLUGS WITH GOLD-PLATED CONTACTS FOR A CLEAR SIGNAL
The Belkin CAT6 Ethernet Patch Cable features an RJ45 male connector on each
end. Internal load bars ensure accurate plug positioning and consistent high
performance, while 50-micron gold-plated connectors resist corrosion and wear
and deliver a clean, clear signal.
GIGABIT SPEEDS WITH CAT6 TECHNOLOGY
Made with Unshielded Twisted Pair (UTP) stranded copper wires, this cable
meets the CAT6 Ethernet network cable standard and can support Ethernet speeds
of up to 1 gigabit per second. Unlike CAT5 technology, CAT6 cables fully use all
four pairs of twisted copper wires for greater bandwidth and speed.
LESS CROSSTALK WITH TWISTED PAIR WIRES
The CAT6 Ethernet Patch Cable features 4 UTP 24 AWG (American Wire Gauge)
stranded copper wires to reduce electromagnetic interference. Stranded cables
are more pliable than solid cables, making them better suited for travel. Plus,
the wires are housed in a durable PVC outer jacket for abrasion and corrosion
resistance.
Package Includes:
CAT6 Ethernet Patch Cable
Specifications
Cable
Type |
Cat
6 |
Characteristic
Impedence |
100±15Ω
@ 1 ~ 550MHz |
Conductor
Construction |
Bare
Stranded Copper |
Conductor
Resistance |
93.8Ω/km/20°C
max |
Conductor
Size |
24AWG
x 4pairs |
Connectors |
RJ45 |
Dielectric
Strength |
AC
1.5kV |
Flame
Retardant Test |
CM |
Insulation
Material |
HDPE |
Jacket
Diameter |
5.9±0.15mm |
Jacket
Material |
PVC |
Mutual
Capacitance |
56pF/m
max |
Propagation
Delay |
536nS/100m
max @ 550MHz |
Spark
Test |
2.5kV |
Standards
Compliance |
ISO/IEC
11801; TIA/EIA-568-B.2-1 |
Structural
Return Loss |
8.6dB
min at 550MHz |
Connector |
50
micron gold-plated connector |
Cable
Characteristic |
Unshielded
twisted pair (UTP) |
Cable
Type |
Cat
6 |
Characteristic
Impedence |
100±15Ω
@ 1 ~ 550MHz |
Conductor
Construction |
Bare
Stranded Copper |
Conductor
Resistance |
93.8Ω/km/20°C
max |
Conductor
Size |
24AWG
x 4pairs |
Connector
on First End |
1
x RJ-45 - male |
Connector
on Second End |
1
x RJ-45 - male |
Dielectric
Strength |
AC
1.5kV |
Flame
Retardant Test |
CM |
Insulation
Material |
HDPE |
Jacket
Diameter |
5.9±0.15mm |
Jacket
Material |
PVC |
Mutual
Capacitance |
56pF/m
max |
Propagation
Delay |
536nS/100m
max @ 550MHz |
Spark
Test |
2.5kV |
Standards
Compliance |
ISO/IEC
11801; TIA/EIA-568-B.2-1 |
Structural
Return Loss |
8.6dB
min at 550MHz |
Adapters
Cables Included |
1x
cable included |
