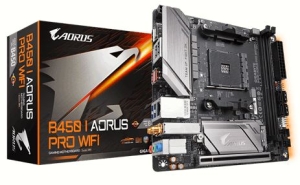

Gigabyte GA-B450-I-Aorus-PRO-WiFi Motherboard



Overview

AMD introduces the latest Ryzen™ 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400-series motherboards perfectly fit the latest AMD Ryzen™ 2000 series processors' computing performance with more features and more control. Users can enjoy the benefits brought by AMD Ryzen™ 2000 series processors.

AMD StoreMI technology

GIGABYTE 400-series maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

  • Making the PC experience fast, smooth and easy
  • Optimizing computer responsiveness from system boot to application launch
  • Offering SSD performance with HDD capacity at an affordable cost
  • Quickly accessing key files by automatically learning users' computing behaviors

AORUS PERFORMANCE

4+2 Digital Power Design

IR Digital PWM Provider for High Performance Power IC solutions

AORUS B450 I AORUS PRO WIFI uses an all IR digital CPU power design which includes both digital PWM Controllers and Power Stage controllers, capable of providing at least 50A of power. These 100% digital controllers and additional 8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 2nd Gen AMD Ryzen™ processors.

4+2 Digital Power Design

  • 4 Phases Vcore, 2 Phases SOC (Memory Controller) Digital Power
  • 50A for both each Vcore phase and each SOC phase Server level reliability
  • High current capacity
  • Lower temperature

NVMe PCIe Gen3 x4 2280 M.2 Connector (Up to 32 Gb/s)

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

AORUS M.2 Thermal Guard

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.

AORUS CONNECTIVITY

Smashes the GbE Barrier!

Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 1.73Gbps. Double the speed than previous generation.

Native USB 3.1 Gen2

AMD 400-series chipset provides native USB 3.1 Gen2 ports with speeds up to 10Gbps. Available over the USB Type-A connector, the USB3.1 Gen2 is much improved with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 and USB3.1 Gen1.

Intel® GbE LAN with cFosSpeed Internet Accelerator Networking

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

AORUS AUDIO

ALC1220-VB Immersive Gaming ViBes

All New Realtek High-End HD Audio Codec

ALC1220 120dB SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.

New VB series audio controller stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB.

No More Confusion

During In-Game Voice Chat

Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!

High-End Audio Capacitors

GIGABYTE Gaming motherboards use high-end Chemicon audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

AORUS STYLE

RGB Fusion with Digital LEDs Support

With AORUS Motherboards, RGB Fusion is even better with Digital LEDs.* RGB Fusion offers users the option to control onboard RGB and external RGB/ Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Gaming Motherboards will support either 5v digital LED lighting strips and up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns and various speed settings with more to come.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

Basic





Advanced



RGB Fusion (Advanced mode)

With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colors. You can even set the LEDs to synchronize with your favorite music or have them change colors to indicate the CPU temperature. For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and color transitions, along with specific duration and transition times.

Independent Control

Customized different color for different section of board

Synchronize with AORUS Graphics Cards

Synchronize colors with select AORUS video cards to complete the feel of your system.

Synchronize with RGB FUSION READY Peripherals

With a dazzling array of products supported, RGB Fusion is the software that brings it all together, letting your accessories synchronize to the same beat.

Fully Customizable

Adjust lighting animation with color stops, color duration, transition period, and color effects.

Lighting Profile

Save, export and import profiles to quickly change effects based on your preference and to share with others.

GIGABYTE RGB Fusion APP

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

With a dazzling array of products supported, RGB Fusion is the software that brings it all together, letting your accessories synchronize to the same beat. Customize all your LEDs how you like — have them match, dazzle and impress. Learn more about RGB Fusion.

AORUS COOLING

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

  • 2 Fan Pin Headers
  • 5 Temperature Sensors
  • All Fan Pin Headers Upgraded to Hybrid Fan Headers
  • Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
  • Intuitive UI for Fan Control

5 Temperature Sensors

2 Hybrid Fan Headers

Fan Pin Headers



Internal Temperature Sensors

Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

FAN STOP

Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Intelligent Fan Control Design

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Interoperable Sensors and Fans

Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve

Customize fan curves based on specific temperatures with the intuitive graphical UI.

AORUS ULTRA DURABLE

Solid Pin Power Connectors

Make Good Connection and Significantly Lower the Wires Capacity

AORUS 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.

Solid Pin Power connector advantages

  • Larger contact area for electricity
  • More metal quantity to sustain higher power and generated heat
  • Ultra durable and longer lifespan

GIGABYTE Patented Double Locking Bracket

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

AORUS EXCELLENCE

GIGABYTE BIOS & Applications

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

GIGABYTE APP Center

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

3D OSD

3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere<>P Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

CEC 2019 Ready

Save the power as easy as one click

CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon® Graphics via HDMI.

HDMI™ - The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

Specifications

CPU

AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™



Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors

Chipset

AMD B450

Memory

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory



Dual channel memory architecture



Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules



Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules



* ECC function is limited if using an AMD Athlon™ 200-series APU.



Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules



Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor:



1 x DisplayPort, supporting a maximum resolution of [email protected] Hz



* Support for DisplayPort 1.2 version.



2 x HDMI ports, supporting a maximum resolution of [email protected] Hz(Note)



* Support for HDMI 2.0 version and HDCP 2.2.(Note)



* One of HDMI function is limited if using an AMD Athlon™ 200-series APU.



Support for up to 3 displays at the same time



Maximum shared memory of 16 GB

Audio

Realtek® ALC1220-VB codec



High Definition Audio



2/4/5.1/7.1-channel



* To configure 7.1-channel audio, you have to use an HD front panel audio



module and enable the multi-channel audio feature through the audio driver.



Support for S/PDIF Out

LAN

Intel® GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module

Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band



BLUETOOTH 5



Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate

Expansion Slots

1 x PCI Express x16 slot, running at x16(Note)



(The PCIEX16 slot conforms to PCI Express 3.0 standard.)



1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Storage Interface

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)



4 x SATA 6Gb/s connectors



Support for RAID 0, RAID 1, and RAID 10

USB

Chipset:



2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel



2 x USB 3.1 Gen 1 ports available through the internal USB header



2 x USB 2.0/1.1 ports available through the internal USB header



Integrated in the APU:



4 x USB 3.1 Gen 1 ports on the back panel



Internal I/O Connectors



1 x 24-pin ATX main power connector



1 x 8-pin ATX 12V power connector



1 x CPU fan header



1 x system fan header



1 x digital LED strip header



1 x CPU cooler LED strip/RGB LED strip header



4 x SATA 6Gb/s connectors



1 x M.2 Socket 3 connector



1 x front panel header



1 x front panel audio header



1 x S/PDIF Out header



1 x speaker header



1 x USB 3.1 Gen 1 header



1 x USB 2.0/1.1 header



1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)



1 x Clear CMOS jumper



1 x chassis intrusion header

Back Panel Connectors

1 x DisplayPort



2 x HDMI ports



2 x USB 3.1 Gen 2 Type-A ports (red)



4 x USB 3.1 Gen 1 ports



1 x RJ-45 port



2 x SMA antenna connectors (2T2R)



3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection



Temperature detection



Fan speed detection



Overheating warning



Fan fail warning



Fan speed control

BIOS

1 x 128 Mbit flash



Use of licensed AMI UEFI BIOS



PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center



@BIOS



3D OSD



AutoGreen



Cloud Station



EasyTune



Fast Boot



Game Boost



ON/OFF Charge



RGB Fusion



Smart Backup



Smart Keyboard



Smart TimeLock



Smart HUD



Smart Survey



System Information Viewer



USB Blocker



V-Tuner



Support for Q-Flash



Support for Xpress Install

Bundle Software

Norton® Internet Security (OEM version)



cFosSpeed

Operating System

Support for Windows 10 64-bit



Support for Windows 7 64-bit

Form Factor

Mini-ITX Form Factor; 17.0cm x 17.0cm
