All stock codes associated to this product
492BCJF, 492-BCJF, 4213752

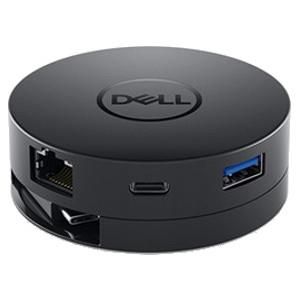

Dell DA300 Mobile Docking Station
Overview
Most comprehensive, compact 6-in-1 USB-C adapter
Featuring the widest variety of port options available including HDMI, DP,
VGA, Ethernet, USB-C and USB-A, the Dell USB-C Mobile Adapter - DA300 offers
seamless videoi, network, and data connectivity, in a neat, compact design.
Crisp 4K resolution at 60Hz and fast SuperSpeed USB 10 Gbps data
transfer rate
Connect to high resolution displays without compromising on performance,
thanks to the USB-C Mobile Adapter’s ability to support 4K resolution at 60Hzi.
Simply plug in your PC to a monitor or projector via DisplayPort or HDMI 2.0.
Using legacy video ports is also a breeze with the adapter’s readily available
VGA port.
The USB-C and USB-A downstream ports let you connect other supported
peripheralsi and enjoy faster file transfers with SuperSpeed USB 10Gbpsi data
transfer speeds.
Innovative design
The small, round-shaped adapter fits neatly in your bag, while the concealed
cable can be extended or retracted by rotating the top and bottom cover of the
adapter, for easy storage. The longer coaxial cable offers flexibility to
connect to various form factors from clamshells to 2-in-1s to detachables,
providing enhanced signal quality for stable connectivity wherever your busy day
takes you.
Easy plug and play. Best with Dell systems
Easy to use, the adapter is ready to go when you plug it in - no installation
of external drivers is necessary. Pair your adapter with Dell systems to enjoy
Business Class featuresi such as MAC address pass-through, PXE Boot, and
Wake-On-LAN. It works with most operating systems, including Windows and MACi.
Additional Product Notes
1. Only one video output is supported at a time.
2. Available with select PC models (with support for DisplayPort Alt-Mode 1.3
& above standard) when connected to displays that offer 4K resolution at
60Hz. Otherwise, default resolution will be 4K at 30Hz.
3. a) When adapter is connected to a Thunderbolt or 15W USB-C (DisplayPort
Alt-mode) port – two downstream USB-C and USB-A ports with USB3.1 Gen 2 file
transfer rate of up to 10 Gbps is supported.
b) When adapter is connected to a 7.5W USB-C (DisplayPort Alt-mode) port –
only one of the two downstream USB-C and USB-A ports with USB2.0. file transfer
rate up to 480 Mbps is supported on a 1st come 1st serve basis (the peripheral
connected first to either the USB-C or USB-A port is supported) 4. USB mice,
keyboards, mice dongles, select SSDs and flash drives.
5. Dell Business Class Features include:
PXE Boot – Pre eXecution Environment Boot allows a computer to be troubleshot
remotely when connected to the network via its network card. Wake-On-LAN –
Starts your PC remotely using the signal over your network.
MAC address pass-through – MAC address pass through recognizes only a unique
MAC address entered in the system’s BIOS (Basic Input/Output System) by
overriding the adapter MAC address every time your laptop is connected to the
network, ensuring that your PC’s MAC address stays the same no matter which
USB-C adapter you use. 6. Tested with macOS High Sierra 10.13.4 and macOS Sierra
10.12.6.
Specifications
General |
|
Product
Type |
|
Adapter |
|
Width |
2.7
in |
Depth |
2.75
in |
Height |
1
in |
Weight |
2.82
oz |
Networking |
|
Data
Link Protocol |
Gigabit
Ethernet |
Expansion
/ Connectivity |
|
Interfaces |
USB-A |
|
1
x USB-C |
|
1
x display / video - HDMI |
|
1
x display / video - VGA |
|
1
x display / video - DisplayPort |
|
1
x network - Ethernet 1000 - RJ-45 |
Miscellaneous |
|
Cables
Included |
1
x USB-C cable - integrated - 4.7 in |
Features |
Preboot
Execution Environment (PXE) support, MAC address pass-through, bus
powered |
Compliant
Standards |
Plug
and Play |
System
Requirements |
|
OS
Required |
Apple
MacOS, Microsoft Windows 7 / 8 / 8.1 / 10 |
Compatibility
Information |
|
Designed
For |
Dell
Latitude 3390 2-in-1, 5290, 5290 2-in-1, 5490, 5590, 7290, 7390,
7490 |
Compatibility |
|
This
product is compatible with the following systems: |
Latitude
5280 |
|
Latitude
5480 |
|
Latitude
5580 |
|
XPS
9365 2-in-1 |
|
Precision
5520 |
|
Latitude
7280 |
|
Precision
3520 |
|
Latitude
7480 |
|
Precision
7520 |
|
Latitude
5289 2-in-1 |
|
Latitude
7285 2-in-1 |
|
Latitude
7380 |
|
Latitude
7389 2-in-1 |
|
Precision
7720 |
|
Inspiron
15 5000 Series (5570) |
|
Latitude
7490 |
|
Latitude
7390 |
|
Latitude
5490 |
|
Latitude
5590 |
|
Latitude
5290 |
|
Latitude
7290 |
|
Inspiron
13 7000 Series (7373) |
|
Inspiron
15 7000 Series (7573) |
|
Inspiron
17 5000 Series (5770) |
|
Inspiron
13 7000 Series (7370) |
|
Inspiron
15 7000 Series (7570) |
|
XPS
13 9370 |
|
Latitude
5290 2 In 1 |
|
Latitude
3490 |
|
Latitude
3390 2 In 1 |
|
Latitude
3590 |
|
Chromebook
5190 |
|
XPS
15 (9575) |
|
XPS
15 (9560) |
|
Vostro
15 (7570) |
