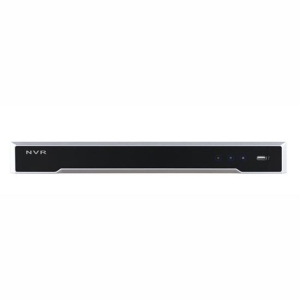

Hikvision DS-7608NI-I2/8P Plug And Play Network Video
Recorder
Features
- Up to 12 MP Resolution Recording
- Up to 16 IP Cameras Can Be Connected
- H.265/H.264+/H.264/MPEG4 Compression
- HDMI Video Output up to 4K (3840 × 2160)
- Plug and Play with up to 8 or 16 Independent PoE
- Network Connections
- 80 Mbps/160 Mbps Incoming Bandwidth
- Up to 2 SATA Interfaces
- Smart Search and Smart Playback
- Alarm and Audio I/O
Description
AUDIO IN, RCA connector for audio input
AUDIO OUT, RCA connector for audio output
DB-15 connector for VGA output to display local video output and menu
HDMI video output connector
Controller port, alarm in/alarm out
LAN, 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB 3.0 port
GND
100 to 240 VAC power supply
Power switch
Network interfaces with PoE function
(8 interfaces for DS-7608NI-I2/8P and 16 interfaces for DS-7616NI-I2/16P)
Specifications
|
Video/Audio
Input |
|
|
IP
Video Input |
8-ch |
|
|
Up
to 12 MP resolution |
|
Two-Way
Audio |
1-ch,
RCA (2.0 Vp-p, 1kΩ) |
|
Network |
|
|
Incoming
Bandwidth |
80
Mbps |
|
Outgoing
Bandwidth |
256
Mbps |
|
Remote
Connection |
128 |
|
Video/Audio
Output |
|
|
Recording
Resolution |
12
MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/
DCIF/2CIF/CIF/QCIF |
|
HDMI
Output Resolution |
4K
(3840 × 2160), 2K (2560 × 1440), 1920 × 1080p, 1600 × 1200, 1280 × 1024,
1280 × 720, 1024 × 768 |
|
VGA
Output Resolution |
1920
× 1080p, 1280 × 1024, 1280 × 720, 1024 × 768 |
|
Audio
Output |
1-ch,
RCA (linear, 1 kΩ) |
|
Decoding |
|
|
Decoding
Format |
H.265/H.264/MPEG4 |
|
Live
View/Playback Resolution |
12
MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/
QCIF |
|
Synchronous
Playback |
8-ch |
|
Capability |
2-ch
@ 4K, or 8-ch @ 1080p |
|
Hard
Disk |
|
|
SATA |
2
SATA interfaces for 2HDDs |
|
Capacity |
Up
to 6 TB capacity for each HDD |
|
External
Interface |
|
|
Network
Interface |
1
RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interface |
|
USB
Interface |
Front
panel: 1 × USB 2.0; rear panel: 1 × USB 3.0 |
|
Alarm
In/Out |
1-Apr |
|
Poe
Interface |
|
|
Interface |
8
RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
|
Power |
≤120
W |
|
Supported
Standards |
IEEE
802.3 af/at |
|
General |
|
|
Power
Supply |
100
to 240 VAC, 50 to 60 Hz |
|
Power |
≤180
W |
|
Consumption
(w/o HDD) |
≤15
W (without enabling PoE) |
|
Working
Temperature |
-10
to +55° C (14 to 131° F) |
|
Working
Humidity |
10%
to 90% |
|
Chassis |
380
mm (15") chassis |
|
Dimensions
(W × D × H) |
380
mm × 290 mm × 45 mm (15.0" × 11.4" × 1.8") |
|
Weight
(w/o HDD) |
≤3
kg (6.6 lb |
