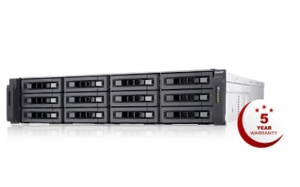

QNAP TES-1885U-D1531-16GR
Features
Dual OS options system for versatility and mission-critical applications
Powered by an Intel® Xeon® D processor, the powerful enterprise-class
TES-1885U is open for two operating systems – either the FreeBSD-based QES or
Linux-based QTS. While QES supports ZFS for the utmost reliability and allows
near-limitless snapshots, block-level data deduplication and real-time data
compression, QTS features Qtier Technology, SSD cache, and an abundance of
value-added apps to realize storage efficiency and diverse usage applications.
The TES-1885U gives the flexibility to choose from two operating systems,
enabling businesses to deploy proper operating systems on multiple TES-1885U
based on their needs and goals in different stages.
Note: To change the NAS operating system after completing setup, it is
necessary to re-initialize the hard disks and delete all stored data. A remote
backup is required before switching the NAS operating system.
Intel® Xeon® D processor optimizes performance and
efficiency
Powered by an advanced 14nm Intel® Xeon® D 64-bit SoC processor with an
integrated PCH, up to 128GB DDR4 ECC RDIMM RAM / 64GB DDR4 non-ECC UDIMM RAM,
and with two built-in 10GbE SFP+ ports, the 12Gb/s SAS-enabled TES-1885U
delivers outstanding performance for data transmission and applications. With a
thermal design power of only 20-65W, the TES-1885U fulfills demands for both
performance and energy saving.
Excellent hardware: immensely, durable & compact
The TES-1885U supports SAS 12Gb/s 3.5”/2.5” drives, allowing for SAS 12Gb/s
and SATA 6Gb/s hard drives and SSDs. Businesses can create the most
cost-effective storage by implementing suitable drives based on their needs.
1. Intel Xeon D multi-core processor
14nm energy-efficient SoC, supports DDR4 RAM and PCIe Gen.3 per-lane
throughput.
2. DDR4 2133 MHz memory
Supports four DDR4 RAM modules for UDIMM and ECC RDIMM (up to 64GB UDIMM RAM,
up to 128GB RDIMM RAM).
3. 12Gb/s SAS controllers
Supports 12Gb/s SAS hard drives and SSDs for fast data transfer and
highly-reliable storage.
4. Hot swappable fans
Four hot-swappable 6cm cooling fans that can be quickly and easily
replaced.
5. 2 x Built-in 10GbE SFP+ ports
Boosts iSCSI/NFS/CIFS network transfer for virtualization applications, data
backup/restoration and massive data transmission.
6. 4 x Gigabit ports
Ideal for service binding, port trunking, and MPIO configurations.
7. 4 x PCIe slots
Three high-speed PCIe Gen.3 and one PCIe Gen.2; supports 10GbE/ 40GbE
adapters and PCIe NVMe SSD.
8. 6 x 2.5” SATA SSD slots
Used for caching, high-performance storage pools, or the QES OS drive.
5-year warranty: Global warranty inclusive
The TES-1885U is backed by a 5-year warranty with 3-year global warranty
inclusive at no extra cost. This premier warranty demonstrates QNAP’s dedication
to the essential business needs of continuous operations and non-interrupted
services to their users.
Dual OS options system inside a single rackmount NAS
The TES-1885U provides flexibility for choosing between uncompromising
reliability and greater versatility. The QES operating system is suited for
enterprise-level storage with maximized business continuity, or the QTS
operating system for enjoying application storage for greater functionality.
QES operating system based on FreeBSD & ZFS
The TES-1885U supports the brand-new QES (QNAP Enterprise Storage) operating
system, which is based on the simple and efficient FreeBSD kernel and the ZFS
file system that has been proven through years of experience to be most suitable
for high-end enterprise applications. Continuing the same user experience with
the QTS operating system, QES provides business users with an easy learning
curve to quickly deploy the TES-1885U, and provides the best storage solution
jointly with the current QNAP NAS.
Note: TES-1885U requires at least 32GB RAM to run QES operating system.
ZFS – the best file system for business data storage
The TES-1885U features ZFS, a combined file system and logical volume
manager, to support various advanced functions for high-end enterprise storage,
including powerful storage expansion, flexible storage pools, RAID-Z for data
protection, simplified management, high-performance SSD cache, nearly limitless
snapshots and cloning, data deduplication, in-line compression, self-healing,
and thin provisioning with reclaim for optimized utilization for virtual machine
storage. ZFS is designed with a focus on data integrity, and uses its end-to-end
checksums to detect and correct silent data corruption caused by hardware
defects, bugs in firmware or metadata errors, effectively protecting user’s
data.
Deduplication and compression to maximize VDI storage
performance
All-flash storage featuring high-performance random I/O is advantageous for
databases, online transaction processing (OLTP), and virtual desktop
infrastructure (VDI) applications. Though the cost of all-flash storage is
higher than using normal hard drives, data deduplication and compression
technology can greatly assist in storing more data in less storage space with
greater cost-efficiency and performance gains. Using VDI for example, there
could be over 90% duplicate data from OS images and applications that are spread
over virtual desktops. The TES-1885U supports block-based data deduplication to
optimize storage usage from redundant data. Deduplicated virtual desktops become
easier to be cached to achieve optimal virtual desktop performance. In-line data
compression helps shrink data size, further optimizing storage usage. For
mastering storage in a virtualized environment, the TES-1885U provides
businesses with the most cost-effective remote virtual desktop platform and
mission-critical information warehousing.
Strong disaster recovery made by nearly limitless snapshots and
SnapSync
The TES-1885U supports up to 65,536 snapshots for iSCSI LUN and shared
folders. When executing a remote snapshot backup, it only needs to transfer
changed data, and can use deduplication and compression to significantly reduce
the amount of transferred data. The TES-1885U can provide remote backup SnapSync
for snapshots at the shortest interval of every five minutes, fully supports
VMware vCenter Site Recovery (SRM) technology, provides Storage Replication
Adapter (SRA) for SRM, and provides enterprise-class remote backup &
disaster recovery solution to fulfill business continuity.
Well-rounded backup solutions to secure data
QNAP NetBak Replicator is easy-to-use and VSS-aware backup software, and
helps businesses to create complete backups in datacenter and virtualization
environments without needing to purchase expensive and complex commercial
software. To build a QNAP Snap Agent and VSS Hardware Provider operating
environment, all applications (including VSS Service, Requestor, Provider and
QNAP Snap Agent) can be deployed with VSS-Aware applications on the same server,
and the minimal requirements are only one TES-1885U and one server for it to be
operational.
Storage for comprehensive virtualization applications
The TES-1885U supports VMware® vSphere™ 6.0 and Citrix® XenServer™ 6.0, and
is compatible with Microsoft® Hyper-V®, benefiting flexible deployment and
management in virtualization environments. The TES-1885U supports VMware VAAI
and Microsoft ODX to increase performance by offloading server loading for ESXi
server and Hyper-V respectively, and supports QNAP vSphere Client plug-in, Web
plug-in and QNAP SMI-S provider with enhanced efficiency of operations and
management in virtualization applications.
Ideal backup NAS for Enterprise ZFS NAS
When running the QES operating system, the TES-1885U is the perfect backup
storage for the dual-controller Enterprise ZFS NAS using SnapSync. If the
Enterprise ZFS NAS unexpectedly stops, the TES-1885U can immediately recover all
the backed up data locally to take over operations and services with maximized
uptime. It prevents the downtime required to restore data from a remote QTS
NAS/rsync server back to the recovered Enterprise ZFS NAS, making the TES-1885U
the best option to pair with the Enterprise ZFS NAS as a backup NAS to achieve
optimal recovery time objectives.
App-centric Linux-based QTS operating system
The QTS operating system not only supports storage optimization with Qtier
for driving auto-tiering, block-based snapshot, and SSD read/write cache, but
also provides rich business-ready applications and functionality, providing a
comprehensive all-in-one NAS solution.
Tiered storage and application-based partitioning
QNAP's Qtier Technology empowers the TES-1885U with Auto Tiering that helps
continuously optimize storage efficiency across SSDs and SAS/SATA drives. With
Auto Tiering, the TES-1885U can automatically move frequently-used "hot" data to
high-performance storage tiers and less-accessed "cold" data to lower-cost,
higher-capacity drives, making the TES-1885U an extremely efficient shared
resource. SSDs and SAS/SATA drives can also be configured as independent
partitions for different applications, ensuring a sufficient throughput level
for every application.
Cross-platform file sharing, centralized data storage
The TES-1885U supports SMB/CIFS, NFS, and AFP protocols for file sharing
across Windows®, Mac®, and Linux®/UNIX® networks. Data, logs and ISO images of
CDs and DVDs can be centrally stored on the TES-1885U and protected by an
integrated antivirus solution. The Windows AD® and LDAP services enable system
administrators to configure user permissions by using existing Windows AD
server, LDAP server or NAS build-in LDAP services. The TES-1885U supports SAMBA
v4 and can act as a domain controller for Windows®.
Well-rounded backup & disaster recovery solutions
The TES-1885U offers flexible backup solutions for Windows® and Mac® users,
Volume/LUN snapshots, Snapshot Replica and Clone, and disaster recovery
solutions including RTRR, rsync and cloud storage backup (Amazon® Glacier,
Azure™ Storage, Google Cloud Storage™, Google Drive™, Microsoft® OneDrive,
Dropbox®, Amazon® Drive, Yandex® Disk, Box®, and Amazon® S3/OpenStack
Swift/WebDAV compatible cloud services) are also included.
Volume & LUN snapshot simplifies restoration
QTS Storage Manager features an easy-to-use web-based snapshot tool for you
to easily back up and restore data on the TES-1885U back to any point of time to
prevent losing important data. You can take snapshots for both volumes and LUN
(up to 256 snapshots per volume or LUN, and maximum 1,024 snapshots per NAS),
efficiently replicate volume/LUN snapshots to remote servers by only copying the
changes made, and quickly clone a volume/LUN snapshot as a local volume without
interrupting current system operations. You can even set up the system to
automatically take a snapshot of the volume before backup via RTRR/rsync, even
when files are open.
Storage for hosting virtual machines and containerized
applications
Virtualization Station allows you to directly host virtual machines (VM) on
the TES-1885U and access them via a web browser or VNC. Virtualization Station
supports multiple operating systems, fast VM creation, VM backup &
restoration, VM import/export, snapshot, and Device Management for centrally
managing VMs. Virtualization Station allows the TES-1885U and VMs to share the
same LAN port, and high-speed virtual switches greatly increases transfer speeds
between VMs as well as between VMs and the data stored on the TES-1885U. The
TES-1885U also features Container Station, which integrates LXC and Docker®
lightweight virtualization technologies. You can operate multiple isolated
Linux® systems on the TES-1885U as well as download apps from the built-in
Docker Hub Registry®. What's more, QNAP provides comprehensive "QIoT Containers"
for Container Station as an ideal platform with countless hands-on containerized
apps that helps developers easily apply, rapidly develop, and conveniently
deploy IoT applications.
Maximize storage utilization across multiple QNAP NAS with Virtual
JBOD
Besides using expansion enclosures, there is an additional option to expand
NAS storage capacity. QNAP VJBOD (Virtual JBOD) is network-based JBOD, allowing
you to expand the storage capacity of a QNAP NAS using other QNAP NAS units. You
can mount iSCSI LUNs from a QNAP NAS to the TES-1885U as local disks, and create
virtual storage pools and volumes for operating NAS functionalities, such as
creating and reverting snapshots, indexing multimedia files into the media
library, and even further creating iSCSI LUNs. With VJBOD, you can centrally
utilize the storage space from multiple QNAP NAS units* and manage it with the
interface on the local NAS.
QNAP Helpdesk app for direct technical support
The Helpdesk app allows you to directly send support requests to QNAP
engineers and also allows - with your permission - these engineers to remotely
access your NAS over a secure 256-bit encrypted connection to fix serious
issues. The Helpdesk also consolidates a wealth of useful information including
tutorials, FAQs, online resources and device compatibility lists. Whether you
are new to QNAP NAS or an expert user, you can easily find helpful advice and
information to effectively solve problems.
QRM+: Centralized Remote Server Management Solution
QRM+ is QNAP’s Centralized Remote Server Management solution designed for IT
teams. It provides a web-based solution - accessible from any web browser - to
discover, map, monitor and manage all of the critical computing devices on the
network such as servers, PCs, embedded PCs, and thin clients from a
single-point. Supporting IPMI 1.5 and 2.0, QRM+ provides remote KVM (Keyboard,
Video, Mouse) for certain IPMI devices, and supports tracking every action using
KVM recording and playback. With centralized management by QRM+, IT
infrastructure and device security is enhanced and troubleshooting & network
resource performance analysis is greatly simplified.
Cross-device file synchronization
Qsync provides multiple ways of file synchronization and group file sharing,
greatly enhancing the flexibility of collaboration. Any file uploaded to the
TES-1885U will be made available for all linked devices, such as computers,
laptops or mobile devices. Qsync is especially useful for frequent travelers to
manage files and always have the most up-to-date files on different devices.
More advanced features include: syncing shared folders or team folders to
increase collaboration; centralized configuration that allows for remotely
erasing the Qsync folder on a lost device to avoid data breaches, and even
restoring it after the device is retrieved.
Comprehensive surveillance solution providing 24/7
security
Surveillance Station is a professional network surveillance Video Management
System (VMS) that offers a user-friendly management interface, over 3,000
compatible IP camera models, and expandable IP camera channel licenses. It
supports real-time monitoring, video & audio recording and playback with a
wide range of customizable settings. You can also install the Vmobile app on
your iOS® or Android™ devices to manage monitored channels anytime and anywhere
to safeguard your office environment, or install the Vcam mobile app to turn
your device into a network camera to instantly record to your TES-1885U. The
TES-1885U includes 8 free IP camera channels and you can expand up to 80
channels by purchasing additional licenses.
Install-on-demand apps to extend NAS functionality
The TES-1885U has a built-in App Center that provides over 100 apps,
including tools for backup/sync, business, content management, communications,
downloading, entertainment, and much more. You can freely install apps as needed
to expand your TES-1885U’s functionality.
Seamless capacity expansion
The TES-1885U supports efficient capacity expansion by cascading multiple
QNAP RAID expansion enclosures to meet the needs of growing business data,
providing businesses a cost-efficient storage solution for large data archiving
and virtualization applications.
Specifications
CPU |
Intel Xeon Processor
D-1531, 6-core 2.2 GHz |
System
memory |
16 GB ECC RAM ( 8 GB
RDIMM x 2 ) |
Flash
Memory |
4 GB
DOM |
Hard Drive
Tray |
Front: 2.5" / 3.5" x
12 |
|
Rear: 2.5" SSD slot x
6 |
Supported Hard
Drive |
Front: SAS 12Gb/s, SAS
6Gb/s, SATA 6Gb/s HDD and SSD |
|
Rear: SATA 6Gb/s
SSD |
LAN
Port |
2 x SFP+ 10GbE ports, 4
x Gigabit ports |
LED
Indicators |
10 GbE, Status, LAN,
Storage expansion port status |
Buttons |
System: Power button
and reset button |
Form
Factor |
2U,
Rackmount |
Dimensions (H x W x
D) |
88 x 442.5 x 530.5
mm |
|
3.46 x 17.42 x 20.89
inch |
Weight |
Net weight (NAS only):
15.1 kg / 32.28 lb |
|
Gross weight (with
packing and accessories): 21.41 kg / 47.20 lb |
Temperature |
0-40C |
Relative
Humidity |
5~95% non-condensing,
wet bulb: 27C. |
Power
Supply |
Redundant power: Input
90~264VAC; 450W x 2 |
PCIe
Slot |
Number:
4 |
|
Slot 1: PCIe Gen.3
x8 |
|
Slot 2: PCIe Gen.2
x4 |
|
Slot 3: PCIe Gen.3
x4 |
|
Slot 4: PCIe Gen.3 x4
or PCIe Gen.3 x8 |
|
Note: Slot 4 provides
the width of PCIe Gen.3 x8 when slot 3 is not in use. Slot 4 then provides
the width of PCIe Gen.3 x4 only when an expansion board is installed in
slot 3. |
Fan |
4 x 6 cm smart cooling
fan |
Package
Content |
TES-1885U |
|
Ethernet cable x
4 |
|
Power cord x
2 |
|
Flat head screws (for
3.5 HDD) |
|
Flat head screws (For
2.5 HDD) |
|
Quick Installation
Guide |
|
A03 series (Chassis)
rail kit, max. load 57kg: RAIL-A03-57 |
Accessory |
16-bay RAID Expansion
Enclosure:REXP-1620U-RP |
|
12-bay RAID Expansion
Enclosure:REXP-1220U-RP |
|
Dual-wide-port storage
expansion card, SAS 12Gbps:SAS-12G2E |
|
Mini SAS external cable
(SFF-8644 to SFF-8644), 1 m:CAB-SAS10M-8644 |
|
Mini SAS external cable
(SFF-8644 to SFF-8644), 0.5 m:CAB-SAS05M-8644 |
|
SFP+ DAC
Cable,1.5m:CAB-DAC15M-SFPP-A02 |
|
16 GB DDR4 non-ECC
RAM2133 MHzUDIMM:RAM-16GDR4-LD-2133
|
|
8GB DDR4 ECC RAM2133 MHzRDIMM:RAM-8GDR4-RD-2133 |
|
16GB DDR4 ECC RAM2133 MHzRDIMM:RAM-16GDR4-RD-2133 |
|
32GB DDR4 ECC RAM2133 MHzRDIMMRAM-32GDR4-RD-2133 |
|
Dual-port 10 GBase-T
network expansion card:LAN-10G2T-X550 |
|
Dual-port 40G QSFP+
network expansion
card:LAN-40G2SF-MLX |
