CPU |
AnnapurnaLabs, an
Amazon company Alpine AL-212, 2-core, 1.7GHz |
System
Memory |
1GB DDR3
RAM |
Flash
Memory |
512MB NAND
flash |
Hard Drive
Tray |
1 |
Drive
Interface |
SATA 3.5"/2.5" 6Gb/s
HDD/SSD ; Hot-swappable |
USB |
3 x USB 3.0 port (Front
x1; Rear x 2) |
LAN
Port |
1 x GbE
RJ45 |
LED
Indicators |
System Status, HDD,
USB, LAN |
Buttons |
Power, Reset, USB
One-Touch-Copy |
System
Warning |
Buzzer |
Form
Factor |
Tower |
Dimensions (H) x (W)
x (D) |
169 x 73 x 219
mm |
|
6.65 x 2.87 x 8.62
inch |
Weight |
Net: 1.04 kg (2.29
lbs); Gross: 1.8 kg (3.97 lbs) |
Operating
Temperature |
0 - 40C /
32~104F |
Relative
Humidity |
5~95% non-condensing,
wet bulb: 27C |
Power
Supply |
AC adapter, 36W, 100 -
240V |
Power
Consumption |
HDD standby:
7.29W |
|
In operation:
11.62W |
|
(with 1 x 1TB HDD
installed) |
Sound
Level* |
Operating low speed:
15.8 dB(A) |
Security
Design |
Kensington security
slot |
Fan |
1 x 5 cm smart fan (12V
DC) |
|
|
Operating
System |
QTS 4.2 (embedded
Linux) |
Supported Client
OS |
1. Windows XP and
Windows Server 2003 onward |
|
2. Apple Mac OS
X |
|
3. Linux &
UNIX |
Supported
Browsers |
1. Microsoft Internet
Explorer 10+ |
|
2. Mozilla Firefox
8+ |
|
3. Apple Safari
4+ |
|
4. Google
Chrome |
Multilingual
Support |
1. Chinese (Traditional
& Simplified), Czech, Danish, Dutch, English, Finnish, French, German,
Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese
(Brazil), Romanian, Russian, Spanish, Swedish, Thai,
Turkish |
File
System |
1. Internal Hard Drive:
EXT4 |
|
2. External Hard Drive:
EXT3, EXT4, NTFS, FAT32, HFS+ |
Networking |
1. TCP/IP :
IPv4 |
|
2. DHCP client, DHCP
server |
|
3. Protocols: CIFS/SMB
(3.0), AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH,
SNMP, SMTP, and SMSC |
|
4. UPnP & Bonjour
Discovery |
Security |
1. Network access
protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB (3.0),
AFP |
|
2. CIFS host access
control for shared folders |
|
3. Importable SSL
certificates |
|
4. Instant alerts via
email, SMS, beep |
Storage
Management |
1. Single
Disk |
|
2. Bad block scan and
hard drive S.M.A.R.T. |
|
3. Bad block
recovery |
|
4. RAID
recovery |
|
5. Bitmap
support |
Power
Management |
1. Automatic power on
after power recovery |
|
2. USB and network UPS
support with SNMP management |
Access Right
Management |
1. Batch users
creation |
|
2. Import/Export
users |
|
3. User quota
management |
|
4. Local user access
control for CIFS, AFP, FTP, and WebDAV |
|
5. Application access
control for Photo Station, Music Station, Video Station, and Multimedia
Station |
|
6. Subfolder
permissions support for CIFS/SMB (3.0), AFP, FTP, and File
Station |
myQNAPcloud
Service |
1. Private cloud
storage and sharing with myQNAPcloud id (qid) |
|
2. Free host name
registration (DDNS) |
|
3. Auto router
configuration (via UPnP) |
|
4. Web-based file
manager with HTTPS 2048-bit encryption |
|
5. CloudLink for remote
access without any complicated router setup |
Qsync |
1. Syncs files among
multiple devices with SSL support |
|
2. Selective
synchronization for syncing specific folders only |
|
3. Share team folder as
a file center for team collaboration |
|
4. Shares files by
links via e-mail |
|
5. Policy settings for
conflicting files and file type filter support |
|
6. Version control: up
to 64 versions. |
|
7. Supports Windows
& Mac OS |
|
8. Incremental
synchronization for HDD space saving |
Web
Administration |
1. Multi-window,
multi-tasking based system management |
|
2. Personalized
desktop |
|
3. Smart toolbar and
dashboard for neat system status display |
|
4. Dynamic DNS
(DDNS) |
|
5. Login screen with
personalized photo-wall style |
|
6. Smart fan
control |
|
7. SNMP (v2 &
v3) |
|
8. Resource
monitor |
|
9. Network recycle bin
for file deletion via CIFS/SMB (3.0), AFP, and File
Station |
|
Automatic
Cleanup |
|
File Type
Filter |
|
10. Comprehensive logs
(events & connection) |
|
11. Syslog
client/server |
|
12. System settings
backup and restore |
|
13. Mobile app:
Qmanager for remote system monitoring &
management |
Powerful All-in-one
server |
|
File
Server |
1. File sharing across
Windows, Mac, and Linux/UNIX |
|
2. Microsoft
networking |
|
3. Windows
ACL |
|
4. Advanced folder
permissions for CIFS/SMB, AFP, FTP |
|
5. Shared folder
aggregation (CIFS/SMB) |
FTP
Server |
1. FTP over SSL/TLS
(Explicit) |
|
2. FXP
support |
File
Station |
1. Supports mounting
cloud drives (such as Google Drive, Dropbox, Microsoft OneDrive, Microsoft
OneDrive for Business, HiDrive, Amazon Cloud Drive, Yandex Disk and
Box) |
|
2. Supports mounting
remote shared folders through FTP, WebDAV or Microsoft networking
(SMB/CIFS) |
|
3. Supports opening
documents via Office Online, Google Docs or Chrome Extension (Edit Office
files in Google Docs, Sheets, and Slides) |
|
4. Supports ISO
Mounting (Up to 256 ISO Files) |
|
5. Supports sharing
download links and upload links |
|
6. Drag-n-drop Files
via Chrome and Firefox Browsers |
|
7. Photo, music, and
video preview and playback4 |
|
8. File Compression
(ZIP or 7z) |
|
9. Creation of and
sending download links for sharing public files with expiration date and
password protection |
|
10. Supports displaying
subtitles (*.SRT, UTF-8 format) |
|
11. Mobile App: Qfile
for file browsing and management |
Qfiling |
1. Supports auto
filing |
|
|
Backup
Station |
1. Remote replication
server (over rsync) |
|
2. Real-time remote
replication (RTRR) to another QNAP NAS, FTP or CIFS/SMB
server |
|
3. Works as both RTRR
server & client with bandwidth control |
|
4. Real-time &
scheduled backup |
|
5. Backup versioning
for RTRR |
|
6. Snapshot support for
RTRR/Rsync |
|
7. Encryption,
compression, file filter, and transfer rate
limitation |
|
8. Desktop backup with
QNAP NetBak Replicator for Windows |
|
9. Apple Time Machine
backup support |
|
10. Data backup to
multiple external storage devices |
|
11. Third party backup
software support: Veeam backup & replication, Acronis True Image,
Arcserve backup, emc retrospect, Symantec Backup Exec,
etc. |
Cloud Drive
Sync |
1. Multiple cloud
account management like Google Drive, Dropbox, OneDrive, and
hubiC |
|
2. Supports multiple
cloud accounts |
|
3. Manual, scheduled,
periodic and continuous sync |
|
4. Flexible file
filtering using type, date, and size |
|
5. SSL transfer
encryption |
|
6. Dashboard and job
statistics |
|
7. Configurable network
error recovery options |
|
8. Extensive job
activity logging for tracing history of status and
statistics |
|
9. Concurrent job
execution and multi-threaded data transfer |
|
10. Per-account
bandwidth throttling |
Cloud Backup
Station |
1. S3 Plus (including
Amazon S3) |
|
2. Amazon
Glacier |
|
3. Google Cloud
Storage |
|
4. WebDAV-based cloud
storage |
|
5. Microsoft
Azure |
|
6. OpenStack
Swift |
Print
Server |
1. Max number of
printers: 3 |
|
2. Supports Internet
Printing Protocol |
|
3. Print job display
and management |
|
4. IP-based and domain
name-based privilege control |
Station |
1. Show photos by
thumbnails, list, timeline, or folder view |
|
2. Supports
virtual/smart albums |
|
3. Tag photos with
text, colors, and ratings |
|
4. Slideshows with
background music and different transition effects |
|
5. Geotag photos and
display them on Google maps |
|
6. Supports uploading
photos/videos to Picasa, Flickr, and Weibo. |
|
7. Backup/Restore album
configurations |
|
8. Mobile app: Qphoto
for online browsing and sharing |
Music
Station |
1. Play or share music
via web browser4 |
|
2. Supports streaming
music to multiple devices |
|
3. Supports changing
album covers via Google search or by uploading photos |
|
4. Internet radio
(MP3) |
|
5. Up to 8 music
alarms |
|
6. Mobile app: Qmusic
for music streaming and management |
|
7. Switch between
spotlight mode and manage mode |
|
8. Supports scrolling
lyrics |
iTunes
Server |
1. Audio and video
sharing for Windows & Mac iTunes |
Video
Station |
1. Supports
virtual/smart collections4 |
|
2. Tag videos with
text, color, and ratings |
|
3. Share video links to
social websites or through email |
|
4. Display movie
information and posters from Internet sources or user-uploaded
files |
|
5. Supports displaying
subtitles (*.SRT,*.ASS, *.SSA) |
|
6. Supports online
searching and downloading of subtitles as well as importing subtitle
files |
|
7. Supports Facebook
friends login |
|
8. Supports advanced
folder permission settings |
|
9. Supports LDAP
users |
|
10. Videos can be
uploaded to YouTube and Youku. |
|
11. Supports multi-zone
video display |
|
12. Mobile app: Qvideo
for online video browsing and management |
AirPlay &
Chromecast |
1. Streams videos,
photos and music from NAS to Apple TV or Chromecast via File Station,
Music Station, Photo Station, Video Station or mobile app (Qfile, Qmusic,
Qphoto or Qvideo). |
|
Note: The Media
Streaming add-on app must be installed from the QTS App
Center. |
Power
Management |
1. Wake on
LAN |
|
2. Internal hard drive
standby mode |
|
3. Scheduled power
on/off |
|
4. Automatic power on
after power recovery |
|
5. USB and network UPS
support with SNMP management |
Access Right
Management |
1. Import/Export
users |
|
2. User quota
management |
|
3. Local user access
control for CIFS, AFP, FTP, and WebDAV |
|
4. Application access
control for Photo Station, Music Station, Video Station, and File
Station |
|
5. Subfolder
permissions support for CIFS/SMB, AFP, FTP, and File
Station |
Domain
Authentication Integration |
1. Microsoft Active
Directory (AD) & Domain Controller support |
|
2. LDAP server, LDAP
client |
|
3. Domain users login
via CIFS/SMB, AFP, FTP, and File Station |
myQNAPcloud
Service |
1. Free host name
registration (DDNS) |
|
2. Optional myQNAPcloud
SSL certificates (DDNS) |
|
3. Auto router
configuration (via UPnP) |
|
4. Web-based file
manager with HTTPS 2048-bit encryption |
|
5. CloudLink for remote
access without any complicated router setup |
|
6. myQNAPcloud connect
for easy VPN connection (Windows VPN utility) |
Qsync |
1. Sync files across
multiple devices with SSL secure connection |
|
2. Selective
synchronization for only syncing specific folders |
|
3. Use team folders as
a file center for greater team collaboration with maximum 32 sync
tasks |
|
4. Shares files by
links via e-mail |
|
5. Policy settings for
conflicting files and file type filter support |
|
6. Version control: up
to 64 versions. |
|
7. Unified privilege
management |
|
8. Unified
configuration management |
|
9. Supports remote
erase/restore |
|
10. Supports shared
folders sync |
|
11. Supports Windows
& Mac OS |
Resource
Monitor |
1. Monitor NAS system
resources including CPU, memory and network |
|
2. Monitor NAS storage
resources including volumes, RAID, and disk activity |
|
3. Monitor the resource
usage of NAS applications |
|
4. An extra swap space
will be created if SSD is added to the NAS. Swap space on SSDs is
prioritized over swap space on HDDs because of the greater speeds of
SSDs |
Helpdesk |
1. Report issues to the
QNAP support team, with automatically-collected system
information |
|
2. Allows QNAP support
engineers to remotely connect to the NAS to fix issues (with user
permission) |
Web
Administration |
1. Multi-window,
multi-tasking based system management |
|
2. Smart toolbar and
dashboard for neat system status display |
|
3. Dynamic DNS
(DDNS) |
|
4. SNMP (v2 &
v3) |
|
5. Resource
monitor |
|
6. Network recycle bin
for file deletion via CIFS/SMB, AFP, and File Station |
|
Automatic
Cleanup |
|
File Type
Filter |
|
7. Comprehensive logs
(events & connection) |
|
8. Syslog
client/server |
|
9. System settings
backup and restore |
|
10. Mobile app:
Qmanager for remote system monitoring &
management |
Download
Station |
1. PC-less BT,
FTP/FTPS, and HTTP/HTTPS, Thunder, FlashGet and qqdl download (up to 500
Tasks) |
|
The maximum number of
concurrent downloads: 30 (10 BT/PT, 10 HTTP, 10FTP
downloads) |
|
2. BT download with
search, Magnet Link and PT support |
|
3. Supports add-ons to
expand download functionality |
|
4. Scheduled download
and bandwidth control |
|
5. RSS subscription and
download (broadcatching) |
|
6. Proxy support for BT
download |
|
7. Mobile app: Qget for
downloads browsing and management |
Notes
Station |
1. Collaborative editor
for multi-user text editing |
|
2. Spreadsheet editor
for creating tables |
|
3. Online quick preview
of multimedia attachments |
|
4. Smart snapshot for
version control |
Container
Station |
1. Supports LXC and
Docker |
|
2. Download
applications from the built-in Docker Hub Registry |
|
3. Supports one-click
installation, container export/import & console
mode |
|
4. Supports adding
private registries |
|
5. Added an application
repository for users to switch to any repository on
GitHub.com |
Qsirch |
1. Supports full-text
search |
|
2. Supports near
real-time search |
|
3. Bar chart to show
data distribution |
|
4. Supports previews
for photos, music, videos, Gmail, PDF .etc |
|
5. Customized search
filters |
|
6. Supports cloud
viewers for previewing document. |
|
7. Show search results
using thumbnails or a list |
|
8. Supports search
Chrome extension |
iSCSI (IP
SAN) |
1. iSCSI target with
multi-LUNs per target (Up to 256 targets/LUNs
combined) |
|
2. Supports LUN mapping
& masking |
|
3. Online LUN capacity
expansion |
|
4. Support for SPC-3
persistent reservation |
|
5. Supports MPIO &
MC/S |
|
6. iSCSI LUN backup,
one-time snapshot, and restoration |
|
7. iSCSI connection and
management by QNAP Windows QFinder |
|
8. Virtual disk drive
(via iSCSI initiator) |
|
9. Stack chaining
master |
|
10. Max No. of virtual
disk drives: 8 |
Surveillance
Station |
1. Supports over 3,000
IP cameras |
|
2. Includes 2 free
camera licenses, up to 30 camera channels by purchasing additional
licenses |
|
3. Instant playback to
check recent events |
|
4. Visual aid by
e-map |
|
5. Playback and speed
control using the shuttle bar |
|
6. Video preview on
playback timeline |
|
7. Intelligent video
analytics (IVA) for advanced video searching |
|
8. Surveillance client
for Mac |
|
9. Mobile surveillance
app: Vmobile (iOS and Android) |
|
10. Mobile recording
app: Vcam (iOS and Android) |
QVPN Service
|
1. VPN Server: Secure
remote access with PPTPL2TP/IPSec
& OpenVPN VPN services |
|
2. VPN Server: Up to
100 clients. |
|
3. VPN Server: Supports
domain users as VPN users. |
|
4. VPN Client: Supports
PPTP, L2TP/IPSec & OpenVPN VPN protocols. |
|
5. VPN Client: Supports
importing .ovpn files to create OpenVPN connection. |
DLNA
Server |
1. Supports DLNA/UPnP
TVs and players such as PlayStation 4 and Xbox One |
|
2. Support CUE indexing
file for APE, FLAC audio format. |
Qcenter (NAS
CMS) |
1. Multiple NAS
monitoring |
|
2. Utilization history
reports |
|
3. Unified
configuration management |
|
4. Visual display
reports |
|
5. Monitor NAS behind
NAT routers with Qcenter Assistant |
Qcontactz |
1. One-way scheduled
sync of contacts from multiple Google accounts |
|
2. Import contacts from
file: CSV or vCard 3.0 |
|
3. Export contacts into
a file: CSV and vCard 3.0 |
|
4. Find duplicate
contacts and merge them |
|
5. Snapshot management
for your contacts database |
|
6. Manage contacts:
Groups, favorite, lock, search, delete & restore |
|
7. Supported for
mobile: Android and iPhone |
App
Center |
1. Official and
community software add-ons |
|
2. Automatically update
apps or send notifications of new app versions. |
|
3. App repository to
import third-party content |
|
4. Choose what volume
to save apps to |
Qfinder Pro Windows
Utility |
1. Find QNAP NAS that
are on the same local network as your PC. |
|
2. Easily mount NAS
shared folders |
|
3. Configure basic
settings for the NAS including firmware updates, setting SMTP server, and
changing network settings |
|
4. Storage Plug &
Connect (Windows only). |
|
Create and map NAS
shared folders |
|
Create and connect to
iSCSI target/LUNs |
|
5. Media Upload
(Windows only) |
|
Upload media files to
the NAS and automatically create thumbnails or transcode videos using the
PC |
|
|
Package
Content |

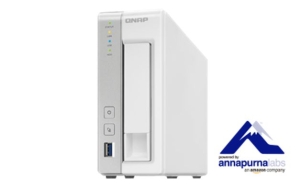

TS-131P |
|
Ethernet cable x
1 |
|
Quick installation
guide (QIG) |
|
Flat head screw (for
3.5" HDD) |
|
Flat head screw (for
2.5" HDD) |
|
Adapter |
|
Power
cord |
