All stock codes associated to this product
TS1685D153132G, TS-1685-D1531-32G

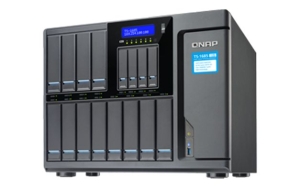

QNAP TS-1685-D1531-128GR-550W
Features
High-capacity 16-bay Xeon D Super NAS with exceptional performance
Supporting up to twelve 3.5" HDDs and four 2.5" SSDs, the TS-1685 is a
high-capacity, robust, and reliable business NAS powered by an Intel Xeon D
processor. Designed to optimize enterprise IT infrastructure, the TS-1685 comes
with three PCIe slots that support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics
cards, and USB 3.1 expansion cards. Incorporating security and scalability, the
TS-1685 presents an ideal choice for a complete business-ready storage solution
with cross-platform file sharing, comprehensive backup and disaster recovery,
iSCSI & virtualization, and more business applications.
- NAS and iSCSI-SANunified storage solution.
- Built-in M.2 SATA 6Gb/s slots & 2.5 SSD slots.
- Qtier technology and SSD caching enable 24/7 optimized storage efficiency.
- 10GbE/40GbE-ready, highly-efficient storage solution for virtualization
and intensive data transmission.
- Supports virtualization, containerized apps, centralized storage, backup,
sharing, and disaster recovery.
- Qcenter for centrally managing all of your NAS devices, and QRM+ as a
centralized management solution for networked computing devices.
- Qfiling enabling automated file organization, Qsirch full-text search
engine, and QmailAgent for centralized email management.
- Scalable up to 56 drive capacity with QNAP expansion enclosures.
Epic 16-bay high-capacity data center
The TS-1685 supports up to 16 hard drives, providing the storage potential to
be a high-capacity data center. Its high-quality hardware enables optimum
performance to fulfill diversified application needs.
1. 12 x SATA 6Gb/s slots for 3.5"/2.5" HDD/SSD
Epic storage potential with flexible high-capacity HDDs and high-performance
SSDs.
2. 4 x SATA 6Gb/s slots for 2.5 SSD
Native high-speed SATA 6Gb/s empowers SSD caching.
3. LCD display
Provides real-time system information for easier system management.
4. USB one-touch-copy
Press the Copy button to instantly back up data from external drives to the
NAS, or alternatively to back up data from the NAS to external drives.
5. 6 x built-in M.2 SSD slots
Supports SATA 6Gb/s M.2 SSD with 2242, 2260, 2280, and 22110 form factors to
provide the greatest flexibility in tiered storage configuration and enables
cache acceleration. The TS-1685 features M.2 cooling modules for keeping the M.2
SSDs cool and stable.
Note:
1. M.2 SSD is optional; M.2 cooling modules are built-in.
2. M.2 SSD operations can easily generate excessive heat, and it is
recommended to install a heatsink (fromQNAPor a third-party provider) on the M.2
SSD.
6. Intel Xeon D Processor
Featuring the latest 14nm energy-efficient SoC, supporting DDR4 RAM and PCIe
Gen.3 per-lane throughput.
7. DDR4 2133 MHz memory
Supports four DDR4 memory modules for a maximum of 128GB RAM. Comes
preinstalled with 16GB/32GB/64GB/128GB RAM.
8. 3 x PCIe expansion slots
Two PCIe Gen3 x8 slots and one PCIe Gen2 x4 slot. Supports 10GbE/ 40GbE
adapters, PCIe NVMe SSD, external graphics cards, and USB 3.1 expansion
cards.
9. 3.5 mm audio jack
Connect speakers or headphones for direct audio output from the NAS.
10. 4 x Gigabit Ethernet ports
Ideal for service binding, port trunking and MPIO configurations.
11. 2 x built-in 10GBASE-T network ports
Fully supports 10GbE high-speed networks for iSCSI/NFS/CIFS data
transmission.
12. Compartmentalized smart cooling
Separately detects the CPU and hard drive temperatures to dynamically control
fan speeds for quieter operations.
13. Built-in speaker
Supports direct audio output and provides verbal system warnings.
Intel Xeon D processor, extraordinary performance
The TS-1685 is powered by a high-performance Intel Xeon D multi-core
processor with up to 128GB DDR4 RAM (comes preinstalled with
16GB/32GB/64GB/128GB RAM), delivering outstanding performance with up to 2,339
MB/s throughout to enhance the efficiency of CPU-demanding applications such as
virtualization and large numbers of simultaneous connections.
Tested in QNAP Labs. Figures may vary by environment.
Test environment:
NAS:
OS: QTS 4.3.3
Volume type: RAID 5; 12x Intel SSD DC S3500
Network environment: direct connection between NAS and two PCs, 10GbE with
built-in 10GBase-T ports (MTU 9000)
Client PCs:
Intel(R) Core(TM) i7-4790 3.60GHz CPU; DDR3 1600Hz 16GB; Seagate ST500DM002;
10GbE with QNAP LAN-10G2T-X550 dual-port PCIe NIC (MTU 9000); Windows 10
Professional 64bit SP1
IOMeter configuration: Transferring 128GB file continuously to/from 2 PCs for
3 minutes. Block size: 64KB for SMB2.1 (Throughput)
M.2 SATA 6Gb/s SSD & 2.5 SSD cache with Qtier
optimization
The TS-1685 provides four 2.5 SSD slots dedicated for caching to increase
IOPS performance, and supports higher transfer speeds and reliability with
optional six M.2 SATA 6Gb/s SSDs. Using an SSD cache boosts overall system
performance, and is perfect for improving the overall workflow of random IOPS
demanding applications such as virtualization. QNAPs Qtier Technology empowers
the TS-1685 with Auto Tiering that further helps continuously optimize storage
efficiency across M.2 SSD, SSD, high-capacity SATA drives, and the optional PCIe
NVMe SSD with around-the-clock acceleration. Qtier now supports On Demand
Allocation Priority, providing customizable flexibility to arrange tiered
storage suited for your system environments and application demands.
Note:
M.2 SSD is optional; M.2 cooling modules are built-in..
M.2 SSD operations can easily generate excessive heat, and it is recommended
to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
Built-in 10GbE ports with 40GbE compatibility
The TS-1685 offers not only four inbuilt Gigabit Ethernet ports but also two
10GBASE-T ports to fully support 10GbE high-speed networks, capable of
delivering lightning-fast throughput for businesses that demand higher bandwidth
for virtualization and fast backup & restoration for an ever-growing amount
of data. The extra PCIe slots allow for installing optional 10GbE/ 40GbE network
cards for flexible high-speed network deployment. Coupled with its large storage
capacity potential, the 10GbE-ready TS-1685 is perfect for companies to store
massive amounts of data and excel in fast data transmission.
550W power supply fuels GPU passthrough
Graphics cards are optimized for graphical calculations and transformations,
but require significantly more power compared to other hardware. The TS-1685
offers an option with a 550 watt power supply that is capable of powering an AMD
Radeon RX 480 graphics card for smooth GPU passthrough to virtual machines.
QTS 4.3 The most intelligent and intuitive NAS operating
system
With modularized multiple applications and functions, QTS enhances management
efficiency, personal productivity, multimedia, and much more. New intelligent
agent services have also been added to simplify system operations and
management. The user-friendly QTS features an intelligent desktop that allows
you to find desired functions quickly, monitor important system information on a
real-time basis, open multiple application windows to run multiple tasks
concurrently with greater working efficiency, and provides a built-in App Center
with install-on-demand apps to extend NAS functionality. QTS breaks the barriers
of devices, platforms, and geography to bring optimized cloud experiences and
incorporates advanced features.
Storage for comprehensive virtualization applications
The TS-1685 is a comprehensive iSCSI/IP-SAN storage solution, and supports
VMware, Citrix, Microsoft Hyper-V and Windows Server 2012 R2, benefiting
flexible deployment and management in virtualization environments. The TS-1685
supports VMware VAAI and Microsoft ODX to increase performance by offloading
server loading for ESXi server and Hyper-V respectively, and supports QNAP
vSphere Client plug-in and QNAP SMI-S provider with enhanced operational
efficiency and management in virtualization applications.
Optimized performance for VMware Virtualization with
iSER
The TS-1685 supports the iSCSI Extensions for RDMA (iSER) protocol to boost
data transfer performance of the TS-1685 as VMware ESXi storage and to reduce
the CPU load of the ESXi server. iSER can provide up to 20% increased
performance, providing an essential tool to optimize demanding virtualization
applications.
Note: To create an iSER connection with VMware ESXi, both the server and NAS
require compatible Mellanox ConnectX-3 Pro network cards (LAN-10G2SF-MLX,
LAN-40G2SF-MLX) and switches compatible with Mellanox or supporting PFC
(Priority Flow Control) configuration.
Integrated virtualization and container solutions
Virtualization Station allows you to host virtual machines (VM) on the
TS-1685 and access them via a web browser or VNC. It supports multiple operating
systems, fast VM creation, VM backup & restoration, VM import/export,
snapshot, and Device Management for centrally managing VMs. No longer
constrained by physical network performance, the Network & Virtual Switch
greatly increases data transfer between VMs, containers and NAS through the
internal interface. The TS-1685 also features Container Station, which
integrates LXC and Docker lightweight virtualization technologies. You can
operate multiple isolated Linux systems on the TS-1685 as well as download apps
from the built-in Docker Hub Registry. Containers Station also supports the QIoT
Containers platform that helps quickly structure your IoT environment and
deployment on your private IoT cloud.
QRM+: Centralized management solution for networked computing
devices
QRM+ is QNAPs Centralized Remote Server Management solution designed for IT
teams. It provides a single-point solution to discover, map, monitor and manage
all of the critical computing devices (including servers, PCs, and thin clients)
in your network, and facilitates device discovery with the graphical topology
diagram. QRM+ supports IPMI 2.0, provides remote KVM (Keyboard, Video, Mouse)
for certain IPMI devices, and supports tracking every action using KVM recording
and playback. With centralized management using QRM+ on the TS-1685, IT
infrastructure and device security is enhanced while troubleshooting and network
resource performance analysis is greatly simplified.
Monitor and manage multiple NAS with Q'center
Q'center turns your TS-1685 into a central management system to manage
multiple QNAP NAS units. After installing Q'center in QTS App Center, you can
use the TS-1685 to centrally manage multi-site QNAP NAS for monitoring system
logs and managing firmware update and maintenance, and enjoy major benefits
including ease-of-use, cost-efficiency, convenience and flexibility. Managing
multiple QNAP NAS becomes so easy and efficiently.
4K Live-stream broadcasts on a private cloud
Live-stream broadcasts enable real-time audience interaction and increase
engagement, providing great potential for versatile business and lifestyle
applications. The TS-1685 supports DJ2 Live, an exclusive live broadcasting
platform based on a private cloud that supports up to 4K video live-stream
broadcasts, providing a complete solution integrating live broadcasting,
storage, and sharing. You can capture live videos from computers, mobile devices
or webcams to stream to DJ2 Live with high-speed intranet transmission, and
store all the videos on the private, secure, high-capacity TS-1685. It also
supports streaming to video services such as YouTube and Facebook for universal
live broadcasting.
Optimized collaboration with cross-platform file sharing and
sync
The TS-1685 centrally stores data, logs and various files, and supports
SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac,
Linux/UNIX networks. Coupled with Qsync - a utility that turns a QNAP NAS into a
safe, high-capacity data center for file synchronization - any file uploaded to
the TS-1685 will be made available for all linked devices, such as computers,
laptops or mobile devices. You can sync shared folders and team folders for
group file sharing, greatly enhancing the flexibility of team projects and
collaboration.
Well-rounded backup & disaster recovery solutions
The TS-1685 offers flexible backup solutions for Windows and Mac users,
Volume/LUN snapshots (up to 256 snapshots per volume or LUN, and maximum 1,024
snapshots per NAS), Folder snapshot, Snapshot Replica and Clone. It also
supports Hybrid Backup Sync that consolidates backup, restoration and
synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily
transferring data to local, remote and cloud storage spaces as a comprehensive
data storage and disaster recovery plan. Supported cloud services include Amazon
Glacier, Azure Storage, Google Cloud Storage, Google Drive, Microsoft OneDrive
for Business, Dropbox, Amazon Drive, Yandex Disk, Box, hubiC and Amazon
S3/OpenStack Swift/WebDAV compatible services.
Comprehensive security to protect your data
In open network environments, business data may be exposed in a potential
hack. The TS-1685 provides numerous security options, such as antivirus,
encrypted access, IP blocking, 2-step verification, and more. IT administrators
can also control the access rights of each user to different folders, preventing
unauthorized access to important files. The TS-1685 supports AES 256-bit
encryption, preventing sensitive business data from unauthorized access and
breach even if the hard drives or the entire system were stolen. Windows AD
server, LDAP server, and built-in LDAP service are also supported.
Fast data filing and searching to double your
productivity
The TS-1685 provides Qfiling and Qsirch for effortlessly organizing and
searching for files, providing you with a highly-efficient data storage center.
Qfiling automates file organization - simply determine filing conditions, set a
schedule, and files will be organized and archived based on your settings. The
Qsirch full-text search tool features quick file searching and supports
thumbnail previews, content abstract, keyword hints, and more. Both Qfiling and
Qsirch provide huge productivity boosts that greatly reduce the time spent
looking for files on the NAS, allowing you to focus on other tasks.
Simplify email management with QmailAgent
Managing massive amounts of emails can be easier as QmailAgent helps you
centrally manage and switch between different email accounts. Besides composing,
reading and organizing emails, you can even directly attach files from the
TS-1685 when composing emails. The QmailClient companion app for iOS or Android
works alongside QmailAgent to provide convenient access to multiple email
accounts from your mobile devices. You can use QmailAgent together with Qsirch,
which supports searching through the .eml files stored on the TS-1685; or
quickly send emails to people and groups by using the Qcontactz app.
Comprehensive surveillance solution providing 24/7
security
Surveillance Station is a professional network surveillance Video Management
System (VMS) that offers a user-friendly management interface, over 3,000
compatible IP camera models, and expandable IP camera channel licenses. It
supports real-time monitoring, video & audio recording and playback with a
wide range of customizable settings. You can use iOS or Android Vmobile app to
manage the monitored channels anytime and anywhere to safeguard your office
environment, or install the Vcam mobile app to turn your device into a network
camera to instantly record to your TS-1685. The TS-1685 offers 8 free IP camera
channels and you can expand up to 80 channels by purchasing additional
licenses.
Flexibly expand storage capacity
Besides attaching QNAP expansion enclosures, the TS-1685s storage capacity
can also be increased by using VJBOD. With VJBOD, the storage capacity of other
QNAP NAS* can be used as virtual disks that can be mounted as local disks on the
TS-1685 for shares, applications, or even creating another LUN. You can use the
QTS Storage Manager to easily handle NAS capacity expansion and storage
expansion enclosure management.
The maximum number of drives available by connecting QNAP expansion
enclosures:
|
QNAP NAS
Model |
Expansion
Enclosure |
No. of Expansion
Enclosures |
Total HDD
No. |
|
|
|
(NAS +
Enclosure) |
|
TS-1685 |
REXP-1000
Pro |
4 |
52 x 3.5" + 4 x
2.5" |
|
|
3 |
42 x 3.5" + 4 x
2.5" |
|
|
2 |
32 x 3.5" + 4 x
2.5" |
|
|
1 |
22 x 3.5" + 4 x
2.5" |
*The remote QNAP NAS must support iSCSI and Storage Pools and use QTS
4.2.1 (or newer). Up to 8 remote NAS units can be mounted.
Specifications
|
CPU |
Intel® Xeon® Processor
D-1531, 6-core 2.2 GHz |
|
System
memory |
32GB non-ECC RAM (16GB
UDIMM x 2) |
|
Flash
Memory |
512 MB
DOM |
|
Hard Drive
Tray |
12 x 2.5"/3.5" HDD/SSD
slot |
|
4 x 2.5" SSD
slot |
|
Supported Hard
Drive |
SATA 6Gb/s HDD and
SSD |
|
M.2
Slot |
6 x M.2
2242/2260/2280/22110 SATA 6Gb/s SSD |
|
|
|
Note: |
|
1. The M.2 SSD is not
included as standard. |
|
2. M.2 SSD operations
can easily generate excessive heat. It is recommended to install a
heatsink (fromQNAPor a third-party provider) on the M.2
SSD. |
|
LAN
Port |
2 x 10GBASE-T ports, 4
x Gigabit ports |
|
USB |
Front: 1 x USB 3.0
port; Rear: 2 x USB 3.0 port |
|
Audio
Output |
1 x built-in speaker, 1
x 3.5mm Line-out jack |
|
|
|
Note: Only one of the
above audio output ports can work at a time. If a speaker is connected,
the sound will output through the speaker. |
|
LED
Indicators |
System status, 2.5 SSD,
M.2 SSD, 3.5 HDD |
|
Buttons |
System: Power button,
Reset button, USB one-touch-backup button |
|
Form
Factor |
Desktop |
|
Dimensions (H x W x
D) |
303.84 x 369.89 x 319.8
mm |
|
11.96 x 14.56 x 12.59
inch |
|
Weight |
Net weight (NAS only):
13.39 kg/ 29.52 lb |
|
Gross weight (with
packing and accessories): 15.96 kg/ 35.19 lb |
|
Sound Level
(dB)* |
Sound Level (dB) Sound
pressure (LpAm) (bystander position): 22.5 dB |
|
(with 12 x Seagate
ST2000VN000 hard drive and 4 x SSD installed) |
|
Power Consumption
(W) |
Sleep mode: 61.36
W |
|
In Operation: 127
W |
|
Temperature |
0-40C |
|
Relative
Humidity |
5~95% non-condensing,
wet bulb: 27C. |
|
Power
Supply |
100-240V~, 3-1.5A,
60-50Hz, 250W PSU |
|
PCIe
Slot |
Number:
3 |
|
Slot 1: PCIe Gen.3
x8 |
|
Slot 2: PCIe Gen.2
x4 |
|
Slot 3: PCIe Gen.3
x8 |
|
Fan |
System: 3 x 9.2cm fan
(12V DC) |
|
CPU: 2 x 9cm
fan |
|
|
|
Operating
System |
QTS 4.3 (embedded
Linux) |
|
Supported Client
OS |
1. Windows XP and
Windows Server 2003 onward |
|
2. Apple Mac OS
X |
|
3. Linux &
UNIX |
|
Supported
Browsers |
1. Microsoft Internet
Explorer 10+ |
|
2. Mozilla Firefox
8+ |
|
3. Apple Safari
4+ |
|
4. Google
Chrome |
|
Multilingual
Support |
1. Chinese (Traditional
& Simplified), Czech, Danish, Dutch, English, Finnish, French, German,
Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese
(Brazil), Romanian, Russian, Spanish, Swedish, Thai,
Turkish |
|
File
System |
1. Internal Hard Drive:
EXT4 |
|
2. External Hard Drive:
EXT3, EXT4, NTFS, FAT32, HFS+ |
|
Networking |
1. TCP/IP :
IPv4 |
|
2. DHCP client, DHCP
server |
|
3. Protocols: CIFS/SMB
(3.0), AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH,
SNMP, SMTP, and SMSC |
|
4. UPnP & Bonjour
Discovery |
|
Security |
1. Network access
protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB (3.0),
AFP |
|
2. CIFS host access
control for shared folders |
|
3. Importable SSL
certificates |
|
4. Instant alerts via
email, SMS, beep |
|
Storage
Management |
1. Single
Disk |
|
2. Bad block scan and
hard drive S.M.A.R.T. |
|
3. Bad block
recovery |
|
4. RAID
recovery |
|
5. Bitmap
support |
|
Power
Management |
1. Automatic power on
after power recovery |
|
2. USB and network UPS
support with SNMP management |
|
Access Right
Management |
1. Batch users
creation |
|
2. Import/Export
users |
|
3. User quota
management |
|
4. Local user access
control for CIFS, AFP, FTP, and WebDAV |
|
5. Application access
control for Photo Station, Music Station, Video Station, and Multimedia
Station |
|
6. Subfolder
permissions support for CIFS/SMB (3.0), AFP, FTP, and File
Station |
|
myQNAPcloud
Service |
1. Private cloud
storage and sharing with myQNAPcloud id (qid) |
|
2. Free host name
registration (DDNS) |
|
3. Auto router
configuration (via UPnP) |
|
4. Web-based file
manager with HTTPS 2048-bit encryption |
|
5. CloudLink for remote
access without any complicated router setup |
|
Qsync |
1. Syncs files among
multiple devices with SSL support |
|
2. Selective
synchronization for syncing specific folders only |
|
3. Share team folder as
a file center for team collaboration |
|
4. Shares files by
links via e-mail |
|
5. Policy settings for
conflicting files and file type filter support |
|
6. Version control: up
to 64 versions. |
|
7. Supports Windows
& Mac OS |
|
8. Incremental
synchronization for HDD space saving |
|
Web
Administration |
1. Multi-window,
multi-tasking based system management |
|
2. Personalized
desktop |
|
3. Smart toolbar and
dashboard for neat system status display |
|
4. Dynamic DNS
(DDNS) |
|
5. Login screen with
personalized photo-wall style |
|
6. Smart fan
control |
|
7. SNMP (v2 &
v3) |
|
8. Resource
monitor |
|
9. Network recycle bin
for file deletion via CIFS/SMB (3.0), AFP, and File
Station |
|
Automatic
Cleanup |
|
File Type
Filter |
|
10. Comprehensive logs
(events & connection) |
|
11. Syslog
client/server |
|
12. System settings
backup and restore |
|
13. Mobile app:
Qmanager for remote system monitoring &
management |
|
Powerful All-in-one
server |
|
|
File
Server |
1. File sharing across
Windows, Mac, and Linux/UNIX |
|
2. Microsoft
networking |
|
3. Windows
ACL |
|
4. Advanced folder
permissions for CIFS/SMB, AFP, FTP |
|
5. Shared folder
aggregation (CIFS/SMB) |
|
FTP
Server |
1. FTP over SSL/TLS
(Explicit) |
|
2. FXP
support |
|
File
Station |
1. Supports mounting
cloud drives (such as Google Drive, Dropbox, Microsoft OneDrive, Microsoft
OneDrive for Business, HiDrive, Amazon Cloud Drive, Yandex Disk and
Box) |
|
2. Supports mounting
remote shared folders through FTP, WebDAV or Microsoft networking
(SMB/CIFS) |
|
3. Supports opening
documents via Office Online, Google Docs or Chrome Extension (Edit Office
files in Google Docs, Sheets, and Slides) |
|
4. Supports ISO
Mounting (Up to 256 ISO Files) |
|
5. Supports sharing
download links and upload links |
|
6. Drag-n-drop Files
via Chrome and Firefox Browsers |
|
7. Photo, music, and
video preview and playback4 |
|
8. File Compression
(ZIP or 7z) |
|
9. Creation of and
sending download links for sharing public files with expiration date and
password protection |
|
10. Supports displaying
subtitles (*.SRT, UTF-8 format) |
|
11. Mobile App: Qfile
for file browsing and management |
|
Qfiling |
1. Supports auto
filing |
|
|
|
Backup
Station |
1. Remote replication
server (over rsync) |
|
2. Real-time remote
replication (RTRR) to another QNAP NAS, FTP or CIFS/SMB
server |
|
3. Works as both RTRR
server & client with bandwidth control |
|
4. Real-time &
scheduled backup |
|
5. Backup versioning
for RTRR |
|
6. Snapshot support for
RTRR/Rsync |
|
7. Encryption,
compression, file filter, and transfer rate
limitation |
|
8. Desktop backup with
QNAP NetBak Replicator for Windows |
|
9. Apple Time Machine
backup support |
|
10. Data backup to
multiple external storage devices |
|
11. Third party backup
software support: Veeam backup & replication, Acronis True Image,
Arcserve backup, emc retrospect, Symantec Backup Exec,
etc. |
|
Cloud Drive
Sync |
1. Multiple cloud
account management like Google Drive, Dropbox, OneDrive, and
hubiC |
|
2. Supports multiple
cloud accounts |
|
3. Manual, scheduled,
periodic and continuous sync |
|
4. Flexible file
filtering using type, date, and size |
|
5. SSL transfer
encryption |
|
6. Dashboard and job
statistics |
|
7. Configurable network
error recovery options |
|
8. Extensive job
activity logging for tracing history of status and
statistics |
|
9. Concurrent job
execution and multi-threaded data transfer |
|
10. Per-account
bandwidth throttling |
|
Cloud Backup
Station |
1. S3 Plus (including
Amazon S3) |
|
2. Amazon
Glacier |
|
3. Google Cloud
Storage |
|
4. WebDAV-based cloud
storage |
|
5. Microsoft
Azure |
|
6. OpenStack
Swift |
|
Print
Server |
1. Max number of
printers: 3 |
|
2. Supports Internet
Printing Protocol |
|
3. Print job display
and management |
|
4. IP-based and domain
name-based privilege control |
|
Station |
1. Show photos by
thumbnails, list, timeline, or folder view |
|
2. Supports
virtual/smart albums |
|
3. Tag photos with
text, colors, and ratings |
|
4. Slideshows with
background music and different transition effects |
|
5. Geotag photos and
display them on Google maps |
|
6. Supports uploading
photos/videos to Picasa, Flickr, and Weibo. |
|
7. Backup/Restore album
configurations |
|
8. Mobile app: Qphoto
for online browsing and sharing |
|
Music
Station |
1. Play or share music
via web browser4 |
|
2. Supports streaming
music to multiple devices |
|
3. Supports changing
album covers via Google search or by uploading photos |
|
4. Internet radio
(MP3) |
|
5. Up to 8 music
alarms |
|
6. Mobile app: Qmusic
for music streaming and management |
|
7. Switch between
spotlight mode and manage mode |
|
8. Supports scrolling
lyrics |
|
iTunes
Server |
1. Audio and video
sharing for Windows & Mac iTunes |
|
Video
Station |
1. Supports
virtual/smart collections4 |
|
2. Tag videos with
text, color, and ratings |
|
3. Share video links to
social websites or through email |
|
4. Display movie
information and posters from Internet sources or user-uploaded
files |
|
5. Supports displaying
subtitles (*.SRT,*.ASS, *.SSA) |
|
6. Supports online
searching and downloading of subtitles as well as importing subtitle
files |
|
7. Supports Facebook
friends login |
|
8. Supports advanced
folder permission settings |
|
9. Supports LDAP
users |
|
10. Videos can be
uploaded to YouTube and Youku. |
|
11. Supports multi-zone
video display |
|
12. Mobile app: Qvideo
for online video browsing and management |
|
AirPlay &
Chromecast |
1. Streams videos,
photos and music from NAS to Apple TV or Chromecast via File Station,
Music Station, Photo Station, Video Station or mobile app (Qfile, Qmusic,
Qphoto or Qvideo). |
|
Note: The Media
Streaming add-on app must be installed from the QTS App
Center. |
|
Power
Management |
1. Wake on
LAN |
|
2. Internal hard drive
standby mode |
|
3. Scheduled power
on/off |
|
4. Automatic power on
after power recovery |
|
5. USB and network UPS
support with SNMP management |
|
Access Right
Management |
1. Import/Export
users |
|
2. User quota
management |
|
3. Local user access
control for CIFS, AFP, FTP, and WebDAV |
|
4. Application access
control for Photo Station, Music Station, Video Station, and File
Station |
|
5. Subfolder
permissions support for CIFS/SMB, AFP, FTP, and File
Station |
|
Domain
Authentication Integration |
1. Microsoft Active
Directory (AD) & Domain Controller support |
|
2. LDAP server, LDAP
client |
|
3. Domain users login
via CIFS/SMB, AFP, FTP, and File Station |
|
myQNAPcloud
Service |
1. Free host name
registration (DDNS) |
|
2. Optional myQNAPcloud
SSL certificates (DDNS) |
|
3. Auto router
configuration (via UPnP) |
|
4. Web-based file
manager with HTTPS 2048-bit encryption |
|
5. CloudLink for remote
access without any complicated router setup |
|
6. myQNAPcloud connect
for easy VPN connection (Windows VPN utility) |
|
Qsync |
1. Sync files across
multiple devices with SSL secure connection |
|
2. Selective
synchronization for only syncing specific folders |
|
3. Use team folders as
a file center for greater team collaboration with maximum 32 sync
tasks |
|
4. Shares files by
links via e-mail |
|
5. Policy settings for
conflicting files and file type filter support |
|
6. Version control: up
to 64 versions. |
|
7. Unified privilege
management |
|
8. Unified
configuration management |
|
9. Supports remote
erase/restore |
|
10. Supports shared
folders sync |
|
11. Supports Windows
& Mac OS |
|
Resource
Monitor |
1. Monitor NAS system
resources including CPU, memory and network |
|
2. Monitor NAS storage
resources including volumes, RAID, and disk activity |
|
3. Monitor the resource
usage of NAS applications |
|
4. An extra swap space
will be created if SSD is added to the NAS. Swap space on SSDs is
prioritized over swap space on HDDs because of the greater speeds of
SSDs |
|
Helpdesk |
1. Report issues to the
QNAP support team, with automatically-collected system
information |
|
2. Allows QNAP support
engineers to remotely connect to the NAS to fix issues (with user
permission) |
|
Web
Administration |
1. Multi-window,
multi-tasking based system management |
|
2. Smart toolbar and
dashboard for neat system status display |
|
3. Dynamic DNS
(DDNS) |
|
4. SNMP (v2 &
v3) |
|
5. Resource
monitor |
|
6. Network recycle bin
for file deletion via CIFS/SMB, AFP, and File Station |
|
Automatic
Cleanup |
|
File Type
Filter |
|
7. Comprehensive logs
(events & connection) |
|
8. Syslog
client/server |
|
9. System settings
backup and restore |
|
10. Mobile app:
Qmanager for remote system monitoring &
management |
|
Download
Station |
1. PC-less BT,
FTP/FTPS, and HTTP/HTTPS, Thunder, FlashGet and qqdl download (up to 500
Tasks) |
|
The maximum number of
concurrent downloads: 30 (10 BT/PT, 10 HTTP, 10FTP
downloads) |
|
2. BT download with
search, Magnet Link and PT support |
|
3. Supports add-ons to
expand download functionality |
|
4. Scheduled download
and bandwidth control |
|
5. RSS subscription and
download (broadcatching) |
|
6. Proxy support for BT
download |
|
7. Mobile app: Qget for
downloads browsing and management |
|
Notes
Station |
1. Collaborative editor
for multi-user text editing |
|
2. Spreadsheet editor
for creating tables |
|
3. Online quick preview
of multimedia attachments |
|
4. Smart snapshot for
version control |
|
Container
Station |
1. Supports LXC and
Docker |
|
2. Download
applications from the built-in Docker Hub Registry |
|
3. Supports one-click
installation, container export/import & console
mode |
|
4. Supports adding
private registries |
|
5. Added an application
repository for users to switch to any repository on
GitHub.com |
|
Qsirch |
1. Supports full-text
search |
|
2. Supports near
real-time search |
|
3. Bar chart to show
data distribution |
|
4. Supports previews
for photos, music, videos, Gmail, PDF .etc |
|
5. Customized search
filters |
|
6. Supports cloud
viewers for previewing document. |
|
7. Show search results
using thumbnails or a list |
|
8. Supports search
Chrome extension |
|
iSCSI (IP
SAN) |
1. iSCSI target with
multi-LUNs per target (Up to 256 targets/LUNs
combined) |
|
2. Supports LUN mapping
& masking |
|
3. Online LUN capacity
expansion |
|
4. Support for SPC-3
persistent reservation |
|
5. Supports MPIO &
MC/S |
|
6. iSCSI LUN backup,
one-time snapshot, and restoration |
|
7. iSCSI connection and
management by QNAP Windows QFinder |
|
8. Virtual disk drive
(via iSCSI initiator) |
|
9. Stack chaining
master |
|
10. Max No. of virtual
disk drives: 8 |
|
Surveillance
Station |
1. Supports over 3,000
IP cameras |
|
2. Includes 2 free
camera licenses, up to 30 camera channels by purchasing additional
licenses |
|
3. Instant playback to
check recent events |
|
4. Visual aid by
e-map |
|
5. Playback and speed
control using the shuttle bar |
|
6. Video preview on
playback timeline |
|
7. Intelligent video
analytics (IVA) for advanced video searching |
|
8. Surveillance client
for Mac |
|
9. Mobile surveillance
app: Vmobile (iOS and Android) |
|
10. Mobile recording
app: Vcam (iOS and Android) |
|
QVPN
Service |
1. VPN Server: Secure
remote access with PPTPL2TP/IPSec & OpenVPN VPN
services |
|
2. VPN Server: Up to
100 clients. |
|
3. VPN Server: Supports
domain users as VPN users. |
|
4. VPN Client: Supports
PPTP, L2TP/IPSec & OpenVPN VPN protocols. |
|
5. VPN Client: Supports
importing .ovpn files to create OpenVPN connection. |
|
DLNA
Server |
1. Supports DLNA/UPnP
TVs and players such as PlayStation 4 and Xbox One |
|
2. Support CUE indexing
file for APE, FLAC audio format. |
|
Qcenter (NAS
CMS) |
1. Multiple NAS
monitoring |
|
2. Utilization history
reports |
|
3. Unified
configuration management |
|
4. Visual display
reports |
|
5. Monitor NAS behind
NAT routers with Qcenter Assistant |
|
Qcontactz |
1. One-way scheduled
sync of contacts from multiple Google accounts |
|
2. Import contacts from
file: CSV or vCard 3.0 |
|
3. Export contacts into
a file: CSV and vCard 3.0 |
|
4. Find duplicate
contacts and merge them |
|
5. Snapshot management
for your contacts database |
|
6. Manage contacts:
Groups, favorite, lock, search, delete & restore |
|
7. Supported for
mobile: Android and iPhone |
|
App
Center |
1. Official and
community software add-ons |
|
2. Automatically update
apps or send notifications of new app versions. |
|
3. App repository to
import third-party content |
|
4. Choose what volume
to save apps to |
|
Qfinder Pro Windows
Utility |
1. Find QNAP NAS that
are on the same local network as your PC. |
|
2. Easily mount NAS
shared folders |
|
3. Configure basic
settings for the NAS including firmware updates, setting SMTP server, and
changing network settings |
|
4. Storage Plug &
Connect (Windows only). |
|
Create and map NAS
shared folders |
|
Create and connect to
iSCSI target/LUNs |
|
5. Media Upload
(Windows only) |
|
Upload media files to
the NAS and automatically create thumbnails or transcode videos using the
PC |
|
|
|
Package
Content |
TS-1685 |
|
Ethernet Cable x
4 |
|
10GBASE-T Ethernet
Cable x 2 |
|
Flat head screws (For
2.5 HDD |
|
Power Cord x
1 |
|
Quick Installation
Guide (QIG) |
|
Quick Installation
Guide (QIG) |
