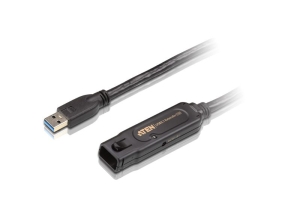

Aten UE3315 15 m USB3.1 Gen1 Extender Cable
Overview
The ATEN UE3315 USB3.1 Gen1 Extender Cable allows users to extend the
distance between the computer and USB devices up to 15 m. The UE3315 provides a
reliable, high performance data transmission that utilizes USB 3.1 Gen1 data
bandwidth up to 5Gb/s and also backward compatible with USB 2.0/1.1 standard.
Its plug and play and no additional software installation required, easy to
deploy and operate on the fields.
The UE3315 provides a quick and high quality cost effective solution for all
kinds of professional environments like: hospitals, factories, or business
facilities.
Package Contents
- 1x UE3315 USB3.1 Gen1 Extender Cable
- 1x AC Power Adapter
- 1x USB Extension Cable
Features
- Supports USB 3.1 Gen1 Specification (5 Gbps)
- Ultra slim design and unique locker head design
- Daisy-chainable, maximum distance of up to 50 m
- Multiplatform support – Windows and Mac
- Additional power adapter included

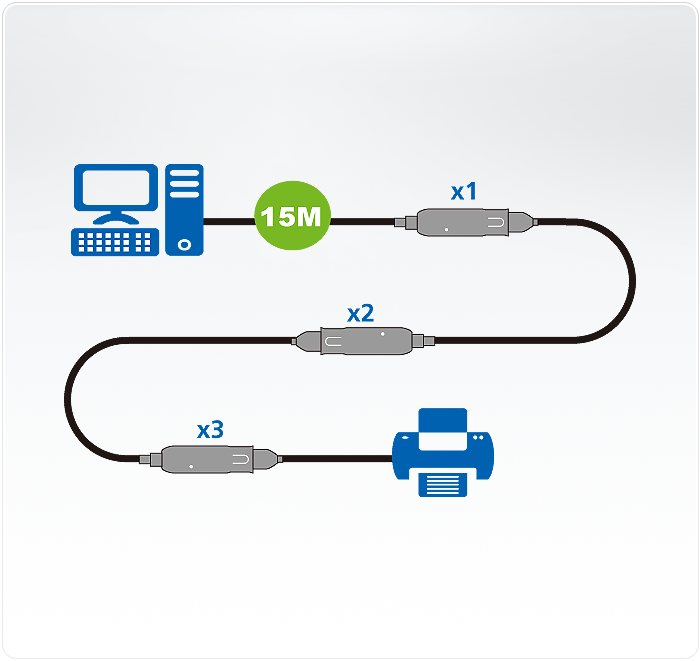

Diagram
Specifications
| Connectors |
| USB Port |
1 x USB3.1 Gen1 Type A
Male |
| Downstream |
1 x USB3.1 Gen1 Type A
Female |
| USB Specification |
USB3.1 Gen1/ 2.0 / 1.1 for
Super / High / Full or Low speed |
| Cable Length |
15 m |
| Data Rate |
Up to 5 Gbps |
| Power |
| Consumption |
5V, 4.5W |
| Environmental |
| Operating
Temperature |
040 DegreeC |
| Storage Temperature |
-2060 DegreeC |
| Humidity |
0-80% RH,
Non-condensing |
| Physical
Properties |
| Housing |
Plastic |
| Weight |
TBD |
| Dimensions (L x W x
H) |
TBD |
| Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH
format. |
