All stock codes associated to this product
REXP1000Pro, REXP-1000 Pro, QN17774AR

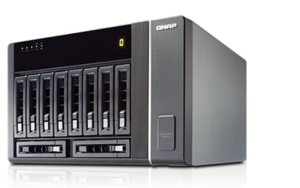

QNAP REXP-1000 Pro SAS/SATA/SSD RAID Expansion Enclosure
for Turbo NAS
Features
The QNAP REXP-1000 Pro expansion enclosure is designed for expanding the
storage space on the Turbo NAS and can support maximum 240TB raw capacity* by
connecting multiple expansion enclosures via high-speed mini SAS cables. This is
especially useful for large data applications, such as video surveillance, data
archiving, and TV broadcast storage.
- Plug and use, seamless capacity expansion
- Missing mode protection
- High density, high efficiency and high scalability
- Flexible management with the QTS Storage Manager
- Backup storage for the Turbo NAS
- Supports SAS/SATA 6Gbps HDD and SSD
*Supported Turbo NAS models and maximum number of applicable expansion
enclosures
| Turbo NAS models |
TVS-EC1080+
TVS-EC1080
TS-EC1080
Pro |
TVS-EC880
TS-EC880 Pro |
TVS-873
TVS-1282
TVS-871 |
TVS-673
TVS-882
TVS-671 |
TVS-473
TVS-682
TVS-471 |
TS-1079 Pro |
TS-879 Pro
TS-870 Pro
TS-870 |
TS-670 Pro
TS-670 |
TS-470 Pro
TS-470 |
| RAM of NAS |
>=
4GB |
>=
4GB |
>=
4GB |
>=
4GB |
>=
4GB |
2GB |
2GB |
2GB |
2GB |
| Maximum number of REXP-1000
Pro |
4* |
4* |
4 |
4 |
4 |
2 |
2 |
2 |
2 |
| Maximum number of hard
drives |
50 |
48 |
48 |
46 |
44 |
30 |
28 |
26 |
24 |
| Maximum raw
capacity** |
400
TB |
384
TB |
384
TB |
368
TB |
352
TB |
240
TB |
224
TB |
208
TB |
192
TB |
| Maximum RAID group size in
NAS |
80
TB |
64
TB |
64
TB |
48
TB |
32
TB |
80
TB |
64
TB |
48
TB |
32
TB |
| Maximum RAID group size in
REXP-1000 Pro |
80 TB |
| Maximum number of RAID groups
per storage pool |
128 |
| Maximum storage pool
size |
308
TB |
308
TB |
308
TB |
308
TB |
308
TB |
240
TB |
224
TB |
208
TB |
192
TB |
| Maximum number of storage
pools per system |
128 |
| Maximum flexible volume
size |
RAM < 4GB: 144 TB
RAM >= 4GB: 250
TB |
| Maximum iSCSI LUN
size |
RAM < 4GB: 144 TB
RAM >= 4GB: 250
TB |
*The TS-EC880 Pro and TS-EC1080 Pro are shipped with 2GB RAM which supports a
maximum of two REXP-1000 Pro expansion enclosures. Upgrading to 4GB RAM allows
them to support up to four REXP-1000 Pro.
**The
maximum capacity is calculated by 8TB HDDs.
Note: A 12 Gb/s SAS expansion card (P/N: SAS-12G2E) is required if the NAS
does not have Mini-SAS ports. An external Mini-SAS HD SFF-8644 to Mini-SAS
SFF-8088 Cable (P/N: CAB-SAS10M-8644-8088) is required for use with the SAS 12
Gb/s port and the transfer rate over the cable will be 6 Gb/s.
Plug and use, seamless capacity expansion
Simply connect a REXP-1000 Pro to a Turbo NAS* and power it on. The Turbo NAS
will detect the hard drives in the REXP-1000 Pro as newly installed local
drives. The Turbo NAS capacity can be expanded seamlessly by using the powerful
QTS Storage Manager.
* Optional purchase of SAS expansion card and QTS 4.1.0 (or newer) are
required for the Turbo NAS.
Missing mode protection
When disconnection of the expansion enclosures occurs, the Turbo NAS enters
missing mode automatically and blocks I/O access to protect the stored data. The
system can then recover from the missing mode to the normal state with data
staying intact when the disconnection is resolved.
High density, high efficiency and highly scalable
The REXP-1000 Pro supports 10 hard drives and 60TB raw capacity, and has two
SAS wide ports (IN port and OUT port) for host connectivity and daisy-chain
respectively. Each SAS wide port combines four SAS channels (maximum 8 SAS
channels supported per expansion enclosure). The solution delivers unprecedented
performance of up to 24Gbps per host connection.
Powerful QTS Storage Manager
The QTS Storage Manager neatly presents tools and options for managing system
storage with an intuitive graphical user interface, which simplifies the process
of NAS capacity expansion and REXP-1000 Pro management. IT administrators can
easily monitor the health status of REXP-1000 Pro and the disks within it. When
cascading multiple expansion enclosures in a rack, the Locate Disk and Locate
Enclosure functions assist IT administrators for quick maintenance.
An excellent backup solution for the Turbo NAS
In addition to expanding an existing volume, IT administrators can use the
REXP-1000 Pro as a budget-friendly external storage to perform speedy and secure
backup tasks for the Turbo NAS. The QNAP RTRR (Real-Time Remote Replication) or
rsync service lets IT administrators back up the Turbo NAS data to the REXP-1000
Pro on a real time or scheduled basis.
Flexible drive selection
The REXP-1000 Pro offers high flexibility in hard drive selection. IT
administrators can choose enterprise-level SAS HDDs with high performance and
high reliability for mission critical applications, low-cost but high-capacity
SATA HDDs for large data archiving, or high-speed and high stability SSDs for
I/O intensive operations.
Specifications
|
Host
Interface |
Two SAS 6Gbps 4x wide
port (IN port, OUT port) |
|
Hard
Drive |
10 x 3.5-inch SAS/SATA
6Gb/s, SAS/SATA 3Gb/s hard drive or 2.5-inch SAS/SATA, SSD hard
drive |
|
1. The standard system
is shipped without hard drives. |
|
2. For the hard
drive compatibility list, please
visit compatibility. |
|
LED
Indicators |
Front panel: Status,
fan error, system over heat, SAS link, SAS error, enclosure
ID |
|
Form
Factor |
Tower |
|
Dimensions |
217.5(H) x 327(W) x
321.2(D) mm |
|
8.54(H) x 12.87(W) x
12.65(D) inch |
|
Weight |
Net weight (NAS only) :
9.24 kg/20.37 lb |
|
Gross weight (with
packing and accessories) : 13.78 kg/30.38 lb |
|
Sound
Level* |
Standby: 24.5
dB |
|
Sound pressure (LpAm):
34.6 dB(A) |
|
Power
Consumption |
Sleep mode:
63.6W |
|
In operation:
169.52W |
|
(with 10 near line SAS
hard drive installed) |
|
Temperature |
0-40°C |
|
Relative
Humidity |
5~95% RH
non-condensing, wet bulb: 27°C. |
|
Power
Supply |
ATX 350W, Input:
110-240 Vac~, 47-63Hz, 5A |
|
COM
Port |
Reserved for system
maintenance |
|
Fan |
2 x 12 cm smart cooling
fan |
| 1 |
LED Indicators: Status, Fan
Error, System Over Heat, SAS Link, SAS Error |
| 2 |
Enclosure ID |
| 3 |
Hard Drive Tray |
| 4 |
Tray Lock |
| 5 |
Release Button |
| 6 |
Hard Drive
LEDs |
| 1 |
Power Connector |
| 2 |
Power Switch |
| 3 |
K-Lock Security
Slot |
| 4 |
IN Port |
| 5 |
OUT Port |
| 6 |
COM Port
(Reserved) |
| 7 |
System Cooling
Fans |
Note: Use only QNAP memory modules to maintain system performance and
stability. For NAS devices with more than one memory slot, use QNAP modules with
identical specifications.
Warning:
Using unsupported modules may degrade performance, cause errors, or prevent the
operating system from starting.
* Sound Level Test Environment:
Refer
to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1
meter in front of operating NAS.
