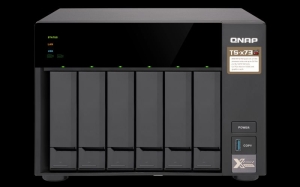

QNAP TS-673-8G 6-Bay NAS
Overview
The TS-673 is powered by a high-performance and energy-efficient AMD R-Series
CPU and provides two PCIe slots for greater functionality. You can install a
QNAP QM2 expansion card to add M.2 SSD caching/10GbE connectivity; a compatible
wireless card to use the TS-673 as a wireless access point; and an entry-level
graphics card to boost system performance for 4K video performance. The TS-673
allows you to flexibly deploy a wide range of applications with a more
affordable budget.
Two PCIe Gen3 x4 slots support QM2 cards, 10GbE adapters, or wireless network
cards.
Supports entry-level graphics card, allowing for 4K video transcoding and
output.
Dual M.2 SATA 6 Gb/s SSD slots allow for setting up caching or storage pools,
improving file access efficiency.
Qtier auto-tiering technology and SSD caching enable 24/7 optimized storage
efficiency.
Scalable storage supporting virtualization, containerized apps, centralized
storage, backup, sharing, and disaster recovery.
Snapshots fully record system status and data. If files are accidentally
deleted or modified, you can quickly restore the data from a snapshot.

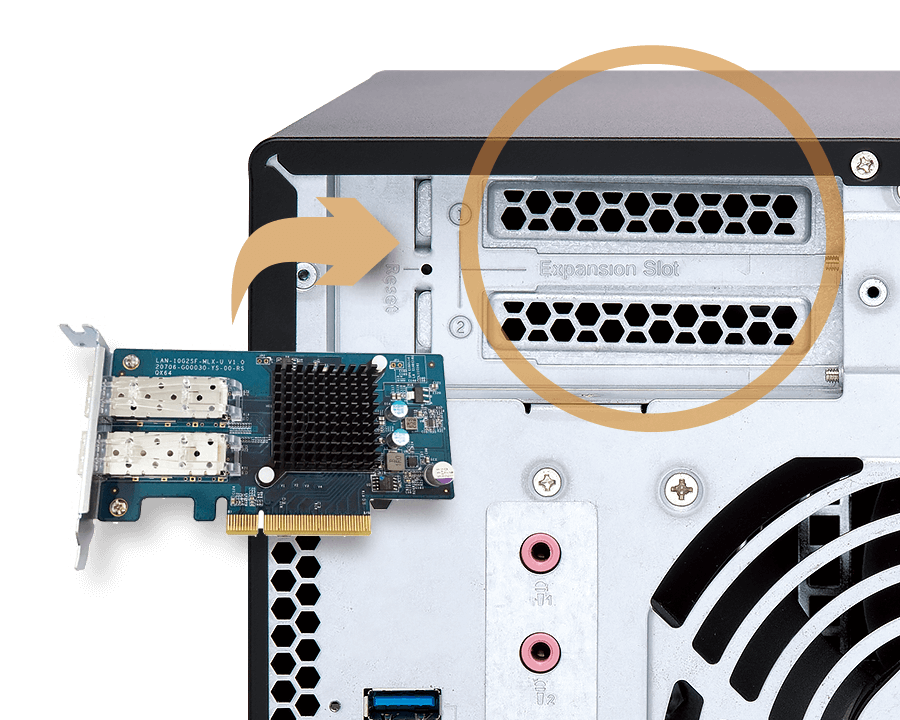

Greater NAS potential with two PCIe slots
The TS-863 features two PCIe (Gen3 x4) slots, allowing for installing
single/dual-port 10GbE NICs to accelerate applications that demand higher
bandwidth such as virtualization, media workflows, and backup/restoration tasks
for an ever-growing amount of data; or a USB 3.1 Gen2 (10Gb/s) expansion card
for transferring large media files to and from USB storage. You can also install
QM2 cards, wireless network cards or an entry-level graphics card to extend NAS
functionality.
AMD R-Series quad-core CPU
Equipped with a next-gen AMD R-Series RX-421ND quad-core 2.1 GHz CPU (Turbo
Core up to 3.4 GHz) with up to 64GB dual-channel DDR4 RAM, the TS-873 enables
lightning-fast multi-tasking with low power consumption for up to 2379 MB/s
throughput with a 10GbE configuration. With a hardware-accelerated AES-NI
encryption engine, the TS-873 also provides unmatched encryption performance in
its class (up to 2332 MB/s with AES 256-bit full NAS volume encryption) to boost
system performance while ensuring the safety of sensitive business data stored
on the NAS.

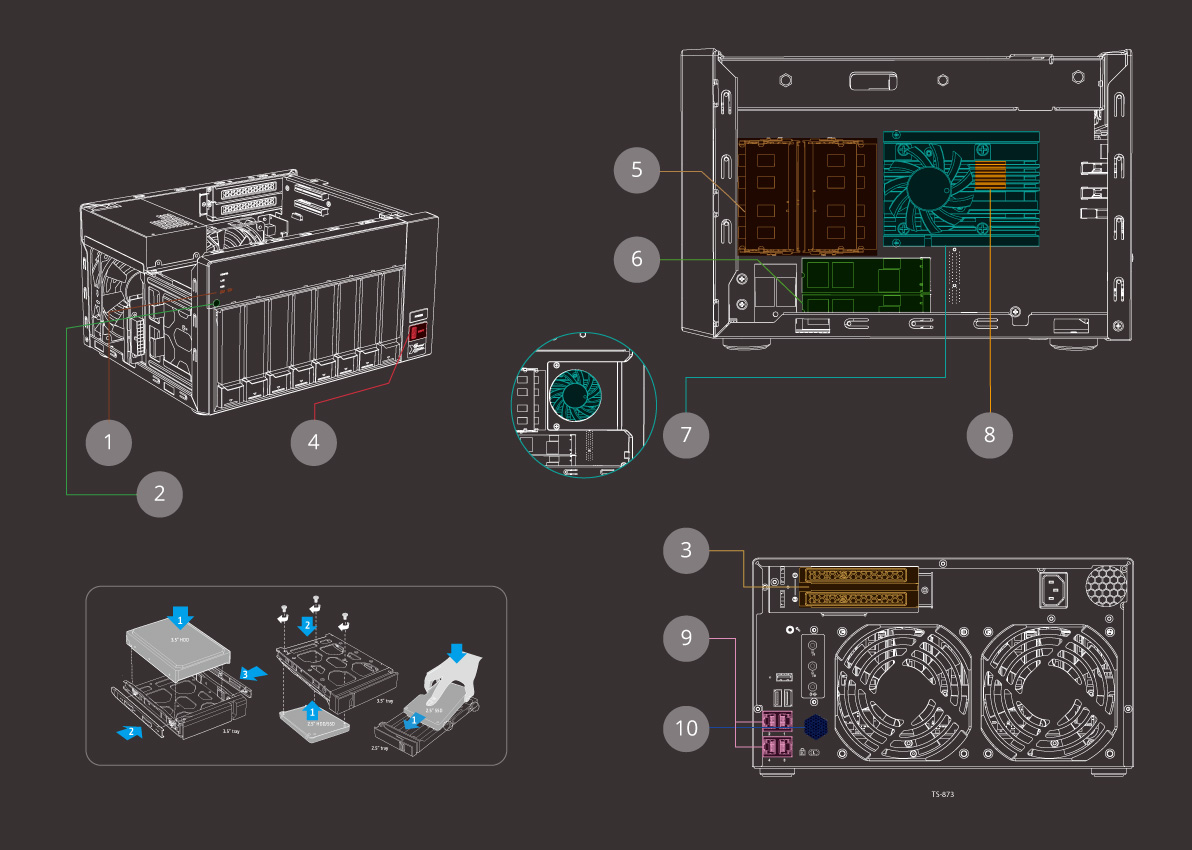

Top-class hardware engineering
The strong and feature-packed hardware bolsters overall system performance.
Coupled with a flexible and expandable architecture, the TS-873 can fulfill
diverse application needs.
1. M.2 SSD LED
Shows M.2 SSD status and data access.
2. Infrared receiver
Compatible with the QNAP RM-IR004 remote control (sold separately) for use
with multimedia applications and QButton functionality.
3. 2 x PCIe Gen3 expansion slots
PCIe Gen3 x4; supports QM2 cards, 10GbE LAN, wireless network cards,
entry-level graphics card and various PCIe expansion cards.
4. USB one-touch-copy
Press the "Copy" button to instantly back up data from USB storage to the
NAS, or alternatively to back up data from the NAS to USB storage.
5. Up to 64GB DDR4 RAM
Supports four DDR4 SODIMM memory modules (comes preinstalled with 4GB/8GB
RAM).
6. 2 x M.2 SSD slots
Supports SATA 6Gb/s M.2 SSD with 2260 and 2280 form factors; allows the
greatest flexibility in tiered storage configuration and enables cache
acceleration.
7. Compartmentalized smart cooling
Separately detects the CPU and hard drive temperatures to dynamically control
fan speeds for quieter operations.
8. AMD R-Series Embedded x86 CPU
Quad-core RX-421ND 2.1 GHz SoC (35W), Turbo Core up to 3.4 GHz.
9. 4 x Gigabit Ethernet ports
Allows optimized network traffic distribution for diverse applications.
10. Built-in speaker
Supports direct audio output and provides verbal system warnings.
SSD caching and 10GbE connectivity
The TS-873 supports the innovative QM2 PCIe card that allows for adding up to
two M.2 SSDs. You can configure SSD caching, or create a RAID 5 tiered storage
along with the two M.2 SSDs in the NAS*. As these M.2 SSDs will not occupy any
3.5-inch drive bays, the QM2 card allows you to maximize both your storage
capacity and performance. There are also QM2 cards that include 10GbE 10GBASE-T
connectivity to provide SSD caching with high-speed network connectivity on a
single card.
SSD cache with Qtier optimization for around-the-clock
acceleration
The TS-873 features SSD caching, and also supports optional M.2 SATA 6Gb/s
SSDs (sold separately). Using an SSD cache boosts overall system performance,
and is perfect for improving the overall workflow of random IOPS demanding
applications such as virtualization. QNAPs Qtier technology also continuously
optimizes storage efficiency by tiering files and data across M.2 SSD, 2.5-inch
SSD, and high-capacity SATA drives based on access frequency. The new Qtier 2.0
features IO-awareness that empowers SSD-tiered storage with a cache-like
reserved space to handle burst I/O in real time, greatly maximizing the
advantages of SSD.
Note: The M.2 SSD is optional. As M.2 SSD operations can easily generate
excessive heat, it is recommended to install a heatsink (from QNAP or a
third-party provider) on the M.2 SSD.
Optimal computing power and 4K video playback with a graphics
card
The TS-873 allows for installing a low-power graphics card (powered solely by
the PCIe slot) to boost system performance. With a graphics card installed, the
TS-873 also enables smoother video editing workflows and supports 4K UHD
transcoding to deliver an exceptional multimedia experience. You can also use
the QNAP remote control (sold separately) or the Qremote mobile app to use the
NAS as a home theater PC.
Note:
1. Supported video formats depend on the hardware and software specifications
of the devices. Playback capability and quality may vary due to factors
including the original file formats/quality, hardware and software limitations,
and output devices.
2. Consult the QNAP Compatibility List before purchasing the graphics card.
3. Graphics card will be supported in QTS 4.3.5 (or later) version.

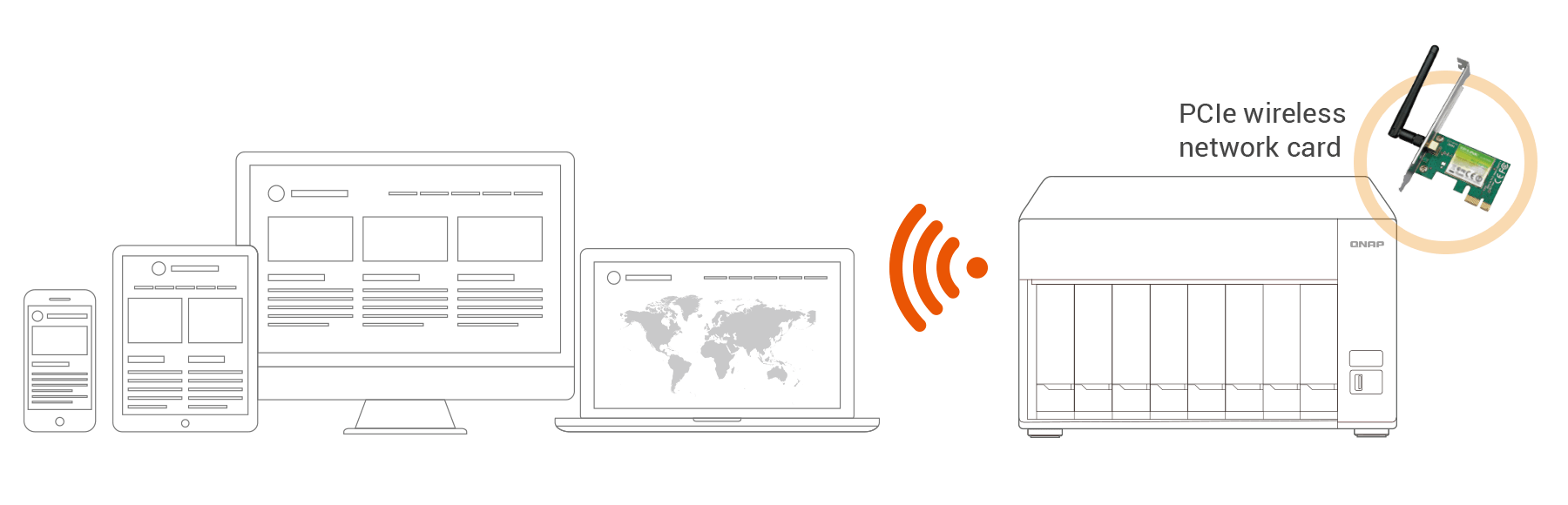

Use your NAS as a wireless base station
Install a compatible PCIe wireless network card (for example: QNAP
QWA-AC2600) on the TS-873 and use with the WirelessAP Station app to use your
NAS as a convenient wireless base station. Your mobile devices and PCs can
directly connect to your NAS for easy access to its services and Internet
connection.
Upgrade your IT environment with QNAP's fast and affordable 10GbE
Switch!
QNAP 10GbE/NBASE-T unmanaged switches allow you to instantly upgrade your
network environment at a cost-effective price. With a 10GbE network you can
enjoy blazing-fast transfer speeds, empower bandwidth-demanding tasks like
virtualization, and enable simultaneous real-time access to large NAS-based
files using multiple workstations (ideal for video editing and multimedia). QNAP
also provide a 10GbE PCIe network expansion card for the TS-873 and
Windows/Linux PCs to take advantage of high-speed LAN environments.
QTS The intelligent, intuitive and creative NAS operating
system
With modularized multiple applications and functions, QTS enhances management
efficiency, personal productivity, multimedia, and much more, making your NAS
experience easier, efficient, and more flexible! The built-in App Center with
hundreds of install-on-demand apps realizes near-limitless NAS functionality.
The new Qboost provides a NAS optimization tool that helps accelerate
applications, recover system resources, and schedule applications. QTS breaks
the barriers of devices, platforms, and geography to bring you optimized cloud
experiences and incorporates advanced features.
Multiply your productivity
The app-driven QTS operating system provides solutions for simplifying file
backup, management, search, and more. With File Station you can view and manage
your files not only from NAS but also from multiple storage devices; the OCR
Converter allows you to extract text from images; Qfiling helps automate file
organization, and Qsirch helps find files quickly.
Centralized File Management
Use File Station to directly access files on USB devices - including optical
disc drives. Files from different devices can be easily viewed and managed on a
single interface.
File Digitization
OCR Converter extracts text from images, helping to boost productivity and
making it easier to find files.
Smart Filing
Qfiling automates file organization. Files are automatically archived into
folders based on your settings.
Full-text Search
Qsirch quickly finds images, music, videos, documents, emails, and other
files.
Optimized collaboration with seamless file sharing and sync
The TS-873 centrally stores data and various files, and supports SMB/CIFS,
AFP and NFS protocols for file sharing across Windows, Mac, Linux/UNIX networks.
Coupled with Qsync - a utility that turns a QNAP NAS into a safe, high-capacity
data center for file synchronization - any file uploaded to the TS-873 will be
made available for all linked devices, such as computers, laptops and mobile
devices. You can sync shared folders and team folders for group file sharing,
greatly enhancing the flexibility of team projects and collaboration. Files can
be centrally managed using File Station, including files from mobile devices and
optical disc drives. File Station also allows you to mount a remote NAS, and
transfer files between your NAS and public cloud services for greater
convenience.
NAS as a Multi-OS Platform
Virtualization Station and Container Station provide comprehensive solutions
for creating virtualized environments to improve business IT infrastructure,
workflows, and productivity.
Virtualization Station allows you to run multiple Windows, Linux, UNIX and
Android virtual machines on the TS-873. You can use Virtual Network Computing
(VNC) through a browser to manage the VMs. Virtualization Station is ideal for
organizations to run multiple applications on a single NAS.
Container Station integrates LXC and Docker lightweight virtualization
technologies. You can download apps from the built-in Docker Hub to easily
import/export container apps and manage access control, enjoying the benefit of
easy installation, transferability and high-efficiency.
Extensive backup solutions for complete disaster recovery
planning
QNAP provides flexible backup and disaster recovery solutions to assist
organizations in routine backup jobs with greater cost-efficiency and
productivity.
Windows and Mac backup
Use the free QNAP NetBak Replicator utility to backup/restore Windows files.
Time Machine is also supported for Mac devices.
Hybrid Backup Sync
Consolidates backup, restoration and synchronization functions (using RTRR,
rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud
storage spaces as a comprehensive data storage and disaster recovery plan.
Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and its block-level
operation makes it a dependable method for mitigating the growing threat of
ransomware. The TS-873 supports up to 256 snapshots per volume or LUN, and
maximum 1,024 snapshots per NAS.
VM backup
With potentially huge storage capacities, high performance, integrated
virtualization solutions, and support for snapshots that record the state of the
system at any time, the TS-873 is perfect for backing up virtual machines.
The new QVR Pro surveillance solution
QNAPs new QVR Pro surveillance solution allows you to arrange a dedicated,
independent storage space for surveillance data on TS-873 and leverage the
advantages of scalability and storage manageability from QTS. With QVR Pro,
camera management, storage space allocation, camera live viewing and playback is
greatly simplified. You can also use the QVR Pro Client mobile app to monitor
your cameras from anywhere, or use a USB webcam as an ONVIF network camera with
the QUSBCam2 app.
Comprehensive surveillance solution for 24/7 security
The TS-873 provides an intelligent video management system that assists you
with real-time monitoring, video & audio recording and playback with a wide
range of customizable settings to safeguard your work environment. You can use
the Vmobile app to manage monitored channels anytime and anywhere with your
mobile devices, or install the Vcam app to turn your mobile device into a
network camera to instantly record to your NAS.
3,000+
compatible IP cameras
4
free IP camera channels
72
expandable channels
QUSBCam2
use USB webcams as IP cameras
Flexible and economical storage expansion
You need an easy solution to increase storage capacity when running out of
space. QNAP provides several ways to expand your NAS storage as needed to
accommodate data and business growth.
Upgrade RAID Capacity
Hot swap lower-capacity drives with larger-capacity drives so that your QNAP
NAS can grow with your business.
Attach Expansion Enclosures
Connect 2x UX-800P or UX-500P or 4x REXP-1000 Pro* expansion enclosures.
*Requires the SAS-12G2E PCIe expansion card and Mini SAS cable
CAB-SAS10M-8644-8088 (both sold separately)
VJBOD
Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused
storage of other QNAP NAS. Up to 8 QNAP NAS can be mounted as local disks on the
TS-873.
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain your existing
data and configurations.
More productivity applications
IFTTT Agent
A popular web automation service for combining QNAP NAS and mobile
devices/apps to customize NAS applets.
QmailAgent
Centrally manage and switch between different email accounts, back up emails
to the NAS, and safeguard email security and personal privacy.
Browser Station
Enable remote access through NAS browsers to access local LAN resources
without going through complex VPN settings.
QIoT Suite Lite
Provides an IoT solution on a private cloud empowered by the high capacity
and security of a QNAP NAS. It only takes three steps to deploy your own IoT
application.
Mattermost
Mattermost turns your QNAP NAS into a team communication platform that allows
for instant messaging and can centrally store all your conversations and files.
Mobile Apps
Simplify file access, NAS management, multimedia experience, surveillance,
and download tasks with QNAP mobile apps.
Specifications
|
CPU |
Processor:
AMD R-Series RX-421ND quad-core 2.1 GHz processor, Turbo Core up to 3.4
GHz |
|
|
Architecture:
64-bit |
|
|
Encryption
Engine: AES-NI |
|
System
Memory |
8
GB DDR4 (2 x 4 GB) |
|
Maximum
Memory |
64
GB (4 x 16 GB) |
|
Memory
Slot |
4
x SODIMM DDR4 |
|
|
(For
dual- or quad-DIMM configurations, you must use a pair of identical DDR4
modules.) |
|
Flash
Memory |
512MB
DOM |
|
Drive
Bay |
6
x SATA 6 Gbps |
|
Drive
Compatibility |
•
3.5-inch SATA hard disk drives |
|
|
•
2.5-inch SATA hard disk drives |
|
|
•
2.5-inch SATA solid state drives |
|
M.2
SSD Slot |
2
x M.2 2260/2280 SATA 6Gb/s SSDs (Sold separately) |
|
|
|
|
|
Note: |
|
|
1.
The M.2 SSD is not included as standard. |
|
|
2.
M.2 SSD operations can easily generate excessive heat. It is recommended
to install a heatsink (from QNAP or a third-party provider) on the M.2
SSD. |
|
SSD
Cache Acceleration Support |
•
Drive bays 1 to 6 |
|
|
•
M.2 slots 1 to 2 |
|
|
•
Optional: M.2 SSD using QNAP QM2 PCIe expansion card |
|
Hot-swappable |
The
following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using
PCIe expansion slots. |
|
Gigabit
Ethernet Port |
4
x RJ45 |
|
PCIe
Slot |
2
x PCIe 3.0 x4 |
|
|
Note:
Support full-height 10GbE LAN card, USB 3.1 Gen2 (10Gb/s) expansion card,
QM2 card, PCIe wireless network card or a bus-powered graphics
card. |
|
USB
Port |
4
x USB 3.0 (Front: 1; Back: 3) |
|
Audio |
•
2 x 3.5 mm dynamic microphone jacks |
|
|
•
1 x 3.5 mm line-out jack |
|
|
•
1 x speakers |
|
|
|
|
|
Note:
You cannot use the speakers and the line-out jack
simultaneously. |
|
USB
One Touch Copy |
Front:
USB 3.0 |
|
IR
sensor |
Optional
QNAP RM-IR004 remote control (MCE compatible) |
|
Form
Factor |
Tower |
|
Dimensions
(H x W x D) |
188.2
x 264.3 x 279.6 mm |
|
|
7.41
x 10.4 x 11.01 inch |
|
Power
Consumption (W) |
HDD
standby: 35.11 W |
|
|
In
operation: 63.69 W |
|
|
(with
6 x 2TB HDDs installed) |
|
Sound
Level |
Sound
pressure (LpAm): 23.0 dB(A) |
|
Net
Weight |
5.57
kg (12.28 lbs) |
|
Power
Supply Unit |
250W,
100-240V AC, 50/60Hz |
|
Fan |
System:
2 x 90 mm |
|
|
CPU:
1 x 60 mm |
|
Operating
Temperature & Relative Humidity |
0
~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C
(80.6˚F) |
|
Security
Slot |
Kensington
security slot |
