All stock codes associated to this product
VC925AT, VC925-AT, KVAVC925, KVA-VC-925, 4719264643699

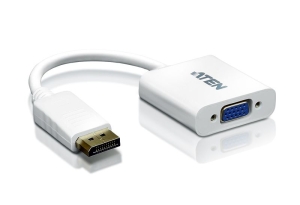

Aten VC925-AT DisplayPort To VGA Adapter
Overview
The VC925 is a DisplayPort to VGA adapter, allowing you to connect your
device’s DisplayPort output to the VGA input of a TV or other display.
The VC925 provide a cost-effective yet high performance signal conversion
solution. This adapter is therefore perfect for computers and notebooks,
supporting display resolutions of up to WUXGA (1920x1200@60Hz).
Package Contents
- 1x DisplayPort to VGA Adapter
Features
- Converts DisplayPort signals to VGA output
- DisplayPort 1.2 a compliant
- Supports VGA, SVGA, XGA, SXGA, UXGA and resolutions up to 1920x1200 (PC) /
1080p (HDTV)
- No software or driver installation required

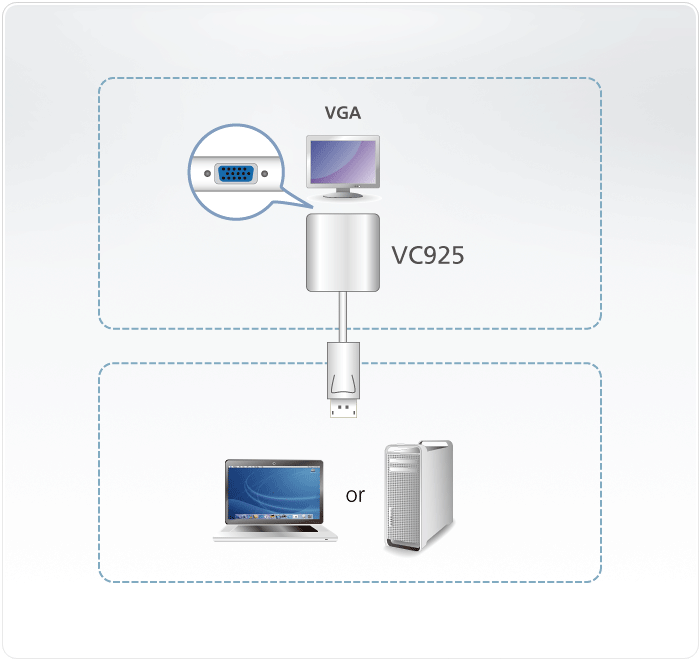

Diagram

Specifications
Video
Input |
|
Interfaces |
1
x DisplayPort Male (White) |
|
|
Video
Output |
|
Interfaces |
1
x HDB-15 Female (Blue) |
|
|
Video |
|
Max.
Pixel Clock |
165
MHz |
Max.
Resolution |
1920x1200@60Hz(PC)/1080p(HDTV) |
Compliance |
DP1.1a |
|
|
Environmental |
|
Operating
Temperature |
0
- 50 ºC |
Storage
Temperature |
-20
- 60 ºC |
Humidity |
0
- 80% RH, Non-Condensing |
|
|
Physical
Properties |
|
Housing |
Plastic |
Weight |
0.04
kg ( 0.1 lb ) |
Dimensions
(L x W x H) |
18.00
x 4.50 x 1.50 cm |
|
(7.09
x 1.77 x 0.59 in.) |
|
|
Carton
Lot |
40
pcs |
|
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
