Asrock Z390-Extreme4 Motherboard



Features

  • Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
  • Digital PWM, 12 Power Phase
  • Supports DDR4 4300+(OC)
  • 3 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E) For WiFi
  • NVIDIA® Quad SLI™, AMD 3-Way CrossFireX™
  • Graphics Output Options : HDMI, D-Sub, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
  • Supports Purity Sound™ 4 & DTS Connect
  • 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C)
  • 9 USB 3.1 Gen1 (1 Front Type-C, 4 Front Type-A, 4 Rear)
  • Intel® Gigabit LAN
  • ASRock Polychrome SYNC

Overview

Fully Supports 9th Gen Intel® Core Processors

The motherboard is designed to make the best out of 9th Generation Intel® Core™ Processors, the sturdy VRM design provides extreme overclocking potential, lower temperature during gaming and reinforced system stability for taking on all sorts of arduous computing tasks.

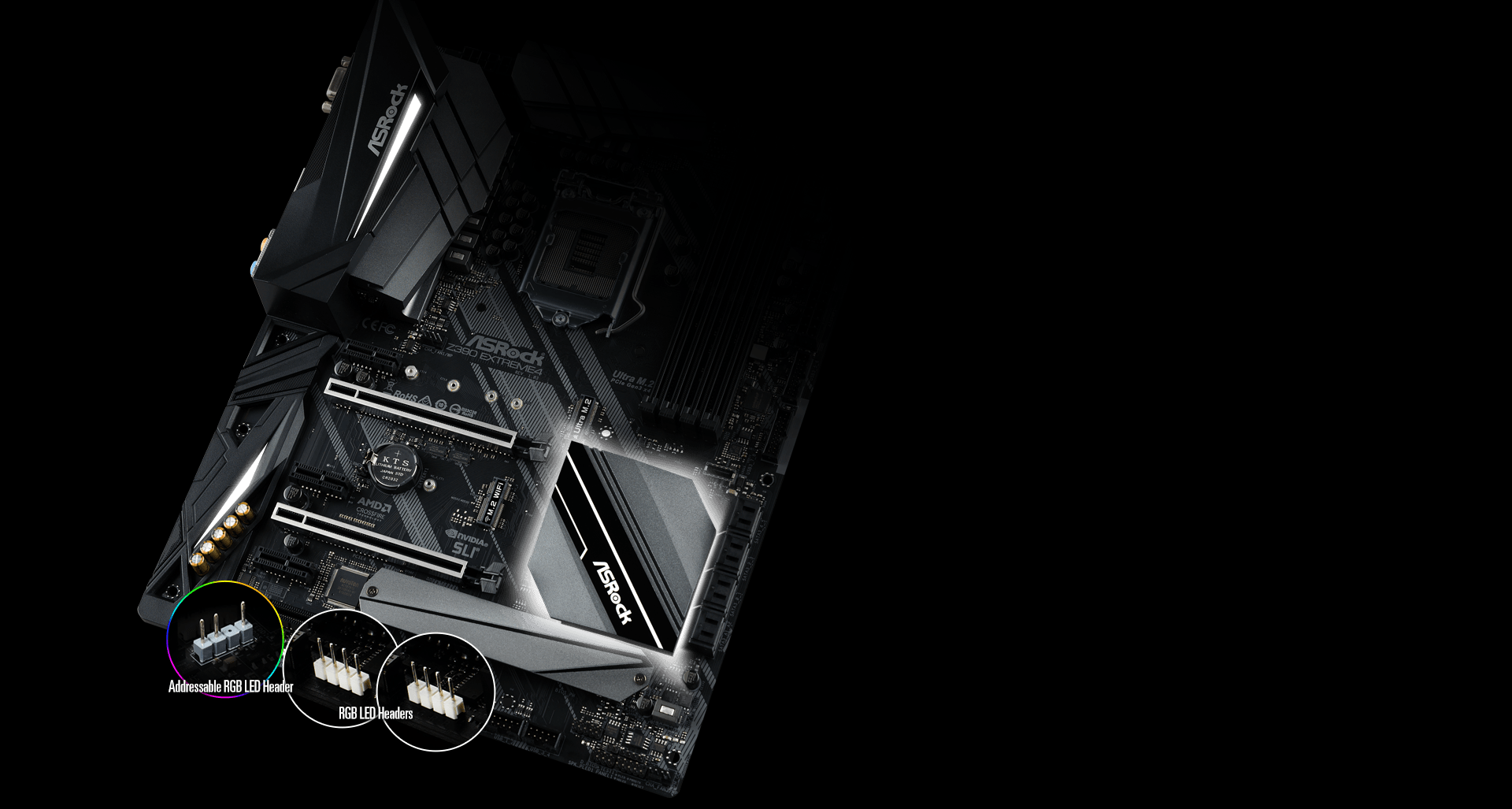

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.

The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.







Dual M.2 For SSD

Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

Full Coverage M.2 Heatsink

Image result for Full Coverage M.2 Heatsink

A massive full coverage M.2 heatsink that is able to dissipate heat ef-ficiently to ensure your high speed M.2 SSD always working at its best.

Front USB 3.1 Gen1 Type-C

Front USB 3.1 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

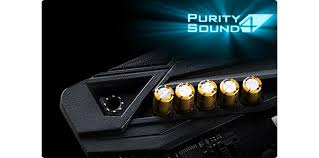

Purity Sound 4

Image result for Purity Sound 4

It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.

120dB SNR DAC

RGB LED

Gold Audio Connector

TI NE5532 Premium Headset Amplifier

Individual PCB Layers for R/L Audio Channel

Impedance Sensing on Rear Out Port

PCB Isolate Shielding

Pure Power-In

Nichicon Fine Gold Series Audio Caps

ASRock Intel® 4-Layer Memory POOL Technology

POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.

PCI-E STEEL SLOTS

The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

Intel® Optane™ Memory Ready

Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

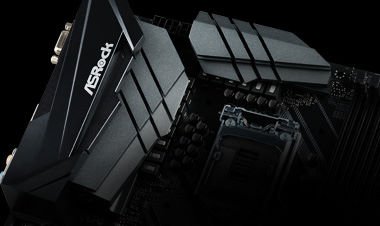

XXL Aluminum Alloy Heatsink

Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Premium Memory Alloy Choke

Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

Dual-Stack MOSFET (DSM)

Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mO, so the power supply for the CPU Vcore is more efficient.

Combo Caps

A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

Nichicon 12K Black Caps

Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

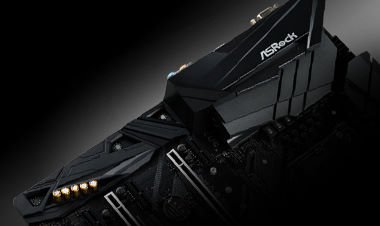

I/O Armor

A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Dual USB 3.1 Gen2 (Type-A + Type-C)

USB 3.1 Gen2 doubles the data transfer rate

USB 3.1 Gen2 Type-C doubles the charge speed!

This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

SLI HB Bridge Free Bundled

The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA® GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock stable gameplay and experiencing surround gaming in the best way.

Intel® LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Specifications

Unique Feature

ASRock USB 3.1 Gen2

ASRock USB 3.1 Gen2 TypeA Port (10 Gb/s)

ASRock USB 3.1 Gen2 TypeC Port (10 Gb/s)

ASRock Super Alloy

XXL Aluminum Alloy Heatsink

Premium 60A Power Choke

Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)

DualStack MOSFET (DSM)

Combo Caps (Nichicon 12K Black Caps)

Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)

I/O Armor

Matte Black PCB

High Density Glass Fabric PCB

ASRock Intel® 4Layer Memory POOL (Planes on Outer Layers) Technology

ASRock Steel Slots

ASRock Full Coverage M.2 Heatsink

ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

ASRock Live Update & APP Shop

CPU

Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)

Digi Power design

12 Power Phase design

Supports Intel® Turbo Boost 2.0 Technology

Supports Intel® KSeries unlocked CPUs

Supports ASRock BCLK Fullrange Overclocking

Chipset

Intel® Z390

Memory

Dual Channel DDR4 Memory Technology

4 x DDR4 DIMM Slots

Supports DDR4 4300+(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) /

2933(OC) / 2800(OC) / 2666 / 2400 / 2133 nonECC, unbuffered memory

Supports ECC UDIMM memory modules (operate in nonECC mode)

Max. capacity of system memory: 64GB*

Supports Intel® Extreme Memory Profile (XMP) 2.0

15μ Gold Contact in DIMM Slots

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for

system usage under Windows® 32bit OS. For Windows® 64bit OS with 64bit CPU, there is no such limitation.

BIOS

2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)

Supports Secure Backup UEFI Technology

ACPI 6.0 Compliant wake up events

SMBIOS 2.7 Support

? CPU Core/Cache, GT, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multiadjustment.

Audio

?B46 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

Premium Bluray Audio support

Supports Surge Protection

Supports Purity Sound™ 4

Nichicon Fine Gold Series Audio Caps

120dB SNR DAC with Differential Amplifier

NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)

Pure PowerIn

Direct Drive Technology

PCB isolate shielding

Impedance Sensing on Rear Out port

Individual PCB Layers for R/L Audio Channel

RGB LED

15μ Gold Audio Connector

Supports DTS Connect

LAN

Gigabit LAN 10/100/1000 Mb/s

Giga PHY Intel® I219V

Supports WakeOnLAN

Supports Lightning/ESD Protection

Supports Energy Efficient Ethernet 802.3az

Supports PXE

Slots

3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))*

3 x PCI Express 3.0 x1 Slots (Flexible PCIe)

Supports AMD Quad CrossFireX™, 3Way CrossFireX™ and CrossFireX™

Supports NVIDIA® Quad SLI™ and SLI™

Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards**

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)

15μ Gold Contact in VGA PCIe Slot (PCIE2)

Storage

6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel®Rapid Storage Technology 16), NCQ, AHCI and Hot Plug*

2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug

1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

*M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled.

M2_2, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled.

**Supports Intel®Optane™ Technology

Supports NVMe SSD as boot disks

Supports ASRock U.2 Kit

Connector

1 x COM Port Header

1 x TPM Header

1 x Power LED and Speaker Header

2 x RGB LED Headers*

1 x Addressable LED Header**

1 x CPU Fan Connector (4pin)***

1 x CPU/Water Pump Fan Connector (4pin) (Smart Fan Speed Control)****

3 x Chassis/Water Pump Fan Connectors (4pin) (Smart Fan Speed Control)*****

1 x 24 pin ATX Power Connector (HiDensity Power Connector)

1 x 8 pin 12V Power Connector (HiDensity Power Connector)

1 x 4 pin 12V Power Connector (HiDensity Power Connector)

1 x Front Panel Audio Connector (15μ Gold Audio Connector)

1 x Thunderbolt™ AIC Connector (5pin)

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel® Z390) (Supports ESD Protection)

2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

1 x Front Panel Type C USB 3.1 Gen1 Header (Intel® Z390) (Supports ESD Protection)

1 x Performance Mode / Easy OC Header

*Support in total up to 12V/3A, 36W LED Strip

**Supports in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3pin or 4pin fan is in use.

Rear Panel I/O

1 x Antenna Ports

1 x PS/2 Mouse/Keyboard Port

1 x DSub Port

1 x HDMI Port

1 x DisplayPort 1.2

1 x Optical SPDIF Out Port

1 x USB 3.1 Gen2 TypeA Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

1 x USB 3.1 Gen2 TypeC Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

4 x USB 3.1 Gen1 Ports (Intel® Z390) (Supports ESD Protection)

1 x RJ45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Software and UEFI

Software

ASRock ATuning

ASRock Polychrome RGB

ASRock XFast LAN

UEFI

ASRock EZ Mode

ASRock Full HD UEFI

ASRock My Favorites in UEFI

ASRock Instant Flash

ASRock Internet Flash

ASRock Easy RAID Installer

Support CD

Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories

Quick Installation Guide, Support CD, I/O Shield

4 x SATA Data Cables

1 x ASRock SLI_HB_Bridge_2S Card

3 x Screws for M.2 Sockets

Hardware Monitor

Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans

Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans

Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans

Fan MultiSpeed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST, VCCIO

Form Factor

ATX Form Factor: 12.0in x 9.6in, 30.5 cm x 24.4 cm

OS

Microsoft® Windows® 10 64bit

Certifications

FCC, CE

ErP/EuP ready (ErP/EuP ready power supply is required)
