Essentials |
|
Product
Collection |
Intel®

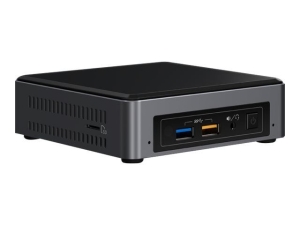

NUC Kit with 7th Generation Intel® Core™ Processors |
Code
Name |
Products
formerly Dawson Canyon |
Status |
Launched |
Launch
Date |
Q3'17 |
Board
Form Factor |
UCFF
(4" x 4") |
Socket |
Soldered-down
BGA |
Internal
Drive Form Factor |
M.2
and 2.5" Drive |
#
of Internal Drives Supported |
2 |
TDP |
15
W |
DC
Input Voltage Supported |
12-24
VDC |
Recommended
Customer Price |
$279.00 |
Processor
Included |
Intel
Core i3-7100U Processor (3M Cache, 2.40 GHz) |
Warranty
Period |
3
yrs |
|
|
Supplemental
Information |
|
Embedded
Options Available |
Yes |
Description |
7th
Gen Commercial Intel® NUC |
|
|
Memory
& Storage |
|
Max
Memory Size (dependent on memory type) |
32
GB |
Memory
Types |
DDR4-2133
1.2V SO-DIMM |
Max
# of Memory Channels |
2 |
Max
# of DIMMs |
2 |
ECC
Memory Supported |
No |
|
|
Processor
Graphics |
|
Integrated
Graphics |
Yes |
Graphics
Output |
Dual
HDMI 2.0a |
#
of Displays Supported |
2 |
|
|
Expansion
Options |
|
PCI
Express Revision |
Gen
3 |
PCI
Express Configurations |
PCIe
x4: M.2 22x80 (key M) slot PCIe x1: M.2 22x30 (key E)
slot |
M.2
Card Slot (wireless) |
22x30
(key E) slot |
M.2
Card Slot (storage) |
22x80
(key M) slot |
|
|
I/O
Specifications |
|
#
of USB Ports |
4 |
USB
Configuration |
2x
front and 2x rear USB 3.0; 1x USB 3.0 and 2x USB 2.0 via internal
headers |
USB
Revision |
2.0,
3.0 |
USB
2.0 Configuration (External + Internal) |
0
+ 2 |
USB
3.0 Configuration (External + Internal) |
2B
2F +1 |
Total
# of SATA Ports |
2 |
Max
# of SATA 6.0 Gb/s Ports |
2 |
RAID
Configuration |
2.5"
HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1) |
Serial
Port via Internal Header |
Yes |
Integrated
LAN |
Intel®
i219-LM 10/100/1000 Mbps Ethernet |
Integrated
Wireless |
Intel®
Wireless-AC 8265 (IEEE 802.11ac 2x2) |
Integrated
Bluetooth |
Yes |
Additional
Headers |
Front_panel
(PWR, RST, 5V, 5Vsby, 3.3Vsby); HDMI_CEC; Internal 2x2 power
connector |
|
|
Package
Specifications |
|
Low
Halogen Options Available |
See
MDDS |
|
|
Advanced
Technologies |
|
Intel®
Optaneâ„¢ Memory Supported |
Yes |
Intel®
Virtualization Technology for Directed I/O (VT-d) |
Yes |
Intel®
vProâ„¢ Technology |
No |
Intel®
ME Firmware Version |
v11.7 |
TPM |
No |
Intel®
Rapid Storage Technology |
Yes |
Intel®
Virtualization Technology (VT-x) |
Yes |
Intel®
Platform Trust Technology (Intel® PTT) |
Yes |
|
|
Security
& Reliability |
|
Intel®
AES New Instructions |
Yes |
Intel®
Trusted Execution Technology |
No |
