Essentials |
|
Product
Collection |
Intel®

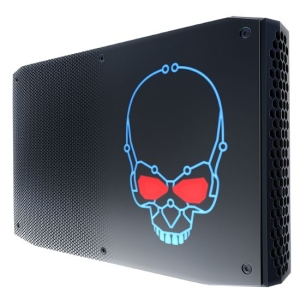

NUC Mini PC with 8th Generation Intel® Core™
Processors |
Code
Name |
Products
formerly HADES CANYON |
Status |
Launched |
Launch
Date |
Q3'18 |
Board
Form Factor |
UCFF
(5.5" x 8") |
Socket |
Soldered-down
BGA |
Internal
Drive Form Factor |
M.2
SSD |
#
of Internal Drives Supported |
2 |
Lithography |
14
nm |
TDP |
100
W |
DC
Input Voltage Supported |
19 |
Recommended
Customer Price |
$1571.00
- $1573.00 |
Pre-Installed
Operating System |
Windows
10, 64-bit* |
Processor
Included |
Intel®
Coreâ„¢ i7-8809G Processor with Radeonâ„¢ RX Vega M GH graphics (8M Cache, up
to 4.20 GHz) |
Warranty
Period |
3
yrs |
|
|
Supplemental
Information |
|
Embedded
Options Available |
No |
Datasheet |
Link |
Description |
Other
features: 1TB NVMe SSD, 16GB RAM, Windows® 10 x64 Home pre-installed,
includes 2x Thunderbolt 3 (40Gbps) via rear USB-C ports, SDXC card slot
and front USB-A and USB-C ports w/ USB 3.1 Gen 2 |
|
|
Memory
& Storage |
|
Included
Storage |
1TB
NVMe SSD |
Included
Memory |
2x
8GB DDR4-2400 |
Max
Memory Size (dependent on memory type) |
32
GB |
Memory
Types |
DDR4-2400+
1.2V SO-DIMM |
Max
# of Memory Channels |
2 |
Max
Memory Bandwidth |
38.4
GB/s |
Max
# of DIMMs |
2 |
ECC
Memory Supported ‡ |
No |
|
|
Processor
Graphics |
|
Integrated
Graphics ‡ |
Yes |
Graphics
Output |
2x
Mini-DP 1.2, 2x Thunderbolt 3, F+R HDMI 2.0a |
#
of Displays Supported ‡ |
6 |
Discrete
Graphics |
Radeonâ„¢
RX Vega M GH graphics |
|
|
Expansion
Options |
|
PCI
Express Revision |
Gen3 |
PCI
Express Configurations ‡ |
Dual
M.2 slots with PCIe x4 lanes |
Removable
Memory Card Slot |
SDXC
with UHS-I support |
M.2
Card Slot (wireless) |
2230 |
M.2
Card Slot (storage) |
22x42/80,
22x80 |
|
|
I/O
Specifications |
|
#
of USB Ports |
13 |
USB
Configuration |
F:
USB3, 2x USB 3.1g2 (Type A and C); R: 4x USB3, 2x Thunderbolt3 (USB3.1g2);
INT: 2x USB2, 2x USB3 |
USB
Revision |
2.0,
3.0, 3.1 Gen2 |
USB
2.0 Configuration (External + Internal) |
0
+ 2 |
USB
3.0 Configuration (External + Internal) |
1F,
4R, 2i |
Total
# of SATA Ports |
2 |
Max
# of SATA 6.0 Gb/s Ports |
2 |
RAID
Configuration |
2x
M.2 SATA/PCIe SSD (RAID-0 RAID-1) |
Audio
(back channel + front channel) |
7.1
digital; L+R+mic (F); L+R+TOSLINK (R) |
Integrated
LAN |
2x
10/100/1000 |
Integrated
Wireless‡ |
Intel®
Wireless-AC 8265 + Bluetooth 4.2 |
Integrated
Bluetooth |
Yes |
Consumer
Infrared Rx Sensor |
Yes |
S/PDIF
Out Connector |
TOSLINK |
Additional
Headers |
CEC,
2x USB2.0, 2x USB 3.0, FRONT_PANEL |
#
of Thunderboltâ„¢ 3 Ports |
2 |
|
|
Advanced
Technologies |
|
Intel®
Virtualization Technology for Directed I/O (VT-d) ‡ |
Yes |
Intel®
vPro™ Platform Eligibility ‡ |
No |
TPM |
No |
Intel®
HD Audio Technology |
Yes |
Intel®
Rapid Storage Technology |
Yes |
Intel®
Virtualization Technology (VT-x) ‡ |
Yes |
Intel®
Platform Trust Technology (Intel® PTT) |
Yes |
|
|
Security
& Reliability |
|
Intel®
AES New Instructions |
Yes |
