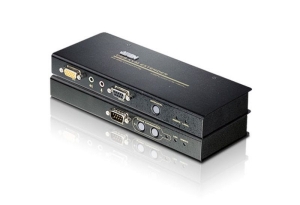

Aten CE750A USB VGA/Audio Cat 5 KVM Extender (1280 x [email protected])



Overview

The CE750 is a USB based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).

Because it allows access to a computer system from a remote console, the CE750 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location ?away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example.

The CE750 improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit), or serial devices such as touchscreens and barcode scanners (Remote Unit)

ROHS Weee

Features

  • Local and Remote Units connect at distances up to 200 m using Cat 5e cable.
  • Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles.
  • Built-in ASIC for greater reliability and compatibility.
  • USB Keyboard and USB Mouse Ports.
  • RS-232 serial ports - allows you to connect to a serial terminal for configuration (Local Unit), or serial devices such as touchscreens and barcode scanners (Remote Unit).
  • Supports stereo speakers and stereo microphone.
  • USB overcurrent detection and prevention.
  • Pushbutton operating mode selection (Local Unit only) -select between Local and Auto operating modes..
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection.
  • Adjustable gain control - automatically and manually adjusts signal strength to compensate for distance.
  • High resolution video - up to 1920 x 1200 @ 60 Hz (30m),1600 x 1200 @ 60 Hz (150m),1280 x 1024 @ 60 Hz (200m).
  • Supports Wide Screen formats.
  • Supports VGA, SVGA, SXGA (1280 x 1024) and UXGA (1600 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
  • Hot pluggable
  • Rack mountable
  • Easy to install - no software required - connecting cables to the devices is all it takes.
  • Multiplatform support - Windows, Linux, FreeBSD.
  • The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.

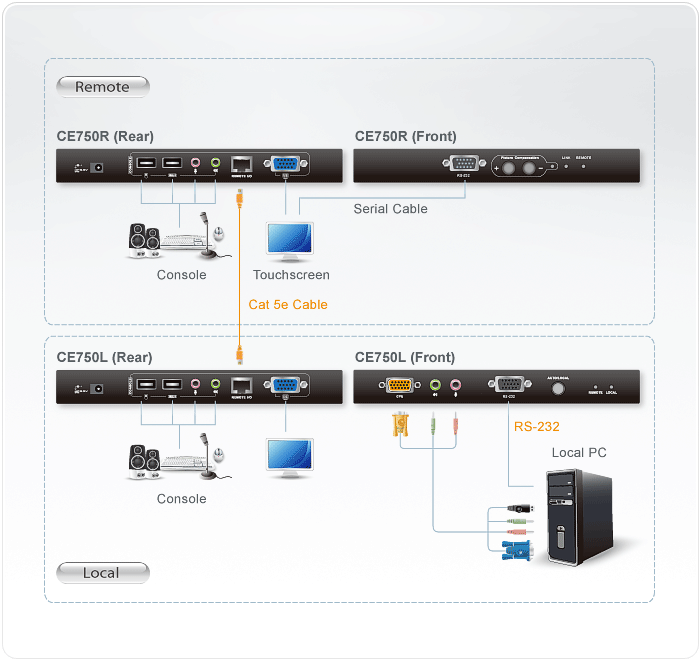

Diagram

Specifications

USB KVM Extender

Function

CE750AL

CE750AR

Connectors

Console Ports

2 x USB Type A Female (White)

2 x USB Type A Female (White)

1 x HDB-15 Female (Blue)

1 x HDB-15 Female (Blue)

1 x Mini Stereo Jack Female (Green)

1 x Mini Stereo Jack Female (Green)

1 x Mini Stereo Jack Female (Pink)

1 x Mini Stereo Jack Female (Pink)

1 x DB-9 Female (Black)

1 x DB-9 Male (Black)

1 x RJ-45 Female

1 x RJ-45 Female

1 x DC Jack

1 x DC Jack

KVM Ports

1 x SPHD-15 Female (Yellow)

N/A

1 x Mini Stereo Jack Female (Green)

1 x Mini Stereo Jack Female (Pink)

LEDs

Local

1 (Green)

N/A

Remote

1 (Green)

1 (Green)

Link

N/A

1 (Green)

Picture Compensation

N/A

1 (Orange)

Pushbuttons

Operating Mode Selection

1 x Pushbutton

N/A

Picture Compensation

N/A

2 x Pushbuttons

Emulation

Keyboard / Mouse

USB

USB

Video

[email protected] at 30m;

[email protected] at 30m;

[email protected] at 150m;

[email protected] at 150m;

[email protected] at 200m

[email protected] at 200m

Power Consumption

DC5.3V/3.0W

DC5.3V/4.2W

Environmental

Operating Temperature

0-50C

0-50C

Storage Temperature

-20-60C

-20-60C

Humidity

0-80% RH, Non-condensing

0-80% RH, Non-condensing

Physical Properties

Housing

Metal

Metal

Weight

0.50 kg ( 1.1 lb )

0.50 kg ( 1.1 lb )

Dimensions (L x W x H)

20.20 x 8.63 x 2.63 cm

20.20 x 8.63 x 2.63 cm

(7.95 x 3.4 x 1.04 in.)

(7.95 x 3.4 x 1.04 in.)

Package Contents

1x USB KVM Extender (Local Unit)

1x USB KVM Extender (Remote Unit)

1x USB KVM Cable (1.8 m)

2x Power Adapters

1x Mounting Kit

1x User Instructions

Compatibility

2A-130G

CS84U

CS82U

CS1316

CS1308

CL5716

CL5708

CS1716

CS1708A

CS62US

CS64U

CS1734A

CS62U

CS1732A

2L-2901

2L-2801

2L-5305U

2L-5303U

2L-5302U

2L-5301U
