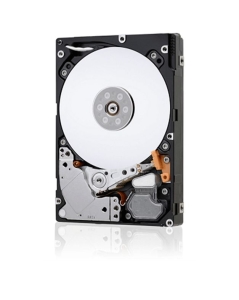

Hitachi 0B29918 600GB Ultrastar C10K1800 2.5" SATA Enterprise Hard Drive



Highlights

  • Best-in-class Performance – 2.5X faster random write than prior generation 10K HDDs
  • Best-in-class Capacity – Advanced Format models deliver up to 1.8TB
  • Enterprise-class Protection – Multiple security and data encryption options

Overview

When you need to access to a lot of data, fast -- count on the compact, high-performance Ultrastar C10K1800 enterprise-class HDD. Delivering up to 1.8TB of capacity, the drive helps you manage data growth in a smaller footprint. Innovations in performance give you the speed you are looking for: 12Gb/s SAS interface delivers high transfer rates between host and drive. Non-volatile media cache accelerates write performance even at high workloads and helps improve reliability and data integrity during unexpected power loss. With a 2M hour MTBF reliability rating and a 5-year warranty, you can trust your mission critical data to the high-performance Ultrastar C10K1800.

Big Capacity and Performance in a Small Package

HGST delivers best-in-class capacity and performance in one small form factor hard drive. The Ultrastar C10K1800 is a 10K RPM enterprise-class HDD that stores up to 1.8TB of data, 50% more capacity than prior generations, plus delivers best-in-class active and idle power efficiency, enabling next generation data centers to keep pace with digital data growth and improve space and power efficiencies. Data center architects can also leverage bestin-class performance on the C10K1800, achieving up to 2.5X better random write performance and 23% faster sequential performance over prior generation 2.5-inch SFF 10K RPM HDDs for demanding 24x7 enterprise workloads.

Technology Innovation

Ultrastar C10K1800 delivers unmatched performance thanks to several HGST technology innovations including media cache architecture, the industrys fastest 12Gb/s Serial-Attached SCSI (SAS) interface and advanced format options. HGSTs media cache architecture is a disk-based caching technology, which provides a large non-volatile cache on the media resulting in improved reliability and data integrity during unexpected power loss, as well as a significant improvement in write performance even at high workloads when compared to solutions with limited NAND or flash-based NVC. The C10K1800 is the industrys first 10K RPM drive to leverage an industry-leading 12Gb/s SAS interface, enabling very high transfer rates between host and drive. Advanced format models enable the industrys highest 10K RPM capacity at 1.8TB with 4K native and 512 emulation to support new systems, and also offers 512 native format models to support legacy systems.

Enterprise Security and Reliability

The Ultrastar C10K1800 offers the broadest range of encryption and security options available on SAS HDDs from HGST, including Trusted Computing Group (TCG) enterprise SSC-compliant Self-Encrypting Drives (SED) which provide data protection without any performance loss, and TCG with FIPS (Federal Information Processing Standard) 140-2 certification, which adds and tamper evidence protection for the most stringent regulatory data security compliance requirements. Instant Secure Erase (ISE) models enable fast, cost-effective and secure drive repurposing and retirement. C10K1800 extends the companys long-standing tradition of reliability leadership with a 2M hours MTBF rating and a 5-year limited warranty.

HGST Quality and Service

The Ultrastar C10K1800 extends the long-standing HGST tradition of performance and reliability leadership. A balanced combination of new and proven technologies helps ensure high reliability and availability of customer data.

HGST drives are backed by an array of technical support and services, which may include customer and integration assistance. HGST is dedicated to providing a breadth of hard disk drive solutions to satisfy all of todays demanding computing needs.

Specifications

General

Interface

SAS 12Gb/s

Capacity (GB)

600GB

Recording Zones

40

Data Heads (physical)

8 / 6 / 4 / 3 / 2

Data Disks

4 / 3 / 2 / 2 / 1

Sector Size (Variable, Bytes/sector)

4096-Byte (512e, 4Kn)

Max Areal Density (Gbits/sq. in.)

620

Performance

Data Buffer (MB)

128

Rotational Speed (RPM)

10,520

Latency Average (ms)

2.85

Interface Transfer Rate (MB/sec, max)

1200

Sustained Transfer Rate (MB/sec, typ.)

146 to 247

Seek Time (read, ms, typical)

3.3-3.7 / 3.8-4.4

Reliability

Error Rate (non-recoverable, bits read)

1 in 10^16

MTBF (M hours)

2

Availability (hrs/day x days/wk)

24x7

Acoustics

Idle (Bels)

3.4

Power

Requirement

+5 VDC (+/-5%), +12 VDC (+/-5%)

Operating (W, typical)

7.4 / 6.7 / 6.2 / 6.2 / 5.9

Active Idle (W, avg)

5.1 / 4.8 / 4.3 / 4.3 / 3.9

Performance Idle (W, avg)

-

Idle (W)

-

Physical Size

Z-Height (mm)

15

Dimensions (width x depth, mm)

70.1 x 100.45

Weight (g, max)

227

Environmental (operating)

Ambient Temperature

5 to 55 C

Shock (half-sine wave)

60G

Vibration (5 to 500 Hz)

0.4, all axes

Environmental (non-operating)

Ambient Temperature

-40 to 70 C

Shock (half-sine wave)

300G

Vibration (5 to 500 Hz)

1.5, all axes
