All stock codes associated to this product
CL-F071-PL12SW-A, CLF071PL12SWA

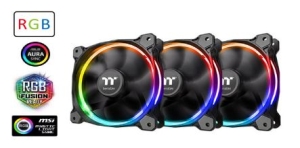

Thermaltake CL-F071-PL12SW-A Riing 12 LED RGB
Radiator Fan Sync Edition (3-Fan Pack)
Overview
Riing 12 LED RGB Radiator Fan Sync Edition (3-Fan Pack)
Featuring a patented RGB LED ring, the high-performance Thermaltake Riing 12
RGB Sync Edition is a powerful, yet silent 120mm radiator fan that is designed
to synchronize its lighting with top name motherboards in the market including
ASUS Aura Sync, ASRock RGB LED, BIOSTAR Vivid LED DJ, GIGABYTE RGB Fusion and
MSI Mystic Light Sync.
Patented LED Design
The built-in LED module features great light coverage, uniform color and
brightness, and is compatible with selected motherboard RGB software (ASUS,
ASRocK, BIOSTAR, GIGABYTE and MSI).
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, ASRock RGB LED, BIOSTAR Vivid
LED DJ, GIGABYTE RGB Fusion and MSI Mystic Light Sync, the integrated RGB LED
ring supports the motherboards that have a 12V RGB header, allowing you to
control the lights directly from the above-mentioned software without installing
any extra lighting software or controllers. Visit the support page for
motherboard information or to download the software:
Exclusively Designed Lighting Control Cables
The included cables are used for connect the fans directly with your
motherboard without the need of extra lighting controllers. Below is the
installation guide:
7 Fan Blade Design
120mm fan with unique 7 blades design is engineered to generate higher air
pressure without compromising on ultra-silent operation.
Anti-Vibration Mounting System
In-mold injection anti-vibration rubber pads provide a hassle-free usage with
80% protection coverage for all corners.
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing
substance, which lowers operation noise while improving thermal efficiency. The
seal cap prevents lubricant leakage and extends the lifespan of the unit.
Specifications
|
Fan
Dimension |
120
x 120 x 25 mm |
|
Start
Voltage |
9.0
V |
|
Rated
Voltage |
12
V |
|
Rated
Current |
0.2
A |
|
Power
Input |
2.4
W |
|
Fan
Speed |
800
~ 1500 R.P.M |
|
Max.
Air Pressure |
0.57
~ 2.01 mm-H2O |
|
Max.
Air Flow |
22.14
~ 40.6 CFM |
|
Noise |
18.5
~ 26.4 dB-A |
|
Bearing
Type |
Hydraulic
Bearing |
|
Life
Expectation |
40,000
hrs,25℃ |
|
Connector |
12
V RGB header – 4Pin |
|
|
2510
- 4Pin |
|
Weight |
163
g |
