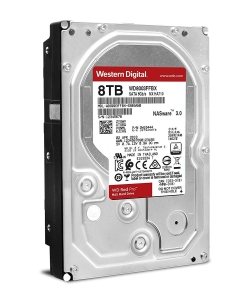

Western Digital WD8003FFBX WD Red Pro NAS Hard Drive
Overview
SOLUTIONS FOR SMB CUSTOMERS
For up to 24 bay medium to large-scale NAS environments, the WD Red Pro drive
is engineered to handle increased business workloads and carries a 5-year
limited warranty.
NAS for Big Business
Add value to your business by enabling your employees to quickly and reliably
sync their files and back up folders or share work with clients.
NASware 3.0 Technology
Seamless integration, robust data protection and optimal performance for
larger NAS systems that demand more.
Built for NAS Compatibility
WD Red Pro hard drives also have NASware technology and are purpose-built to
balance performance and reliability in larger NAS and RAID environments.
LARGER NAS BAY SHOCK PROTECTION
A multi-axis shock sensor automatically detects subtle shock events that may
occur in larger NAS environments and when combined with dynamic fly height
technology, helps to adjust each read-write function to compensate for increased
vibrations and protect data.
DESIGNED FOR NAS
Desktop drives aren't purpose-built for NAS. But WD Red Pro drives with
NASware 3.0 are. Our exclusive technology takes the guesswork out of selecting a
drive. We can help you find the perfect storage for your NAS system.
TECHNICAL SPECIFICATIONS
Compatible with up to 24 bay medium to large-scale NAS environments.
Specifications
|
Model
Number |
WD8003FFBX |
|
Interface |
SATA
6 Gb/s |
|
Formatted
capacity |
8TB |
|
Form
factor |
3.5-inch |
|
Advanced
Format |
Yes |
|
Native
command queuing |
Yes |
|
RoHS
compliant3 |
Yes |
|
|
|
|
Performance |
|
|
Interface
transfer rate (max) |
|
|
Buffer
to host |
6
Gb/s |
|
Host
to/from drive (sustained) |
235
MB/s |
|
Cache
(MB)¹ |
256 |
|
Performance
Class |
7200
RPM Class |
|
|
|
|
Reliability/Data
Integrity |
|
|
Load/unload
cycles4 |
600,000 |
|
Non-recoverable
read errors per bits read |
<10
in 1015 |
|
MTBF
(hours) for 8-24 bay NAS5 |
1,000,000 |
|
Workload
Rate (TB/yr)6 |
300 |
|
Limited
warranty (years)7 |
5 |
|
|
|
|
Power
Management⁸ |
|
|
12VDC-/+10%
(A, peak) |
2.08 |
|
Average
power requirements (W) |
|
|
Read/Write |
8.8 |
|
Idle |
4.6 |
|
Standby/Sleep |
0.7 |
|
|
|
|
Environmental
Specifications |
|
|
Temperature
(°C) |
|
|
Operating10 |
5
to 60 |
|
Non-operating |
-40
to 70 |
|
Shock
(Gs) |
|
|
Operating
(2 ms, read/write) |
30 |
|
Operating
(2 ms, read) |
65 |
|
Non-operating
(2 ms) |
300 |
|
Acoustics
(dBA)11 |
|
|
Idle |
29 |
|
Seek
(average) |
36 |
|
|
|
|
Physical
Dimensions |
|
|
Height
(in./mm, max) |
1.028/26.1 |
|
Length
(in./mm, max) |
5.787/147 |
|
Width
(in./mm, ± .01 in.) |
4/101.6 |
|
Weight
(lb/kg, ± 10%) |
1.58/0.72 |
