All stock codes associated to this product
UH3231AT, UH3231-AT, ATUH3231, 4719264645150

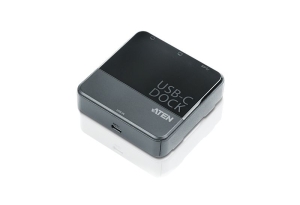

Aten UH3231-AT USB-C Dual-DisplayPort Mini
Dock
Overview
The ATEN UH3231 is a USB-C Dual-DisplayPort Mini Dock which transforms your
USB-C device to a dual monitor workstation. It’s compliant with the latest USB
3.1 Type-C specifications and supports a variety of video converters that can
convert HDMI,DVI or VGA outputs for use in dual display mode. The UH3231 can
route video from the source device to two DisplayPort monitors, splitting the
video transmission for a dual-view display via a single cable while maintaining
a high quality resolution up to 1080p.
The UH3231 USB-C Dual-DisplayPort Mini Dock uses USB-C connections to create
high-speed and reliable data transfers between a laptop or computer with the
ability to connect up to 128 additional peripherals, including Dual DP and USB
3.0 devices. The UH3231’s slim and light design makes it ideal to maximize your
workspace and travel with for business on the go.
Features
- USB 3.1 Gen1 compliant
- Connects a computer to two DisplayPort monitors with Dual-View output
- Supports 4K (UHD) resolutions via single display output
- Supports dual-display video output up to 1920 x 1080 simultaneously*
- USB 3.1 Gen1 port with data transfer rates up to 5 Gbps
- Supports variety of video converters via Dual mode DisplayPort standard
- Plug and Play – no drivers or external power adapter needed
- Works with all major operating systems: Windows®, OS X®, and i-Pad Pro
- * With Intel 7th- Generation Core Processor (Kaby Lake) and above. Mac
computers only support a single-view output.
- ** Support iPad Pro video output and USB keyboard only
Specifications
|
Computer
Connections |
1 |
|
|
|
|
Connectors |
|
|
Computer |
|
|
Device |
1
x USB 3.1 Gen1 Type A Female (Blue) |
|
Video
Output |
2
x DisplayPort Female (Black) |
|
|
|
|
LEDs |
|
|
Power |
1
(Blue/Orange) |
|
|
|
|
Video
Resolution |
|
|
Single-View |
DisplayPort
- 3840*2160@30* |
|
Dual-View |
DisplayPort
- 1920*1080@60* |
|
|
**
With Intel 7th-Generation Core Processor (Kaby Lake) and above. For video
output to work through a USB-C port, it must support DP Alt Mode. The
UH3231 supports DP++ standard for using optional active/passive video
adapter to convert DP signals to DVI/HDMI. |
|
|
**
For Dual-View to work, a computer's graphics card must support MST
technology. Mac computers only support a single-view
output. |
|
|
|
|
Power
Consumption |
DC5V:0.81W:23BTU |
|
Package
Contents |
1
x 1m USB-C Cable |
|
|
|
|
Environmental |
|
|
Operating
Temperature |
0–40°C |
|
Storage
Temperature |
-20–60°C |
|
Humidity |
0–80%
RH, Non-condensing |
|
|
|
|
Physical
Properties |
|
|
Housing |
Plastic |
|
Weight |
0.10
kg ( 0.22 lb ) |
|
Dimensions
(L x W x H) |
9.37
x 9.30 x 2.68 cm (3.69 x 3.66 x 1.06 in.) |
|
|
|
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
