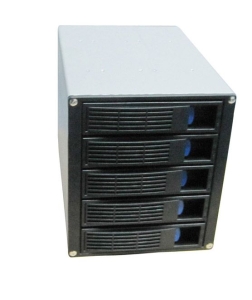

TGC H500 5 Bay SATA/SAS Hot-swap HDD Enclosure



  • 5×3.5" Hot-swap HDD trays Hot-swap module
  • Supporting 5 Bay SATA-I (or SATA-II) /SAS Hot-swap
  • Steel material, ROHS compliance
  • Electromagnetism shield design
  • Redundant 4-pin molex power connectors
  • Support hot-swap
  • Supporting all operating systems
  • Ball bearing fan with air duct
  • Supporting RAID 0,1,5,6,10 functions( Raid card required)


Drive bay

turn 3×5.25" drive bay to 5×3.5" hot-swap drive bay



Fan sensor

Fan failure sensor


overheating alarm

Cooling system

1×80mm ball baring fan with air duct providing excellent cooling air flow


support RAID 0,1,5,6,10 functions( Raid card required)

Power connector

2×4-pin molex power connector

Data connector

5×SATA( I or II or III) /SAS data port


8.6×5×5.8 inch


5.5 lbs
