Asustor AS6204RS 4-Bay NAS System - Intel Celeron Quad Core

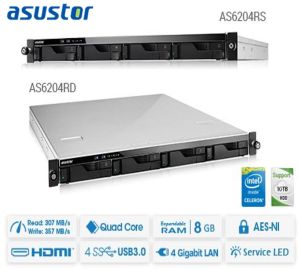

Asustor AS6204RS/AS6204RD 4-Bay NAS, Rackmount 1U

Overview

An Ideal Storage Solution for SMBs Featuring Elite Performance and Functionality

• Complete iSCSI/IP-SAN and NFS support. VMware, Citrix and Hyper-V ready
• Equipped with an Intel Celeron quad-core processor
• Windows + Mac + Linux cross-platform file sharing
• Windows ACL support combined with Windows AD infrastructure enhances management efficiency for business applications
• Military grade AES 256-bit encryption
• SMB 2/3 support increases Windows networking performance by 30%-50%
• Uninterruptible dual power supply(AS6204RD)

Equipped with an Intel Celeron quad-core processor

AS6204RS/6204RD is powered by Intel Celeron quad-core processor, equipped with 4GB of dual-channel memory, and feature read speeds of over 112.80 MB/s and write speeds of over 111.95 MB/s under RAID 5 configurations.

A Surge in Data Transfer Performance

ADM 2.6 supports SMB 2.0 which reduces the burden of network traffic on the NAS while simultaneously providing greater data transfer capacity.In the ASUSTOR testing environment, SMB 2.0 was found to increase Windows networking performance by 30%-50%*. SMB 2.0 also significantly increases the number of concurrent Windows client connections and simultaneously open files, making ADM 2.6 even more suitable for large-scale Microsoft network environments.

*Actual performance may vary due to differences in the installation environment. SMB 2.0 is supported in Windows Vista and later versions of the Microsoft Windows operating system.

iSCSI and Virtualization

ASUSTOR recognizes that stable and efficient shared storage is a must for your virtual environment. The supported use of iSCSI and NFS allows you to seamlessly integrate with any existing IT environments. Additionally, all ASUSTOR NAS devices are verified as VMware, Citrix and Hyper-V ready, providing you with a flexible and cost-efficient virtual storage solution.

The iSCSI features supported by ASUSTOR NAS devices include:

• LUN Mapping
• LUN Masking
• ISO File Mounting
• MPIO Support
• Persistent (SCSI-3) Reservations

Advanced File Permissions Management - Windows ACL

For IT professionals, file permissions configuration is a very important topic, especially in enterprise environments. Because the native Linux system file permission mechanisms are different than those in Windows, in the past, IT professionals had to create a separate set of permissions for files stored on NAS servers. This also limited the number of permission configuration options that were available to them.

In order to help IT professionals simply their work, ASUSTOR has comprehensively integrated Windows ACL into ADM. Windows ACL provides a set of 13 different permissions settings, allowing administrators to configure permissions for individual files and folders that can be applied to different groups and users. Windows ACL permissions can be configured from within ADM's File Explorer or Microsoft Windows Explorer allowing administrators to easily manage permissions using familiar methods.

Enterprise Backup

The AS6204RD features comprehensive backup solutions. The built-in redundant power supply and 4 Gigabit Ethernet ports effectively increase reliability, data integrity and execution speeds. The Ethernet ports and power supply all feature failover capabilities (when one fails, the other can continue to operate) in order to ensure for continuous data availability.

Even More Reliable After-Sales Service

ASUSTOR has extended the warranty period on all of its products to three years, continuing to make customer service a huge priority. It is ASUSTOR's mission to continue to provide its customers with products of the highest quality along with only the most reliable and attentive after-sales service and technical support.

Secure Disk Tray Lock Design

In order to help users avoid accidentally pushing disk tray buttons and releasing hard disks during operation, ASUSTOR has added a new lock mechanism to its hard disk trays. The lock's flat-head design ensures that users will not need any special keys or tools to unlock it, only a simple flat-head screw driver. The new disks trays can be used with all ASUSTOR NAS devices, providing an additional layer of security for applications requiring the frequent swapping of hard disks (e.g., MyArchive).

Create a Stable, Reliable and High Quality Surveillance System

The powerful AS61/AS62 Series devices provide you with stress free reliability when installing a surveillance system in your home or office environment. Installing the Surveillance Center App from App Central instantly turns your NAS into 24/7, high definition surveillance system. Surveillance Center provides comprehensive cross-platform support, allowing both Windows and Mac users to use familiar web browsers to access their surveillance feeds. Furthermore, ASUSTOR also offers the free AiSecure mobile app that gives users access to all their surveillance feeds while on the go. AiSecure also provides the ability to receive instant push notifications from Surveillance Center, allowing users to keep up with the latest developments. No matter if you need to protect individual assets, loved ones or your business, the powerful AS61/AS62 Series devices are your optimal choice when creating a comprehensive surveillance system.

• Surveillance Center comes with 4 free IP camera channel licenses, which is higher than the industry standard. Users can also purchase add-on camera licenses to flexibly add new camera channels.
• Two different camera license packages are offered: single channel and 4 channels. Currently, the AS61/AS62 Series devices can be expanded up to a maximum of 36 channels.
• The maximum number of cameras is based on the test results for each channel using 720P (1280x720), 30 FPS and H.264. Actual performance may vary due to camera settings and NAS load.

Specifications

Hardware & Packaging

• CPU: Intel Celeron 1.6GHz Quad-Core (burst up to 2.24GHz) Processor
• AES-NI hardware encryption engine integrated
• Hardware acceleration engine supported format: H.264 (AVC), H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1
• Memory: 4GB SO-DIMM DDR3L
• Memory Module Pre-installed: 4GB (1 x 4GB)
• Total Memory Slots: 2
• Memory Expandable up to: 8GB (2 x 4GB)
• Flash Memory: 512MB DOM
• HDD: 4 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD (Compatibility)
• Maximum Internal Raw Capacity: 56 TB (14 TB HDD X 4, Capacity may vary by RAID types)
• Maximum Drive Bays with Expansion Unit: 16
• Maximum Raw Capacity with Expansion Units : 224 TB (14 TB HDD X 16, Capacity may vary by RAID types)
• Supports Hot Swappable Drives
• Expansion: USB 3.0 x 4
• Network: Gigabit Ethernet x 4
• Output: HDMI 1.4b x 1
• System Fan: 40mm x 2
• Power Supply Unit / Adapter: AS6204RS 250W x1; AS6204RD 250W x2
• AS6204RS x1 / AS6204RD x2
• Input Power Voltage: 100V to 240V AC
• Certification: FCC, CE, VCCI, BSMI, C-TICK
• Service LED Indicator
• Redundant power supply: AS6204RD

ASUSTOR Hightlight

• System Migration
• EZ Connect
• Dr.ASUSTOR
• 2-way Backup
• Task Monitor

Eco-Friendly Design

• System Automatically Enters Sleep Mode (Schedule S3)
• Auto-Standby for Both Internal and External Disks
• Auto Fan Control
• LED Night Mode
• Power Schedule: On, Off, Restart, and Sleep.

Size and Weight

Operation

• Power Consumption: AS6204RS:35.5W (Operation);21.9W (Disk Hibernation);1.5W (Sleep Mode)
• AS6204RD:49.5W (Operation);36.7W (Disk Hibernation); 7.7W (Sleep Mode)²
  • Noise Level: 22dB (HDD idle)
• Operation Temperature: 0°C~40°C (32°F~104°F)
• Humidity: 5% to 95% RH

Software & Features

Operating System

• ADM 3.1 Onwards
• Supports Online Firmware Updates

Supported OS

• Windows XP, Vista, 7, 8, 10, Server 2003, Server 2008, Server 2012
• Mac OS X 10.6 Onwards
• UNIX, Linux, and BSD

Supported Languages

• Deutsch, English, Français, Italiano, Nederlands, Ceská,Polski, Svenska, Dansk, Norsk, Suomi, Português,Türkçe, Español, Magyar

Supported Browsers

• Internet Explore 11 Onwards
• FireFox
• Chrome
• Safari
• Microsoft Edge

Virtualization

• VMware ready
• Citrix ready

Network Protocols

• CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog

File System

• Internal Disk: EXT4 ,Btrfs
• External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT

File Explorer

• Web-based File Management
• ISO File Mounting
• Share Links
• Task Monitor
• Browse Files on Local PC
• Thumbnail Previews
• Data Access via External Optical Drive
• Supports video playback¹°

Storage Management

• Support Multiple Volumes with Spare Disks
• Volume Type: Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• Support for Online RAID Level Migration

MyArchive

• Insert Hard Disk & Immediately Access Files
• Transfer or Exchange Terabytes of Data via the Internal Hot-Swap SATA Interface
• Up to N-1 Bays Reserved for MyArchive Docking Purposes

iSCSI Read/Write (5GB file, 1GbE x 1)/IP-SAN

• Maximum Targets: 256
• Maximum LUNs: 256
• Maximum Snapshot Versions of a Single LUN: 256
• Target Masking
• LUN Mapping
• ISO File Mounting
• Supports MPIO
• Persistent (SCSI-3) Reservations

Customized Sign In Page

• 2 Different Template Choices
• Customizable Title, Imageand Background
• Image Import Function

Disk Management

• Scheduled Bad Block Scans
• Scheduled S.M.A.R.T Scans

Energy Control

• Configurable Disk Hibernation and Sleep Mode Wait Time
• Configurable Time Period for Sleep Mode Activation
• Automatic Sleep

Network

• TCP/IP (IPv4 & IPv6)
• Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
• Jumbo Frame (MTU)
• VLAN
• EZ Connect
• Wireless Network³
• DDNS and EZ-Router
• Supports Wake-on-LAN (WOL)

Backup Solutions

• Rsync (Remote Sync) Backup
• Cloud Backup
• FTP Backup
• External Backup
• Internal Backup Using Internal High Speed SATA’s 6GB Bandwidth to Back up to MyArchive/Volume
• One Touch Backup
• EZ Sync

Snapshots

• Btrfs Snapshots
• 256 snapshots
• iSCSI LUNs
• Applicable Models: AS31/32/40/50/51/52/53/61/62/63/64/70. Snapshot Center will not display Volume snapshots information in other models.

System Administration

• Log Type: System Log, Connection Log, File Access Log
• Real-time Online User Monitor
• Real-time System Monitor
• User Quota
• Virtual Drive (ISO Mounting, Maximum 16)
• UPS Support

Network Recycle Bin

• Share folder-based
• Maintains original directory structure and file permission
• On-click restore
• Supports scheduled emptying
• Filtering rules
  • File size
  • File extension

Access Control

• Maximum Number of Users: 4096
• Maximum Number of Groups: 512
• Maximum Number of Shared Folders: 512
• Maximum Number of Concurrent Connections: 512
• Supports Windows Active Directory
• Supports Windows Active Directory / LDAP

ACL

• Provides both Windows ACL and Linux ACL permission configuration methods
• Can enable Windows ACL for specific shared folders
• Comprehensive support for Windows’ 13 types of advanced permission settings
• Can view Windows ACL permission settings from within ADM
• Supports local users and groups
• Exclusive permission reset function allows users to quickly restore default permissions

SSD Cache

• SSD-like performance with traditional hard drives
• supports read-only access and read-write cache mode
• Supported Models: AS31/32/50/51/52/53/61/62/63/64/70 series

Security

• AES 256-Bit Encryption
• Firewall: Prevent Unauthorized Access
• Alert Notifications: E-mail, SMS
• Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
• Built-in Hardware Encryption Engine: AS70/64/63//62/61/52/53/31/32/10 Series
• RAID Scrubbing: detects the integrity and consistency of RAID 5 and RAID 6 drive data.

Network Defender

• Auto black list
• Trusted list
• Black/White list
  • Supports IP/IP range/geolocation

External Devices

• Supports USB/eSATA3 External Storage Devices
• USB Wi-Fi Dongle Support
• Bluetooth Dongle/Speaker Support
• USB Printer Support
• USB DAC/IR Receiver/Keyboard/Mouse Support
• CD ROM Drive/DVD ROM Drive/Blu-Ray ROM

Antivirus

• Scheduled Scans
• Automatic Virus Definition Updates
• Quarantine Infected Files

Photo Gallery

• Album and Browse Viewing Modes
• Manage Photo Album Access Rights: Public Access, Restricted to Certain Accounts, Album Password
• Multi-level Folder Structure Support
• Supports Tagging of Photos
• Intuitive Sorting and Comprehensive Search Function
• Adjustable Photo Wall Browsing Scales
• Automatic Image Rotation
• One-click Sharing to Social Media (Facebook, Google+, Twitter, Plurk, email)
• Intuitive Drag and Drop Management
• Slideshow Viewing Mode
• Provides Comment Function for Users to Interact with Each Other.
• Supports a Wide Range of Image Formats: JPG/JPEG, GIF, PNG, BMP, TIFF, RAW
• Supports Video Playback

ASUSTOR Portal(HDMI Local Output)

• Supports Output for 4 Channels of Megapixel IP Camera Video Feeds
• Support Chrome / Chromium browsers.
• Downloads from Chrome/Chromium Automatically Saved to the NAS
• Power Control Settings: Power on, Sleep, Restart and Wake via Remote
• Customizable ASUSTOR Portal Desktop Wallpaper
• Add Shortcuts to Favorite Websites
• Increased TV Compatibility via Overscan and Resolution Settings
• Max. Resolution:1080p(HD)/2160p(4k)
• ASUSTOR Portal comes preloaded with Netflix and Youtube. Users can install the supplementary URL-Pack to get access to even more popular video streaming sites such as Plex, Vimeo and Youku.
• After installing URL-Pack-Social, users will be able to choose between social media sites such as Facebook, Google+, Hangouts, Pinterest, Twitter, Linkedin, WhatsApp and Instagram.

Surveillance Center

• Up to 36 channels in 720p on single live view display
• On-screen camera controls including camera PTZ, manual recordings, take snapshots, configure camera settings and open Maps
• Up to 4 channels of synchronous and non-synchronous playback with audio
• Intelligent video analytics including motion detection and foreign object detection
• Supported Browsers: Windows Internet Explorer, Microsoft Edge, Firefox, Mac Safari, Mac Firefox ESR
• Event notification supports SMS, E-mail, and mobile push notification
• Automated event action rules
• Role-based access control
• RTSP streaming server (video and audio)
• AiSecure mobile app for iOS and Android with Push notification
• ONVIF 2.4, Profile S certified
• CMS Lite supports connect up to 128 IP Cameras from 32 NAS
• Two different camera license packages are offered: single channel and 4 channels.
• Maximum IP Cam (4 Free Licenses; Additional Licenses to be Purchased)

VirtualBox

• Virtual Machines are Able to run the Following Operating Systems: Windows, Linux, Solaris, Mac OS X
• Virtual Machine Import Format: OVF
• Virtual Machine Export Format: OVF 0.9, OVF 1.0, OVF 2.0
• Virtual Machine Snapshots
• Virtual Machine HDMI Audio Output
• Physical NAS Network Port can be Designated for use by Specific Virtual Machine

Linux Center

• Integrate NAS operating system with Linux
• Easy installation with just one touch
• HDMI output on command

Download Center

• Supports BT(Torrent & Magnet Link), HTTP and FTP Downloads
• Torrent Search
• Choose Files Before a BT Task Starts
• Customizable Download Schedule
• Bandwidth Control
• RSS Subscription and Automatic Downloading (Broadcatching)
• ASUSTOR Download Assistant for Windows & Mac
• AiDownload for iOS & Android with Push Notification
• Smart Download Function
• Minimum PC Client Requirements
  • CPU: i5/i7 or above
  • RAM: DDR3 4G or above
  • Operating system Windows 7 and onward, Mac OS X
  • Windows browsers: Internet Explorer, Microsoft Edge, Chrome, FireFox
  • Mac browsers: Safari 7.0, Firefox
  • Display resolution: 1280x800 pixels or higher for best user experience
  • Network interface: Gigabit x1
  • Independent graphics card is highly recommend

DataSync for Microsoft OneDrive

• Each ADM account is able to individually log into a OneDrive account
• Supports file filter and bandwidth limitation
• Supported backup methods
  • Sync
  • Directly upload files to OneDrive from NAS
  • Directly download files from OneDrive to NAS

DropBox

• Each ADM Account is Able to Individually Log in to One Dropbox Account
• Supported Backup Methods:
  • Sync
  • Dropbox to NAS
  • NAS to Dropbox

SoundsGood

• Import Personal/Public Music Collection
• Personal/Public Music Collection Permission Control
• Playlist Editor
• ID3 Tag Editor
• Local Speaker Support: HDMI, USB, Audio Jack
• Supported Audio Formats for Browser: MP3, WAV, Ogg
• Supported Audio Formats for Transcoding Through Browser: AIFF, Flac
• Supported Audio Formats for Local Speaker: MP3, WAV, Ogg, AIFF, Flac
• ASUS DAC Support

FTP Explorer

• Directory Structure View with Drag & Drop Transfers
• Task Monitor
• Stopping of Transmission Task & Resumption of Connection
• Encrypted Connections: Explicit over TLS, Implicit over TLS
• FTP Site Manager
• Bandwidth Control
• Maximum Simultaneous Transfer Control

Takeasy

• Download from YouTube, Vimeo, YouKu, Tudou and More
• Selectable the Video Type and Quality
• Automatic Downloads with YouTube Subscriptions
• Preview Downloads in Progress
• Online Playback

Google Drive

• Each ADM Account is Able to Individually Log in to One Google Account
• Supported Backup Methods:
  • Sync
  • Directly Upload Files to Google Drive from NAS
  • Directly Download Files from Google Drive to NAS

UPnP Media Server

• Supports PS3 and other Digital Media Player Capable Devices
• Supports On-The-Fly Transcoding for Most RAW Images and Audio(OGG, FLAC)
• Supported Image Formats: BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image4 (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, RAF, RAW, RW2, SR2, X3F)

HiDrive

• Support OneDrive and OneDrive Business
• Each ADM Account is Able to Individually Log in to One HiDrive Account
• Supported Backup Methods:
  • Directly Upload Files to HiDrive from NAS
  • Directly Download Files from HiDrive to NAS
• Supported Protocols:
  • Rsync
  • FTP
  • FTPS
  • SFTP
  • Rsync + SSH

VPN Client

• Supported VPN Protocols: PPTP, OpenVPN
• Transmission Package Monitor
• PPTP Authentication: PAP, CHAP, MS CHAP, MS CHAP2
• PPTP Encryption: No MPPE, MPPE (40, 128 bit), Maximum MPPE (128 bit)
• OpenVPN Port Control
• OpenVPN Link Compression

hubiC

• Each ADM Account is Able to Individually Log in to One hubiC Account
• Supported Backup Methods:
  • Sync
  • Directly Upload Files to hubiC from NAS
  • Directly Download Files from hubiC to NAS

VPN Server

• Supported VPN Protocols: PPTP, OpenVPN, and IPsec
• View Current Connections & Ability to Disconnect Suspicious Connections
• Comprehensive Connection Log

Yandex

• Each ADM Account is Able to Individually Log in to One Yandex Account
• Supported Backup Methods:
  • Sync
  • Directly Upload Files to Yandex from NAS
  • Directly Download Files from Yandex to NAS

RADIUS Server

• Centralized management of wireless network certification
• Using WPA-Enterprise or WPA2-Enterprise encryption
• Must be combined with a wireless router that supports RADIUS authentication

SNMP Server

• Supports SNMP v1, v2c, v3 and trap
• ASUSTOR NAS MIB provided

LooksGood

• Built-in three main video library categories (Movies, TV Shows, Home Movies) and smart video sorting management Efficient Global Search function allows for searches by keywords followed by the execution of more detailed searches according to the Movies, TV Shows, Home Movies categories and parameters such as actors, director, year, genre, writer, and title
• Attractive poster wall and thumbnail display
• Automatic production of video poster thumbnails
• Centralized management and ability t o configure order of favorites and playlist history
• System administrator can configur e video library and editing permissions according to user
• Can configure access permissions to share with
• friends and family
• Multimedia conversion function
• Self-defined smart folder for video conversions
• Supports digital TV recordings via digital TV dongles
• Easy streaming with Chromecast and DLNA
• Support to watch videos in Apple TV via AiVideos tvOS version

Syslog server

• Supports standard syslog protocol
• Graphical log monitoring by time and device
• Supports TCP and UDP
• Auto log archiving
• User-defined email notification

iTunes Server

• For iTunes on Mac & Windows
• Supports AirPlay
• Supports iOS Remote Pairing
• Supported Audio Formats: AIF5, M4A (AAC & Apple Loseless), M4P, M4R, MP3, WAV5
• Supported Video Formats: M4V, MOV, MP4
• Supported Playlist Formats: M3U, WPL

Mail Server

• Each ADM Account can Become an Independent Email Account
• Email Activity Monitor (Over 1 Week, 1/3/6 Months)
• Provides SMTP, IMAP and POP3 Mail Protocols
• Supports SMTP Relay and Verification
• SMTP-SSL Secure Connections
• Spam Filter and Black List Settings
• Antivirus Scanning for Emails
• Email Alias Creation and Mapping
• Monitoring of Mail Queue
• Mail Service Activity Log
• Exclusive Email Backup Mechanism
• Auto-Forwarding and Auto-Response Protocols
