GENERAL |

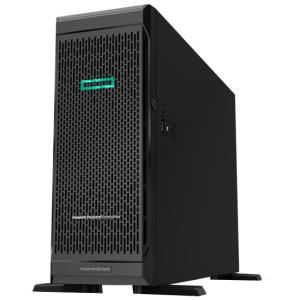

Type | Server |
Product Form Factor | Tower - 4U |
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
Server Scalability | 2-way |
Hot-Swap Bays Qty | 8 |
Localisation | Region: Asia Pacific |
CACHE MEMORY |
Installed Size | L3 Cache - 11 MB |
Cache Per Processor | 11 MB |
RAM |
Installed Size | 16 GB / 768 GB (max) |
Technology | DDR4 SDRAM |
Effective Memory Speed | 2400 MHz |
Rated Memory Speed | 2600 MHz |
Form Factor | DIMM 288-pin |
Slots | 24 (Total) / 23 (empty) |
Features | Registered, HPE SmartMemory |
Configuration Features | 1 x 16 GB |
RAM Supported | PC4-21300 - 3 TB Load-Reduced PC4-21300 - 768 GB registered |
HARD DRIVE |
Type | No HDD |
STORAGE CONTROLLER |
Type | 1 x RAID - PCIe 3.0 x8 |
Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
Storage Controller Name | HPE Smart Array E208i-a |
Channel Qty | 8 |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
OPTICAL STORAGE |
Type | No optical drive |
MONITOR |
Monitor Type | None. |
GRAPHICS CONTROLLER |
Video Memory | 16 MB |
Video Interfaces | VGA, DisplayPort |
NETWORKING |
Ethernet Ports | 4 x Gigabit Ethernet |
Ethernet Controller | HP 369i |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
Remote Management Controller | Integrated Lights-Out Advanced Management (ASIC) |
Features | Wake on LAN (WoL), PXE support |
EXPANSION / CONNECTIVITY |
Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
Slots | 2 (total) / 2 (free) x PCIe 3.0 x8 - full-length, full-height (x4 mode) 4 (total) / 4 (free) x PCIe 3.0 x16 - full-length, full-height 1 (total) / 1 (free) x microSD Card (internal) 2 (total) / 2 (free) x PCIe 3.0 x8 - full-length, full-height |
Interfaces | 1 x VGA 1 x serial 4 x LAN (Gigabit Ethernet) 1 x HP iLO 5 x USB 3.0 (2 front, 2 rear, 1 internal) 1 x USB 2.0 (1 internal) 1 x HP iLO - Type A (1 in front) 1 x DisplayPort |
MISCELLANEOUS |
Included Accessories | 2 x fans |
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
Security Slot Type | Kensington security slot |
Compliant Standards | AES, FIPS 140-2, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1 |
POWER |
Device Type | Power supply - hot-plug |
Power Redundancy | Optional |
Power Redundancy Scheme | 1+1 (with optional power supply) |
Installed Qty | 1 |
Max Supported Qty | 2 |
Nominal Voltage | AC 120/230 V (50/60 Hz) |
Power Provided | 800 Watt |
OPERATING SYSTEM / SOFTWARE |
OS Certified | CentOS, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, VMware ESXi 6.5, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, SuSE Linux Enterprise Server 12 SP2, ClearOS, VMware ESXi 6.0 update 3 |
Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
MANUFACTURER WARRANTY |
Service &Support | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
DIMENSIONS &WEIGHT |
Width | 17.4 cm |
Depth | 64.8 cm |
Height | 46.25 cm |
Weight | 21 kg |
ENVIRONMENTAL PARAMETERS |
Min Operating Temperature | 10 C |
Max Operating Temperature | 35 C |
Humidity Range Operating | 8 - 90% (non-condensing) |
PROCESSOR / CHIPSET |
CPU | Intel Xeon Silver 4110 / 2.1 GHz |
Max Turbo Speed | 3 GHz |
Number of Cores | 8-core |
CPU Qty | 1 |
Max CPU Qty | 2 |
CPU Upgradability | Upgradable |
Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
CPU Socket | FCLGA3647 Socket |
Chipset Type | Intel C622 |
