All stock codes associated to this product
DPMCH4GMXC40P, DP-MCH4-GMX-C40P

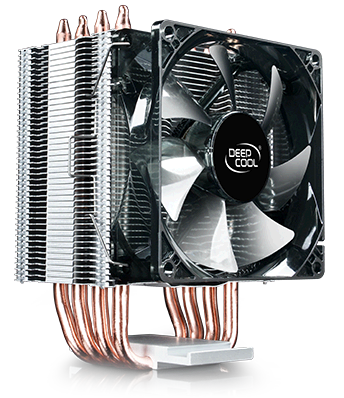

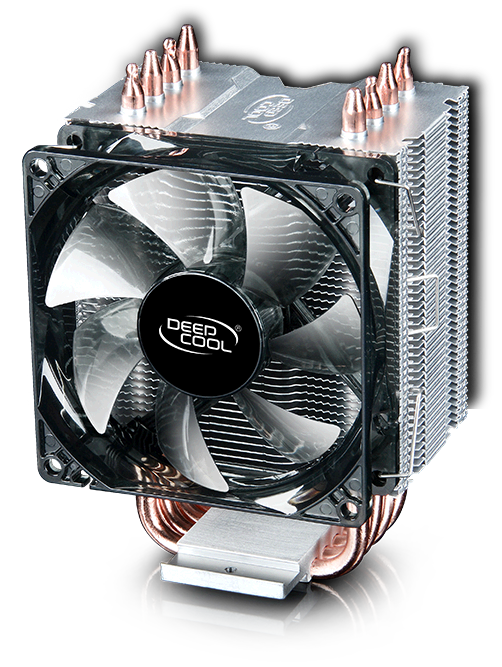

Deepcool DP-MCH4-GMX-C40P Gammaxx C40 Multi Socket CPU
Cooler
Features
- Small in size with height of 137mm, using 92mm fan.
- Powerful performance, Compact fin design + powerful fan makes it capable
to support chipsets up to TDP 130W.
- Offcenter heatsink structure to avoid interference with RAM.
- 4*?6 mm heatpipes directly in contact with CPU, absorbing and dissipating
the heat more efficiently.
- Special backplate bracket and metal adapter frame makes the mounting easy
and structure strong.
Description
M-ATX and ITX build fans have long been suffering from size or price
mismatching when choosing CPU coolers. To cure the headache, Deepcool brings the
ultimate cooling solution that combines all advantagesGammaxx C40
Compact but Powerful
Gammaxx C40 is only 137mm tall, but the specially designed compact fin and
the 92mm powerful fan make it marvelous in performance, able to support chipsets
of TDP up to 130W

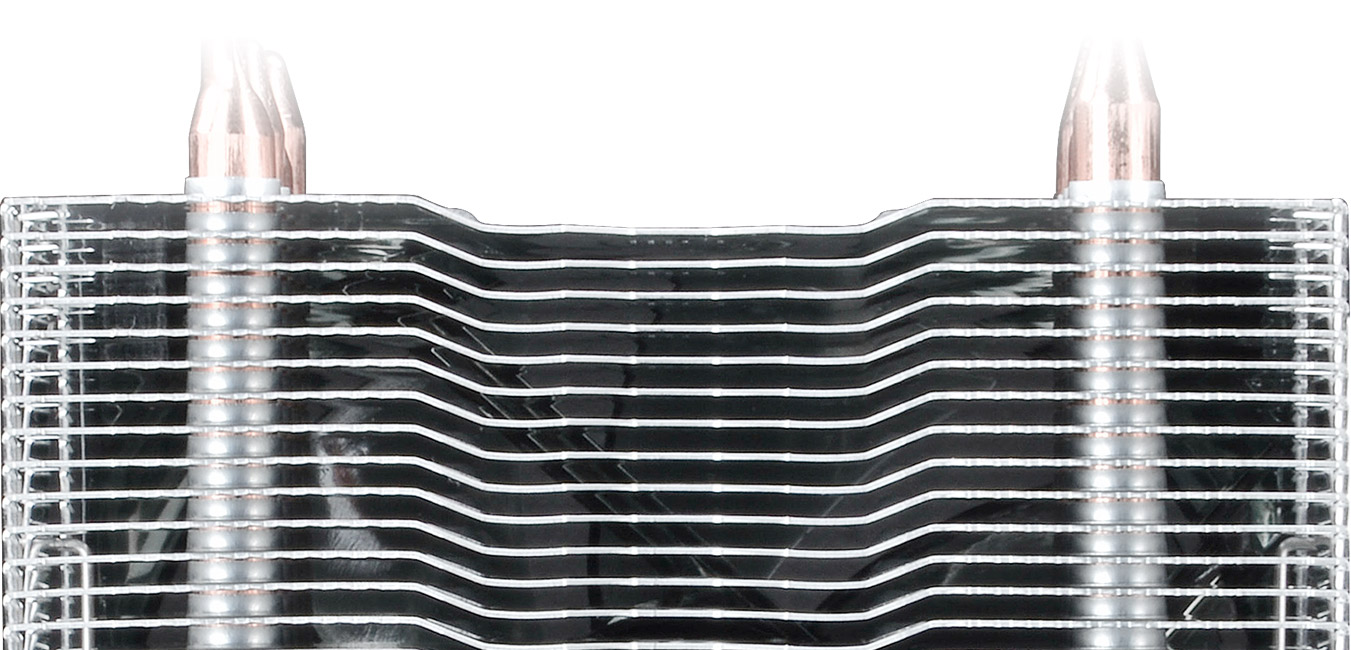

Offcenter to Avoid RAM Interference
To avoid interference, the heat sink of Gammaxx C40 is designed to lean away
from RAM. The offcenter design allows the users to enjoy fully-loaded RAM and
the cooling solution at the same time

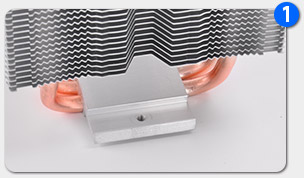

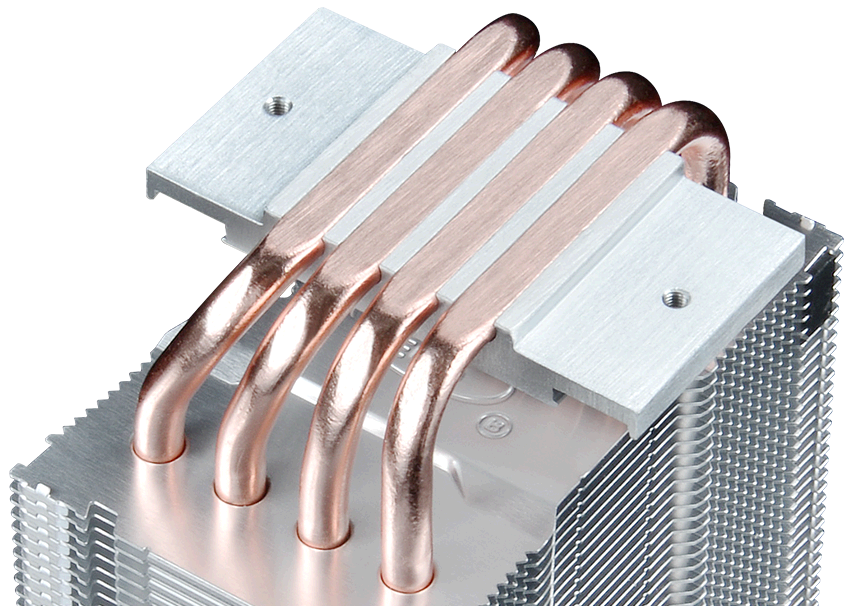

4 Heatpipes Directly Touching the Core
4*?6 mm heatpipes are constructed with Core Touch Technology (CTT) for direct
contact on the chipset. Thus the heat can be carried out directly by the
heatpipes and dissipated efficiently through the aluminum fins

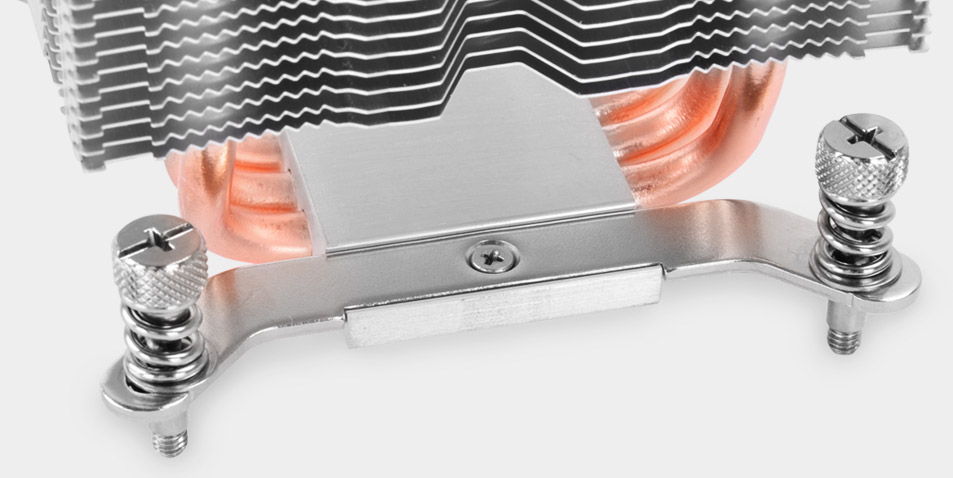

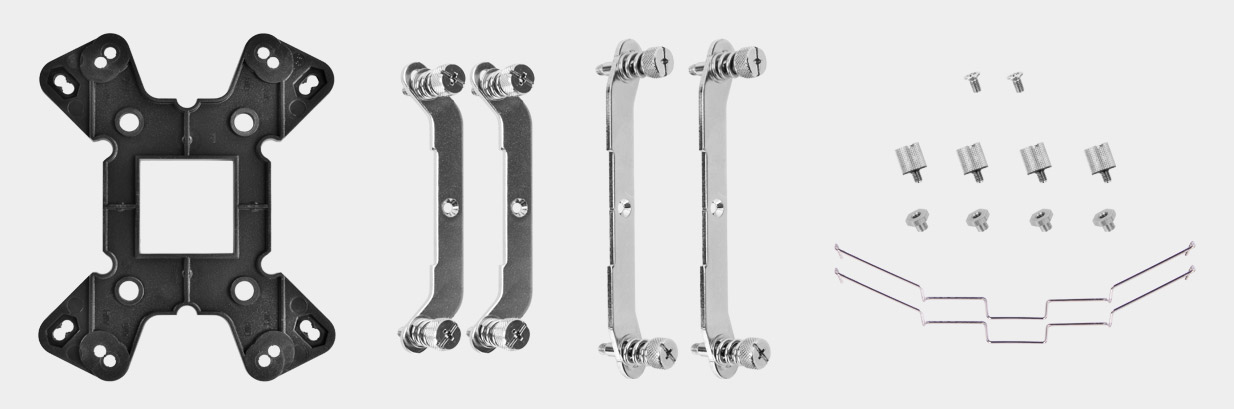

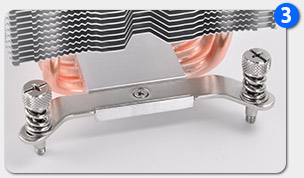

Easy Installation, Strong Structure
The metal adapter frame is simple to install, and the backplate bracket
provides a steady fixation against any motion
Specificatiuons
Application For Intel
LGA20XX/1151/1150/1155/LGA1366
AMD
AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Specifications
Product
Dimension |
92×83.8×137
mm |
Heatsink
Dimension |
92×58.5×137
mm |
Net
Weight |
595
g |
Heatsink
Weight |
377
g |
Heatpipe |
Ø6
mm×4 pcs |
Fan
Dimension |
92×92×25
mm |
Fan
Speed |
500~2000
RPM±10% |
Fan
Airflow |
33
CFM |
Fan
Air Pressure |
2.31
mmAq |
Fan
Noise |
≤23.9
dB(A) |
Fan
Connector |
4-pin
PWM |
Bearing
Type |
Hydro
Bearing |
Fan
Rated Voltage |
12
VDC |
Fan
Rated Current |
0.06
A |
Fan
Power Consumption |
0.72W |
Socket
Compatibility |
Intel
LGA20XX/1151/1150/1155/LGA1366; AMD AM4/AM3+/AM3/AM2+/AM2/
FM2+/FM2/FM1. |
EAN |
6.93341E+12 |
P/N |
DP-MCH4-GMX-C40P |

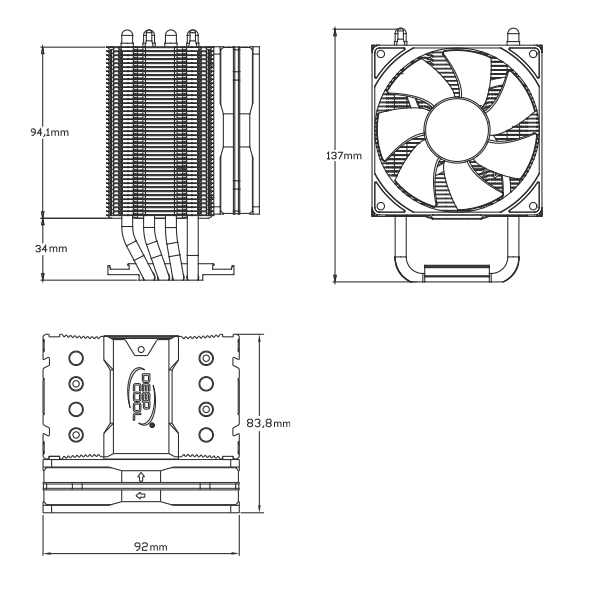

Product Dimension
