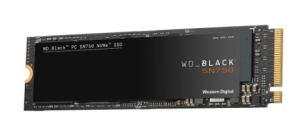

Western Digital WDS500G3X0C WD Black SN750 NVMe SSD



Overview

Level Up to NVMe SSD Performance

The WD BLACKTM SN750 NVMeTM SSD delivers top tier performance for gaming and hardware enthusiasts looking to upgrade their gaming or custom PC. Available in capacities ranging from 250GB to 2TB3, the WD BLACK SN750 NVMe SSD rivals some of the best performing drives on the market to help give gamers that competitive edge. Complementary features improve system responsiveness, such as Gaming Mode in the WD BLACK SSD Dashboard, and our heatsink model keeps things cool helping to deliver consistent sustained performance. The WD BLACK SN750 NVMe SSD pushes the boundaries of ordinary SSD performance.

Fueled By Darkness

Speed

Sequential Read/Write speeds up to 3,470/3,000MB/s2

Capacity

Up to 2TB capacity for extended storage

Performance

Heatsink model intensifies PC design and helps maintain performance

Highlights

  • Read speeds up to 3,470MB/s2 (500GB - 1TB models) for improved load times
  • Available in capacities ranging from 250GB to 2TB
  • Sleek heatsink design to customize and intensify your gaming rig while helping to maintain peak performance
  • An exclusive WD BLACK SSD dashboard with gaming mode improves game performance
  • 5-year warranty

Applications and Workload


  • PC Gaming
  • Creative Professionals
  • High-Performance PCs and Laptops

PERFORMANCE MATTERS

Live life in the fast lane, whether youre looking to boost your systems overall responsiveness or load games and levels quickly, the WD BLACK drive cuts down on your wait time to get back into action and gets you ahead of the game.

SPACE TO PLAY

At the core of the WD BLACK drive is its revolutionary NAND technology. By doubling the storage density from its previous generation, our 64-layer 3D NAND pushes the limitations of storage and showcases the amazing feat of NAND innovation. This means extended capacity on a single-sided drive thats roughly the size of a gumstick, enough to store your large files and video games.

SLEEK HEATSINK DESIGN

Every system is not created equal. From different graphics cards and CPUs to DRAM and storage, PCs all differ in performance and appearance. The WD BLACK SSDs sleek and modern heatsink model10 goes well with desktop PC builds that support the M.2 form factor and is the perfect component to complement systems with RGB lighting and other cooling technologies, such as water cooling.

WD BLACK SSD DASHBOARD

The WD BLACK SSD Dashboard gives you the ability to optimize performance by enabling the gaming mode feature. This disables the low power mode function on the SSD, which keeps your drive firing on all cylinders during intense gaming sessions.

Specifications

500GB

Interface

PCIe Gen3 8Gb/s, up to 4 lanes

Formatted Capacity

500GB

Performance

Sequential Read MB/s up to (Q=32, T=1)

3,470

Sequential Write MB/s up to (Q=32, T=1)

2,600

Random Read 4KB IOPS up to (Q=32, T=8)

420K

Random Write 4KB IOPS up to (Q=32, T=8)

380K

Endurance (TBW)

300

Power

Peak Power (10us)

2.8A

PS3 (low power)

70mW

Sleep (PS4) (low power)

2.5mW

Reliability

MTTF6

1,750,000 hours (Telcordia SR-332, GB, 40oC)

Environmental

Operating Temperature

32oF to 158oF (0oC to 70oC)

Non-operating Temperature

-67oF to 185oF (-55oC to 85oC)

Certifications

FCC, UL, TUV, KCC, BSMI, VCCI, C-Tick

Limited Warranty

5 years

Physical Dimensions - M.2 2280

Form Factor

M.2 2280-S3-M

Length

80 ± 0.15mm

Width

22 ± 0.15mm

Height

2.38mm

Weight

7.5g ± 1g

No additional files, specification sheets, guides or documentation found for product.
