Gigabyte GP-B700H-MS Power Supply
Features
- Modular Design
- High quality Japanese electrolytic capacitors
- 120mm smart control fan
- 80 Plus Bronze certified
- Single +12V rail
- Supports NVIDIA SLI / AMD CROSSFIRE
- 5 years warranty (Adjusted according to different regions)
Overview

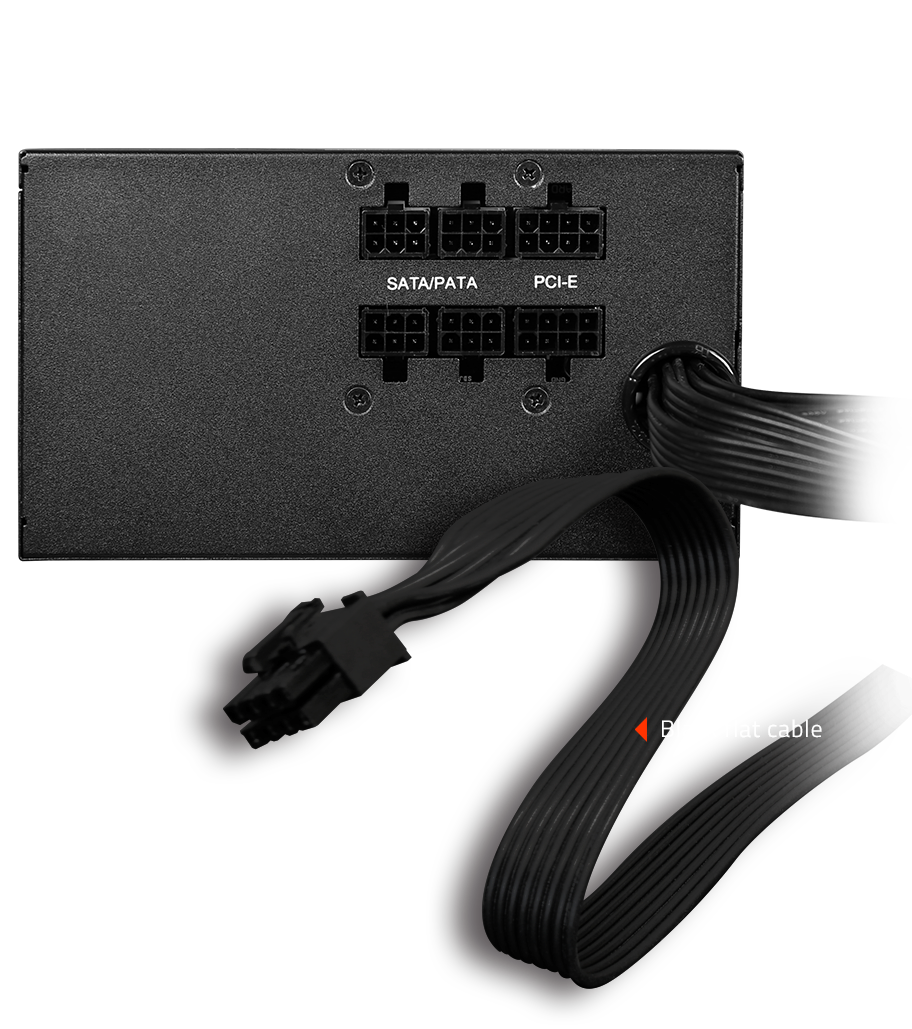

Modular Design
The black flat cables are modular. Installing only the cables you need to
increase the airflow and to improve the chassis thermal performance.
High Quality Japanese Electrolytic Capacitors
Main electrolytic capacitors are high quality Japanese electrolytic
capacitors, to produce the efficient performance and to ensure the longer
reliability.
120mm Smart Control Fan
120mm cooling fan with smart control system optimizes the noise reduction and
the performance. The fan speed is adjusted according to the automatic power
detection. The ball bearing fan provides longer and more stable life time.
80 Plus Bronze Certified
80 Plus certified ensures the better power efficiency. Less power waste
reduces the heat and fan noise.
Single +12V Rail
Single +12V rail provides the best power output, stability and compatibility
for the hardware. And it is the best design for overclocking.
Specification
|
Model |
B700H |
|
Type |
Intel
Form Factor ATX 12V v2.31 |
|
PFC |
Active
PFC (>0.9 typical) |
|
Input
Voltage |
100-240
Vac (full range) |
|
Input
Current |
10A |
|
Input
Frequency |
47-63
Hz |
|
Output
Capacity |
700W |
|
Dimension |
D140
x W150 x H86mm |
|
Fan
Type |
120mm
Double ball bearing fan |
|
Efficiency |
85%
at typical load |
|
MTBF |
>100,000
hours |
|
Protection |
OVP/OPP/SCP/UVP |
|
Regulatory |
CE/BSMI/EAC/TUV/FCC/UL/RCM/KCC/CCC |
|
Cable
Type |
Black
Flat Cables |
|
Connectors |
MB
20+4 Pin x1 |
|
|
CPU
4+4 Pin x1 |
|
|
PCI-e
6+2 Pin x4 |
|
|
SATA
x7 |
|
|
4Pin
Peripheral x3 |
|
|
4Pin
Floppy x1 |
