All stock codes associated to this product
210ARPI, 210-ARPI, 4490987, 884116345947

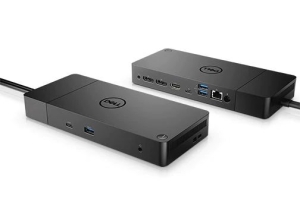

Dell 210-ARPI WD19DC USB-C Docking
Station
Overview
Boost your PC’s power up to 210W on the world’s
most powerful and first modular Dual USB-C dock with a future-ready design.
Power your connections
Power your day: Dell ExpressCharge allows you to charge up
to 80% in one hour, making it the most efficient way to manage the workday.
Adaptable to your workload: Conveniently choose between a
single USB-C cable or dual USB-C functionality, a feature compatible with our
Precision 7000 workstations. Plus, with magnetically separable USB-C cables, it
is easy to get the flexibility you need.
Unmatched charging: Triple your power delivery and charge
even faster with a dock that delivers up to 210W of power with dual USB-C
connectors.
Built for the future
Mix and match: Evolve as your needs change with our most
powerful and reliable dock. The future-ready design lets you swap out modules
with ease if you need to do field replacements or upgrade your systems.
Ultimate connectivity: Dual USB-C connectivity makes it
easier than ever to deliver power, data, audio and video as well as connect to
system peripherals, no matter what system you use. Plus, with support for up to
four displays, including a single 5K and dual 4K monitors, you can connect to
everything you need.
Clean and clutter-free: Stay productive by mounting your
dock behind your monitor or under your desk with the optional, secure VESA
Mount, that offers the complete flexibility with the built-in 0.8 meter cable.
Information in a flash: With data transfer speeds of up to
10Gbps, you can stay productive when connected to all your devices.
Optimize your workspace
Smooth and seamless: Work without disruptions utilizing a
single firmware on our most manageable docks ever. Plus, with Dell Client
Command Suite and Microsoft System Center Configuration Manager, you can quickly
and easily update your firmware without rebooting your dock.
Secure manageability: Keep your information safe with MAC
Address pass-thru and remote port-disablement. Plus, with features like PXE
Boot, Wake-on-LAN and more, it’s easier than ever to stay productive while
managing your dock.
Ports & Slots
- USB-C 3.1 Gen 2
- USB-A 3.1 Gen 1 with PowerShare
- Combo Audio/Headset
- Audio Out
- DisplayPort 1.4
- HDMI 2.0b
- USB-C Multifunction DisplayPort
- Dual USB-A 3.1 Gen 1
- Gigabit Ethernet RJ45
- Power In
Advanced Exchange Service
Your dock comes with a 3-year Advanced Exchange Service so that if a
replacement becomes necessary, it will be shipped to you the next business day
during your 3-year Limited Hardware Warranty.
Specifications
General |
|
Product
Type |
Docking
station |
Width |
20.5
cm |
Depth |
9
cm |
Height |
2.9
cm |
Weight |
585
g |
Localisation |
Australia,
New Zealand |
Video |
|
Max
Resolution Details |
5120
x 2880 - 60 Hz |
Networking |
|
Data
Link Protocol |
Ethernet,
Fast Ethernet, Gigabit Ethernet |
Expansion
/ Connectivity |
|
Interfaces |
|
|
1
x display / video - DisplayPort - 20 pin DisplayPort |
|
1
x display / video - HDMI - 19 pin HDMI Type A |
|
1
x USB-C |
|
1
x SuperSpeed USB 3.0 - 9 pin USB Type A |
|
1
x USB-C 3.1 Gen 2 |
|
1
x headset - output - mini-phone 3.5 mm |
|
1
x speakers - output - mini-phone 3.5 mm |
|
1
x network - RJ-45 |
Miscellaneous |
|
Cables
Included |
1
x dual USB-C cable - 0.8 m |
Features |
Security
lock slot (cable lock sold separately), on/off switch, modular design, up
to 4 monitors support, 210W power delivery to Dell systems, 90W power
delivery to non-Dell systems, pass-through MAC adress, wireless
vPro |
Security
Slot Type |
Noble
Wedge security slot / Kensington security slot |
Compliant
Standards |
DisplayPort
1.4 |
Power |
|
Power
Device |
Power
adapter |
Power
Provided |
240
Watt |
System
Requirements |
|
OS
Required |
Red
Hat Enterprise Linux, Windows 10, Ubuntu 18.04 |
Manufacturer
Warranty |
|
Service
& Support |
Limited
warranty - advanced exchange programme - 3
years |
