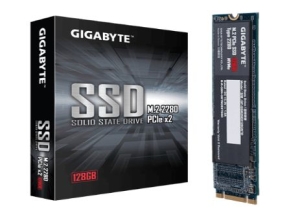

Gigabyte GP-GSM2NE8128GNTD 128GB M.2 PCIe Solid State Disk



Features

  • Form Factor: M.2 2280
  • Interface: PCI-Express 3.0 x2, NVMe 1.3
  • Total Capacity: 128GB*
  • Warranty: Limited 3-years
  • Sequential Read Speed : up to 1100 MB/s**
  • Sequential Write Speed : up to 500 MB/s**
  • HMB (Host Memory Buffer) supported
  • TRIM & S.M.A.R.T supported
*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.

**Speeds based on internal testing. Actual performance may vary.

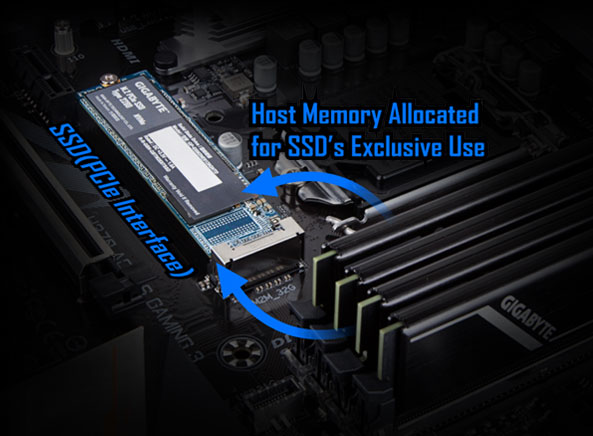

Host Memory Buffer (HMB)

The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.

Breaking the barriers of SATA limitations (128GB)

Outstanding performance

  • GIGABYTE M.2 PCIe SSD provides performance for your daily computing tasks, boast of best controller & NAND flash that provide.
  • Sequential read speeds up to 1100 MB/s.
  • Sequential write speeds up to 500 MB/s.
  • GIGABYTE M.2 PCIe SSD gives you faster data transferring experience compared to 2.5" SATA solid state drive.

Solid State Drive VS. Traditional Hard Drive

Solid State Drive

Traditional Hard Drive

Performance

Faster

Slower

Power Consumption

Lower

Higher

Vibration Resistance

Better

Lower

Noise

No

Yes

Heat Produced

Lower

Higher

SSD Tool Box

The newly updated SSD Tool Box is an application that helps users monitor SSD Status, provides general information such as model name, FW version, health condition, drive optimization and also detects sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Support.

Reliability You Can Trust - 3 Years Limited Warranty

GIGABYTE SSDs possess both high data transferring speed and enhanced endurance, providing durable MTBF* of 1.5 million hours and 3 years or 100 TBW** limited warranty***.

* MTBF (Mean Time Between Failure): Measure of how reliable a hardware product or component is.

** TBW (Terabyte Written): the total amount of data that can be written into an SSD before it is likely to fail.

*** 3 years or 100 TBW, whichever comes first.

Specifications

Interface

PCI-Express 3.0 x2, NVMe 1.3

Form Factor

M.2 2280

Total Capacity

128GB

Warranty

Limited 3-year or 100TBW

NAND

NAND Flash

External DDR Cache

N/A

Sequential Read speed

Up to 1100 MB/s

Sequential Write speed

Up to 500 MB/s

Random Read IOPS

Up to 90K

Random Write IOPS

Up to 100K

Dimension (W x H x L)

80 x 22 x 2.3 mm

Mean time between failure (MTBF)

1.5M hours

Power Consumption (Active)

Average : R : 2510mW ; W : 1850mW

Power Consumption (Idle)

50mW

Temperature (Operating)

0°C to 70°C

Temperature (Storage)

-40°C to 85°C

Note

* Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

* Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.

* Speeds based on internal testing. Actual performance may vary.

* TBW (Terabyte Written):Terabytes Written" is the total amount of data that can be written into an SSD before it is likely to fail.

* 1GB = 1 billion bytes. Actual useable capacity may vary.

* 3 years or 100 TBW, whichever comes first.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 60

Full manufacturers warranty details are available at the manufacturers (Gigabyte) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
