All stock codes associated to this product
GPGSM2NE8256GNTD, GP-GSM2NE8256GNTD, HBGM2256G, HBG-M2-256G, 4719331803933
Gigabyte GP-GSM2NE8256GNTD 256GB M.2 PCIe Solid State
Disk
Features
- Form Factor: M.2 2280
- Interface: PCI-Express 3.0 x2, NVMe 1.3
- Total Capacity: 256GB*
- Warranty: Limited 3-years
- Sequential Read Speed : up to 1200 MB/s**
- Sequential Write speed : up to 800 MB/s**
- HMB (Host Memory Buffer) supported
- TRIM & S.M.A.R.T supported
*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may vary.
Performance . Stability
GIGABYTE M.2 PCIe SSD

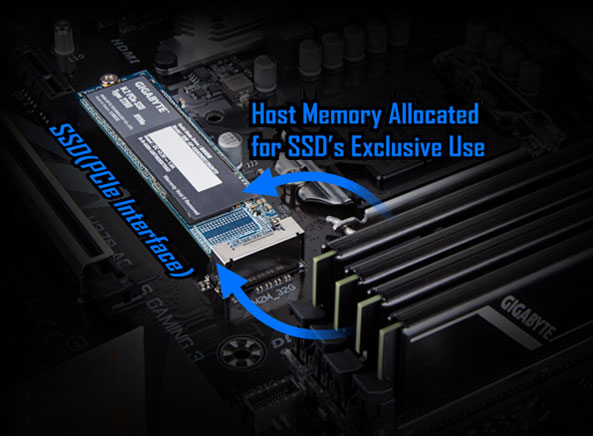

Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access)
of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of
requiring the SSD to bring its own DRAM.
* HMB feature is only supported by Windows 10.
Breaking the barriers of SATA limitations (256GB)
Outstanding performance
- GIGABYTE M.2 PCIe SSD provides performance for your daily computing tasks,
boast of best controller & NAND flash that provide.
- Sequential read speeds up to 1200 MB/s.
- Sequential write speeds up to 800 MB/s.
- GIGABYTE M.2 PCIe SSD gives you faster data transferring experience
compared to 2.5" SATA solid state drive.
Solid State Drive VS. Traditional Hard Drive
|
|
Solid
State Drive |
Traditional
Hard Drive |
|
Performance |
Faster
 |
Slower |
|
Power
Consumption |
Lower
|
Higher |
|
Vibration
Resistance |
Better |
Lower |
|
Noise |
No |
Yes |
|
Heat
Produced |
Lower
|
Higher |
SSD Tool Box
The newly updated SSD Tool Box is an application that helps users monitor SSD
Status, provides general information such as model name, FW version, health
condition, drive optimization and also detects sensor temperature. Moreover,
users can clear all the data with the Secure Erase function. You can download
the SSD Tool Box from the Support.
Reliability You Can Trust - 3 Years Limited Warranty
GIGABYTE SSDs possess both high data transferring speed and enhanced
endurance, providing durable MTBF* of 1.5 million hours and 3 years or 100 TBW**
limited warranty***.
* MTBF (Mean Time Between Failure): Measure of how reliable a hardware
product or component is.
** TBW (Terabyte Written): the total amount of data that can be written into
an SSD before it is likely to fail.
*** 3 years or 100 TBW, whichever comes first.
Specifications
|
Interface |
PCI-Express
3.0 x2, NVMe 1.3 |
|
|
|
|
Form
Factor |
M.2
2280 |
|
|
|
|
Total
Capacity |
256GB |
|
|
|
|
Warranty |
Limited
3-year or 200TBW |
|
|
|
|
NAND |
NAND
Flash |
|
|
|
|
External
DDR Cache |
N/A |
|
|
|
|
Sequential
Read speed |
Up
to 1200 MB/s |
|
|
|
|
Sequential
Write speed |
Up
to 800 MB/s |
|
|
|
|
Random
Read IOPS |
Up
to 80K |
|
|
|
|
Random
Write IOPS |
Up
to 150K |
|
|
|
|
Dimension
(W x H x L) |
80
x 22 x 2.3 mm |
|
|
|
|
Mean
time between failure (MTBF) |
1.5M
hours |
|
|
|
|
Power
Consumption (Active) |
Average
: R : 2200mW ; W : 2100mW |
|
|
|
|
Power
Consumption (Idle) |
50mW |
|
|
|
|
Temperature
(Operating) |
0°C
to 70°C |
|
|
|
|
Temperature
(Storage) |
-40°C
to 85°C |
|
|
|
|
Note |
*
Test system configuration: configuration may vary by models, we will
choose the latest platform for verification. |
|
|
*
Performance may vary based on SSD's firmware version and system hardware
& configuration. Sequential performance measurements based on
CrystalDiskMark v.5.1.2 and I0meter 1.1.0. |
|
|
*
Speeds based on internal testing. Actual performance may
vary. |
|
|
*
TBW (Terabyte Written):Terabytes Written" is the total amount of data that
can be written into an SSD before it is likely to
fail. |
|
|
*
1GB = 1 billion bytes. Actual useable capacity may
vary. |
|
|
*
3 years or 200 TBW, whichever comes first.
|
