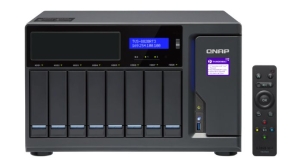

Qnap Systems TVS-882BRT3-i7-32G 8-Bay
NAS
Overview
The TVS-882BRT3 uses 7th Generation Intel 14nm multi-core processors and
features Thunderbolt 3 (40 Gbps) connectivity, including a unique
Thunderbolt-to-Ethernet (T2E) 10 GbE converter, and is ideal for online video
editing and high-speed file sharing. The TVS-882BRT3 comes with a 5.25-inch SATA
expansion bay, allowing you to install compatible disc drives or a RDX docking
station (models with a pre-installed optical disc drive or a RDX docking station
are available). You can back up the content of your discs/RDX cartridges to NAS
for long-term storage and easier sharing, or you can write NAS-based files to
discs/RDX cartridges for an extra layer of data protection. The TVS-882BRT3
comes with three PCIe Gen.3 slots. Two slots are preinstalled with dual-port
Thunderbolt 3 expansion card, while the third slot allows for adding 10GbE/40GbE
NIC, SAS storage expansion card, or a USB 3.1 10GbE adapter, making the
TVS-882BRT3 ideal for diverse storage applications.
- Four Thunderbolt 3 (40 Gbps) for on-the-fly video editing and rapid file
sharing
- 5.25-inch SATA expansion bay for installing an optical disc drive or a RDX
docking station
- Two M.2 SATA 6Gb/s slots and Qtier auto-tiering for optimized storage
efficiency
- Transcodes 4K H.264 videos on-the-fly or offline *
- Triple HDMI output enables direct disc playing through Linux Station
Qfiling enables automatic file organization; Qsirch full-text search helps
locate files faster
- Supports QRM+ unified remote server management, QvPC technology, virtual
machine and container applications, and storage for virtualization The Network
& Virtual Switch app assists network traffic distribution, and re-routes
dedicated bandwidth for diverse applications
- Virtual JBOD (VJBOD) allows using the free space of a QNAP NAS to expand
the capacity of other QNAP NAS
- *Supported video formats depend on the hardware and software
specifications of the devices. Playback capability and quality may vary due to
factors including the original file formats/quality, hardware and software
limitations, and output devices.
**Note: Thunderbolt 3 reaches the maximum theoretical transfer rate of 40
Gigabits per second. Actual performance may vary due to hardware/software
limitations and usage environment. Directly connecting a QNAP Thunderbolt 3 NAS
to a computer establishes a peer-to-peer (P2P) network and enables 20GbE
connectivity.
Complete backup scenarios
TVS-882BRT3 supports multiple backup media, enabling direct backup of content
from your discs/RDX cartridges to NAS. Coupled with Qfiling's automatic file
organization and Qsirch's full-text search engine, the TVS-882BRT3 brings a
whole new experience for you to easily manage all the files from your discs/RDX
cartridges on a private cloud. Files stored on the NAS can also be written to
discs/RDX cartridges for additional backup protection. Diversified application
scenarios include:
Note:
1. Linux Station is required to play disc-based multimedia (third-party media
player software required - may require separate license purchase). Virtual
machine allows for disc writing only.
2. Disc writing efficiency may vary depending on the ODD installed. Please
ensure your ODD is compatible with TVS-882BRT3 before purchase. Access files on
disc/RDX cartridge
browse files directly through File Station and share instantly with a share
link. Qfiling enables automatic file organization while Qsirch allows for quick
full-text search.
Access files on disc/RDX cartridge
browse files directly through File Station and share instantly with a share
link. Qfiling enables automatic file organization while Qsirch allows for quick
full-text search.
Archive confidential data to disc/RDX cartridge:
write important data to discs using a virtual machine or Linux Station for
long-term preservation or use File Station to write NAS files to RDX cartridges.
NAS as movie player:
play discs via HDMI output using Linux Station.
Collaborative editing:
Enable high-speed collaboration via high bandwidth Thunderbolt 3 ports or
install a QNAP PCIe 10GbE/40GbE NIC and use with a 10GbE switch.
Easy installation, quick backup and sharing
The TVS-882BRT3 comes with a SATA optical disc drive (ODD) expansion slot
allowing you to install a 5.25" disc burner or two Slim SATA disc burners. The
TVS-882BRT3 also supports USB disc drives. QNAP provides models with preloaded
Blu-ray ODD for you to enjoy disc-related applications instantly. After
installing the ODD, you can browse disc files directly through File Station and
quickly backup the files to NAS, saving you time and trouble from transferring
files to computer first then to the NAS. Multiple sharing modes (email, social
network, sharing link, share to other NAS users) allows you to easily share
information to others, solving the inconvenience of sharing disc files before.
Note :
1. A mounting kit (sold separately) is required to install Slim optical disc
drives.
2. Disc performance varies by many factors, including drive, disc and system
resources.
Disc backup and video playback
You can easily back up NAS-based files to discs using the TVS-882BRT3s
optical disc drive. Long-term data archiving is possible by using popular disc
authoring software via Linux Station or Virtualization Station.
Authoring: K3b (Linux OS)
Authoring: Nero (Windows OS)
Note:
- Virtual machine only supports disc authoring feature.
- Blu-ray disc video playback is not supported in Linux Station.
- The authoring apps above are recommendations only. Please check each apps
website for more information.
Removable RDX hard disk backup
TVS-882BRT3 also integrates the Tandberg RDX QuikStor internal SATA 5.25-inch
docking station (8813-RDX), allowing for installing removable and portable RDX
hard disk cartridges. You can access and manage the files on the RDX cartridges
using File Station or backup/sync the files to another NAS or to the cloud using
Hybrid Backup Sync. Comparing to standard external hard drives, the Tandberg RDX
cartridge features a rugged dust-proof design that can protect your data for a
longer period of time.
Data archiving, backup and cloning with Archiware P5
Archiwares P5 Software Suite is cross-platform data management software for
archiving, backup and cloning on QNAP NAS*. The browser-based interface features
four modules for you to securely backup, archive and restore data to different
storage targets (including disk, tape and cloud storage). All of the modules
also support file servers, Direct-attached Storage (DAS) and Storage Area
Networks (SAN).
P5
Synchronize |
P5
Backup |
Backup2Go |
P5
Archive |
Clones
data to create a failover solution for time-critical
setups. |
Produces
secure copies of files for quick restoration. |
Backs
up desktop and laptop data to disk. |
Migrates
data offline for long-term storage. |
Thunderbolt 3 NAS, Extraordinary Performance
Powered by high-performance 7th Generation Intel multi-core processors with
options including Core i5 and Core i7 , DDR4 2133 MHz RAM (upgradable up to
64GB), four Gigabit Ethernet ports, and SATA 6Gb/s interface, the TVS-882BRT3
provides up to 447 MB/s read/ write speeds. The TVS-882BRT3 features Intel
AES-NI-accelerated encryption for both full NAS volumes and shared folders to
drive transfer speeds of up to 443 MB/s, boosting system performance and
security while ensuring the safety of sensitive data stored in the TVS-882BRT3.
The Thunderbolt 3 ports provide up to 40 Gbps bandwidth for high-speed data
transfer. Users can also utilize its Thunderbolt 3 ports to have USB-C 3.1 Gen2
(10 Gbps) connectivity for quickly transferring and backing up large-sized media
files from USB-C devices.
Note: 1. Thunderbolt cables are sold separately. Thunderbolt 3 (USB-C) to
Thunderbolt 2 converters may not be compatible with certain Windows PC
models. 2. Mac OS 10.11.5 (and later) enables SMB signing by default, which may
impact the connection speed to the NAS. To improve the connection speed, users
can disable SMB signing or use Qfinder Pro to connect to the NAS.
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS:
TVS-882BRT3-i7-32G
OS: QTS 4.3.3
Volume type: RAID 5; 8 x Seagate ST1000NM0033 1TB: NAS and PCs are connected
Client PC:
Intel® Core™ i7-4770 3.40GHz CPU; DDR3L 1600Hz 16GB; WD 1TB WD10EZEX;
Intel Gigabit CT( MTU 1500 ) ; Windows® 7 Professional 64bit SP1 &
Windows 8.1 Pro 64-bit
IOMeter configuration: Transferring 32GB file continuously to/from multiple
PCs for 3 minutes. Block size: 64KB for SMB2.0 (Throughput).
Advanced hardware for greater efficiency
High-performance hardware, well-designed application functionalities and
thoroughly-planned usage scenarios alongside flexible expansion are distinctive
cornerstones for realizing optimum performance and diverse applications.
1. 5.25-inch SATA expansion bay
Install an optical disc drive/RDX docking station to archive files and data
from the discs/RDX cartridges to NAS for easier sharing and management.
2. Tool-less HDD tray and installation
3.5-inch hard drive trays feature a tool-less design for easy installation
and replacement.
3. 2 x M.2 SSD slots
Supports SATA M.2 SSDs with 2242, 2260, 2280, and 22110 form factors,
providing greater flexibility in tiered storage configurations and SSD caching.
Note: M.2 SSD operations can easily generate excessive heat that may impact
performance. It is recommended to install a heatsink (from QNAP or a third-party
provider) on the M.2 SSD.
4. DDR4 2133 MHz memory
Supports four DDR4 memory modules for a maximum of 64GB RAM.
5. 7th Generation Intel® Core™ Processor
The latest 14nm manufacturing technology with faster buses supports DDR4,
PCIe Gen.3, and DMI 3.0 to provide higher performance and more efficient data
transmission than the previous generation.
6. 3 x PCIe slots
? PCIe Gen.3 1GB/s high-speed interface (2 x dual-port Thunderbolt 3
expansion cards preinstalled) .
? 10GbE/40GbE network cards, USB 3.1 expansion cards, and other PCIe cards
are supported (check power supply requirements and compatibility list before
installation).
7. 4 x Gigabit Ethernet ports
Ideal for service binding, port trunking and MPIO configurations.
8. 3 x HDMI outputs
Three HDMI ports support duplicated and extended desktop displays.
9. Compartmentalized smart cooling
Controls fan speeds based on the varying temperatures of the processor and
hard drive regions to keep the NAS cool and quiet.
10. 3.5mm audio output
Connect speakers or headphones for direct audio output from the NAS.
11. 2 x built-in speakers
Supports direct audio output and provides verbal system warnings.
Thunderbolt™ 3 certified cable
Next-generation Thunderbolt™ 3 delivers bi-directional 20Gbps speed. Use a
certified Thunderbolt™ 3 40Gbps cable (with the Thunderbolt icon and “3”) and an
SSD RAID5 configuration to enjoy the highest possible performance and the best
storage allocation for your NAS.
Note: Please ensure your cable is Thunderbolt™ 3 certified.
Tested
in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS: TVS-882BRT3-i7-32G
Intel® Core™ i7-7700 3.60GHz CPU, 32GB RAM, Intel SSDSC2BB240G4 (SATA) x 8,
RAID5
Host: MacBook Pro
Intel® Core™ i7 2.9GHz CPU, macOS Sierra Version 10.12.3, 16GB 2133MHz LPDDR3
Host: MSI GS63VR 6RF Stealth Pro (Turbo mode)
Intel® Core™ i7-6700HQ 2.60GHz CPU, Windows 10 64-bit, 32GB RAM
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS: TVS-882BRT3-i7-32G
Intel® Core™ i7-7700 3.60GHz CPU, 32GB RAM, Intel SSDSC2BB240G4 (SATA) x 8,
RAID5
Host: MacBook Pro
Intel® Core™ i7 2.9GHz CPU, macOS Sierra Version 10.12.3, 16GB 2133MHz LPDDR3
Host: MSI GS63VR 6RF Stealth Pro (Turbo mode)
Intel® Core™ i7-6700HQ 2.60GHz CPU, Windows 10 64-bit, 32GB RAM
Highly-efficient media collaboration for Mac and Windows
The TVS-882BRT3 is a perfect match for Thunderbolt™ 3-capable MacBook Pro®,
and is backward-compatible with Mac Pro® and iMac® featuring Thunderbolt™ 2 via
Thunderbolt 3 (USB-C) to Thunderbolt 2 converter. The higher bandwidth is
especially suited for creative professionals and enthusiasts from photographers,
filmmakers to graphic designers who focus more on 4K or 3D workflows. The latest
Final Cut Pro® X 10.3 adds support for SMB protocol, allowing you to easily
store files in the TVS-882BRT3 and share files with Windows®, and other devices
using Thunderbolt™, 10GbE or 1GbE connection. Up to 4 Thunderbolt™ devices can
connect to the TVS-882BRT3 to process real-time video editing simultaneously
without impacting NAS performance, while 4K videos can be directly displayed
using the TVS-882BRT3's HDMI output. Coupled with its large capacity potential,
the TVS-882BRT3 provides an ideal storage solution with unmatched performance
for high-resolution file storage and I/O-intensive tasks to increase
productivity in multi-workstation environments. The TVS-882BRT3's disc-writing
functionality also allows you to directly copy your creative work to disc for
offline sharing.
Access 10GbE networks over Thunderbolt with Thunderbolt-to-Ethernet
(T2E)
As Apple® computers do not natively support 10 Gigabit Ethernet, Mac® users
previously needed to purchase a Thunderbolt-to-Ethernet adapter to connect to
high-speed Ethernet networks. The innovative Thunderbolt-to-Ethernet (T2E)
allows computers without Ethernet ports (such as MacBook Pro®) to access 10GbE
network resources over a Thunderbolt™ connection to the TVS-882BRT3. This saves
users from having to buy adapters or converters and greatly streamlines the
connectivity process.
Flexibly attach, share, and expand in 4 ways
With four Thunderbolt™ 3 ports on the TVS-882BRT3, you can flexibly arrange
the connection of your computer workstations with the TVS-882BRT3 and its
storage expansion enclosures based on your needs.
High accessibility (Mac+JBOD)
Attach three Mac® workstations to the TVS-882BRT3 via Thunderbolt™ 3 ports
for online video editing, while the remaining Thunderbolt™ 3 port is used for
storage expansion by connecting up to six NAS expansion enclosures (TX-500P /
TX-800P).
Optimal collaboration (Mac+Mac)
When using multiple workstations to work together to speed up a project, you
can connect each workstation separately to the Thunderbolt™ 3 ports on the
TVS-882BRT3 to enjoy simultaneous, speedy video editing.
Dividing resources (Mac+NAS)
Large-sized video production studios often require multiple servers to
increase productivity with different workflow stages, such as capturing,
editing, production, post-production, and dubbing. In this situation it can be
helpful to daisy chain an additional 6 TVS-882BRT3 units to the original
TVS-882BRT3 and arrange each NAS for dedicated workflow stages, while the other
Thunderbolt™ 3 ports are connected to the workstations for smoothly accessing
large-sized video files.
Seamless expansion (JBOD+JBOD)
Rest assured your massive files are safely stored in the TVS-882BRT3 which
supports seamless capacity expansion to offer you abundant storage. You can
connect up to six NAS expansion enclosures (TX-500P / TX-800P) to the
TVS-882BRT3 through Thunderbolt™ 3 ports to enjoy high storage capacity.
M.2 SATA 6Gb/s SSD cache expandability
The TVS-882BRT3 provides two M.2 SSD slots dedicated to caching for
increasing IOPS performance. Using an SSD cache boosts overall system
performance, and is perfect for improving the overall workflow of random
IOPS-demanding applications such as virtualization. Qtier auto-tiering
technology automatically moves frequently-used files to SSD and
infrequently-used files to HDD for optimal storage performance.
PCIe slot for diversified storage scenarios
The TVS-882BRT3 provides three PCIe Gen. 3 slots. Two slots are preinstalled
with dual-port Thunderbolt 3 cards, while another slot allows for a wide range
of storage scenarios. You can install a 10GbE/ 40GbE NIC for network expansion,
USB 3.1 10Gbps adapter, or a compatible Wi-Fi adapter to use the TVS-882BRT3 as
a wireless access point.
4K HDMI output for an excellent audiovisual experience
The TVS-882BRT3 comes with three HDMI ports for using three monitors in
either "duplicated" or "extended" desktop configuration. QNAP Linux Station* is
integrated with Ubuntu® OS, allowing users to download and install versatile
multimedia apps from Ubuntu Software Center, such as Plex Media Server, KMPlayer
and LibreOffice to play videos on NAS or Blu-ray discs**. QNAP's HD Station also
allows users to directly enjoy multimedia using HD Player or third-party players
such as Plex Home Theater. By connecting the TVS-882BRT3 to a HDTV or A/V
receiver with HDMI output, you can enjoy watching videos with up to 4K***
resolution. The bundled QNAP remote control allows you to control the
TVS-882BRT3 and enjoy the best audiovisual experience. You can customize the
actions of individual buttons of your QNAP remote control using QButton. From
playing music, to viewing surveillance feeds in Surveillance Station, to
shutting down or restarting the NAS, everyday and common tasks can be just a
button press away with QButton.
Storage for hosting virtual machines and containerized
applications
Virtualization Station allows you to host virtual machines (VM) on the
TVS-882BRT3 and access them via a web browser or VNC. Virtualization Station
supports multiple operating systems, fast VM creation, VM backup &
restoration, VM import/export, snapshot, and Device Management for centrally
managing VMs. Virtualization Station allows the TVS-882BRT3, VMs and containers
to share the same LAN port. No longer constrained by physical network
performance, high-speed virtual switches greatly increases data transfer between
VMs, containers and NAS through the internal interface. The TVS-882BRT3 also
features Container Station, which integrates LXC and Docker® lightweight
virtualization technologies. You can operate multiple isolated Linux® systems on
the TVS-882BRT3 as well as download apps from the built-in Docker Hub Registry®.
Containers Station also supports the QIoT Containers platform that helps quickly
structure your IoT environment and deployment on your private IoT cloud.
Datastore for virtualized environments
The TVS-882BRT3 is an iSCSI/ IP-SAN storage that supports VMware® and
Citrix®, and is compatible with Microsoft® Hyper-V® and Windows Server 2012® R2,
fulfilling the need for flexible deployment and management in virtualization
environments. The TVS-882BRT3 supports VMware VAAI and Microsoft ODX to increase
performance by offloading server loading for ESXi server and Hyper-V
respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider
with enhanced operational efficiency and management in virtualization
applications.
QTS – The most intelligent and intuitive NAS operating
system
With modularized multiple applications and functions, QTS enhances management
efficiency, personal productivity, multimedia, and much more. New intelligent
agent services have also been added to simplify system operations and
management. The user-friendly QTS features an intelligent desktop that allows
you to find desired functions quickly, monitor important system information on a
real-time basis, open multiple application windows to run multiple tasks
concurrently with greater working efficiency, and provides a built-in App Center
with install-on-demand apps to extend NAS functionality. QTS breaks the barriers
of devices, platforms, and geography to bring optimized cloud experiences and
incorporates advanced features.
Qfiling automates your file organization
Qfiling helps automate file organization for sorting files spread through
multiple folders, helping to reduce the time needed for finding important files.
Users can categorize files and determine filing conditions; and schedule filing
tasks to be carried out periodically. The “Recipe” feature allows users to save
frequently-used filing conditions as an “exclusive recipe”, then the next
Qfiling task can be run with just one click using the recipe.
IFTTT Agent automates your workflow
IFTTT (If This Then That) is currently one of the most popular web automation
services, and with QNAP IFTTT Agent you can create a near-unlimited number of
NAS-related applets on the IFTTT website for greater automation and to boost
your productivity. For example, if you set a trigger as “Any new photo (using
Android Photos service)” and the action as "Download the URL to QNAP NAS (using
QNAP service)," then all the photos taken using your Android device will be
automatically downloaded to TVS-882BRT3. With IFTTT Agent, you can make your
TVS-882BRT3 smarter than ever.
Data backup, recovery, and synchronization
QNAP Hybrid Backup Sync provides a well-rounded solution for data backup,
file synchronization and disaster recovery. With Hybrid Backup Sync, you can
easily and securely backup data from your NAS to several local, remote and cloud
storage spaces. In the event of system crashes or critical hardware failure, you
can quickly restore data from these storage spaces, minimizing downtime and
reducing overall loss. Hybrid Backup Sync also takes advantage of cloud storage
for one-way sync of your data to cloud storage through RTRR, Rsync, FTP, SMB
protocol, or two-way sync your NAS with remote NAS/cloud services.
Share and sync files across devices
The TVS-882BRT3 supports SMB, NFS and AFP, allowing you to quickly share
files to Windows®, Mac®, and Linux®/UNIX® devices. With QNAP's Qsync utility,
the TVS-882BRT3 becomes a safe data center for file synchronization with huge
storage potential. Any file uploaded to TVS-882BRT3 can be synchronized to all
the linked devices such as computers, laptops and mobile devices. You can also
sync shared folders to increase the flexibility of collaboration and file sharin
QRM+: Centralized management solution for networked computing
devices
QRM+ is QNAP’s Centralized Management Solution, designed for IT teams, for
networked computing devices. It provides a single-point solution to discover,
map, monitor and manage all of the critical computing devices (including
servers, PCs, and thin clients) in your network, and facilitates device
discovery with the graphical topology diagram. QRM+ supports IPMI 2.0, provides
remote KVM (Keyboard, Video, Mouse) for certain IPMI devices, and supports
tracking every action using KVM recording and playback. Simply install QRMAgent
on your Windows® and Linux® devices and you will see their system status on the
QRM+ management interface. With centralized management using QRM+ on the
TVS-882BRT3, IT infrastructure and device security is enhanced while
troubleshooting and network resource performance analysis is greatly simplified.
Flexible storage expansion
The TVS-882BRT3 supports capacity expansion by connecting up to six
Thunderbolt™ storage expansion enclosures. You can gradually expand the
TVS-882BRT3's storage on demand, and use the QTS Storage Manager to easily
handle the NAS capacity expansion and storage expansion enclosure management.
Comprehensive surveillance solution providing 24/7 security
Surveillance Station is a professional network surveillance Video Management
System (VMS) that offers a user-friendly management interface, over 3,000
compatible IP camera models, and expandable IP camera channel licenses. It
supports real-time monitoring, video & audio recording and playback with a
wide range of customizable settings. You can also install the Vmobile app on
your iOS® or Android™ devices to manage the monitored channels anytime and
anywhere, or install the Vcam mobile app to turn your device into a network
camera to instantly record to your TVS-882BRT3. The TVS-882BRT3 offers 8 free IP
camera channels and you can expand up to 80 channels by purchasing additional
licenses.
Whole new QVR Pro surveillance solution
The TVS-882BRT3 supports QVR Pro (Beta) that integrates QNAP’s professional
QVR system into the QTS operating system. You can arrange a dedicated,
independent storage space for surveillance data on the NAS and leverage the
advantages of scalability and storage manageability from QTS. QVR Pro features a
flexible monitoring interface that allows adjusting the proportion and monitor
view of IP cameras, supports an upgraded timeline feature that provides instant
video search and quick view identification in live monitoring mode, and allows
for monitoring views and playing back images without switching between windows.
Additional functions like batch adding and editing cameras and searching for
cameras across different LANs further save the cost and time in deploying and
maintaining a complete surveillance system. With the new QUSBCam2 App, USB
cameras can be used as ONVIF network cameras. Simply connect it to your
TVS-882BRT3, and you can view real-time footage without installing any software.
Through QVR Pro, you can even store recordings for playback, allowing you to
build a surveillance system with a minimal budget.
Centralized email and contact management for improved communication
workflows
It can be hard to manage emails and contact information that are scattered
across multiple computers, devices, and accounts - not to mention if important
emails or contact information are lost or become inaccessible due to account
closure or device malfunction/loss. QNAP QmailAgent and Qcontactz helps you
centrally store and manage emails and contact information, making them
accessible to all of your devices at any time - and with the powerful Qsirch
search engine, you can easily find specific contacts and emails whenever needed.
Specifications
CPU |
Intel®
Core™ i7-7700 quad-core 3.6 GHz processor, Max turbo to 4.2
GHz |
CPU
Architecture |
64-bit
x86 |
Graphic
Processors |
9th-generation
Intel® HD Graphics |
Floating
Point Unit |
√ |
Encryption
Engine |
(AES-NI) |
Hardware-accelerated
Transcoding |
√ |
System
Memory |
32
GB UDIMM DDR4 (4 x 8GB) |
Maximum
Memory |
64
GB (4 x 16 GB) |
Memory
Slot |
4
x DDR4 Long-DIMM |
Flash
Memory |
512MB
(DOM for dual OS) |
Drive
Bay |
8
x 3.5-inch |
Drive
Compatibility |
3.5-inch
SATA hard disk drives |
|
2.5-inch
SATA hard disk drives |
|
2.5-inch
SATA solid state drives |
5.25-inch
Expansion Bay |
1
x 5.25” disc burner or 2 x slim SATA disc burners |
Hot-swappable |
√ |
M.2
SSD Slot |
2
x M.2 2242/2260/2280/22110 SATA 6Gb/s slots |
|
The
M.2 SSD is not included as standard. |
|
M.2
SSD operations can easily generate excessive heat. It is recommended to
install a heatsink (from QNAP or a third-party provider) on the
M.2 SSD. |
SSD
Cache Acceleration Support |
√ |
Gigabit
Ethernet Port (RJ45) |
4 |
Jumbo
Frame |
√ |
Thunderbolt
Port |
4
(Thunderbolt 3) |
PCIe
Slot |
3 |
|
Slot
1: PCIe Gen3 x8 |
|
Slot
2: PCIe Gen3 x4 |
|
Slot
3: PCIe Gen3 x4 |
|
2
x PCIe Gen3 x4 ports are preinstalled with two dual-port Thunderbolt 3
extension cards |
USB
3.0 port |
5 |
USB
3.1 Gen 2 (10Gbps) Port |
(Optional) |
IR
Sensor |
√ |
HDMI
Output |
3,
HDMI 1.4b |
Audio
Input |
2
x 6.3mm MIC In |
Audio
Output |
2
x built-in speakers, 1 x 3.5mm Line Out |
Form
Factor |
Tower |
LED
Indicators |
System
status, M.2 SSD, 3.5” HDD |
LCD
Display/ Button |
√ |
Buttons |
Power,
Reset, USB Auto Copy |
Dimensions
(HxWxD) |
234.6
× 369.9 × 319.8 mm |
Weight
(Net) |
11.23
kg |
Weight
(Gross) |
12.32
kg |
Operating
temperature |
0
- 40 °C (32°F - 104°F) |
Relative
Humidity |
5~95%
RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power
Supply Unit |
Input:
100-240V~, 3-1.5A, 60-50Hz; Output: 250W |
Power
Consumption: Operating Mode, Typical |
93.82
W |
Fan |
System
Area: 3 x 8 cm cooling Fan |
|
Processor
Area: 2 x 9 cm Fan |
Sound
Level |
21.6
db(A) |
Kensington
Security Slot |
√ |
