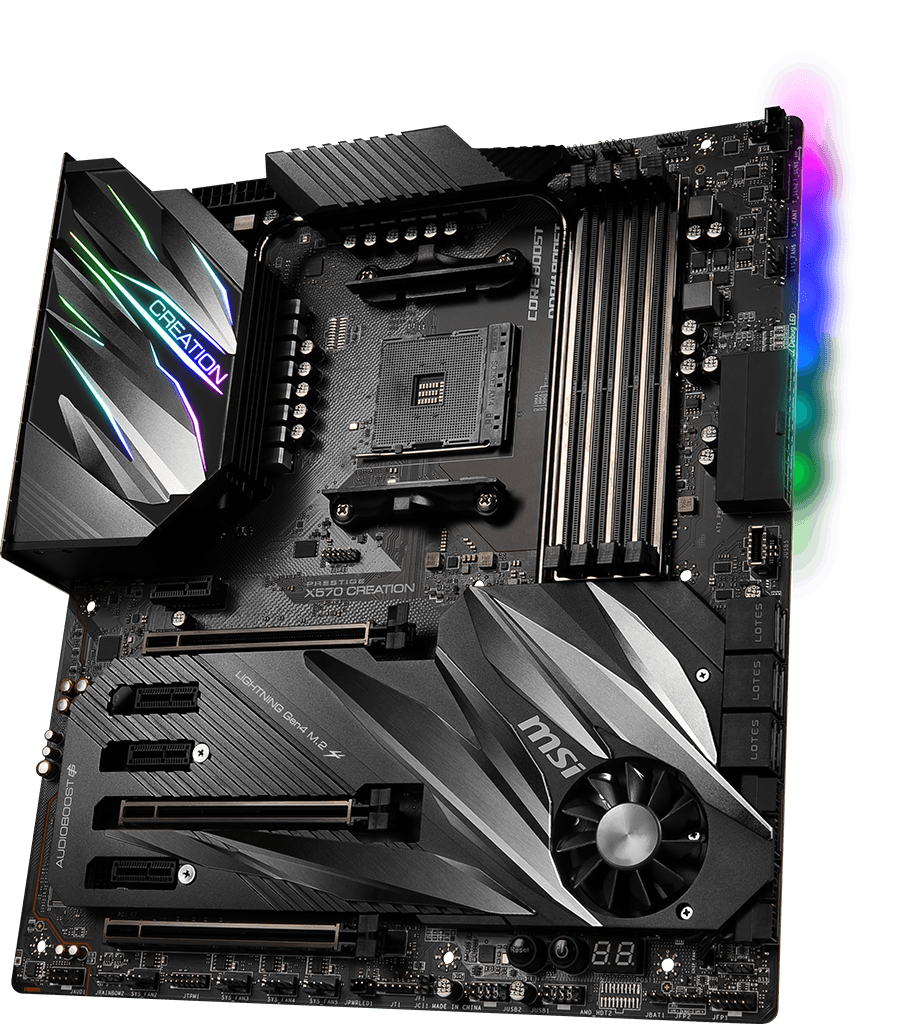

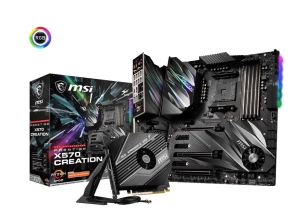

MSI Prestige X570 Creation Motherboard

MSI Prestige X570 Creation Motherboard

Overview

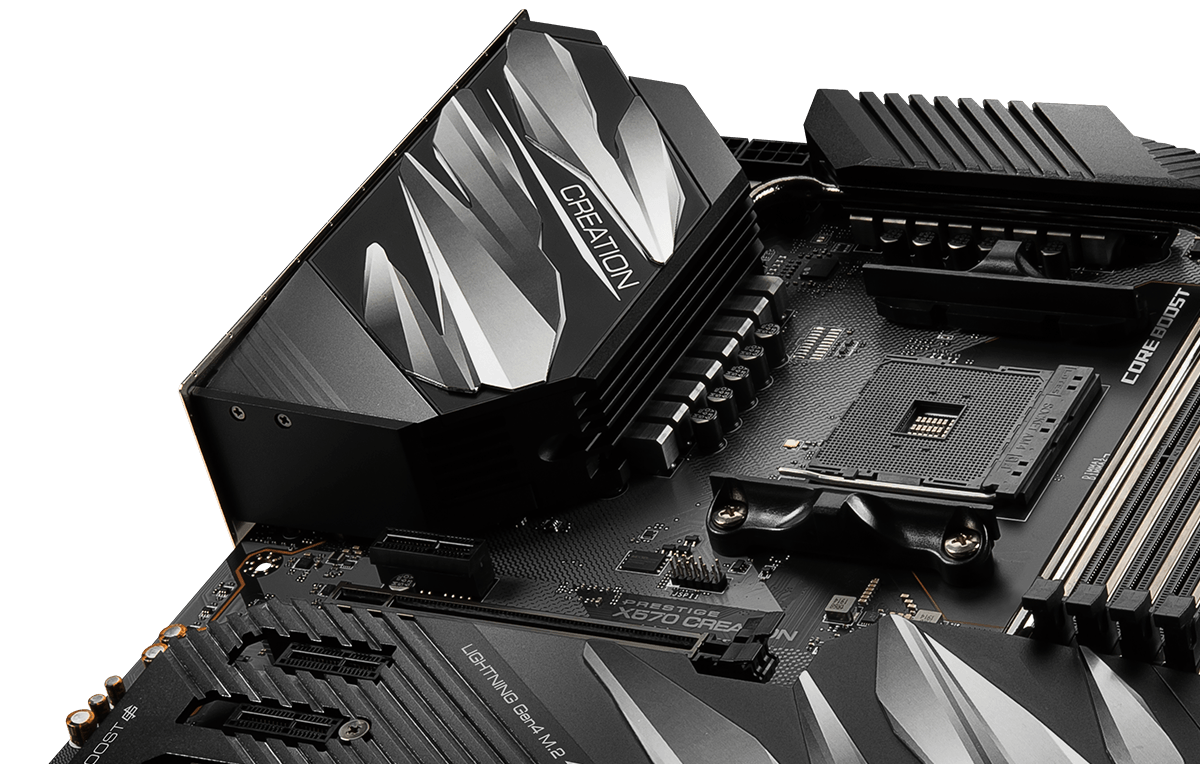

Unique look and feel inspired by the concept of element explosion tailor-made for designers and content creators. Features 2x Lightning Gen 4 M.2 with Shield Frozr, Frozr Heatsink and Extended Heat-pipe Design, 10G Super LAN and Wi-Fi 6, Core Boost, Audio Boost 4

• Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket
• Supports 4 DIMMs, Dual Channel Memory DDR4, up to 4600+(OC) MHz
• Dual LAN with 10G Super LAN and WI-FI 6: Next level network speed, secure networking with fastest data throughput to improve efficiency.
• Lightning Gen 4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed and performance
• Frozr Heatsink Design : Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
• Extended Heat-pipe Design: Enlarge the surface of heat dissipation, connecting from MOS heatsink to chipsetheatsink
• Extended Heatsink Design with Pre-installed I/O Shielding: All-metal extended heatsink cover ensures even high-end processors to run in full speed and provides convenience for installation
• M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 safer and faster

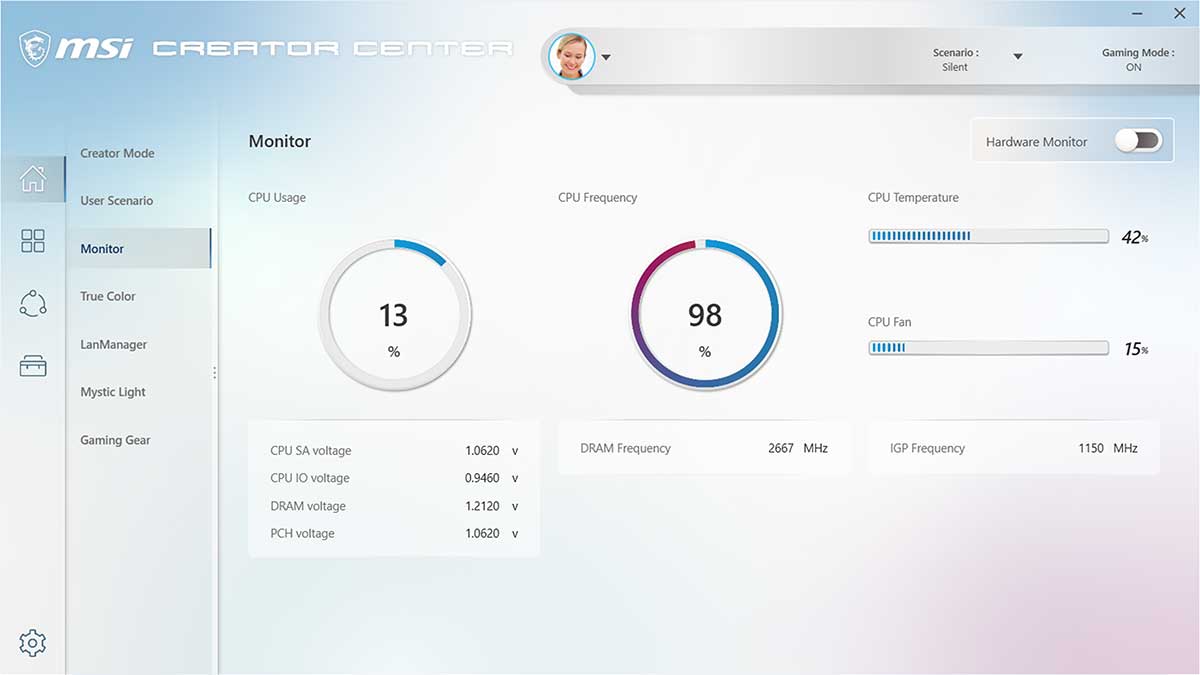

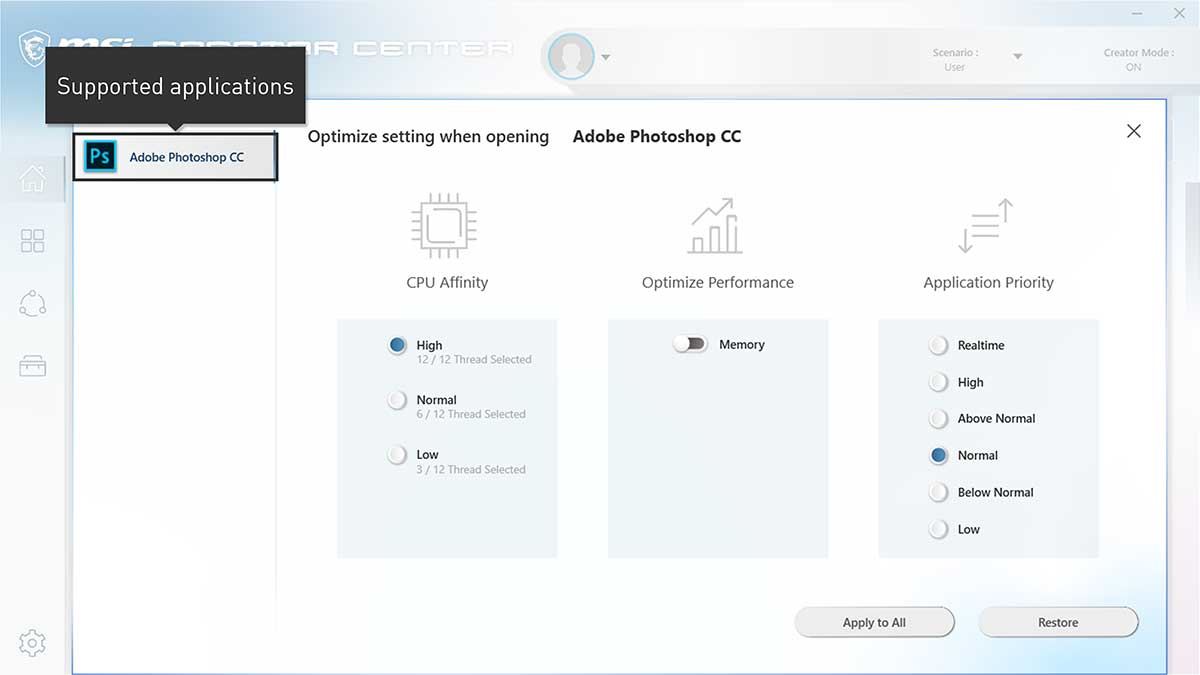

• Creator Center: An optimized software with various system modes and resources for a wide range of scenarios and needs
• Core Boost: With dual 8pin power supply and IR digital power design to support more cores and provide better performance
• Audio Boost 4 with NAHIMIC: Reward your ears with studio grade sound quality
• M.2 XPANDER-Z GEN4: An add-on card offers two extra Lightning Gen 4 M.2 slots and features FROZR heatsink design to increase your storage capacity at maximum Gen 4 speed

NEXT-GEN THERMAL SOLUTION

Extended Heat-Pipe

• Enlarge the surface of heat dissipation, connecting from MOS heatsink to chipset heatsink.

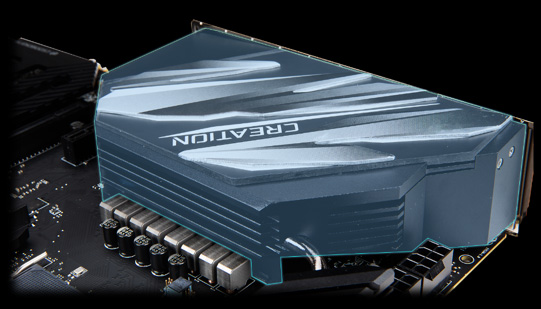

Extended Heatsink

• All-metal extended heatsink cover ensures even high-end processors to run in full speed.

M.2 Shield Frozr

• Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Zero Frozr Technology

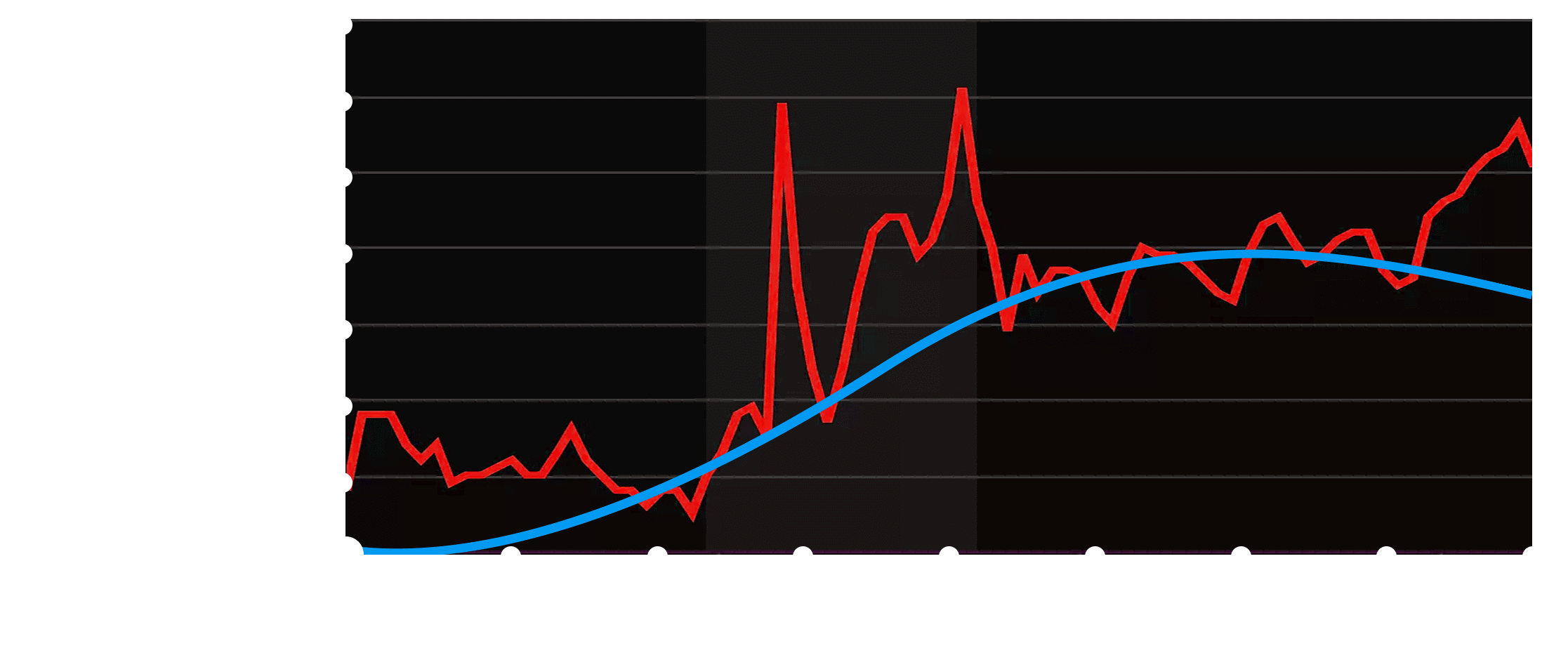

• AI tuning system that auto-adjust fan speed by chipset temperature, even eliminates fan noise by stopping the fans in low-load situation

Frozr Heatsink Design

• Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.

STABLE CORNERSTONE OF YOUR SYSTEM

Core Boost Technology

• Combining dual 8 pin power connectors and premium layout design, the CREATION is ready for unleashing the maximum performance.

Server-grade PCB

• Server-grade PCB provides higher PCIe 4.0 performance and long-lasting system stability without any compromised.

IR Digital PWM

• Highest quality components with IR digital power, DrMOS and titanium choke II make sure your system runs smoothly under the most extreme conditions.

PCIe Steel Armor

• Protecting VGA cards against bending and EMI for better performance, stability and strength.

LIGHTNING FAST TRANSFER SPEED

Latest Wi-Fi 6 Solution

• The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

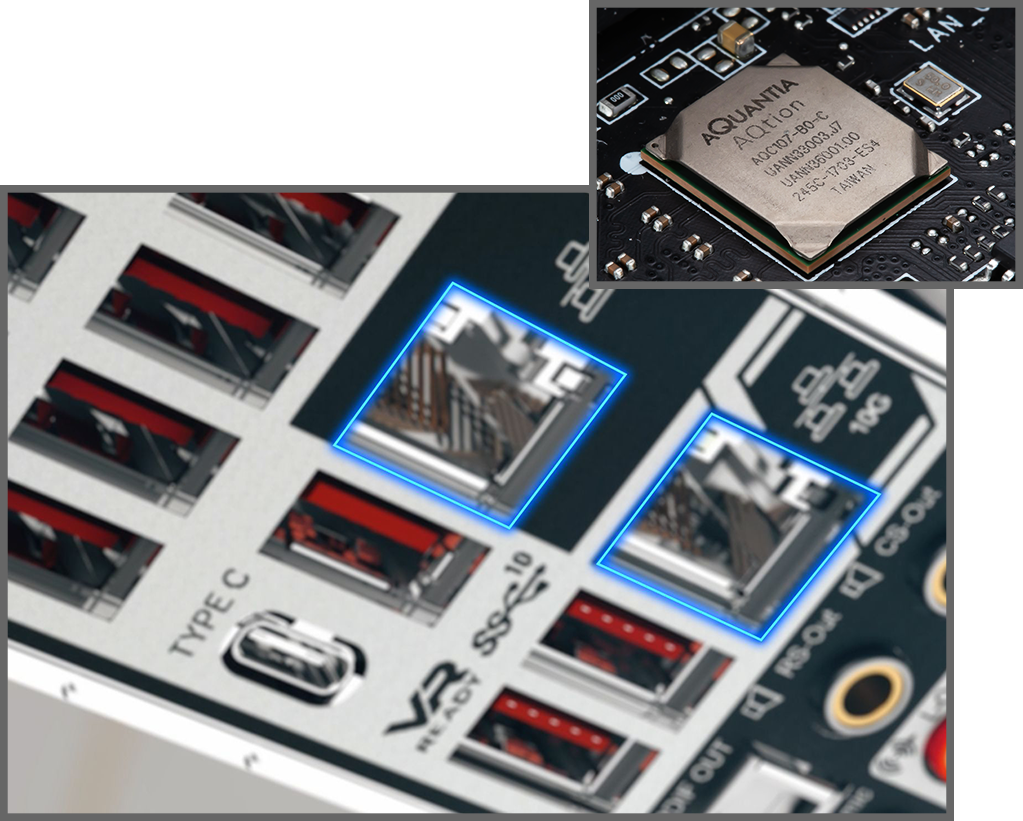

10G Super LAN

• Next level network speed, secure networking with fastest data throughput to improve efficiency.

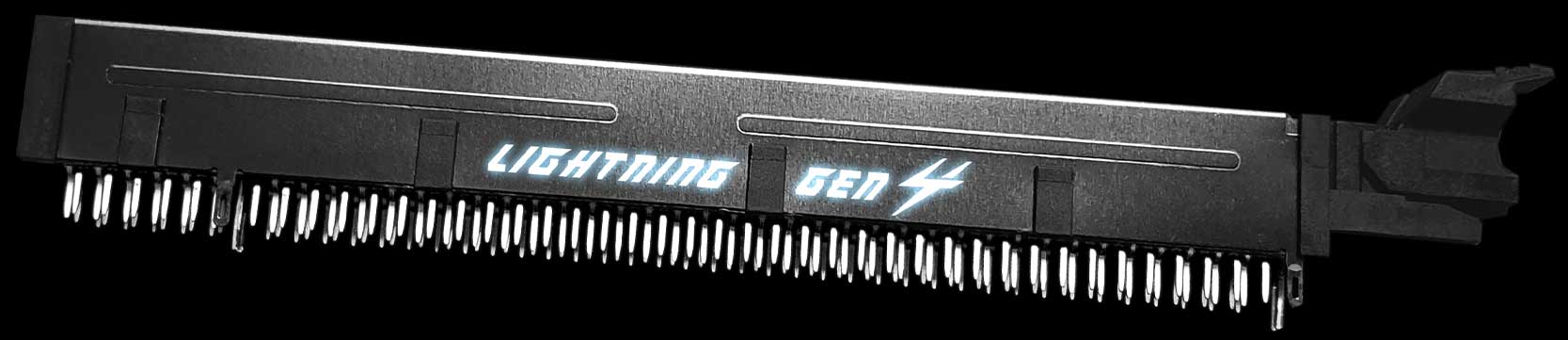

Lightning Gen 4 Solution

• The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

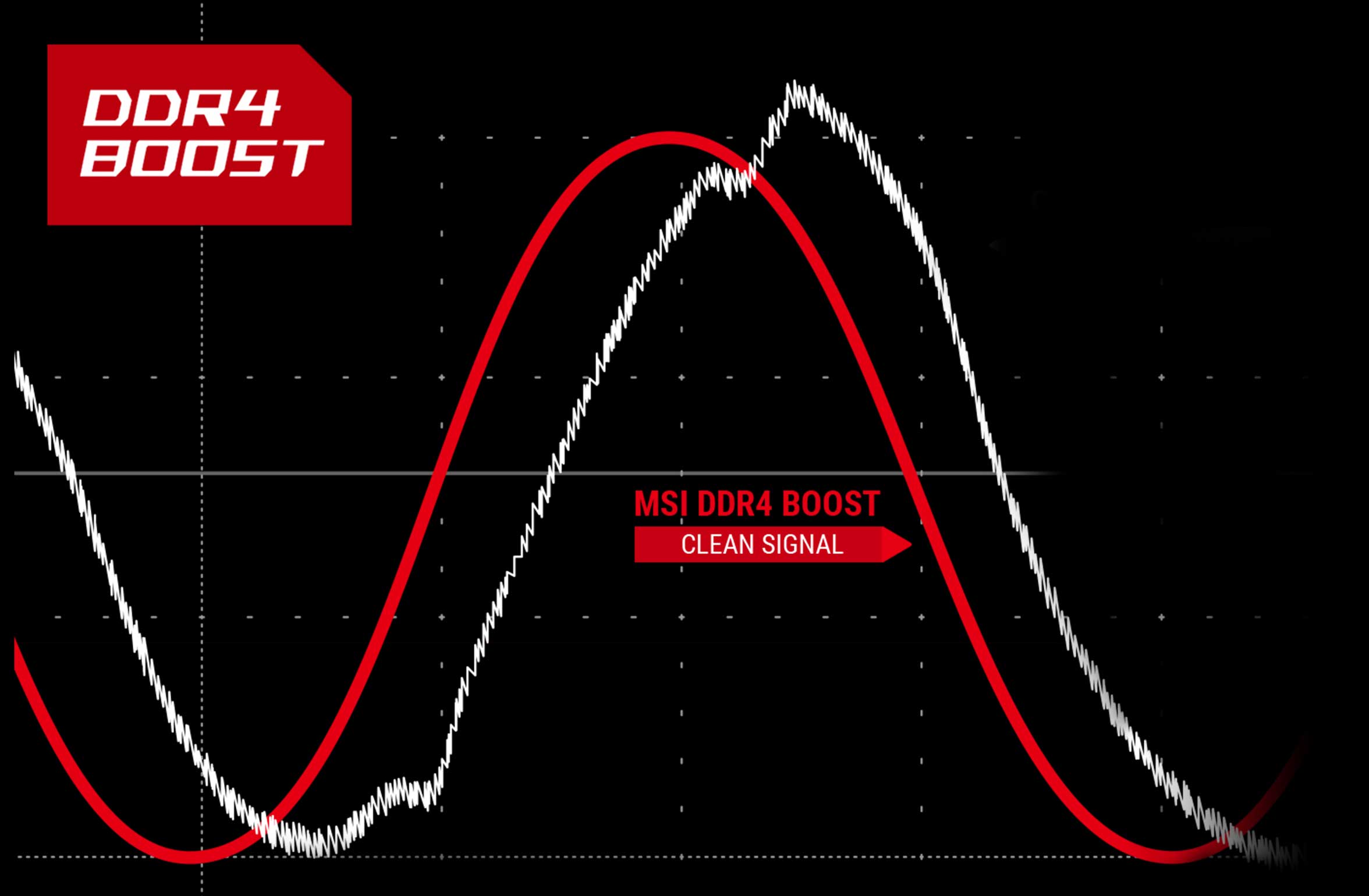

DDR4 Boost

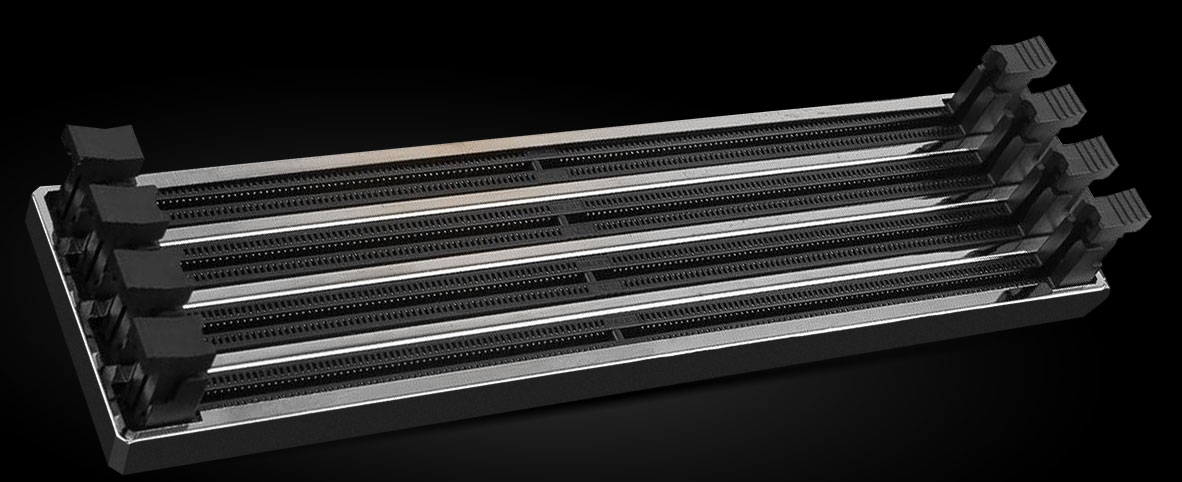

• The Fully isolated and shielded DIMM slots to deliver pure data signals for the best gaming and overclocking performance.

M.2 XPANDER-Z GEN4

• Offers two extra Lightning Gen 4 M.2 slots and features FROZR heatsink design to increase your storage capacity at maximum Gen 4 speed.

DIY FRIENDLY

MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rigthey want.

COOLING

STAY COOL AND SUSTAIN PERFORMANCE

Cooling is essential for a high performance PC to sustain intense workloads.PRESTIGE X570 CREATION features a heavy duty heatsink on the MOSFETs for reliable processor power delivery. Numerous fan headers with full fan speed control lets builders tune their system cooling the way they like it.

TOTAL THERMAL SOLUTION

LARGER HEATSINK FOR MORE COOLING

Heatsinks on top of the power delivery circuits help to dissipate excessive heat. Extended heatsinks have even more surface area for more thermal dissipation.

BOOST mode Animation / Video Editing

Balance mode Graphic Design / Photography

NATTIER WAY ON COOLING CONTROL

MSI FROZR Heatsink design combines the power of MSIs exclusive ZERO FROZR and AI tuning technology to auto-adjust fan speed according to the chipsets temperature. You can also select three different modes (Boost/Balance/Silence) depending on your preferences via Dragon center or MSI UEFI BIOS and enjoy the best performance without compromise.

OUTSTANDING TEMPERATURE MANAGEMENT

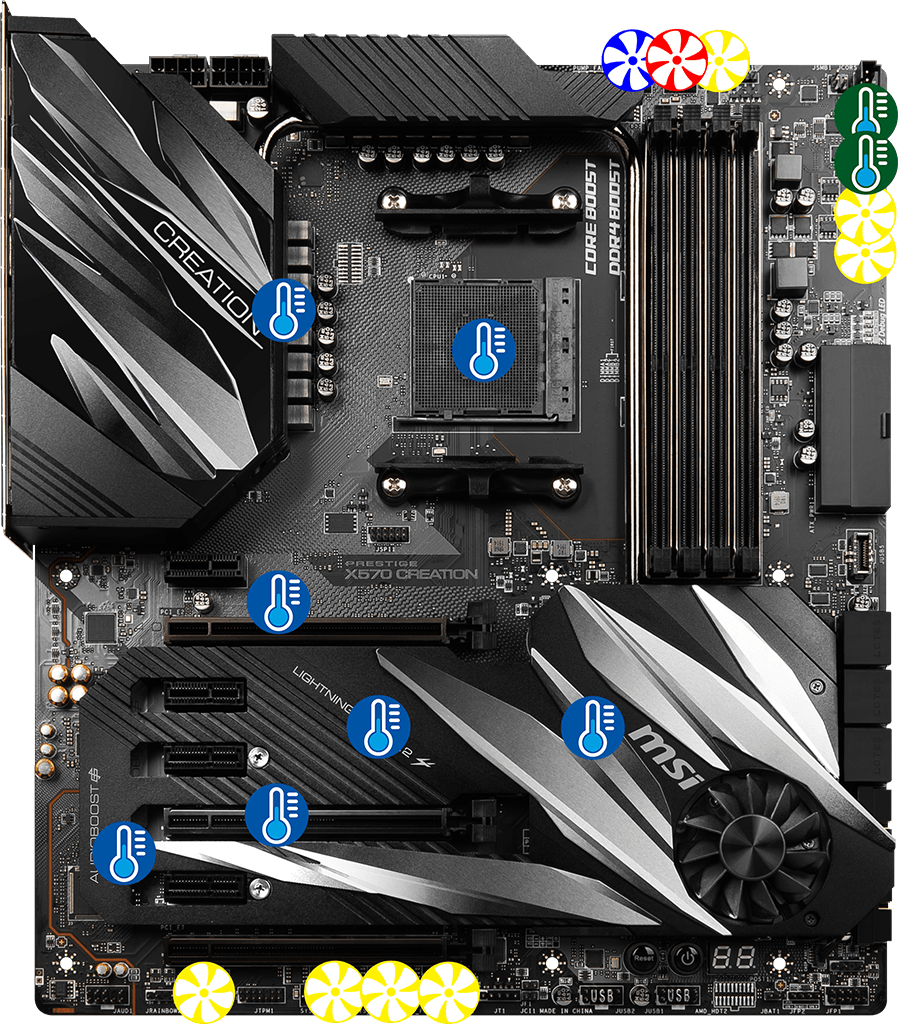

Set up a cool and quiet system with multiple fan headers. Tune them manually or let the thermal sensors help with automatic control of your system fans.

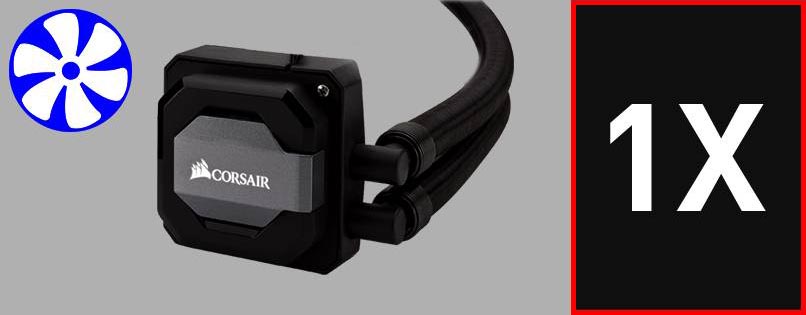

ALL IN ONE PUMP HEADER

CPU FAN HEADER

SYSTEM FAN HEADER

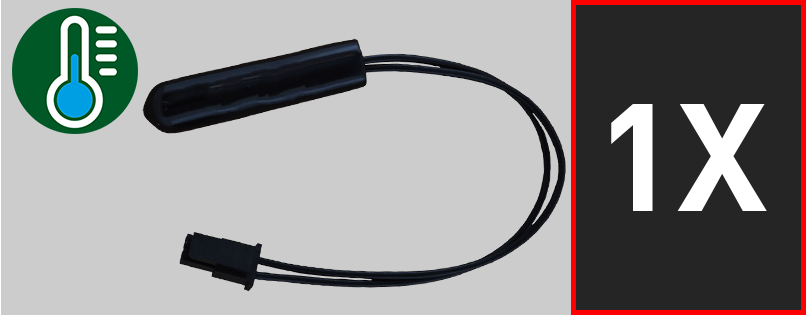

TEMPERATURE SENSOR

EXTENSION THERMAL HEADER

FAN AUTODETECT DC OR PWM MODE

MSI fan headers can automatically detect if a fan needs to run in DC or PWM mode, streamlining the fan tuning experience.

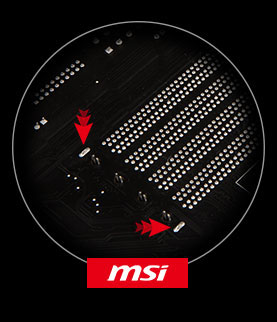

MSI:

• Smooth fan speeds
• Smooth sound levels

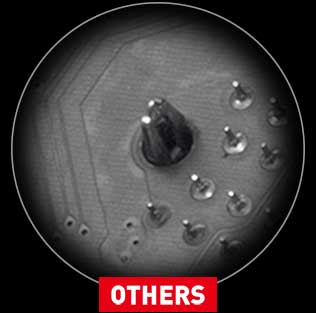

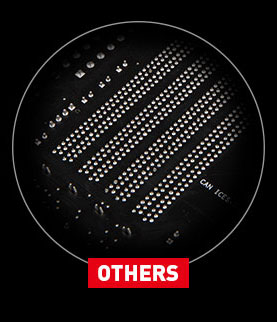

OTHERS:

• Spiking fan speeds
• Annoying sound levels

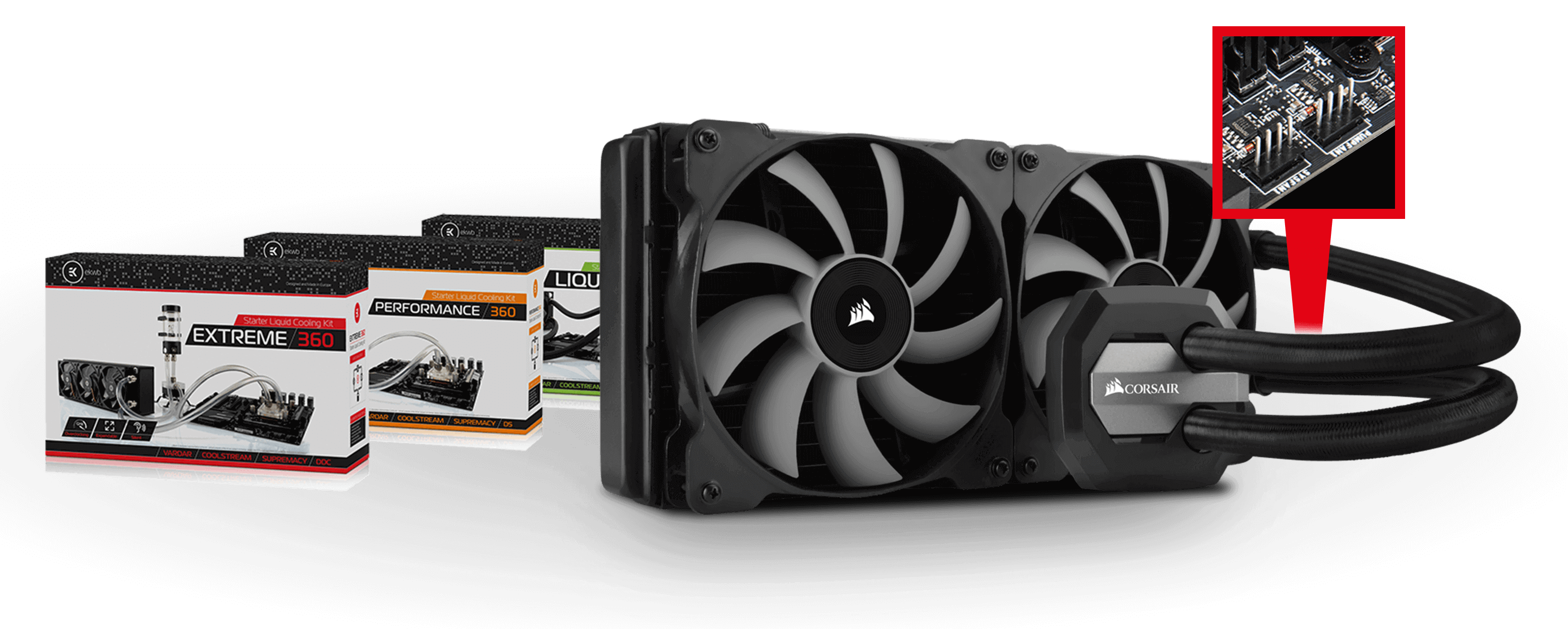

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked keep-out-zone allows for easy and safe installation and a perfect fit.

TESTED TO WORK BEST WITH

• BitsPower
• CoolerMaster
• Corsair
• ekwb
• Thermaltake

HARDWARE

TROUBLESHOOTING FRIENDLY DESIGN

MSI motherboards been designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup.

PRE-INSTALLED I/O SHIELDING

Pre-Installed IO Shielding makes handling the motherboard process easier and safer. The patent-pending design grounded and protects the IO ports from potential electrostatic discharge damage from the external environment.

MORE FOR USER FRIENDLY

XL CLIP

• An enlarged PCI-E clip makes it easier to remove and swap your PCI devices.

EZ DEBUG LED

• Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

COMPATIBILITY

MAXIMUM COMPATIBILITY

Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want.

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

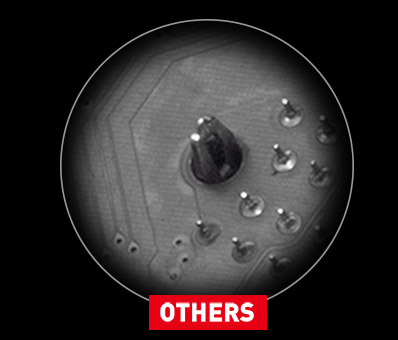

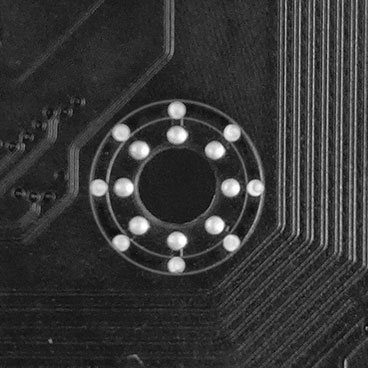

REINFORCED, HEAVY SOLDERED CONNECTIONS

NO STRENGTHENING

RYZEN PROCESSOR SUPPORT

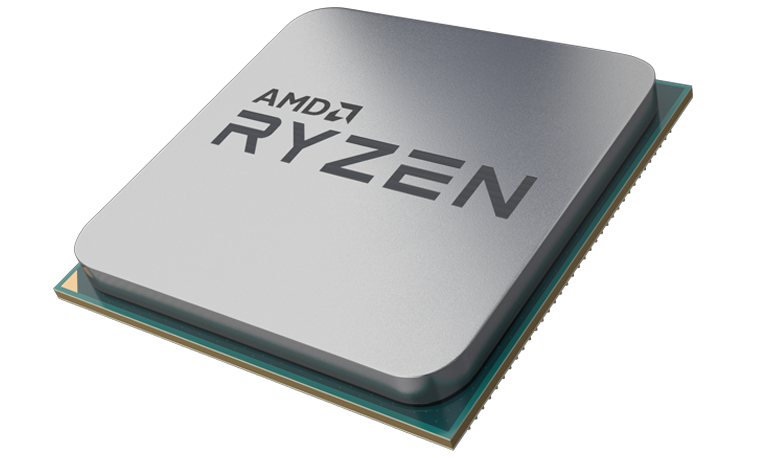

MSI X570 motherboards support latest generation RYZEN processors from AMD with updated features and capabilities. Ascend to new heights with a platform built for both creators and gamers.

MEMORY COMPATIBILITY & TESTING

Get stability out of MSIs extensive and aggressive memory testing and optimization. Working alongside partnered brands like Corsair, Crucial, Kingston, G.SKILL, and many more, MSI has worked hard to get the most out as many memory configurations as possible

BIOS AND SOFTWARE

APPS TO GREATLY IMPROVE EFFICIENCY

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance.

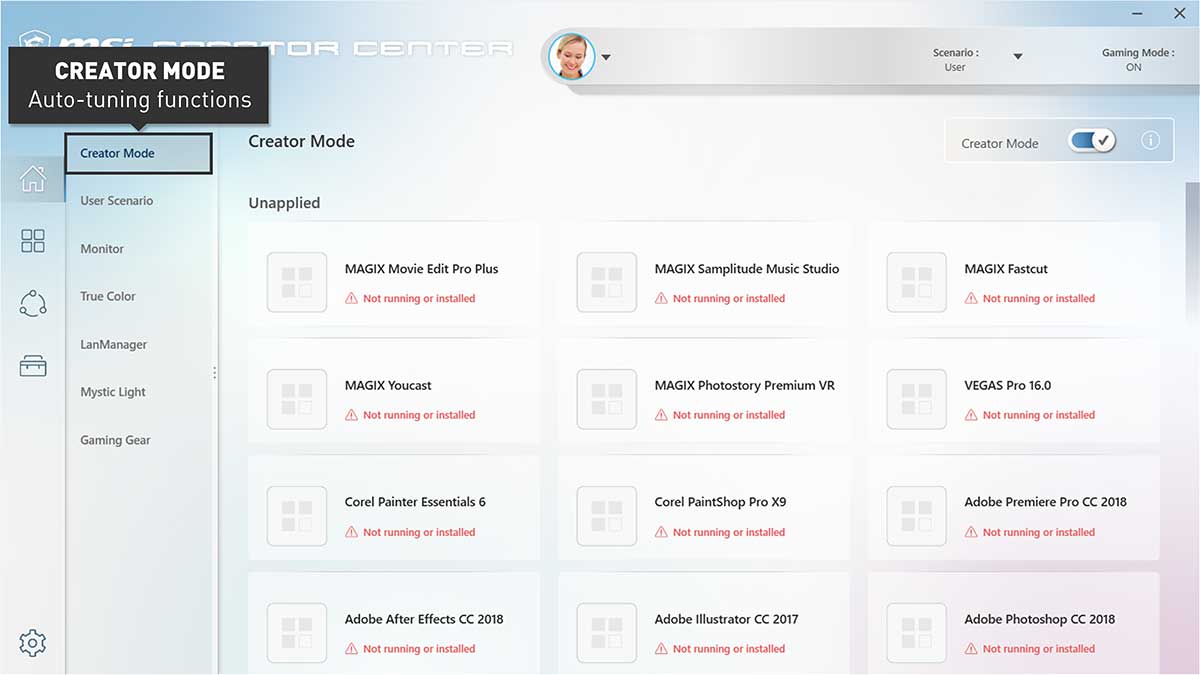

Creator Mode

Optimized Settings

Hardware Monitor

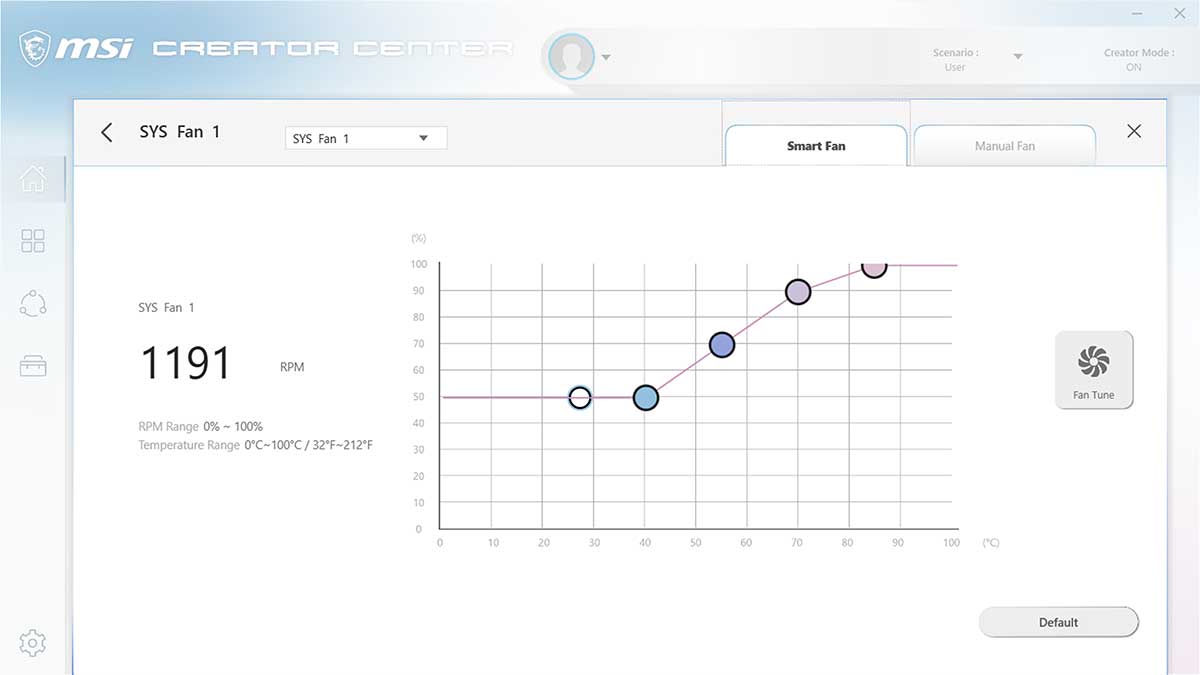

Smart Fan Control

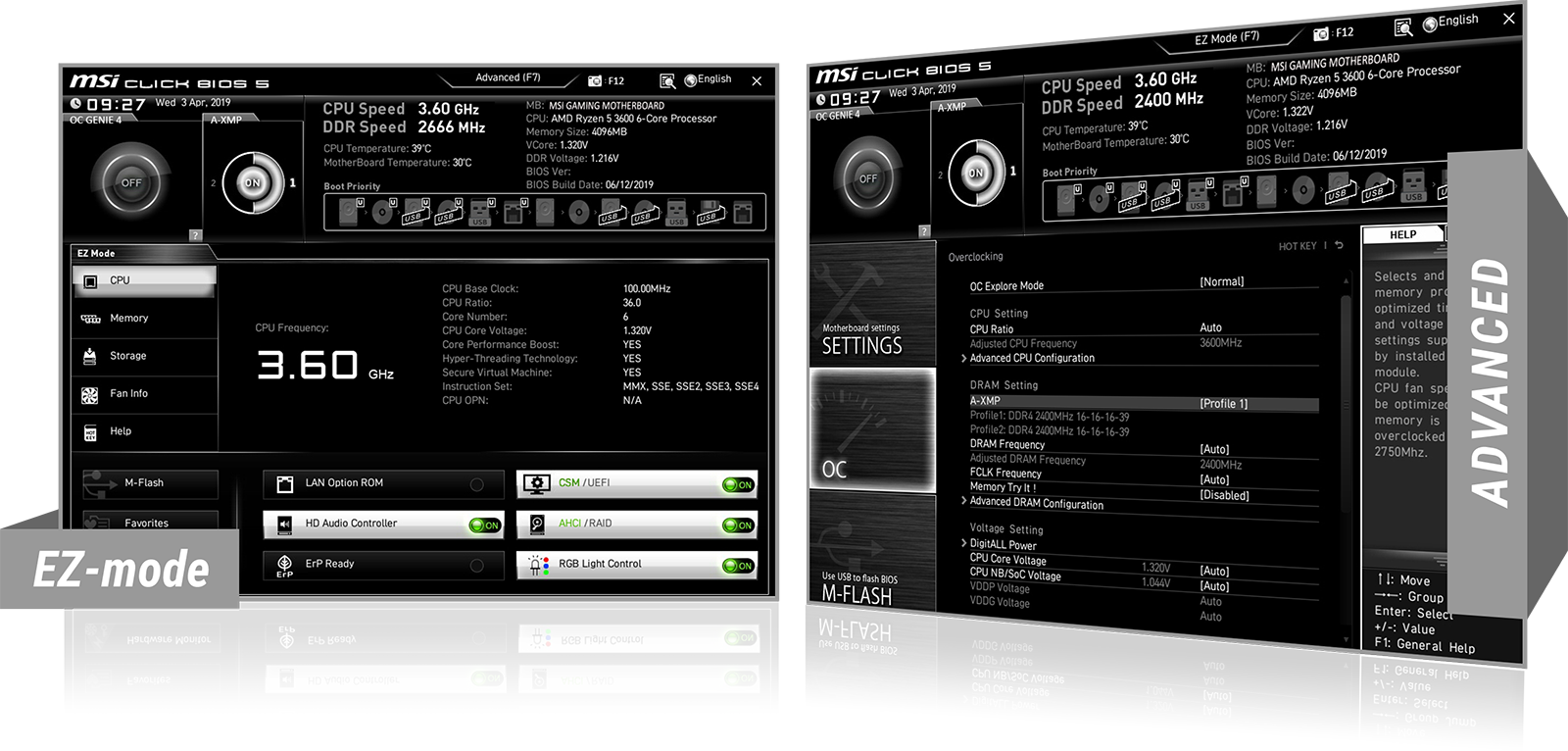

CLICK BIOS 5

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

GAME BOOST

• Quickly overclock your CPU with a single button for more performance.

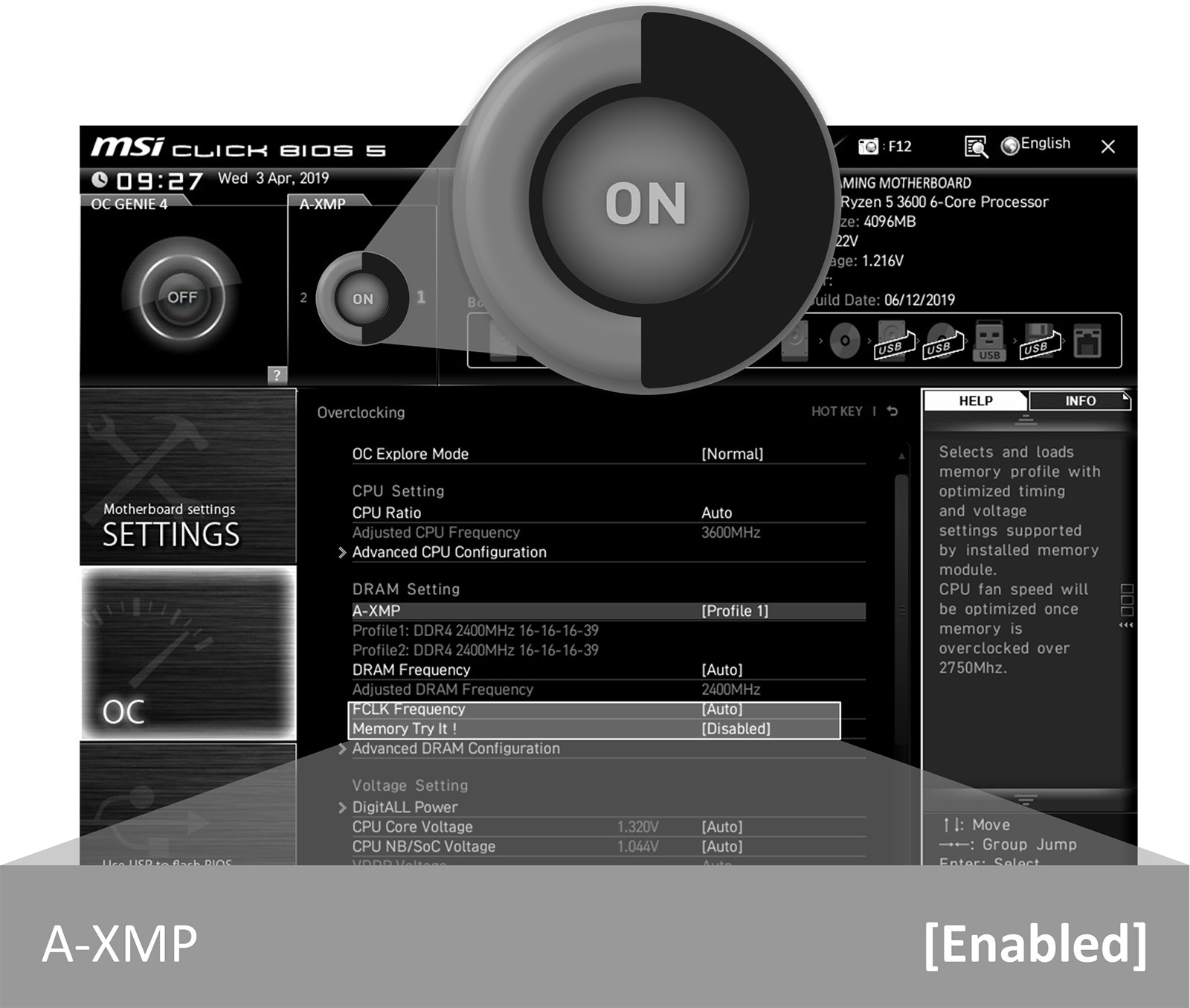

A-XMP

• Choose from a preset A-XMP profile and automatically overclock compatible DDR memory.

M-FLASH

• Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.

HARDWARE MONITOR

• Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

TOTAL FAN CONTROL

• Monitor and manage fan speeds for system and CPU fans.

SECURE ERASE+

• Wipe an SSD with an optimized formatting algorithm and enjoy an SSD with maxed free space!

MEMORY TRY IT

• Get extreme speed out of your system memory and get more performance.

M.2 Genie

• Quickly and easily set up a RAID 0 array for M.2 and U.2 SSDs with this automated utility.

SEARCH & FAVORITES

• A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

ENHANCED PERFORMANCE

High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether youre a gamer, prosumer, or PC enthusiast.

CPU

HIGH POWER EFFICIENCY

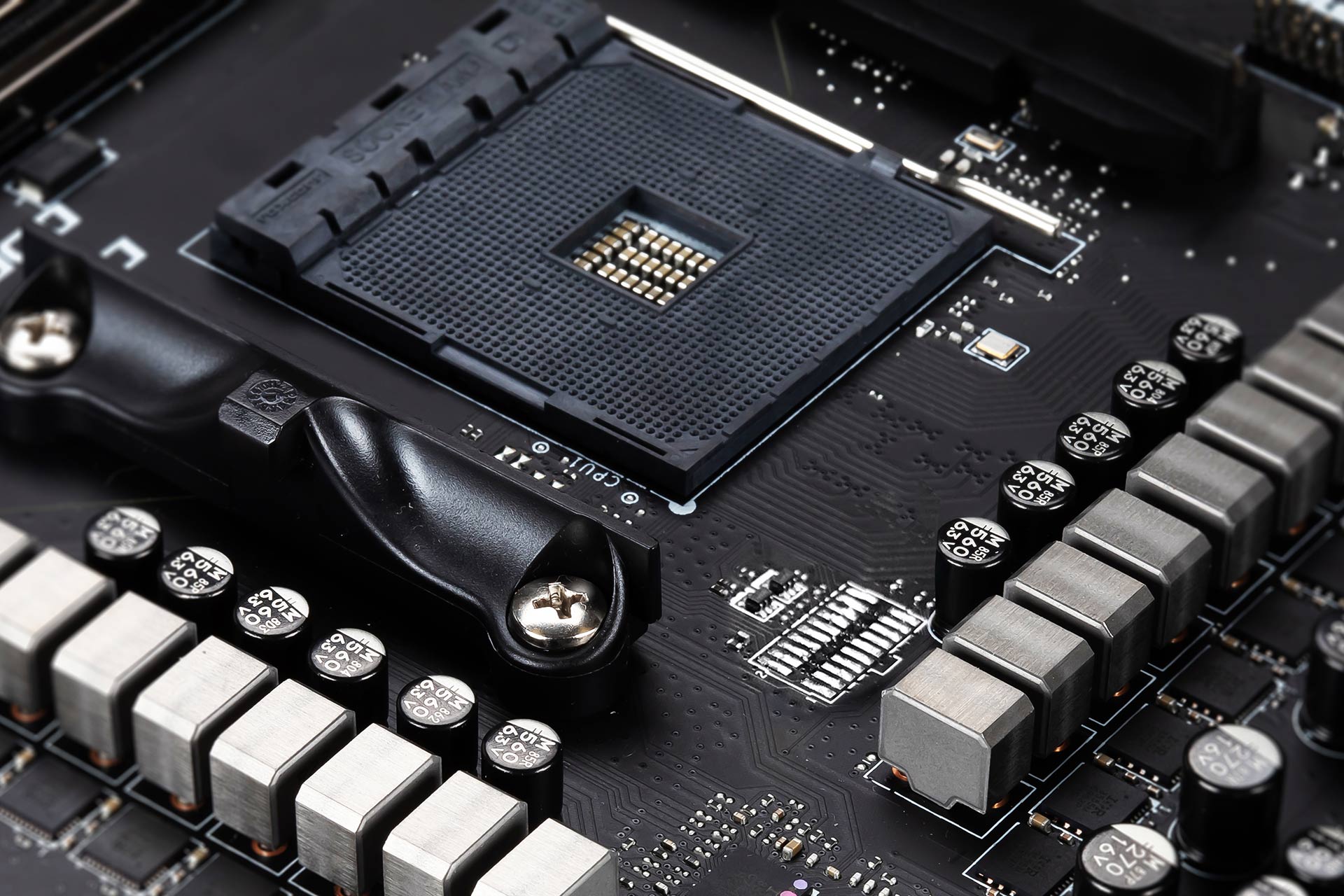

Power on your RYZEN processor with optimized circuit layouts and high quality power delivery parts for an incredibly stable operation.

CORE BOOST

Core Boost is the latest advancement of MSIs motherboard CPU power delivery system. A reserved zone of premium power delivery components on an optimized circuit design results in a highly efficient power system capable of precise current output to the CPU.

MORE FOR PERFORMANCE

LOAD-LINE CALIBRATION

• What you set, is what you get! LLC options let you stabilize CPU voltage under any load.

OVERVOLTAGE PROTECTION

• Mechanisms prevent potential short-circuit damage to the CPU and other critical components.

DIGITAL POWER DESIGN

• A fully digital electrical power design allows for pin-point precise and undistorted current delivery to the CPU.

DOUBLE POWER CONNECTORS

• Two 8-pin connectors deliver adequate power even for an overclocked multi-core CPU.

MEMORY

UNMATCHED MEMORY PERFORMANCE

MSI takes memory stability and performance to the extreme. Weve designed an optimized memory circuit design for reliability and tested compatibility extensively in partnership with major memory manufacturers.

A HUGE STEP OF DDR PERFORMANCE

MSI OC LAB does not merely work hard on extreme overclocking. Compare to X470 motherboard memory support, MSI does have great improvement on performance and efficiency.

LOWER LANTENCY AND MORE EFFICIENCY

• X570 with 3rd Gen Ryzen processors - Up to 4800MHz
• X470 with 2nd Gen Ryzen processors - 3600MHz

FOR HIGHER MEMORY SPEED: DDR4 BOOST 2

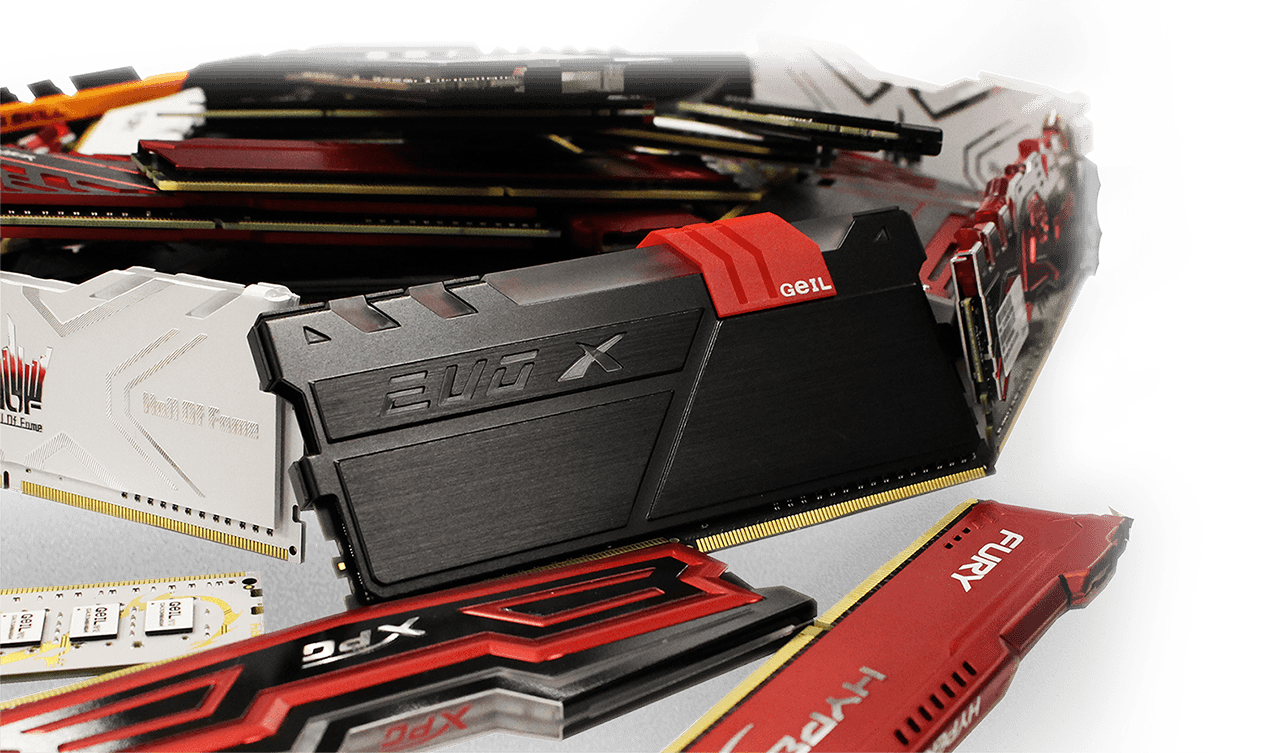

Besides optimized PCB design, MSI OC lab has also co-worked with world-known memory brands, pushing memory speed to a peak. MSI X570 motherboards are going to free the these selected memories performance with stability.

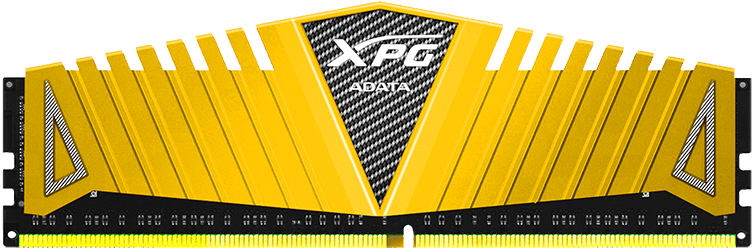

A-DATA

• AX4U360038G17-DRZ
• AX4U360038G17-SRZ

DRAGON ALLIANCE

• THESE SELECTED DDR MODULES PASSED CRITICAL TESTS, THEY ARE HIGHLY COMPATIBLE WITH MSI X570 MOTHERBOARDS.

EASY OVERCLOCKING WITH A-XMP PROFILES

Choose from a preset A-XMP profile in CLICK BIOS 5 and automatically overclock compatible DDR memory. The MSI OC lab has tested and certified these settings for speed and stability.

STORAGE

FAST AND FUTURE-READY STORAGE

Connect any ultra-fast storage device and get into the game sooner.

2X 64 Gbps 6X 6 Gbps

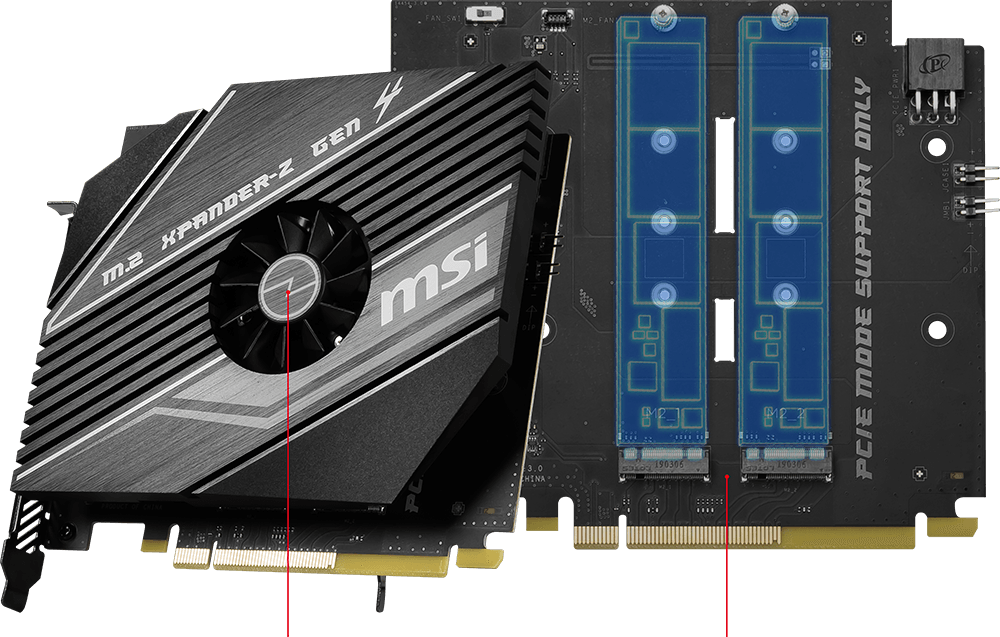

M.2 XPANDER-Z GEN 4

Add more high-speed SSDs with the included M.2 XPANDER-Z GEN 4 add-in card.

• Exclusive graphic card level thermal solution for the maximum performance
• The PCI-Express card offers two extra M.2 with latest Gen 4 solution

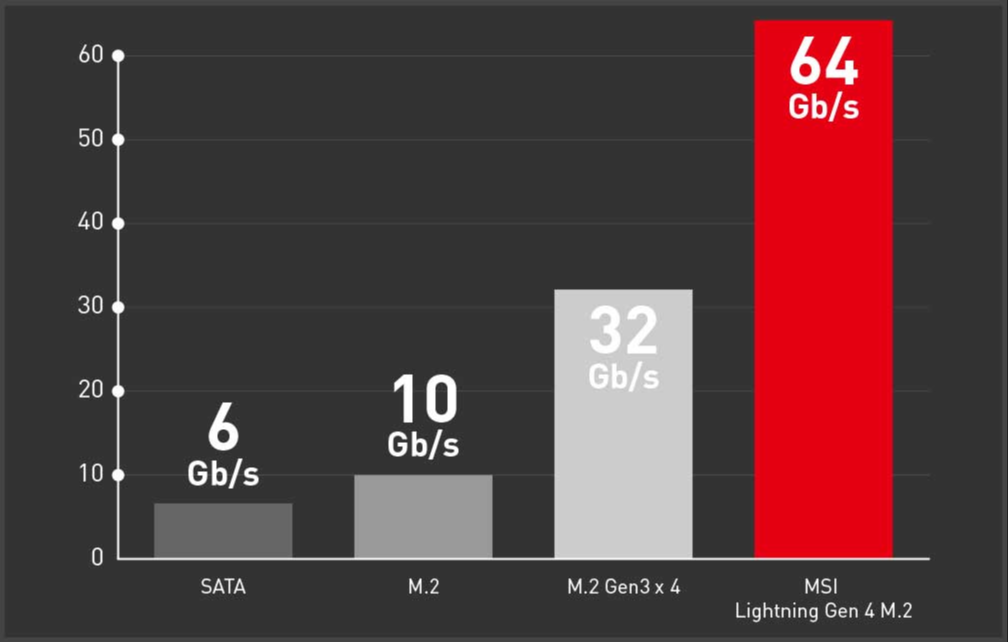

LIGHTNING GEN 4 M.2

Utilizing 3rd Gen Ryzen processors, MSI X570 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

BOOST YOUR STORAGE PERFORMANCE

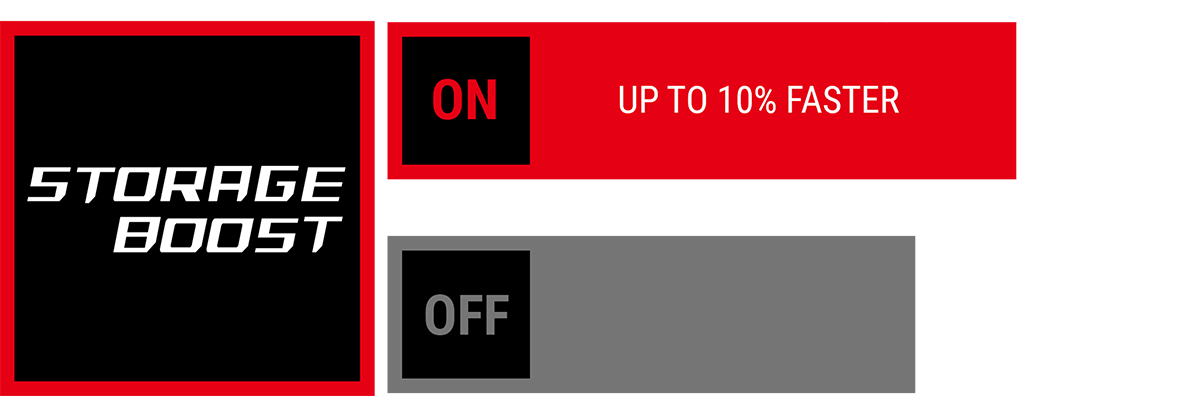

Enabling the Storage Boost tool will automatically check and optimize SSDs, keeping them fast with maximized storage performance.

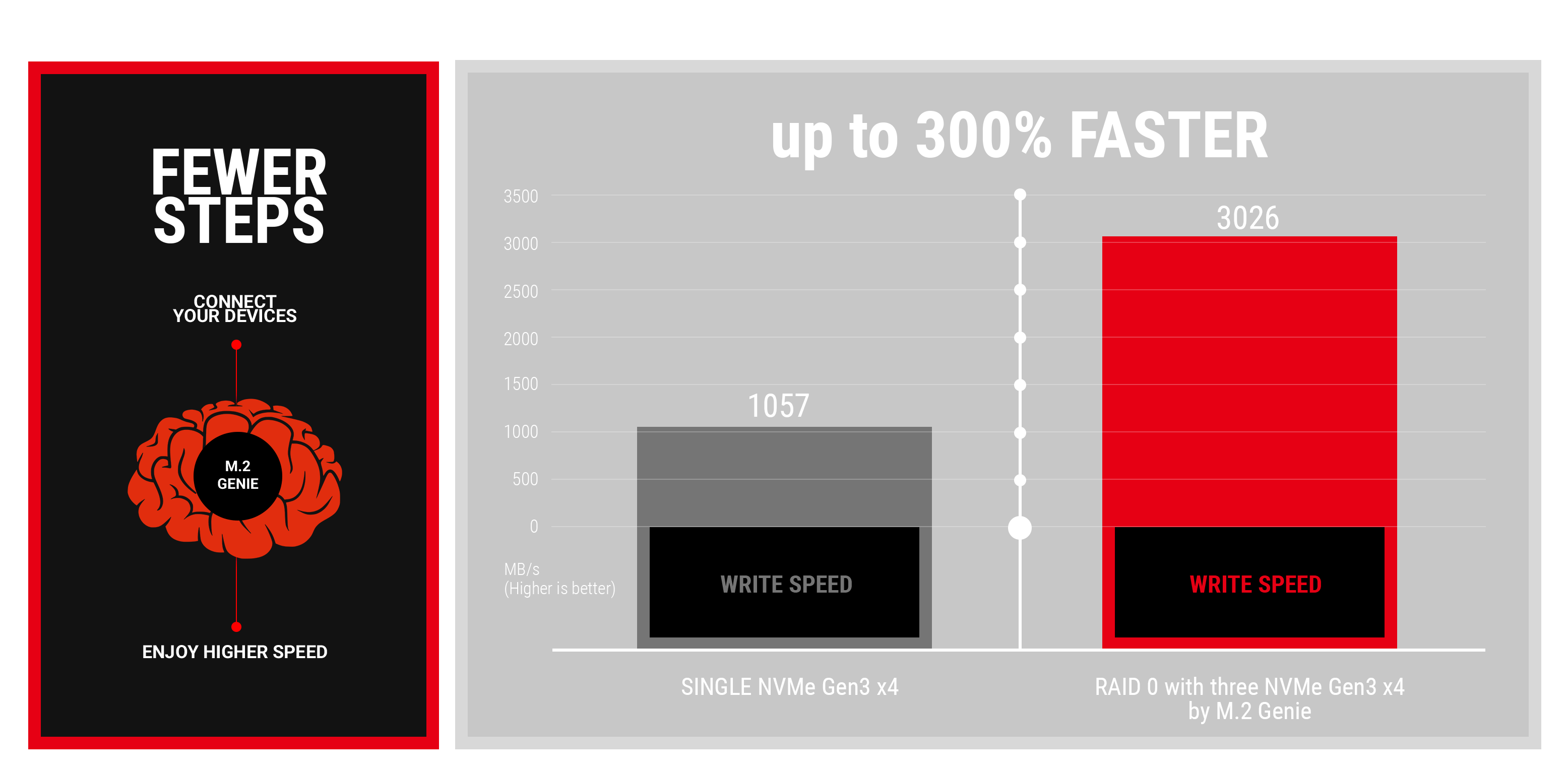

EASY RAID SETUP WITH M.2 GENIE

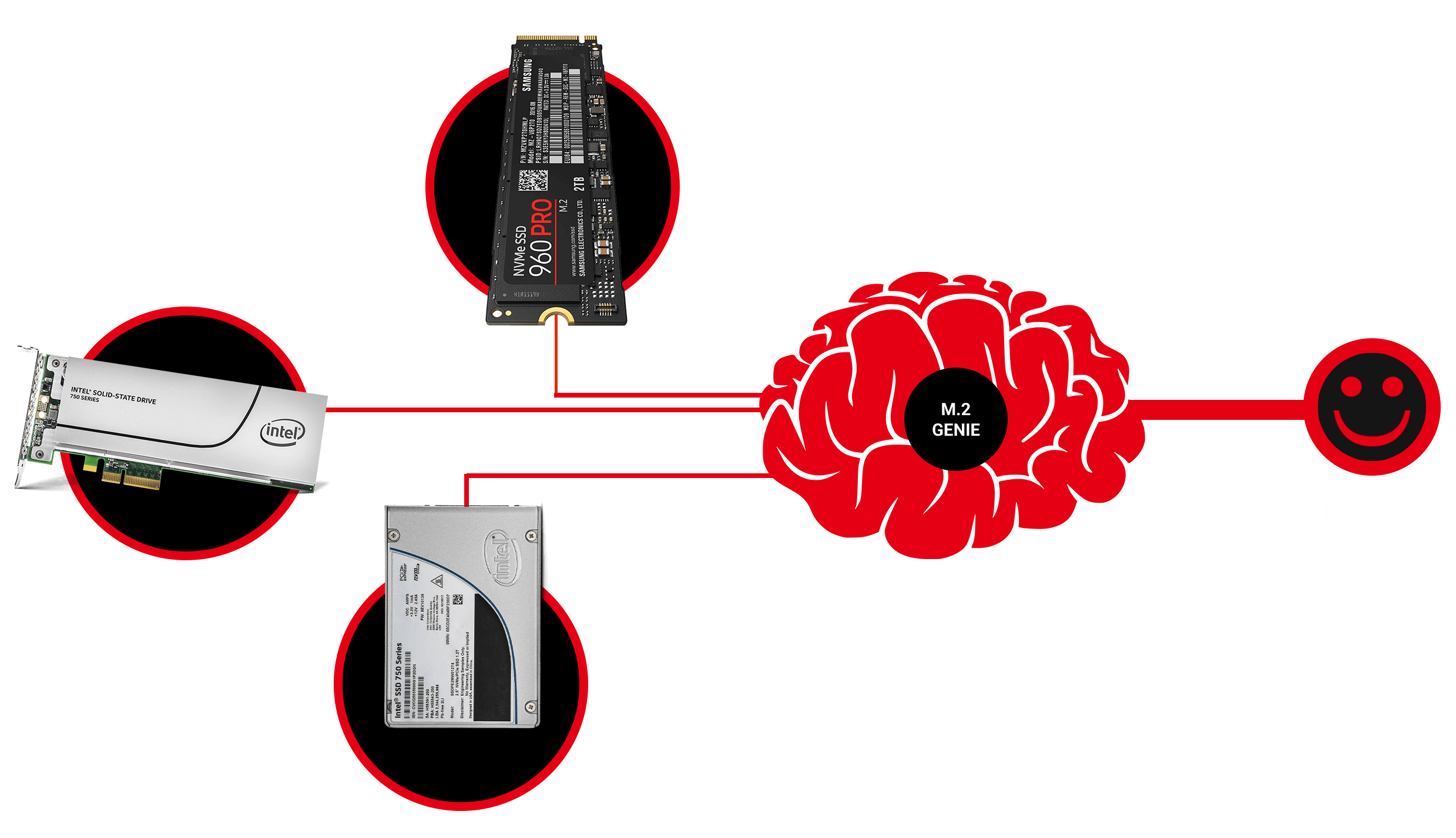

The M.2 Genie utility takes the work out of setting up M.2 SSDs in a RAID 0 array. Drive your data transfer to extreme speeds without the challenge of a tricky setup and configuration.

EASIER                                                                     FASTER

FLEXIBLE

USB

MAXIMIZE YOUR USB DEVICE PERFORMANCE

Plug in and start moving files lightning fast with high-speed USB, supported by all the latest connectors and boost tools.

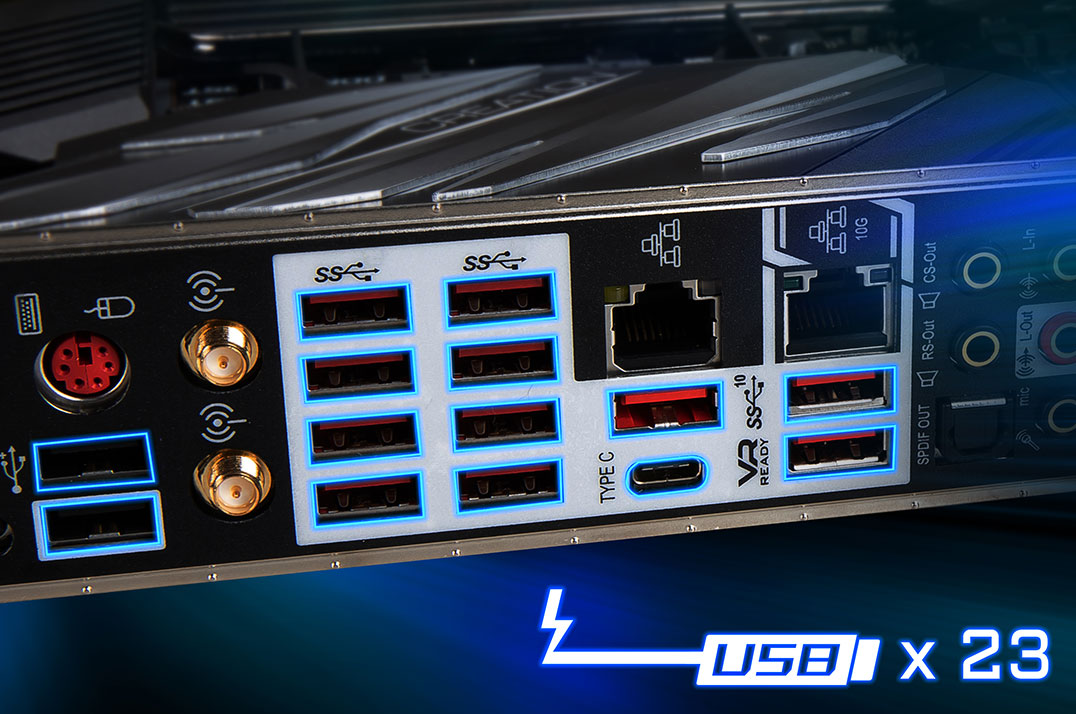

PLENTY OF USB

Connect your professional equipment to PRESTIGE X570 CREATION with support for up to 23 individual USB ports including Type-C.

1. Keyboard
2. Mouse
3. Speaker
4. Headset
5. WebCAM
6. Graphics tablet
7. Printer
8. Scanner
9. Digital camera
10. Pen drive
11. Mobile phone
12. Portable charger
13. Card reader
14. USB light
15. USB fan

MORE STABILITY WITH AMD TURBO USB 3.2 GEN2

The latest USB standards and protocols are supported including USB 3.2 GEN2.

IN-GAME ADVANTAGE

MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one.

CONNECTIVITY

DOMINATE THE GAME WITH THE LOWEST LATENCY

Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Built with high quality components, MSI GAMING LAN is tuned to deliver the best online gaming experience without lag.

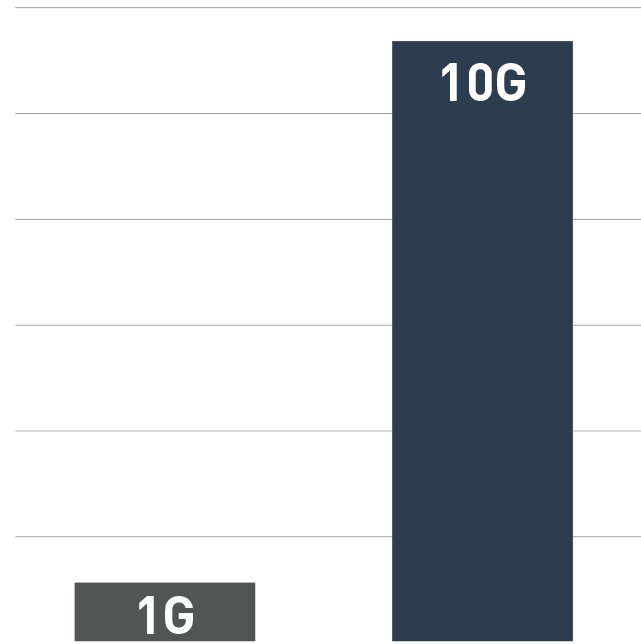

10G SUPER LAN SOLUTION

Onboard 10G Super LANsupports high-bandwidth, high-density and low-latency networks. It is the best solution for demanding creators, designers and power users to transfer the 4K videos, the huge size pictures and other large files in a fraction of the time.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way.

LOW LATENCY LAN POWERED BY INTEL®

This model comes equipped with a premium network solution from Intel. The high quality Gigabit LAN networking component is optimized for professional and multimedia use with outstanding performance to deliver a secure, stable and fast network connection.

AUDIO

SOUND THAT PULLS YOU INTO THE GAME

Deliver the highest sound quality through the use of premium quality audio components and get the most immersive sound experience when gaming. MSI motherboards let you enjoy breathtaking, gaming-changing sound.

AUDIO BOOST

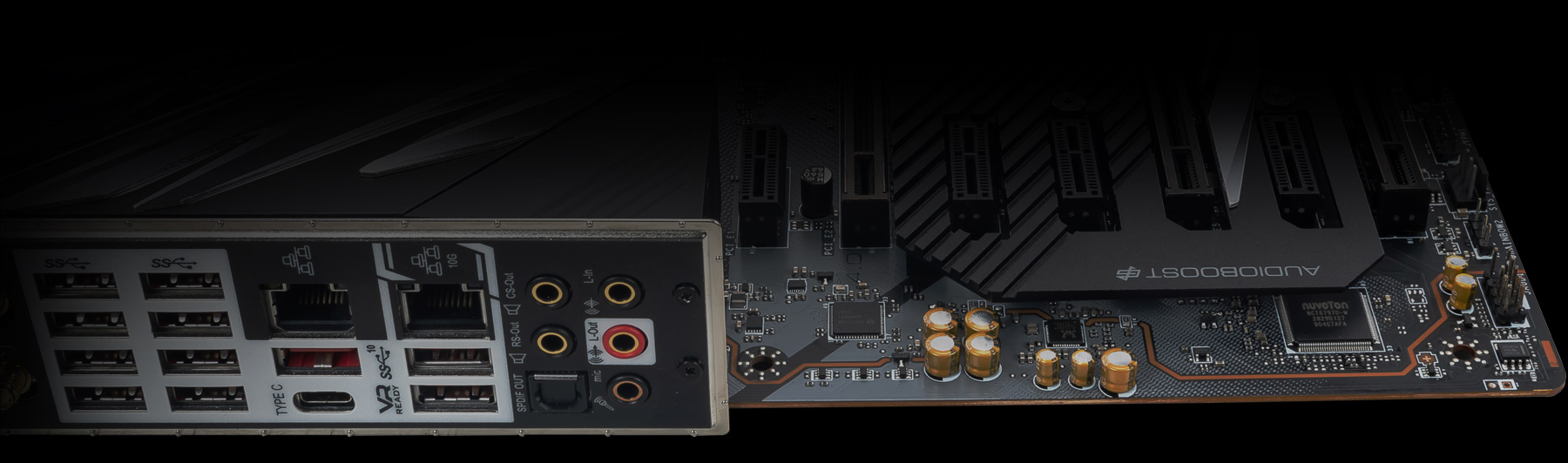

ISOLATED AUDIO DESIGN

Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.

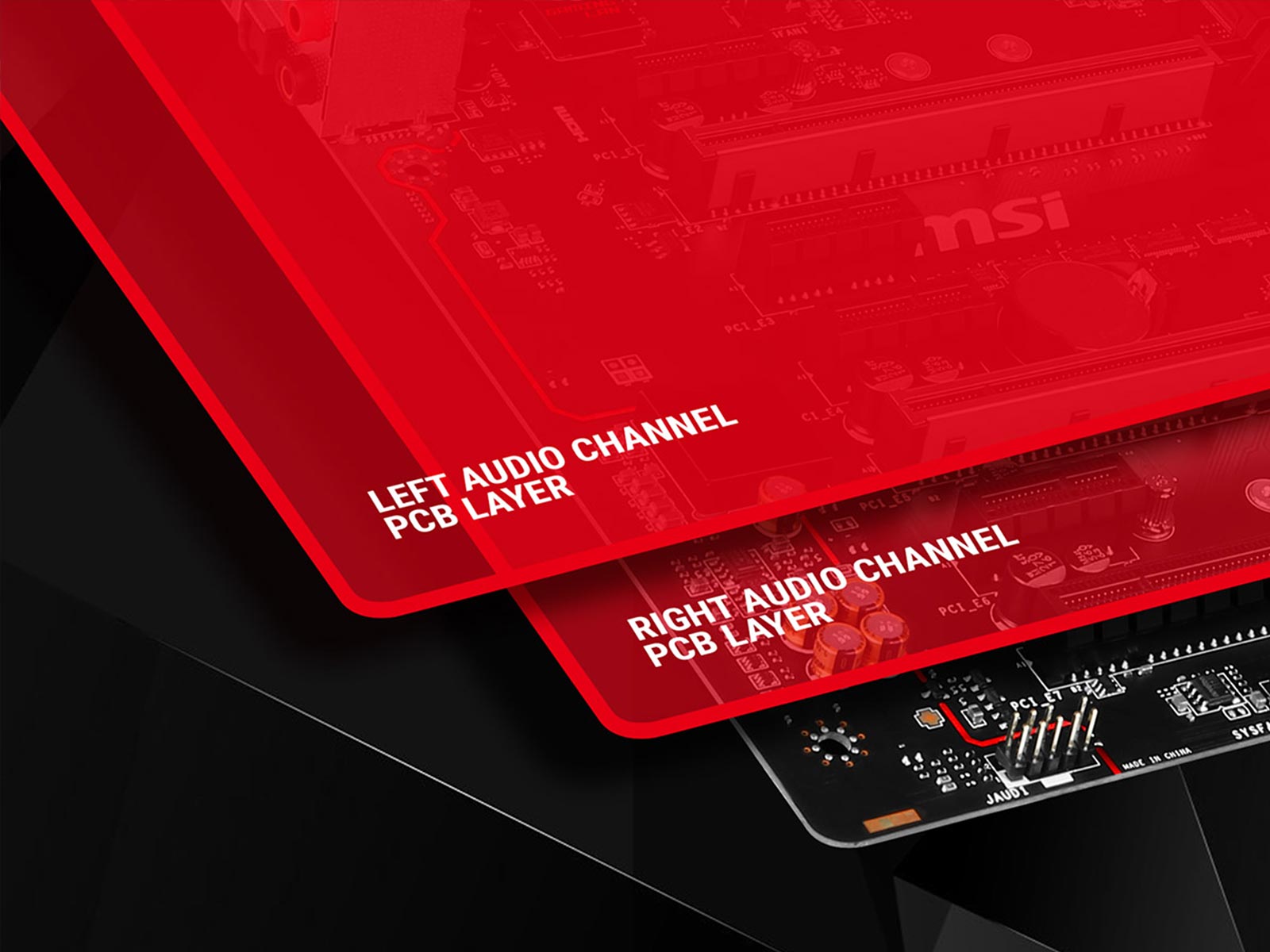

SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS

Audio circuits laid on separate layers in the PCB ensure equally pristine sounding audio for both left and right audio channels.

ALL NEW NAHIMIC 3 - FOR NEXT LEVEL AUDIO IMMERSION

Immerse yourself with Nahimic 3 and enhance any audio playback into unreal experiences. Infuse your choice of enhancements including 3D surround sound and tune audio settings through a simple and intuitive new menu interface.

GET CLEARER ORDER WITH VOICE BOOST

Hear your teammates perfectly with Voice Boost enabled. Game audio is automatically reduced when teammates speak and set back to normal when no one is speaking.

DE-POP PROTECTION

A de-pop filter eliminates loud popping noises that occur when devices are plugged/unplugged or when the PC is turned on/off.

DEDICATED HEADPHONE AMPLIFIER THAT AUTO-DETECTS IMPEDANCE

A dedicated headphone can drive audiophile headphones up to 600 impedance, delivering studio-grade sound quality from your gaming PC. Audio Boost 4 automatically detects the optimal impedance and adjusts the output for the best sound quality.

EXHILARATING AND INSPIRING

Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.

INDUSTRIAL DESIGN

CREATE YOUR MASTERPIECE

PRESTIGE series motherboards have been crafted for demanding creatives and professionals to realize any vision. Creators seeking perfection will find the tailor-made CREATION motherboard a masterpiece in itself.

MYSTIC LIGHT

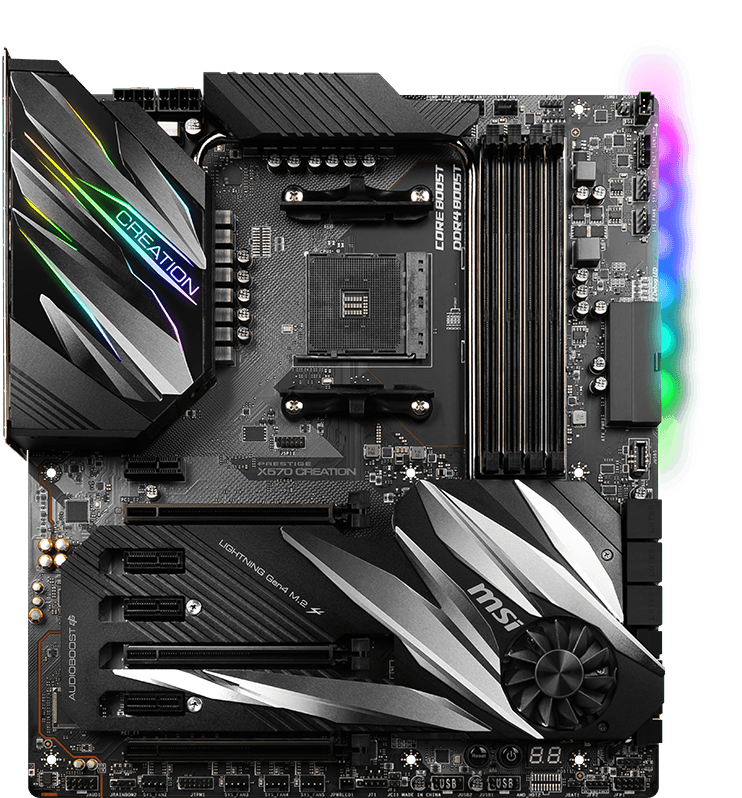

Illuminate with MSI Mystic Light and bring the motherboard RGB lighting to life. Choose from millions of colors and sync across compatible devices.

• 16.8 MILLION COLOR CUSTOMIZABLE
• 29 LED EFFECT

MYSTIC LIGHT ON MOTHERBOARD

Splash on some color and vibrant RGB lighting effects using MSI Mystic Light.

MYSTIC LIGHT EXTENSION

Extend vibrant RGB effects from the motherboard to attached compatible RGB lighting including LED strips.

JRGB

The JRGB pin header provides the max 3A(12V) power supply for the up to 3 meters 5050 RGB LED strips showing single color.

MYSTIC LIGHT SYNC

Control compatible RGB peripherals with the Mystic Light application. An open source SDK is available for developers to integrate Mystic Light with RGB devices.

LOYAL COMRADE

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

COMPONENTS

BUILT ON EVERLASTING QUALITY

Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.

Steel Armor protects the most vulnerable point of memory transmission by shielding it from electromagnetic interference (EMI) and reinforcing the DIMM slots from twisting and bending.

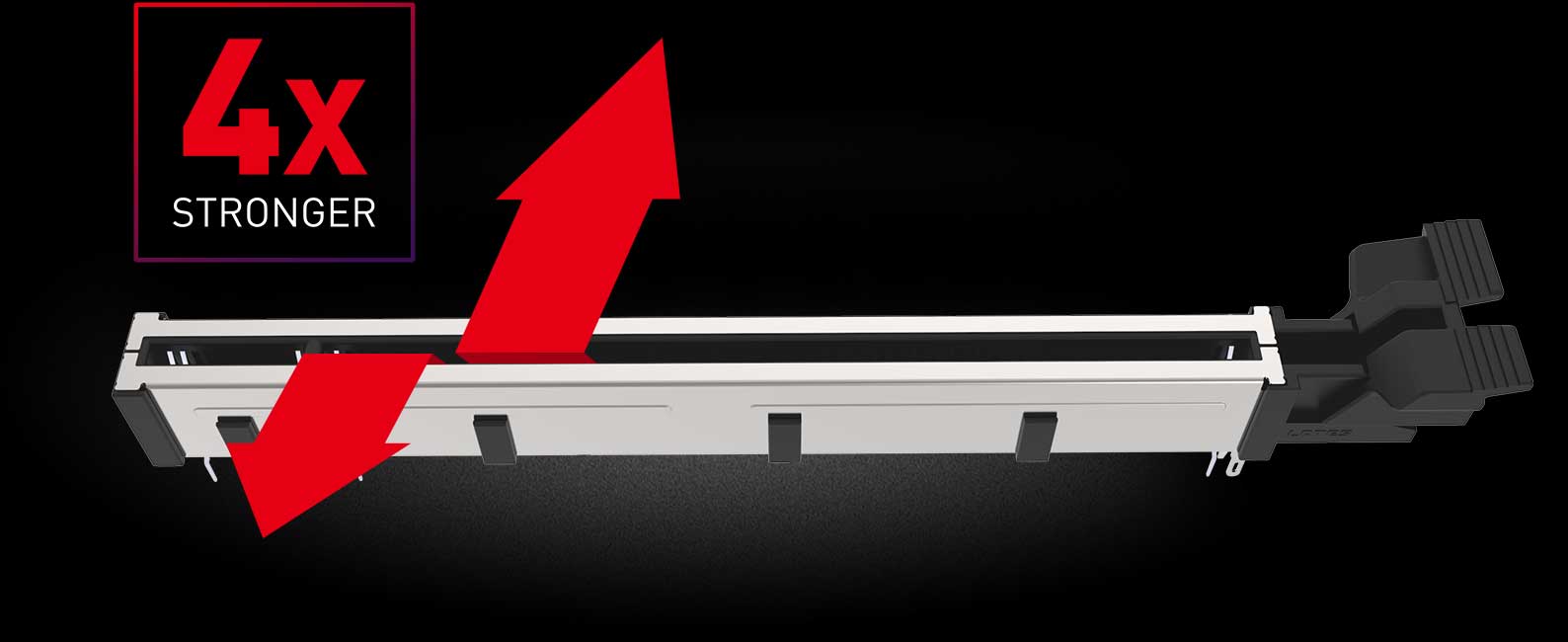

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

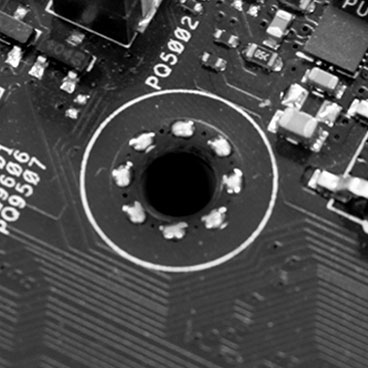

REINFORCED, HEAVY SOLDERED CONNECTIONS

NO STRENGTHENING

ULTIMATE MOTHERBOARD PROTECTION

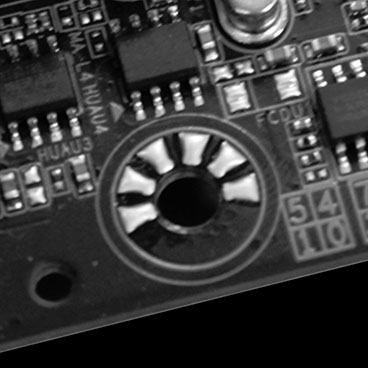

Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

MSI

DOBUBLE ESD PROTECTION BEST

BRAND A

SINGLE ESD PROTECTION AVERAGE

BRAND B

SEMI ESD PROTECTION POOR

SUPER STABLE GAMING WITH THE HIGHEST QUALITY COMPONENTS

MSI uses high quality components rated for reliable operation even under extreme conditions.

TITANIUM CHOKE II

Ti choke II has 30% improved power delivery efficiency compared to its predecessor, allowing for improved overclocking stability

DRMOS

DrMOS is a next-gen 3-in-1 Mosfet package capable of delivering more power at precise timings with fewer components.

HI-C CAP

Hi-C CAP is a small, but super-efficient capacitor with 93% energy efficiency. The short height lets them be located close to the CPU socket without blocking large coolers.

SOLID CAP

Japanese made Solid CAPs are built for high-reliability motherboards with their aluminum core design. These capacitors have low Equivalent Series Resistance (ESR) and are rated to work for more than 10-years.

HUMIDITY PROTECTION

TEMPERATURE PROTECTION

CIRCUIT PROTECTION

ESD PROTECTIONN

EMI PROTECTION

WINDOWS 10 CERTIFIED

With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 10.

MSI X570 motherboards are Microsoft Windows 10 certified. Enjoy compatibility with the latest version of Windows on MSI motherboards.

Specifications
