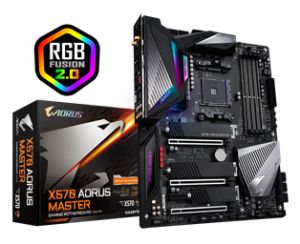

Gigabyte X570 AORUS MASTER (rev. 1.0) Motherboard

Overview

AMD X570 AORUS Motherboard with Direct 14 Phase Infineon Digital VRM, Fins-Array Heatsink & Direct Touch Heatpipe, Triple PCIe 4.0 M.2 with Thermal Guards, Intel® WiFi 6 802.11ax, ESS SABRE HiFi 9118, 2.5GbE+1GbE LAN, USB Type-C, RGB Fusion 2.0.

• Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• Direct 14 Phases Infineon Digital VRM Solution with PowIRstage
• Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
• Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards
• Intel WiFi 6 802.11ax 2T2R & BT 5
• Rear 125dB SNR AMP-UP Audio with ALC1220-VB & ESS SABRE 9118 DAC with WIMA Audio Capacitors
• Realtek2.5GbE + IntelGigabit LAN with cFosSpeed
• USB TurboCharger for Mobile Device Fast Charge Support
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
• Front & Rear USB 3.2 Gen2 Type-C Headers
• Adopts a high quality ball bearing fan which guarantees 60,000 working hours.
• Integrated Base Plate & I/O Shield Armor
• Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

DESIGN CONCEPT DOMINANT IN DARKNESS

In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem

GET READY FOR AMD RYZEN 3000-SERIES

GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen Processors. The all-new design is a testament to GIGABYTE's dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.

AMD StoreMI Technology

GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI

• Making the PC experience fast, smooth and easy

• Optimizing computer responsiveness from system boot to application launch

• Offering SSD performance with HDD capacity at an affordable cost

• Quickly accessing key files by automatically learning users' computing behaviors

AORUS PERFORMANCE

Ultimate Power Design

To unleash the full potential of the 3rd Generation of AMD Ryzen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, the X570 AORUS is a true beast among motherboards.

• New generation Infineon PWM controller
• 12+2 vCore + SOC phases power design without PWM doubler
• 50A IR 3556 PowIRstage
• Lower temperature
• Lower temperature

X570 AORUS MASTER motherboard uses the latest new generation Infineon multiphase PWM controller, and a total of 14 phases for vCore and SOC, all with IR 3556 PowIRstage MOSFETs which are capable of providing at least 50A of power from each phase, for a total of 700A.

Additional 8+8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from new AMD Ryzen 3000 series processors.

Direct 14 Phase Power Architecture

X570 AORUS ELITE motherboard uses an 12*+2 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new AMD Ryzen 3000 series processors.

Power Efficiency & Voltage Ripple Graph

2X Copper PCB

GIGABYTE's exclusive 2X copper PCIe 4.0 Ready PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

Advanced Thermal Design

X570 AORUS MASTER reaches a perfect balance between style and performance by combining the media acclaimed Fins-Array heatsink, a heatpipe, and a thermal baseplate, to provide 30% lower MOSFET temperatures for enthusiasts, overclockers and professional gamers

Fins-Array Heatsink with Direct Touch Heatpipe and High Thermal Conductivity Pad

X570 AORUS MASTER uses Fins-Array Heatsink which increases the heat dissipation area by 300% compared to traditional heatsinks of the same size. Direct Touch Heatpipe helps transfer heat from MOS fins. By using LAIRD 1.5mm thick, 5W/mK high thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time period.

Smart Chipset Fan Heatsink

Smart Fan

Provides 3 different operating modes to minimize noise and extend the fans longevity. Silent, Balanced and Performance modes, choose the mode that suits you the best in any situation.

High Durability

X570 motherboards adopt a high quality ball bearing fan which guarantees 60,000* working hours.

Base plate + I/O Shield Armor

Durable design and easy installation

• With an integrated base plate, GIGABYTE Motherboards give users a strong foundation to build their Gaming PCs.
• With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.
• Integrated Q-Flash Plus/ Clear CMOS buttons on the I/O shield enable users easier debugging and operation.

Full PCIe 4.0 Design

X570 AORUS pushes the envelope once again by featuring Full PCIe 4.0 Design, including PCIe 4.0 slots, PCIe 4.0 M.2 connectors and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts.

PCIe 4.0 Hardware

X570 AORUS Series Motherboards feature built-in PCIe 4.0 slots, delivering superior bandwidth compared to that from previous generation technology. Performance of Graphics cards and PCIe NVMe AIC SSDs will not be limited by insufficient bandwidth.

PCIe 4.0 slots have higher slot signal stability and lower impedance, maximizing PCIe bandwidth while also being backwards compatible with PCIe 3.0.

AORUS M.2 Thermal Guard designed for Gen 4 SSD

Triple PCIe 4.0 M.2 Connectors with Thermal Guards

AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems potential.

Triple PCIe 4.0 SSD in RAID 0

Extreme Performance with PCIe 4.0 x4 NVMe PCIe SSDs

X570 AORUS motherboards offer the industrys best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 9840 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

AORUS M.2 Thermal Guard designed for Gen 4 SSD

GIGABYTE Ultra-Efficient M.2 Thermal Guard

For upcoming ultra fast PCIe 4.0 SSDs, compromised performance is not acceptable. Well-managed thermal performance is particularly important for high-performance Gen 4 NVMe SSDs.

GIGABYTE provides improved thermal solutions for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks on high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Thermal Throttling As Temperature Rises

Support for DDR4 XMP Up to 4000MHz and Beyond*

AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

Broad DDR4 Compatibility with Support List of 1000+ DDR4 Validated!

AORUS partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with AORUS Motherboards. AORUS has verified over 1000+ different modules to ensure performance in a AORUS built system.

PCIe 4.0 Turbo B-Clock Tuning IC

The PCIe 4.0 Turbo B-Clock Tuning IC on X570 AORUS motherboards enables overclockers to change their BCLK frequencies to their desired values. With the new linear range adjustment option of the Tuning IC, ranges from 100MHz to 300MHz are now possible.

AORUS AUDIO

ESS SABRE reference DAC ES9118

ESS SABRE reference DAC (ESS 9118) Hypertream Dynamic Range (SNR 125dB) High-Res music (32bit, 192KHz PCM) Super low THD+N (THD+N -112db)

ALC1220-VB Immersive Gaming ViBes

All New Realtek High-End HD Audio Codec

ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

No More Confusion During In-Game Voice Chat

Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!

True High-Fidelity Music (Realtek ALC1220-VB)

Paired with Realtek's latest ALC1220 Codec, playback for surround sound audio and DSD enabled music are easier than ever.

Audiophile Grade Capacitors (WIMA , Nichicon Fine Gold)

To ensure a studio-quality experience, WIMA and Nichicon Fine Gold capacitors are used to provide power to the overall system.

Precision Audio Stream (TXC OSCILLATOR)

Provides precise time triggers to Digital-Analog Converters. High resistance to corrosion and oxidation.

AORUS CONNECTIVITY

Next Generation Connectivity

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. X570 AORUS motherboards provide all next generation network, storage to keep you up to speed.

New Introduce Intel® WiFi 6 802.11ax + BT 5 Module

Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Benefit of WiFi 6:

1. 5.5X throughput than 802.11ac 1x1*
2. 4X better network capacity, no traffic jams especially in those dense area with lots of devices
3. Network efficiency increase for better user experience

AORUS Antenna Supports Dual Band with Better WIFI Signal

• All new antenna supported dual band 802.11ax/ac 2.4GHz & 5GHz.
• Better signal strength compared to traditional antenna design
• AORUS Antenna with smart antenna function for the best WIFI signal transmitting
• Multiple angle tilt and magnetic base for the best signal strength direction and location

First Adopter on 2.5GbE LAN Onboard

2X Faster than ever

• Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience
• Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet

Intel GbE LAN with cFosSpeed Internet Accelerator Networking

IntelGbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

USB TurboCharger

GIGABYTE patent pending USB TurboCharger technology allows users to recharge their mobile devices with stunning speed, up to 50% in less than 30 minutes*. By connecting Front USB 3.2 Gen1 Type-A cable of chassis to our motherboard, USB TurboCharger can recharge both Android devices with QC 3.0 and Apple devices with Apple Fast-Charge function.

USB Type-C Front Panel Connector

Equipped with next generation connectivity AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C header for USB 3.2 Gen2 makes access convenient when connecting a USB 3.2 Gen2 drive or charging your new mobile device.

Connecting the Future - USB Type-Câ„¢

AMD's native USB 3.2 Gen2 provides USB 3.2 Gen2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen2 protocol is available over the new reversible USB Type-C and the traditional USB Type-A connector for better compatibility over a wider range of devices.

AORUS STYLE

RGB Fusion 2.0

With AORUS Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on X570 Series AORUS Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Motherboards will support 5v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

RGB Fusion 2.0 Ready

With a dazzling array of products supported, RGB Fusion 2.0 is the software that brings it all together, letting your accessories synchronize to the same beat. Customize all your LEDs how you like have them match, dazzle and impress.

RGB Fusion 2.0 Software

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

Sync with one click

Individual control as you wish

GIGABYTE RGB Fusion APP

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

AORUS COOLING

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Temperature Sensors

Hybrid Fan Headers

• 7 Fan / Water Pump Connectors
• 7 Internal Temperature Sensors
• 2 External Temperature Sensors
• 1 Noise Detection Cable
• All Hybrid Fan Headers
• Interoperable Fans and Sensors
• Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
• Intuitive UI for Fan Control

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperatureall of it can be customized to your liking.

Intelligent Fan Control Design

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensorsgiving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

Noise Detection

With the new Noise Detection function, you can monitor noise level of all devices including fans, CPU coolers, graphics card, etc. in real time, and you can determine how fast your fan speed needs to be. Our bundled Noise Detection cable doesnt include any sound recording function, it simply detects sound pressure while protecting your privacy.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

AORUS ULTRA DURABLE

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card.

With GIGABYTE Q-Flash Plus, you dont need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and youre good to go!

Solid Pin Power Connectors

X570 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

• Larger contact area for electricity
• More metal quantity to sustain higher power and generated heat
• Ultra durable and longer lifespan

Ultra Durable PCIe Armor

Industry Leading Ultra Durable PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Ultra Durableâ„¢ Memory Armor

AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference

GIGABYTE Patented Double Locking Bracket

AORUS EXCELLENCE

GIGABYTE BIOS & Applications

New User Interface

• All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

• Add constantly used items into the favorite menu for quick access.

Storage Information

• Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

• List all changes before saving and exiting bios. Quickly review overall settings modification.

Optimized Memory Installation Reminder

• Displays correct installation reminder message when user installs two memory modules but runs single channel mode.

Intuitive Load Line Curve

• Clearly show each loadline calibration setting in an intuitive curve graph.

APP CENTER

GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.

EasyTune

GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

@BIOS

The GIGABYTE @BIOS app allows you to update your systems BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE serversor you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chatskeeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

Specifications
