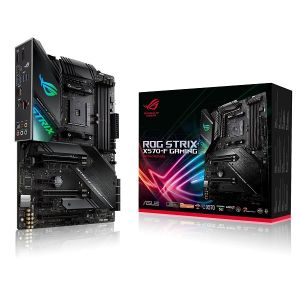

Asus ROG Strix X570-F Gaming Motherboard
Overview
AMD X570 ATX gaming motherboard with PCIe 4.0, Intel Gigabit Ethernet, 14
power stages, dual M.2 with heatsinks, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync
RGB lighting.
- AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzenâ„¢ processors to maximize
connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
- Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB
headers and addressable Gen 2 GRB headers
- Optimal Power Solution: 12+2 power stages with ProCool II power connector,
alloy chokes and durable capacitors to support multi-core processors
- Comprehensive cooling: Active chipset heatsink, MOS heatsink with 8mm
heatpipe, dual on-board M.2 heatsinks and a water pump + header
- Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and
features dual M.2 and USB 3.2 Type-A and Type-C connectors
- Gaming networking: Intel Gigabit Ethernet, ASUS LANGuard and GameFirst
- 5-Way Optimization: Automated system-wide tuning, providing overclocking
and cooling profiles that are tailor made for your rig
- Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound
Unbound and Sonic Studio III to draw you deeper into the action
- Easy DIY: ROG-patented pre-mounted I/O shield, ASUS SafeSlot, ASUS Node
connector and BIOS Flashbackâ„¢ for a friendlier building experience
The ROG Strix X570-F Gaming motherboard delivers the quintessential ROG
experience with a compelling mix of features, comprehensive cooling options and
undeniable style that provide the ideal foundation for building a powerful ATX
gaming system. Topped off with a futuristic new design aesthetic with on-board
RGB lighting and a cyber-text pattern, ROG Strix X570-F Gaming equips you with
all you need to build a formidable weapon to rise above the rest.
DESIGN & CUSTOMIZATION
The arrival of ROG Strix X570-F Gaming brings a brand-new design that
features unique rainfall and cyber-text patterns. Together with the most diverse
ecosystem of components in the industry, ROG Strix X570-F Gaming makes creating
and customizing a gaming rig that reflects your personal style wonderfully
easy.
STRIKING NEW DESIGN
ROG Strix X570-F Gaming boasts a striking new design with an intricate
rainfall pattern that cuts diagonally across the board and, along with the
iconic ROG logo, is infused with Aura RGB lighting that glows in a brilliant
array of vibrant colors. Futuristic cyber-text patterns provide an additional
stylish accent, rounding out a design that proudly proclaims the board's gaming
identity.
OUTSHINE THE COMPETITION
ROG Strix motherboards deliver sterling performance, accented by aesthetics
to Outshine the Competition. ASUS Aura offers full RGB lighting control with a
variety of functional presets for the built-in RGB LEDs as well as strips
connected to the onboard RGB header and it can all be synced with an
ever-growing portfolio of Aura-capable ASUS hardware.
ADDRESSABLE GEN 2 RGB HEADER
ROG Strix X570-F Gaming's Addressable Gen 2 RGB headers are now capable of
detecting the number of LEDs on second-gen addressable RGB devices, allowing the
software to automatically tailor lighting effects to specific devices. The new
headers also offer backward-compatibility with existing Aura RGB gear.
Addressable Gen 2 device: Effect is perfectly matched to the LEDs on the
strip, moving smoothly from end to end.
PERFECT SYNCHRONIZATION
The ASUS Aura ecosystem is in the ascendancy, with an extensive and growing
list of ASUS products now offering Aura Sync compatibility along with loads of
compatible accessories and kits available through partners. Your ROG Strix
motherboard's built-in Aura RGB lighting easily syncs with PC cases, memory
modules, coolers and RGB LED strips from a broad selection of well-known
manufacturers. ASUS Aura software provides simple and intuitive lighting
management.
CERTIFIED COMPATIBILITY
Having the freedom to pick and choose the parts that go into your machine is
at the heart of PC DIY. That's why ROG Strix undergoes an extensive
certification program focused on providing the very best compatibility with the
widest range of components and devices. Our extensive list of
guaranteed-compatible components is an invaluable aid to building a ROG Strix
gaming rig. It specifies thousands of compatible parts, and it includes a
dedicated Qualified Vendor List (QVL) for memory so you can build fuss-free.
THE ROG STRIX ECOSYSTEM AWAITS
Gear up with ROG Strix components, from graphics and sound cards, to mice and
keyboards, and up your game with complementary aesthetics, control and
compatibility and enjoy more choice than any competing brand.
TUNE YOUR RIG YOU WANT
The ROG Strix X570-F Gaming motherboard features firmware controls and
software utilities designed for all skill levels, making setup, tuning and
system maintenance simple. With options from overclocking and cooling to
managing network performance and audio characteristics, you can configure your
ROG Strix gaming build to perform the way you want.
5-WAY OPTIMIZATION
Take care of complex tuning with just one click. ASUS 5-Way Optimization
makes your PC smart by dynamically optimizing essential aspects of your system,
providing overclocking and cooling profiles that are tailored for your rig.
CPU-PERFORMANCE BOOST
The TurboV Processing Unit (TPU) is an intelligent onboard micro-controller
that provides an array of system-tuning features, including the ability to
fine-tune voltages, monitor system stats and adjust overclocking parameters.
ALL-AROUND ENERGY EFFICIENCY
With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings.
The EPU automatically optimizes power consumption and maximizes savings with
Away mode a smart setting that creates an extreme energy-saving scenario by
shutting down unused I/O controllers.
FLEXIBLE COOLING CONTROLS FOR AIR OR LIQUID
Enjoy comprehensive control over fans, water pumps and all-in-one (AIO)
coolers, via either Fan Expert 4 or our award-winning UEFI. Whether you're
cooling with air or water, Auto-Tuning mode intelligently configures all
parameters with a single click. There's also an Extreme Quiet mode, which
reduces all fan speeds to below the default minimum keeping your system
whisper-quiet when performing light tasks.
PRECISE DIGITAL POWER CONTROL
The Digi+ voltage-regulator module (VRM) delivers real-time control over
voltage droop, switching frequency and power-efficiency settings, allowing you
to fine-tune CPU voltage regulation for ultimate stability and performance.
TURBO APP
AMD's processors feature per-core tuning, and the ASUS Turbo app makes use of
this feature by letting you assign applications to specific processor cores,
prioritizing computing power where it's needed most.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure,
tweak, and tune your rig. It offers intelligently simplified options for
newcomers to PC DIY, as well as comprehensive features for seasoned
veterans.
Designed to simplify setup, EZ mode presents all the vital settings and stats
on a single page. With guided wizards, drag-and-drop functionality, and
one-click application of important settings, your rig will be up and running in
no time.
EZ MODE
EZ Tuning Wizard
- Streamline your RAID configuration for faster data retrieval and backups.
Intuitive graphical fan control
- Fine-tune individual fans simply by dragging a curve with the mouse.
SATA Information
- View SATA port details for easy device recognition.
Fast and easy clock adjustment
- Use the mouse to quickly change time and date settings.
Aura On/Off mode (Stealth)
- Easily enable or disable Aura RGB lighting or every onboard LED, for a
more subdued aesthetic.
When you're ready for a deeper dive, delve into the UEFI's Advanced mode and
take complete control. Advanced mode enables full control over every aspect of
the motherboard, and a built-in search function.
ADVANCED MODE
My Favorites
- Quickly find tuning options and add preferred tools to the list.
EZ Flash 3
- Flash the latest BIOS via the internet from within the BIOS.
SMART
- Check your storage device Self-Monitoring, Analysis, and Reporting
Technology logs to gauge reliability and identify potential failures.
GPU POST
- Automatically detect selected ASUS graphics cards to view detailed
information.
Secure Erase
- Restore your SSDs and NVMe storage to factory settings.
Last Modified Log
- Track the last change and save preferred profiles to a USB drive.
SATA Port Renaming
- Rename SATA ports for easy identification.
User Profile
- Port configuration settings between different BIOS versions or share them
with friends.
Q-Fan Control
- Configure the fan's operating speed manually or use pre-configured fan
profiles to quickly select Standard, Silent, Turbo or Full Speed modes. By
default, system fans will automatically switch to full speed if the
temperature reaches 75C.
THE POWER OF AMD
AMD X570 chipset
The AMD X570 chipset delivers outstanding overclocking capabilities for the
latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen /2nd and 1st Gen AMD Ryzen
with Radeon Vega Graphics Processors. It is optimized for multiple GPU
configurations, including NVIDIA SLI and AMD CrossFireX. It also supports x16
PCI Express 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s
SATA ports for faster data retrieval.
AMD AM4 Socket for 3rd and 2nd Gen AMD Ryzen / 2nd and 1st Gen AMD
Ryzen with Radeon Vega Graphics Processors.
The high-performance 3rd Gen AMD Ryzen processors are based on the next-gen
7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket
processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16
PCI Express 4.0/3.0 lanes for superb performance.
Specifications
CPU |
AMD AM4 Socket 3rd and
2nd AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics
Processors |
|
* Refer to
www.asus.com for CPU support list |
Chipset |
AMD
X570 |
Memory |
3rd Gen AMD Ryzen
Processors |
|
4 x DIMM, Max. 128GB,
DDR4
4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133
MHz Un-buffered Memory * |
|
2nd Gen AMD Ryzen
Processors |
|
4 x DIMM, Max. 128GB,
DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133
MHz Un-buffered Memory * |
|
2nd and 1st Gen AMD
Ryzen with Radeon Vega Graphics Processors |
|
4 x DIMM, Max. 128GB,
DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered
Memory |
|
Dual Channel Memory
Architecture |
|
* Refer to
www.asus.com for the Memory QVL (Qualified Vendors
Lists). |
Graphic |
Integrated Graphics in
the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
|
|
Multi-VGA output
support : HDMI/DisplayPort ports |
|
- Supports HDMI 2.0b
with maximum resolution of 4096 x 2160 @ 60 Hz |
|
- Supports DisplayPort
1.2 with max. resolution 4096 x 2160 @ 60 Hz |
Multi-GPU
Support |
3rd and 2nd Gen AMD
Ryzen Processors |
|
Supports NVIDIA 2-Way
SLI Technology |
|
Supports AMD 3-Way
CrossFireX Technology |
|
2nd and 1st Gen AMD
Ryzen with Radeon Vega Graphics Processors |
|
Supports AMD 2-Way
CrossFireX Technology |
Expansion
Slots |
3rd Gen AMD Ryzen
Processors |
|
2 x PCIe 4.0 x16 (x16
or dual x8) |
|
2nd Gen AMD Ryzen
Processors |
|
2 x PCIe 3.0 x16 (x16
or dual x8) |
|
2nd and 1st Gen AMD
Ryzen with Radeon Vega Graphics Processors |
|
1 x PCIe 3.0 x16 (x8
mode) |
|
AMD X570
chipset |
|
1 x PCIe 4.0 x16 (max
at x4 mode) *1 |
|
2 x PCIe 4.0
x1 |
Storage |
3rd Gen AMD Ryzen
Processors : |
|
1 x M.2 Socket 3, with
M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage
devices support |
|
2nd Gen AMD
Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors :
|
|
1 x M.2 Socket 3, with
M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage
devices support |
|
AMD X570 chipset :
|
|
1 x M.2 x4 Socket 3,
with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage
devices support |
|
8 x SATA 6Gb/s port(s),
|
|
Support Raid 0, 1,
10 |
LAN |
Intel I211-AT, 1 x
Gigabit LAN Controller(s) |
|
Anti-surge
LANGuard |
|
ROG GameFirst
Technology |
Audio |
SupremeFX 8-Channel
High Definition Audio CODEC S1220A |
|
- Dual OP
Amplifiers |
|
- Impedance sense for
front and rear headphone outputs |
|
- Supports :
Jack-detection, Multi-streaming, Front Panel
Jack-retasking |
|
- High quality 120 dB
SNR stereo playback output and 113 dB SNR recording
input |
|
- SupremeFX Shielding
Technology |
|
- Supports up to
32-Bit/192kHz playback *2 |
|
Audio Feature
: |
|
- Optical S/PDIF out
port(s) at back panel |
|
- Sonic Radar
III |
|
- Sonic Studio III +
Sonic Studio Link |
USB
Ports |
3rd and 2nd Gen AMD
Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
:
|
|
4 x USB 3.2 Gen 1
port(s) (4 at back panel, ) |
|
AMD X570 chipset :
|
|
1 x USB 3.2 Gen 2 front
panel connector port(s) |
|
AMD X570 chipset :
|
|
4 x USB 3.2 Gen 2
port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) |
|
AMD X570 chipset :
|
|
2 x USB 3.2 Gen 1
port(s) (2 at mid-board) |
|
AMD X570 chipset :
|
|
4 x USB 2.0 port(s) (4
at mid-board) |
ROG Exclusive
Features |
ROG Exclusive
Software |
|
- RAMCache
III |
|
-
CPU-Z |
|
- GameFirst
V |
|
- Sonic Studio III +
Sonic Studio Link |
|
- Sonic Radar
III |
|
-
Overwolf |
Special
Features |
5-Way Optimization
by Dual Intelligent Processors 5 |
|
- Whole system
optimization with a single click! 5-Way Optimization tuning key perfectly
consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together,
providing better CPU performance, efficient power saving, precise digital
power control, whole system cooling and even tailor your own app
usages. |
|
TPU |
|
- Auto Tuning, TurboV,
GPU Boost |
|
Gamer's
Guardian: |
|
- DRAM Overcurrent
Protection |
|
- Stainless Steel Back
I/O |
|
- Highly Durable
Components |
|
- DIGI+
VRM |
|
-
SafeSlot |
|
- ESD Guards on LAN,
Audio,and USB ports |
|
ASUS EPU
: |
|
- EPU
|
|
AURA
: |
|
- Aura Lighting
Control |
|
- Addressable Gen 2
Header |
|
ASUS Exclusive
Features : |
|
- USB BIOS
Flashback |
|
- AI Suite
3 |
|
- Ai Charger
|
|
- ASUS NODE : hardware
control interface |
|
- BIOS Flashback
Button |
|
ASUS EZ DIY
: |
|
- ASUS CrashFree BIOS 3
|
|
- ASUS EZ Flash 3
|
|
ASUS Q-Design
: |
|
- ASUS Q-LED (CPU,
DRAM, VGA, Boot Device LED) |
|
- ASUS
Q-Slot |
|
- ASUS Q-DIMM
|
|
Gaming Aesthetics
: |
|
- AURA-RGB
Lighting |
Back I/O
Ports |
1 x
DisplayPort |
|
1 x
HDMI |
|
5 x USB 3.1 Gen 1
Type-A |
|
8 x USB 2.0
|
|
1 x Optical S/PDIF
out |
|
5 x Audio
jack(s) |
|
1 x USB BIOS Flashback
Button(s) |
|
4 x USB 3.2 Gen 1 (up
to 5Gbps) ports |
|
3 x USB 3.2 Gen 2 (up
to 10Gbps) ports (Type-A) |
|
1 x USB 3.2 Gen 2 (up
to 10Gbps) ports (Type-C) |
|
Anti-surge LAN (RJ45)
port |
Internal I/O
Ports |
1 x
PCH_FAN |
|
1 x AAFP
connector |
|
2 x Aura RGB Strip
Header(s) |
|
2 x Addressable Gen 2
header(s) |
|
2 x USB 2.0
connector(s) support(s) additional 4 USB 2.0 port(s) |
|
2 x M.2 Socket 3 with M
key, type 2242/2260/2280/22110 storage devices
support |
|
1 x SPI TPM
header |
|
8 x SATA 6Gb/s
connector(s) |
|
1 x CPU Fan
connector(s) |
|
1 x CPU OPT Fan
connector(s) |
|
2 x Chassis Fan
connector(s) |
|
1 x AIO_PUMP connector
|
|
1 x W_PUMP+ connector
|
|
1 x 24-pin EATX Power
connector(s) |
|
1 x 8-pin ATX 12V Power
connector(s) |
|
1 x 4-pin ATX 12V Power
connector(s) |
|
1 x Front panel audio
connector(s) (AAFP) |
|
1 x Thermal sensor
connector(s) |
|
1 x Clear CMOS
jumper(s) |
|
1 x Node
Connector(s) |
|
1 x System panel
connector |
|
1 x T_Sensor
Connector |
|
1 x M.2 Fan
Header |
|
1 x USB 3.2 Gen 2 (up
to 10Gbps) connector |
|
1 x USB 3.2 Gen 1 (up
to 5Gbps) connector support additional 2 USB ports |
Accessories |
User's
manual |
|
4 x SATA 6Gb/s
cable(s) |
|
1 x M.2 Screw
Package |
|
1 x Supporting
DVD |
|
1 x Strix door
hanger |
|
1 x ROG Strix
stickers |
|
1 x Cable ties
pack(s) |
|
1 x Extension Cable for
RGB strips (80 cm) |
|
1 x Extension cable for
Addressable LED |
|
1 x Thermistor
cable(s) |
|
1 x ROG Thank you
card |
BIOS |
256 Mb Flash ROM, UEFI
AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. |
Manageability |
WOL,
PXE |
Support
Disc |
Overwolf |
|
Anti-virus software
(OEM version) |
|
WinRAR |
Operating
System |
Windows 10
64-bit |
Form
Factor |
ATX Form Factor
|
|
12 inch x 9.6 inch (
30.5 cm x 24.4 cm ) |
Note |
*1 PCIeX16_3 slot
shares bandwidth with PCIeX1_2. |
|
*2 Due to limitations
in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel
audio. |
