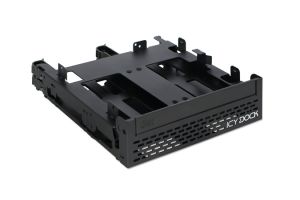

For computer cases that has limited 5.25 drive bay available,
ICY DOCK FLEX-FIT Quinto MB344SPO creates flexibility for users who wish
to install ODD and multiple 2.5 drives within an optical disk drive
bay of their computer case. The FLEX-FIT MB344SPO mounting bracket
supports up to 4x 2.5 HDDs or SSDs and a slim or ultra slim optical
drive in a single external 5.25 ODD drive bay (DVD bay). For drive
installation, the FLEX-FIT MB344SPO 2.5 drive caddies are equipped with
unique built-in screws, which offer tool-less drive installation, and
provide the ability for swapping the drives without removing the entire
MB344SPO bracket. Also, the open frame full-metal chassis with sturdy
ABS plastic caddies keeps your drives safe and cool. With an additional
bonus, it comes with a well finished metal front faceplate that blends
in to most system for a clean look. For ODD accommodation, the slim
optical disk drive (ODD) bay can fit either a slim (12.7mm) or
ultra-slim (9.5mm) optical drive, or any device in Slim / Ultra-Slim ODD
form-factor. It is a simple device but can be create a lot of
convenience for those who are in need!
|
|
Maximize Space Efficiency
|
|
 |
|
The
FLEX-FIT Quinto MB344SPO is designed to unleash the full potential of
the external 5.25 ODD drive bay. By combining a slim/ultra-slim optical
drive bay and 4x 2.5 data drives into a single 5.25 bay, that allows
more advanced usage for small-form-factor and HTPC style systems,
without compromising on storage or expandability.
|
|
Multifunctional Detachable ODD Faceplate
|
 |
The MB344SPO comes with a multifunctional detachable ODD bay
faceplate for the ODD slot. Multifunctional ODD bay faceplate can be
used to prevent dust from getting into your system when a slim or ultra
slim ODD is not installed. The faceplate can be easily hidden and stored
inside of bracket with a specially designed parking spot for the
faceplate.
|
 |
To install a slim ODD (12.7mm height), simply insert your slim
ODD into the FLEX-FIT Quinto and secure the device with included screws.
The Multifunctional ODD bay faceplate can also be used as an spacer
when a thinner ultra slim ODD (9.5mm height) is installed.
|
|
|
|
|
 |
The MB344SPO 2.5 drive caddies use built-in screw that grip
the drive, without the need for any tools. This allows for drives to be
swapped quickly and easily, without having to remove any screws.
|
|
 |
 |
When additional security is required, the optional screw holes can be used to further secure drives.
|
 |
Drive caddies can be removed and re-inserted into MB344SPO
without tools, thanks to the single-latch mechanism. To remove the drive
caddy, simply depress the latch to pull out the drive caddy. This
process can be done with just two fingers. Installation is even faster,
simply insert the tray into the bracket and it snaps in place.
|
|
Built for Security and Protection
|
 |
The MB344SPO uses a rugged full-metal outer casing, to protect
against bumps and ensure the enclosure lasts through many insertion /
removal cycles. The open frame metal housing aids in heat dissipation
and maximizes airflow, keeping drives running cool. To further improve
cooling, ventilation holes are located on the front and sides of the
bracket to create proper air dynamics.
|
|
 |
Anti-vibration rubber stoppers are placed inside the bracket,
which grips the drives and protects the drives from vibration damage.
Mechanical hard drives cause a lot of vibration, which can cause
excessive noise and potentially lead to data corruption. The vibration
dampeners found in MB344SPO absorbs the vibration and prevents this
detrimental energy from reaching back to the hard drive.
|
|
|
Go further with ToughArmor ODD products
|
|
 |
The slim ODD bay on MB344SPO can be used for much more than
just optical readers. Users who do not require an optical drive can use
that slot for any device that installs into a 9.5mm or 12.7mm optical
drive bay. For example, users who need more storage capacity can use the
ICY DOCK ToughArmor MB411SPO-B for installing an extra 2.5 HDD/SSD,
which fits into the slim ODD bay of MB344SPO. This is a perfect
combination for people who needs extra drive storage space and/or
requires hot swap of their drives. People who might value this function
are video / image editors or computer repair shop / technicians.
|
|
|
Key Features
|
|
* Only require a single 5.25 ODD drive bay space
* Supports up to 4x 2.5 HDD/SSD with 5mm, 7mm, and 9.5mm height
* Supports 1x Slim ODD (12.7mm height) or 1x Ultra-Slim ODD (9.5mm height)
* Unique built-in screw design with 2.5 drive caddies offers tool-less drive installation
* Patent-pending proprietary single-latch mechanism for easy drive installation and removal
* Unique multifunctional detachable ODD bay faceplate for ODD slot
* 2.5 drive caddy has the optional bottom mounted screw holes for increased stability
* Rugged open frame full-metal housing with sturdy ABS drive caddies
* Anti-vibration rubber stopper protects the drives from vibration damage
* Drive guiding rails to assist with easy and smooth drive insertion and removal
* 2.5 drives are rear-mounted for easy cable installation and management
| |
